Description
Details
8MP 4K video surveillance is now available with HD security cameras over coax and no longer strictly for IP camera systems. The new 4K 8MP line of HDCVI cameras allows for the most advanced security cameras without having to change cabling if you have existing coax cable. This 4K Dome Camera works with good quality RG59U coax cabling from a roll that is 20awg copper wire. Note that low-cost siamese wire that is pre-made thin wire will not work with 4K HDCVI Cameras. A compatible 4K HDCVI DVR is necessary to decode the video stream and the camera provides up to 15fps at 4K depending on the recorder's specifications.

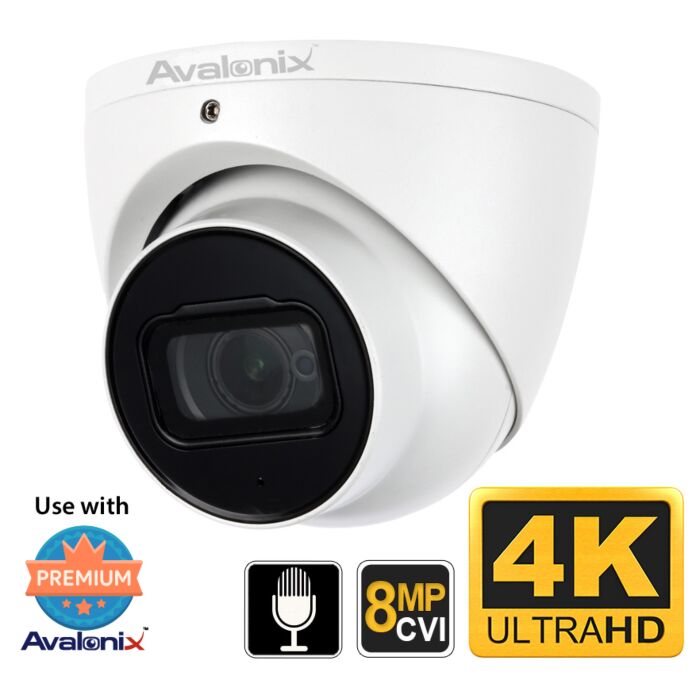

This Eyeball Dome Camera streams video at 4K resolution. Its 3.6mm fixed lens produces a 87 degree angle of view that allows for recognizing a face up to 50ft away, like the example found in our security camera guide. The high definition 4K video recording provides substantially better clarity than 2K 4MP security cameras, allowing the use of digital zoom to magnify recorded or live video during the day. This security camera features Starlight technology that allows the camera's sensor to actively adjust its digital shutter speed for the camera to perceive and see color in low light conditions, providing color night vision. In darkness the camera will switch to black & white night vision mode assisted by its on-board Super IR LEDs.
The camera also supports true Wide Dynamic Range (WDR) to decrease glare from uneven lighting between the foreground and background. The camera has two Super IR LEDs for infrared night vision up to 164ft for viewing at night. Remember facial detail is up to 50ft in adequate light. With a weatherproof rating of IP67 and metal design, this surveillance camera can operate in almost all scenarios.
Features
- 8MP HDCVI Dome Camera
- Starlight technology for color video in low light
- 4K 15fps video
- 2 SuperIR LEDs provide up to 164ft night vision
- Smart IR technology to minimize IR glare
- 3.6mm fixed lens provides 87° angle of view
- Built-in microphone for 30ft radius audio pick-up
- RCA Audio input
- IP67 weatherproof rating
- Metal construction
- Wall, ceiling, pole mountable
- 12V DC 1A power input required
- One BNC video out
- HDCVI or Analog CVBS Switchable video output from OSD (requires compatible DVR)
- 4K Security DVR that is HDCVI compatible is required for use
What’s Included?
- (1) 4K 8MP Eyeball Dome Camera, HDCVI
4K HDCVI Camera Pigtail
Specifications
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 8 MP |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Frame Rate | 15fps 8MP, 20fps 6MP, 25fps 4MP / 1080P / 720P |
| Shutter Speed | 1/3s - 1/100,000s |
| Lens | 3.6mm Fixed Lens |
| Angle of View | 87° |
| Distance to Detect* | 341ft |
| Distance to Recognize* | 70ft |
| Distance to Identify* | 33ft |
| Minimum Illumination | 0.005 Lux, 0 Lux IR On |
| IR LEDs | 2 Super IR LED |
| IR Distance | 164ft max |
| IR Control | Auto / Manual |
| Day/ Night | Auto (ICR) / Manual |
| Backlight Compensation | BLC / HLC / WDR 120dB |
| White Balance | Auto, Manual |
| Noise Reduction | 2D/3D |
| Smart IR | Auto, Manual |
| Video Connector | 1 BNC |
| Video Signal | HDCVI, CVBS Switchable via OSD |
| Audio Input | 1 channel-in for external mic |
| Microphone | Built-in |
| OSD | Via 4K HDCVI DVR |
| Operating Temperature | -22°F to +140°F |
| Weather Resistance | IP67 |
| Construction | Aluminum |
| Dimensions | 4.17" x 3.9" (diameter x height) |
| Weight | 1.4lbs |
| Power | 12VDC 8W |
| Certifications | UL, FCC, CE |
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
More
More
| Return Policy | 30 Days Return Policy |
|---|---|
| Signal Type | HDCVI |
| Camera Resolution | 4K 8MP |
| Image Sensor | 1/1.8" 8MP CMOS |
| Night Vision | 164ft |
| Lens | 3.6mm |
| Optical Zoom | No |
| Angle of View | 87° |
| Wide Dynamic Range (WDR) | WDR 120db |
| Microphone | Built-in |
| Pan Tilt Zoom | No |
| Video Analytics | No |
| Important Features | Requires 4K HDCVI DVR for use |
| SD Card Slot | No |
| Power Input | 12V DC |
| Operating Temperature | -22°F to +140°F |
| Dimensions | 4.17" x 3.9" (diameter x height) |
| Weight | 1.4 lbs |
| Weather Proof | Yes, IP67 |
| Camera Color | White |
| Video Encoding | Analog, H.264, H.265 |
| Warranty | 1 Year |
Reviews
Customer Reviews
- Did what I wanted Review by Ozman
Good camera for the price. I got 7fps out of this 4K camera.i wasn’t aware that very few DVR recorders can do any higher fps with coax cameras. While I would have preferred more I can’t complain as it was about a hundred dollars cheaper than a 4K ip camera. (Posted on 6/20/19)Value Quality Price
Product Questions
You need to log in to ask a question.
Total 1 question(s)
Is the mic internal or do you need to add one?
Question by: Don Ellis on: 2019-05-31
This HDCVI 4K camera has a built-in mic, and also has the option to override that mic with its audio line-in connection. Please note you do need a 4K capable HDCVI DVR from CCTV Camera World to use this camera.
Answer by: Tech Support on: 2019-06-03
