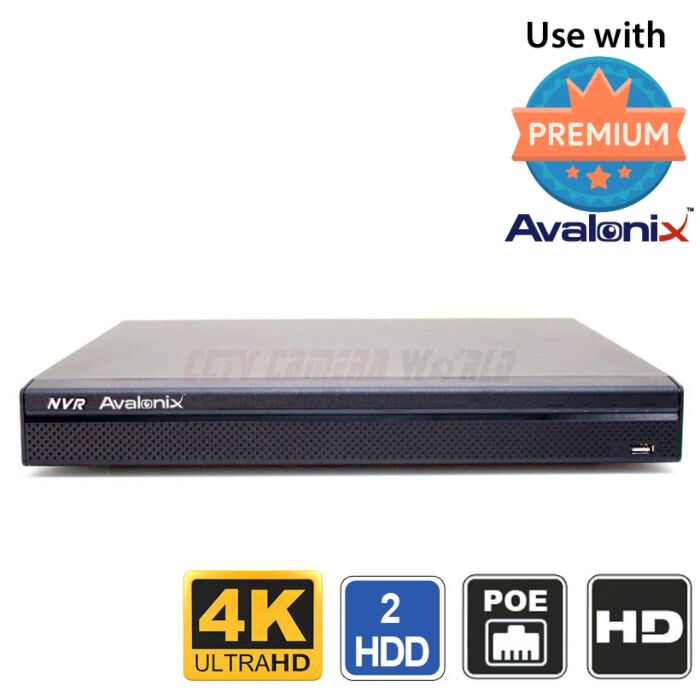

8 Camera 4K NVR with PoE

SKU: NVR408P4K

Write a Review

Availability: In stock

Regular Price: $549.99

On Sale: $359.99

Please select the size of the hard drive you would like installed inside your recorder.

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

Ultra HD 8 Channel NVR with built-in PoE switch that allows for true plug-n-play connection and configuration of our IP security cameras. You can use any of our IP Cameras up to 4K or 8MP in resolution with this NVR. 4K video is the best resolution possible for video cameras today; it provides detail that is four times that of 1080P. If you want the best resolution the security camera industry has to offer, then choose our 4K security cameras and this NVR recorder for a 8 security camera system. You can also use the following resolution cameras with this unit for Real Time recording:

The built-in PoE+ switch allows for PoE connections using a single network cable to transmit video, power, and data between the camera and this NVR. All you have to do is install your camera and run one cable to the back of the NVR, plugging the cable in to one of the eight PoE ports. Then hit remote device search, and your camera will be displayed. This video recorder will start recording that camera. Repeat this simple process of adding IP cameras to your NVR for each camera.

This 4K Resolution 8 Camera NVR with PoE is aimed for use with the latest IP cameras we offer, all the way up to 8MP resolution. It provides real time video recording using the latest H.264 and H.265 video algorithms. Inside this professional NVR there are 2 SATA ports, meaning you can have up to 2 hard drives; maximum capacity per drive is 6TB. This comes in a slim and sleek design that takes very little room, making it convenient for placement on a shelf.

It is powered by a powerful dual-core processor and a embedded Linux operating system that stays virus free. The user interface is easy to use using the included mouse, making it simple to connect your cameras, set recording schedules, and motion detection recording. Video backups are easy to do. They can be done locally at the NVR using a USB drive or external USB DVD burner. You can even download video from the unit over the network or internet using the included FREE VMS software for Windows and Mac computers.

This 8 channel PoE NVR comes with FREE Lifetime Technical Support by our expert staff. All the IP cameras we sell at CCTV Camera World are compatible with our NVR recorders. If you are looking for compatibility with cameras purchased elsewhere, please be sure to review our IP camera compatibility list.

Features:

  • 8 Channel NVR with PoE
  • H.265 & H.264 Video Encoding
  • H.265 encoding provides up to 50% savings in bandwidth when used with a H.265 IP camera
  • 8MP resolution cameras required for recording in 4K
  • Real Time Viewing and Recording
  • Selectable recording resolutions for each camera
  • Total 200Mbps recording bit rate
  • Supports 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P resolution cameras
  • Up to 8 Channel Grid Display Via HDMI
    • 2 Channels at 4K
    • 4 Channels at 4MP
    • 8 Channels at 1080P
  • 8 Plug & Play PoE+ Ports - Total 80W
  • 8 Channel recording of audio over IP camera streams
  • Notification of motion alerts, alarm alerts, or video loss to mobile App via Push Alerts or Email Alerts
  • Multiple recording methods: continuous, manual, motion activated or schedule based
  • Intelligent video analytics when used with cameras with Smart Detection features:
    • Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map
  • FREE Remote Viewing Apps for
    • iPhone
    • iPad
    • Android Phones & Tablets
  • FREE PC and Mac Client Software for remote viewing via Windows or Mac computers
  • 3D PTZ Control: easy control/targeting of Avalonix PTZ cameras, and easy preset/tour setup from NVR
  • Allows for remote backups to a ftp, NAS, windows computer, or mirror to a second NVR
  • Easy video offload to PC, a USB drive or optional external USB DVD burner
  • 2 SATA HDD Capacity, Total 12TB
  • Allows up to 20 remote users to simultaneously view video
  • Dual Monitor Outputs: (1) VGA, (1) HDMI
  • Onvif 2.4 Compatible

What's Included?

Specifications

System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 8 channel
Audio Input8 channel over IP, camera dependent
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface1 HDMI, 1 VGA
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Display No Dewarp
Recording
CompressionH.265, H.264, H.264H, H.264B, MJPEG
Resolution8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Record Rate200 Mbps
Bit Rate 16kbps - 20Mbps Per Camera
Record Mode Manual, Schedule (Regular, Continuous), Alarm, Motion Detection, Tampering, Video Loss, Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4/8
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Drive, Network
Network
Ethernet 1 RJ-45 port (Gigabit Port)
PoE 8 PoE+ ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 2 SATA III ports, 6 TB each, Total 12TB
eSATA N/A
Auxiliary Interface
USB2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232N/A
RS485N/A
General
Power Supply AC 100-240V, 50/60 Hz
Power Consumption NVR: 9.6W (without HDD)
PoE: Max 25.5W per Port, 80W Total
Working Environment14°F - +131°F, 10% - 90% RH
Dimension (W×D×H)14.8" x 12.9" x 2.1"
Weight 6lbs (without HDD)
InstallationFlat table top / shelf
UL Listed Yes

More

More

Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Dual Core
Total Cameras Supported8
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported8
Number of PoE Inputs8
Number of Audio Inputs8 IP Streams
Encoding SupportedH.264, H.265
Encoding Support DetailH.265, H.264, H.264H, H.264B, MJPEG
Recording Resolutions8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
BNC Recording Frame RateNo
Total Incoming IP Bandwidth200 Mbps
Total IP Recording Bandwidth200 Mbps
Max Hard Drive Capacity2HDD, 12TB
RAID RedundancyNo
Hot Swap HDDNo
eSATA PortNone
USB Ports(1) USB 2.0, (1) USB 3.0
Video Outputs(1) HDMI, (1) VGA
Total PoE Power80 W
Power Input110-220V AC
RackmountableNo
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 19 question(s)

I'm ordering the NVR above, are these cameras compatible with this unit?

IPD401VP
IP3MPD36
IP2MPD13

Question by: edward monatgue on: 2016-09-12

Yes they are all compatible.

Answer by: Tech Support on: 2016-09-13

How many days of recording time can I store for one channel using a 4K camera for a system having 1 TB of storage? Beyond that, is it simply a matter of simple division for adding more cameras, and multiplication by adding more TB?

Question by: James Maccoun on: 2016-09-10

It takes 262.16GB to record one camera at 4K resolution at 7fps with medium compression quality for 24 hours continuously. Please use this estimation in your calculation. You will need to do the following to calculate how many TB of hard drive space you need:

Total HDD space needed for 4K cameras = [number of cameras] * [number of days of continuous recording at 4K] * [262.16GB]

Answer by: Tech Support on: 2016-09-12

I'm looking to get this NVR along with 5 Vandal Proof Dome 4MP IP Camera
SKU: IPD401VP. Other than a hard drive, cat5 cable and a monitor, is the anything else required for setup.

Question by: edward monatgue on: 2016-09-10

That is all that you need to setup a ip camera system. Please refer to the following article and video on how easy our poe ip camera systems are to connect and get configured:
https://www.cctvcameraworld.com/how-to-setup-ip-camera-system/
You can also find more videos and information about how remote viewing works for our systems here.

Answer by: Tech Support on: 2016-09-12

I’m installing this in a vacation home. The cameras will be set to record in the motion mode. Will I be able to remotely access the NVR and set the cameras to view in real time and switch back to motion record?

Question by: Edward Montague on: 2016-09-13

The NVR will always allow you to live view cameras while it is recording.

Answer by: Tech Support on: 2016-09-13

Looking to integrate this with some existing foscam/amcrest cameras at a residence. Verifying this will work with the existing cams that are ONVIF compatible.

Also I'm assuming the HDD utilizes SATAIII?

Question by: ThatOneGuy on: 2017-02-23

Amcrest cameras are ONVIF compatible with our NVRs, however foscam cameras are not but you should be able to fetch video using a url in rtsp mode. Yes SATA3 is supported, max of 6 TB supported.

Answer by: Tech Support on: 2017-02-28

Do any of your NVR support SSD hardrives and Raid mirror configuration inside the NVR without having to go to an external NAS.

Question by: Henry on: 2017-05-12

We have tested our NVRs with Samsung 840 Evo and 840 Pro SSD and they work fine. This unit does not offer RAID. We have some NVRs that offer software RAID. However, with SSD you really don't need the RAID function.

Answer by: Tech Support on: 2017-05-23

Will any sata hdd work with this unit?

Question by: richard pilant on: 2017-05-17

We recommend using WD purple hard drives.

Answer by: Tech Support on: 2017-05-23

What exterior enclosure do you recommend for NVR?

Question by: Todd Patrick on: 2017-06-11

A suitable enclosure depends on the size of the NVR. For our mini NVRs you can use this weather proof enclosure. However this NVR would not be compatible with the above mentioned enclsoure due to its size.

Answer by: Tech Support on: 2017-06-12

Can this be operated vertically, such that the dimensions are 14.8 × 10.9 × 2.3 inches (H*W*D)? It would be removable to allow for cable, USB port, and button access.

Question by: Todd Patrick on: 2017-06-13

Yes you can mount this 8 Channel NVR recorder vertically, as long as it is straight and not slanted. You have to worry about the hard drive inside. It has spinning platters. If it is slanted , it can cause undue stress on the drive. If you use a SSD then it would not matter, as the NVRs do not have any moving parts. Also, please note there are no buttons on this unit. The unit is usable with the wired USB optical, or you can use a 2.4ghz wireless mouse.

Answer by: Tech Support on: 2017-06-14

Hello, I currently have a 8 GW security cameras. 6 are GW-2040ip and 2 are GW-5050ip. Are these compatible with your NVR's?

Question by: Dan on: 2017-07-02

The specs for the camera you have state they are ONVIF compatible. Onvif implementation varies depending on how much time and investment the manufacturer has invested in to R&D to polish their ONVIF compatibility. Being Onvif compatible doesn't mean that you will be able to access all camera functions. It is common that you may get video from the camera, but no other function like motion detection or zoom lens control. You can find more information about how to connect IP cameras to our NVRs on our self help page under the IP Camera Help section . See section titled "Connecting ONVIF Cameras to our NVRs.'

Answer by: Tech Support on: 2017-07-06

Can the POE be turned off? I am running POE injectors

Question by: Mike on: 2017-07-19

The PoE is auto sensing as it 802.3af and 802.3at compliant. It negotiates power with another 802.3af and 802.3at device.

Answer by: Tech Support on: 2017-07-19

Can the PTZ function of the cameras attached to this unit be exercised remotely via the app on a phone or tablet?

Question by: charles schaefer on: 2017-08-18

Yes it can. Please watch videos on the first two rows here:

https://www.cctvcameraworld.com/demo

Answer by: Tech Support on: 2017-09-01

I'm interested in the 8 channel NVR. What is the minimum amount of storage I will need?

Question by: Roderick on: 2017-10-08

It depends on how many days of storage you need. Please provide the number of cameras, the resolution of cameras, and amount of days of storage you would like.

Answer by: Tech Support on: 2017-11-07

Does the NVR408P4K have software that has motion detection/ video analytics, line crossing, face detection, the ability to see what happened before the triggered event?

Question by: Daryl on: 2018-01-18

This NVR offers motion detection and Tripwire, Intrusion, Abandoned or missing object detection when used with IP cameras with video analytics that we sell.

Answer by: Tech Support on: 2018-01-22

Will this NVR work with any PoE cameras? I have a couple of Lorex PoE cameras

Thanks,
Mike

Question by: Mike on: 2018-01-29

Our NVRs are compatible with most Lorex IP cameras. To be sure, please email our Tech Support Department here. There is an IP camera compatibility list that is mentioned in the product description for other brands.

Answer by: Tech Support on: 2018-02-02

Considering purchase of the NVR408P4K, but note that description states that "3D PTZ Control: easy control/targeting of Avalonix PTZ cameras, and easy preset/tour setup from NVR". I am not sure whether my chosen camera is an Avalonix compatible and will have all features. I do not mind controlling PTZ with keyboard arrows instead of joy sticki. Selected PTZ camera is 1080P PTZ IP Camera, 25X Zoom, Auto Tracking SKU: IPPTZ25AT. I will also run a 4K IP Camera Bullet SKU: IPC4K11.

Question by: Jim on: 2018-03-11

All of our PTZ and other cameras are Avalonix Brand, so they will work with our NVRs. The IPPTZ25AT Will work with this 4K 8 Channel NVR and allow for 3D targeting. The IPC4k11 camera will also work with this NVR.

Answer by: Tech Support on: 2018-03-11

Hello, SKU:NVR408P4K Is there privacy masking function?

Question by: Mark on: 2018-05-02

Yes there is. It is available with most IP cameras we sell and the NVR allows control of that from the NVR.

Answer by: Tech Support on: 2018-05-04

How many cameras can this show at one time via its HDMI output if all cameras are setup at 4k? My current NVR can only show 2 cameras at a time and Im trying to find a solution that will show all cameras on my TV at once.

Question by: Chris on: 2018-05-11

This 8 channel NVR supports up to two 4K cameras in main stream mode during video playback. During live view mode, the cameras are displayed using their substream, supporting a total of 8 cameras. You can read more about over decode ability of NVRs here. To display 4 channels of 4K video in playback mode, this 16 channel NVR is the smallest NVR available.

Answer by: Tech Support on: 2018-05-15

I'd like to replace 2 existing SD analog cameras at the front of our neighborhood with 2 HD IP bullet cameras. I would then put a cheap 8 port PoE switch to put into the existing enclosure at the front. Then using a Ubiquiti Point to Point 5GHz solution, send that to a home and place the NVR indoors. Is this type of config possible with this?

Question by: Rob C on: 2018-05-26

Yes it is mentioned in the blog article we have. Our NVR are compatible with our ip cameras.

Answer by: Tech Support on: 2018-05-29
