8 Channel Passive Video Balun Transceiver

SKU: 8PR1U

Write a Review

Availability: In stock

$61.99
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 8 Channel Passive Balun Transceiver can function as a transmitter or receiver for eight video signals up to 1500ft over CAT5 or other twisted pair cabling. It is compatible with both active video balun transmitters and passive video baluns. When combined with an active transmitter, you can expect video transmission from up to 1500ft away. With a passive video balun up to 1000ft transmission is possible. There are three different configurations that this balun transceiver can be used in:

  1. You can have passive video baluns acting as video transmitters from each camera and send up to 8x single camera video camera signals to this unit acting as the receiver. The BNC out from this unit will plug in to a DVR.
  2. You can run video longer distances by connecting two of these balun receivers in series using the RJ45 connections on them, and then terminate the video to BNC outputs on the balun receiver located closest to the DVR.
  3. Using one of these 8 camera units in-series with a 16 channel passive balun transceiver.

This 8 port balun transceiver is rackmountable and is a must have for long distance security camera video transmission in installations done in industrial locations such as factories where the 800ft limitation of analog coax cable is not going to cut it.

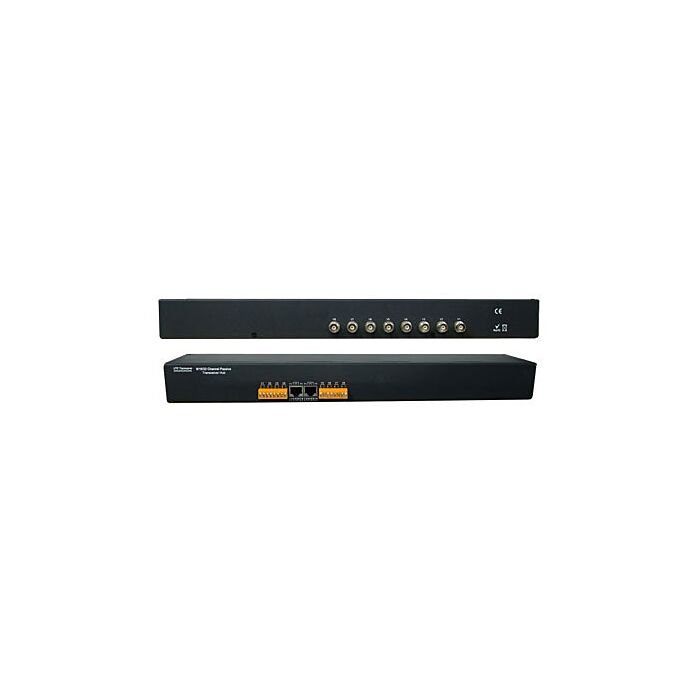

On one side of the transceiver are screw terminal inputs and RJ45 ports for video input/output, and on the other side are 8x BNC outputs for terminating the video to a BNC to connect to a DVR. Be sure to purchase some BNC patch cables for your install!

Specifications

Transceiver Type8 Channel Passive Balun Transmitter / Receiver
VideoFrequency Response Range: DC-6MHz;  Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type24AWG UTP CAT5 or higher
ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
Power Input None required
Dimensions

17" x 3.3" x 1.7"

Weight3 lbs

More

More

Return Policy30 Days Return Policy
Warranty1 Year
