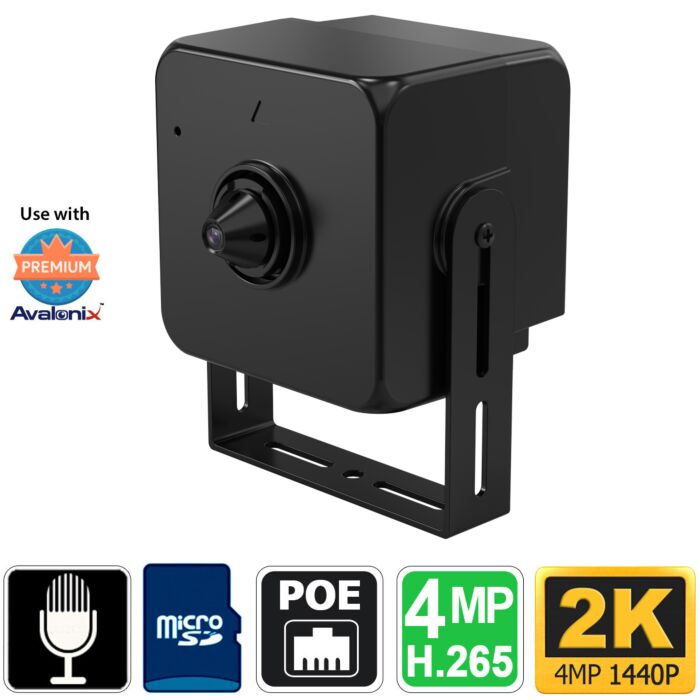

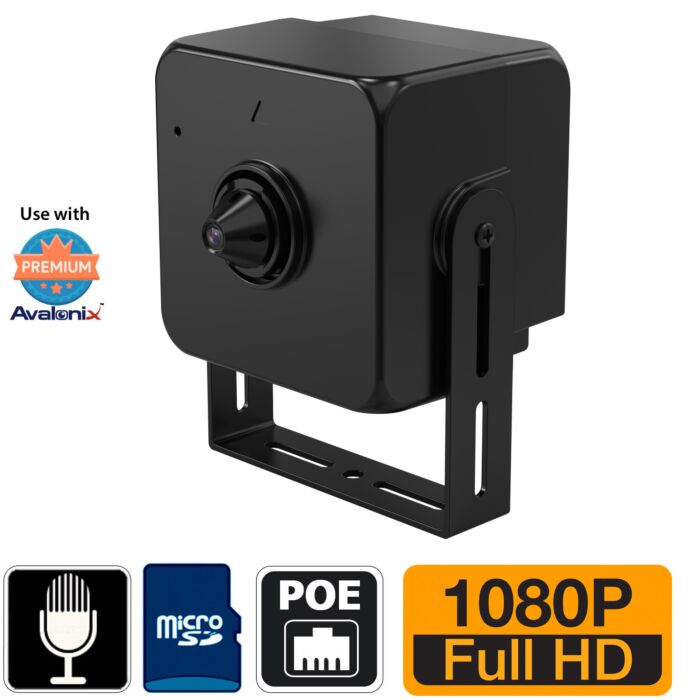

Pinhole Spy Camera, Mini PoE Camera with Microphone
- Mini Camera with Pinhole lens
- 100° View
- WDR
- For Indoor Use
- PoE or 12VDC
This Mini Pinhole Lens Hidden Security Camera is a compact mini PoE camera that’s perfect for discreet video surveillance. It’s a true pinhole spy camera with a tiny form factor, allowing you to hide it in everyday objects like an electrical junction box, ceiling tile, or behind drywall. As a mini IP camera, it only needs a small hole to see through, making it one of the most flexible hidden pinhole cameras available. Its 100° angle of view delivers excellent coverage in tight spaces.
For non-covert applicaitons, the camera has a built-in microphone on the front face which can capture audio. If you're looking for a small size camera for your home or business, there is no other IP camera that offers PoE connectivity and a 2K video resolution in such a small package.
Whether you're upgrading an existing system or starting from scratch, this is the small PoE camera you want when space and stealth matter.

High-Quality 2K Video
This little camera packs a punch with its 4MP CMOS sensor, capturing sharp, clear video at 2K resolution. Whether you're keeping an eye on entry points, cash registers, or any sensitive spots, you’ll get detailed footage – even from up to 40 feet away, thanks to its impressive DORI distance.
Starlight Low-Light Performance
Don’t worry about losing visibility when the lights go down. The built-in Starlight technology keeps recording sharp, colorful video even in low light .
WDR for Better Image Balance
Ever had your footage ruined by glare or shadows? This camera’s Wide Dynamic Range (WDR) makes it great for spaces with mixed lighting like entrances or windowed rooms. The WDR feature balances out bright and dark areas in the picture.
Built-In Microphone
It’s not just about the video – this mini spy camera also has a built-in microphone, so you can hear what’s happening too. Capturing audio along with video gives you a more complete picture of what’s going on.
Audio Detection for Smart Recording
This mini PoE camera also supports audio-based detection. You can configure it to start recording when sound is detected, either from the built-in microphone or an external one. This is great for monitoring specific audio events like a dog barking or a noisy neighbor. Depending on background noise, the camera can pick up sound from up to 30 feet away. For a real-world example, check out our self-help guide that shows how to use Avalonix Premium Series Cameras with an Avalonix NVR to document a dog barking problem.
Additional Input Options
Along with the built-in microphone, it also has audio line-in and line-out connections, giving you the flexibility to connect external audio devices. Its great for use with out two-way audio kit for security cameras. The camera also has an input/output connection for a hardwired alarm sensor. These features make it a versatile choice whether you're building a complete system or simply need a single small PoE camera that can record audio and video covertly.
Versatile Recording Options

You can record video internally on the camera using a microSD memory for short duration recordings using either motion detection or continuous video recording. If you're looking for a simple plug-and-play setup consider pairing this camera with an Avalonix Premium Series PoE NVR. You can combine this camera with other security cameras to make a complete security camera system.
Easy, No-Fuss Installation
This camera runs on Power over Ethernet (PoE) , making installation a breeze. Since it’s self-contained mini PoE camera, you don’t have to worry about fitting an extra PoE adapter into tight spaces. It’s the ideal choice when you need something compact yet powerful. Simply connect it to a computer network cable, and run the cable back to a compatible NVR such as our 4 channel NVR or 8 channel NVR that send video and power over a single cable.
Looking for a compact solution that’s easy to install and hide? This camera is the ideal pinhole spy camera for home or business surveillance. As a powerful mini IP camera with PoE and 2K resolution, it checks all the boxes for anyone who needs a mini spy camera or hidden pinhole camera that blends into its surroundings.
Specifications
Image Sensor | 1/2.7" 4MP CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 2688(H) x 1520(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/3s - 1/100,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.01 lux@F2.0 (Color), 0.001 lux@F2.0 (B/W) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Aperture | F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View | Horizontal: 100°; Vertical: 57°; Diagonal: 114° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.8 m (2.62 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm | 200 ft | 80 ft | 40 ft | 20 ft | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265, H.264, MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4MP (2688x1520), 3.6MP (2560x1440), 1080P (1920x1080), 720P (1280x720), VGA (640x480), CIF (352x288) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | 4MP @ 20 fps, 2K @ 30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | H.265/H.264: 3K - 6144Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Color/BW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode | BLC, HLC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto, Natural, Street Lamp, Outdoor/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip | 0°, 90°, 180°, 270° (Supports 90°/270° with 1080p resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Off, On | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Off, On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in Microphone | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Connections | 1x Audio Line-in (RCA); 1x Audio Line-out (RCA) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a/G.711Mu/G.726 up to 8KHz; PCM/AAC up to 16KHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, RTMP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF Profile S / G / T, CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method | Unicast / Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access | 6 Users (Total 24 mpbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage | NVR, MicroSD, NAS (Network Attached Storage), Local PC for instant recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer | Chrome, Firefox, Edge. Windows plugin required for video playback from microSD. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12V DC, PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Max 3.5W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -40°F to +140°F Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weather Protection | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 6.75 × 5.34 × 4.82 cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 6 oz |
Camera Type | IP |
---|---|
Image Sensor | 1/2.7" CMOS Sensor |
Video Encoding | H.265/H.264 |
Resolution | 4MP |
Lens | 2.8mm |
Angle of View | 100° |
Optical Zoom | No |
Wide Dynamic Range (WDR) | WDR |
IR Night Vision | None |
Audio | Audio Line-in & Built-in Mic |
SD Card Slot | Yes |
Video Analytics | No |
Pan Tilt Zoom | No |
Power Input | 12V DC / PoE |
Operating Temperature | -40°F to +140°F |
Dimensions | 6.75 × 5.34 × 4.82 cm |
Weather Proof | Indoor Use |
Camera Color | Black |
Warranty | 1 Year |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
