Mount Adapter for Turret Cameras
$38.00
In stock
SKU
JB109
- Metal Mounting Plate
- For connecting select Avalonix Dome cameras
- Connect to wall mount JB305W
- Connect to ceiling mount JB220

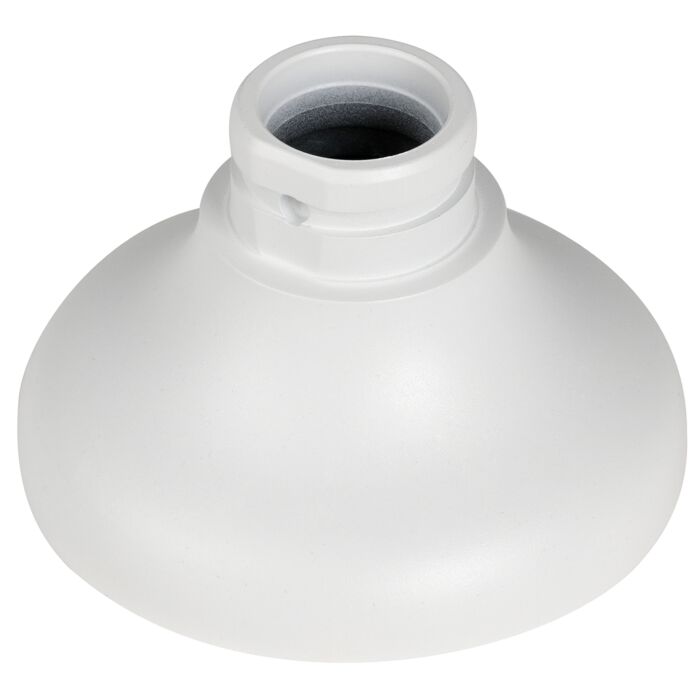

Aluminum mount adapter for use with select model dome security cameras that we carry. The JB109 is designed for professional installations where a compatible dome camera needs to be suspended from the wall using the JB305W arm mount, or from the ceiling using our JB220 pendant pole.
This adapter provides a clean transition between the mounting pipe and the dome camera. The camera's pigtail can be routed through the adapter and mounting pipe to help conceal the wiring and create a cleaner, more tamper-resistant installation. It is made from aluminum alloy and is available in white only.
Please refer to our camera description pages for compatibility information with this mount adapter. This adapter is intended for select compatible cameras only.
If you would like to use a camera you did not purchase from us, it would be at your own risk.
What's included?
- (1) JB109 mount adapter
| Material | Aluminum alloy |
| Dimensions | 5.28 x 5.28 x 3.29 inches (134.1 x 134.1 x 83.5mm) |
| Pipe Thread | 1.84 inch diameter (46.8mm) |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Operating Humidity | <90% RH |
| Load Bearing | 2.2 lb (1.0kg) |
| Weight | 0.66 lb (0.3kg) |
| Color | White |
| Brand | Avalonix |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
