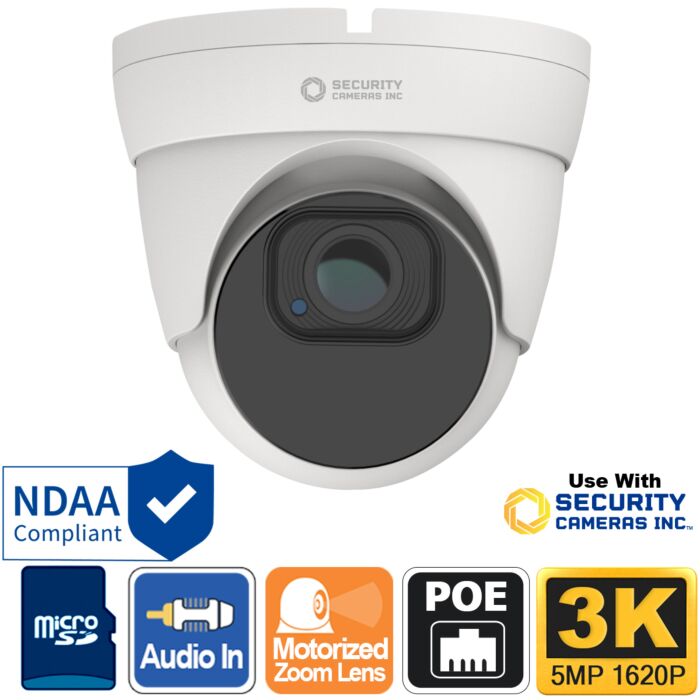

5MP 3K PoE Motorized Zoom Turret Camera, Audio-in, AI Video
$149.99
In stock
SKU
SC5MTVF
- 4X Motorized Zoom Lens
- 3K Video - 5MP 30fps
- 34 to 107° View
- 148ft Night Vision
- Audio in/out
- WDR
- MicroSD
- License Plate Detection
- AI Video Analytics
- NDAA Compliant
This 5MP 3K PoE Motorized Zoom Turret Camera is a powerful and smart addition to your security system. Designed to ensure a high level of protection, this camera is packed with advanced features that provide superior surveillance in a variety of environments.
At the core of this turret camera is a 5MP video sensor, which captures sharp and crystal-clear 3K high-definition images. The camera's motorized 2.8–12mm lens adjusts to provide a flexible viewing angle ranging from a wide 107° to a narrow 34°. With support for either H.265 or H.264 video codecs and the benefit of H.265+ providing up to 75% bandwidth savings over H.264, your security footage is efficiently compressed for storage and live viewing without compromising on quality.
The turret camera delivers up to 148 feet of infrared night vision, ensuring clear visibility in black-and-white mode even in pitch darkness. The Smart IR technology effectively reduces IR glare. With WDR (Wide Dynamic Range) for glare compensation and 3D Noise Reduction for cleaner images, this camera ensures high-quality video. The video-based motion detection comes with Region of Interest settings for customized surveillance coverage.
The camera also offers a rich selection of AI Smart Video analytics, also known as advanced detection features. These include Face Detection, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, and Rare Sound Detection. These capabilities ensure real-time alerts and quick response times to potential security threats.
It features an Audio Input and Output port to hook up an external microphone or speaker for optional sound recording or two-way audio conversation and comes with a built-in web server accessible over the LAN. The MicroSD slot supports up to 256GB of on-board storage (MicroSD cards sold separately), giving you the option to store a backup or use the camera as a standalone recording device. It's also compliant with ONVIF S, G, and T profiles, ensuring compatibility with different devices and software that can connect to ONVIF cameras. Note AI detection is only available when used with a compatible Security Cameras Inc NVR.
Designed to withstand the elements, this camera has an IP67 weather resistance rating, making it suitable for outdoor use. It can be powered by either 12VDC or PoE and is also Extended PoE (ePoE) capable with Security Cameras Inc NVRs for longer distances than plain PoE.
This 5MP 3K PoE Motorized Zoom Turret Camera allows for either ceiling or wall mounting, and there are optional mounts available, offering flexibility in installation. Upgrade your security system with this smart and robust camera, the ideal solution for comprehensive and reliable surveillance.
Features:
- 5MP Progressive Scan CMOS Image Sensor
- H.265 and H.264 Support
- Triple Stream Video Encoding: Mainstream, Substream, Mobilestream
- H.265+ provides up to 75% bandwidth savings over H.264
- Selectable recording resolution:
- 30 fps at 5MP (2880x1620)
- 30 fps at 4MP (2592x1520)
- 30 fps at 1080P (1920x1080)
- Motorized 2.8-12mm Lens
- 107° - 34° Angle View
- Up to 148ft of infrared night vision
- Smart IR for reducing IR glare
- Image flip/mirror features to rotate or flip video
- WDR for glare compensation
- IR Cut Filter (ICR), 3D Noise Reduction
- Video based motion detection with Region of Interest settings
- AI Smart Video Analytics provide:
- Face Detection
- Human & Vehicle Detection
- Perimeter Intrusion Detection
- Line Crossing Detection
- Cross Counting
- Stationary Object Detection
- Heat Map
- Crowd Density Detection
- Queue Length Detection
- License Plate Detection
- Rare Sound Detection
- RCA Audio Input for optional add-on security camera microphone
- RCA Audio Output for optional two-way audio kit
- Built in Web Server accessible over LAN
- Plugin Free Web Interface accessible for live viewing on Edge,* Chrome, Firefox, Safari
- MicroSD Slot supports up to 256GB (microSD card sold separately)
- ONVIF S, G, T Support
- IP67 Weather Resistant for outdoor use
- Can be powered either by 12VDC or PoE
- Extended PoE (ePoE) capable with Security Cameras Inc NVR
- Ceiling mount design; optional wall mounts available
- Optional mounts available as pictured below
- NDAA compliant
What's included?
- (1) Camera
- (1) Weather Grommet for RJ45 Pigtail
Specifications:
| Model name | SC5MTVF |
| Design | |
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 5MP 2880(H)×1620(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON); B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.8(W) ~ 3.3(T) |
| Angular Field of View | Horizontal: 34 ~ 107°, Vertical: 19 ~ 55°, Diagonal: 38 ~ 134° |
| Min. Object Distance | 0.2m - INF(W), 1m - INF(T) |
| Lens Type | Motorized |
| Operational | |
| IR Viewable Length | Up to 148ft |
| Camera Title | On/Off |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Image/Schedule) |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | None |
| Audio | 1 input (RCA), 1 output (RCA) |
| Hardware Reset | Yes |
| Smart Feature | Face Detection（FD), Human & Vehicle Detection (PD & VD), Perimeter Intrusion Detection (PID), Line Crossing Detection (LCD), Cross Counting (CC), Stationary Object Detection (SOD), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPD), Rare Sound Detection (RSD) |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution |
Main Stream 30fps 5MP (2880x1620), 4MP (2592x1520), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720). Sub Stream 30fps 720P (1280x720), VGA (640x480), QVGA (320x240) Mobile Stream 30fps VGA (640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate Control Method | CBR/VBR |
| Streaming Capability | Triple-Stream (Main/Sub/Mobile) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Web browser | Plugin Free Viewing Using Edge,* Chrome, Firefox, Safari |
| Security | IP address filter; complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF (Profile S/G/T) |
| Max Users | 3 |
| Environmental | |
| Operating Conditions | -35°C to +60°C (-31°F to +140°F) / less than or equal to 95% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/PoE (IEEE802.3af) |
| Power Consumption (IR OFF) | 3W-4W |
| Power Consumption (IR ON) | 7W-9W |
| Mechanical | |
| Material | Metal |
| Dimensions (HxWxD) | 5.4" x 5.4" x 5" (136 x 136 x 127mm) |
| Weight | 1 lb 14oz |
*HTML5 browsers may limit features available in the web interface. IE mode in Edge on Windows with Plugin installation allows access to all the features available in the web interface.
| Brand | Security Cameras Inc |
|---|---|
| Return Policy | 30 Days Return Policy |
| Warranty | 1 Year |
