IP66 White Junction Box - Weather resistant aluminum junction box for select bullet and turret dome security cameras.
Pigtail Coverage - Helps conceal the camera pigtail and protect the connection area when properly installed.
Conduit Ready - G3/4 inch conduit thread cutout supports conduit-based wiring at the camera mount.
Wall Or Pole Mount Use - Can mount directly to a wall or connect to the compatible mini pole mount listed for this product.
Metal Camera Compatibility - Made for specific metal camera models with matching mounting holes.
Size And Load Rating - 4.88 inches diameter x 1.61 inches height with a 6.6 lb load rating.
Temperature Range - Rated for -40F to +140F operating temperature.
Compatibility Note - Check your camera description before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
PTZ Corner Mount - Outdoor corner mount bracket for select full size PTZ cameras.
Compatible Camera Types - Works with select analog, HDCVI, and IP based PTZ models with or without IR.
Not For Mini PTZ Cameras - This mount is not compatible with mini-size pan tilt zoom cameras.
Aluminum Construction - Aluminum bracket supports outdoor installations when mounted properly.
Load Rating - Supports up to 22 lbs, with 3.8 lb bracket weight.
Size Details - Dimensions are 9.6 x 6.7 x 5.5 inches.
Compatibility Note - Confirm your PTZ camera model and mounting pattern before purchase.
Step into the future of surveillance with our state-of-the-art HD analog security cameras, no longer limiting 2K resolution and above solely to IP cameras. Revolutionize your aging CCTV System with the capacity to transmit high-definition video over coaxial cables, ushering it into the contemporary era.

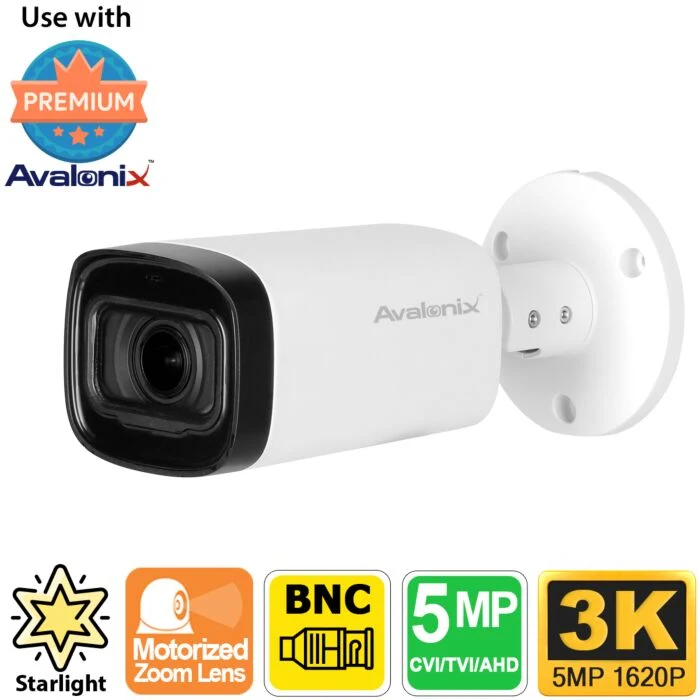

Introducing the Long Range Night Vision 3K Outdoor Bullet Camera equipped with a Motorized Lens, designed to capture stunningly sharp and clear footage at an impressive 3K resolution. Bid farewell to the era of grainy, low-quality security footage that limited your ability to discern details about potential intruders or vehicles in the vicinity.
Incorporating cutting-edge starlight video technology, this camera ensures exceptional performance even in low-light conditions, capturing vivid and detailed images when you need them most.
Featuring the advanced HDCVI technology, this camera empowers you to transmit 3K video seamlessly over the existing RG59 coaxial cable, the same utilized by older analog CCTV cameras. This 3K bullet camera demonstrates optimal performance when paired with RG59 coax cabling (also referred to as siamese RG59), whether from a roll or through our HD video baluns. When opting for video baluns, it’s crucial to ensure they are of the new HD variety and paired with solid copper CAT5e or CAT6 cable to maintain the integrity of the transmission.
Our HD analog cameras present a solution that eliminates the need for extensive rewiring, allowing you to capitalize on the existing cabling infrastructure. Embrace the clarity, detail, and advanced capabilities of modern surveillance without the complications, thanks to our innovative3K Outdoor Bullet Camera with Motorized Lens.
This 3K security camera bullet has one of the latest high resolution sensors in analog CCTV technology, providing a full 5MP resolution video that has over twice the detail of HD 1080P. Record up to real-time at 5MP resolution up to 25 frames-per-second or 4MP/1080P/720P at 30 frames-per-second when pairing this camera with a compatible HD DVR. This camera has a 2.7-12mm motorized zoom lens that can be adjusted from anywhere you have access to the DVR system for the best viewing angle and zoom. Using the DVR, mobile app, or PC software, you can alter the zoom of the camera lens from its widest 107° angle view to a zoomed in 34°.
This camera also has long range IR night vision. The built-in high-intensity IR LEDs provide up to 200 feet of night vision for the camera to see general detail at night or in complete darkness. The clear, 5MP video recording provides improved clarity when compared to 1080P cameras and allows for clear video when utilizing the digital zoom feature. With the 5MP resolution at an 85° angle, you can see a face up to 45 feet away during the day or100 feet when in full zoom set to a 34° angle.
What is a Motorized Varifocal Zoom Lens?
Motorized Varifocal Zoom Lens allows the user to adjust the lens from the DVR or mobile app to the perfect zoom level (angle of view). After the user has found the sweet spot for angle of view, a varifocal lens also allows for fine focus adjustment. This enables installers or home consumers to rely on their best judgment when installing a camera to find the best possible angle of view to capture potential intruders, or to keep an eye on a particular spot on the property.
This camera is a 4-in-1 analog security camera and can be used with either an older standard definition analog DVR using the CVBS signal, or with newer HD DVRs that support 5MP CVI, TVI, or AHD signal types. However, note the motorized zoom lens can only be controlled from an HD DVR, and the angle of view is narrower in CVBS mode.
Features
3K Resolution Analog Security Camera with Night Vision
Supports video at 5MP, 4MP, or 1080P resolutions selectable via the camera's internal OSD1
Up to 200ft of Night Vision2
Starlight Video Technology for color video in very low light3
Day/Night sensor technology switches the camera to black & white in complete darkness
Selectable resolution through OSD menu using a HD DVR
CVI: 5MP 25fps, 4MP 30fps or 1080P 30fps
TVI: 4MP 30fps
AHD: 4MP 30fps
CVBS: D1 or 960H at 30fps
IP67 weatherproof rating4
Metal construction
Wall, ceiling, pole mountable
12V DC Power Input
Switchable BNC video output (HDCVI or CVBS) using a compatible DVR or UTC
Requires DVR that accepts 5MP or higher resolution HDCVI signal
1. Requires compatible HD DVR to access OSD
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.005 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Not intended for submersion in water. Installation in a sheltered location recommended.
What’s Included?
(1) 3K Analog Bullet Camera with 200ft Night Vision and 4X Motorized Zoom
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
