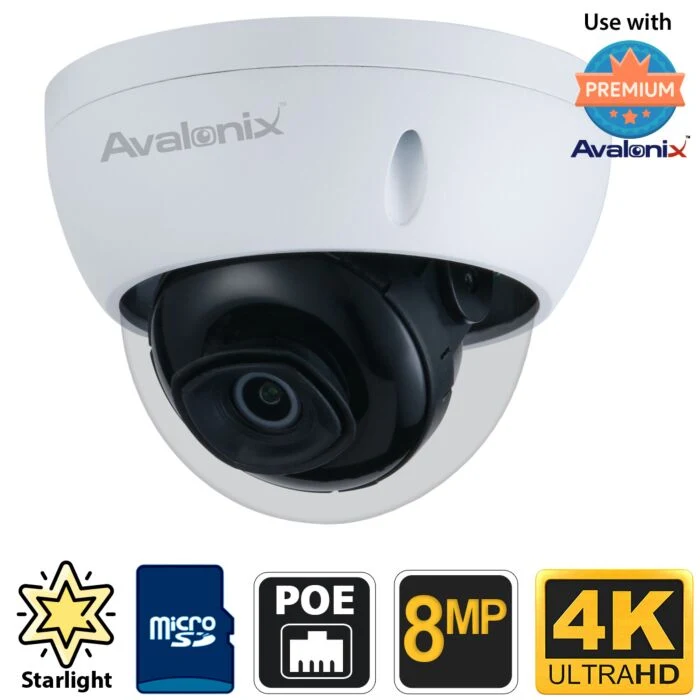

4K Vandal Resistant Dome - Avalonix outdoor PoE dome camera with an 8MP Starvis sensor, 4K video, and IK10 vandal resistance for exposed or lower-height installations.
87 Degree Fixed View - The 3.6mm lens provides a practical fixed view for entrances, driveways, storefronts, offices, and general business video coverage.
Starlight and 100ft IR - Starlight imaging supports low-light color video with ambient light, while 100ft IR night vision provides black-and-white video in darkness.
Smart Detection - Includes tripwire and intrusion detection to support more focused event recording and phone app alerts than basic motion alone.
No Monthly Subscription - Use with an Avalonix NVR, compatible ONVIF video software, optional microSD storage, browser access, or phone app viewing without a required monthly subscription.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
Mini Dome Camera Junction Box - White aluminum junction box for select small dome camera models.
Cable Protection - Helps conceal and protect the camera pigtail from weather exposure and tampering when installed correctly.
Conduit Ready - G1/2 conduit thread size for installs that need conduit entry.
Compact Size - Measures 4.39 x 1.34 inches with a 2.2 lb load rating and 0.42 lb product weight.
White Finish - Built for installations where a white junction box is needed. A black version is referenced separately in the row data.
Compatibility Note - Not a universal dome camera box. Check the camera description before ordering.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Compatible set · All 2 products below are added together.
Pendant Mount Bracket for Dome Surveillance Cameras
Pendant Mount Bracket for Dome Surveillance Cameras
SKU: JB220
Dome Camera Pendant Bracket - Pendant mount bracket for select dome security cameras from CCTV Camera World.
Ceiling Drop Mounting - Converts a compatible dome camera into a pendant-style ceiling mount setup with a drop-down rod.
Adapter Plate Required - A compatible camera mount adapter plate is needed to attach the camera to this pendant bracket.
Compatibility Note - Confirm compatibility from the camera product description before ordering.
White Aluminum Build - White aluminum bracket for supported indoor or outdoor professional installations.
Key Specs - 5.07 inch diameter x 22.25 inch length, 4.40 lb load rating, 2 lb weight, -40F to 140F operating range.
Mini Dome Adapter - Metal mounting plate for select compatible mini dome cameras.
Wall Or Ceiling Use - Connects compatible cameras to the JB305W arm mount or JB220 ceiling mount.
Clean Cable Path - Camera pigtail can route through the adapter and mount to keep wiring tucked away.
Aluminum Construction - White aluminum adapter plate with a 2.2 lb load rating.
Compatibility Check Required - Confirm compatibility on the camera description page before ordering. Third-party camera use is at the buyer's risk.
For 2020 and beyond, the Outdoor 4K Dome Camera has a Starlight image sensor for enhanced low light sensitivity and Smart Detection features that provide video analytics usable on the camera itself or with one of our compatible
NVR recorders.
This all new economical 4K Security Camera allows for video recordings that can be digitally zoomed into while maintaining clarity. Being 4K resolution, the picture size is large, allowing you to digitally zoom in and recognize a face
up to 40ft away with this 4K dome camera. You can use digital zoom on the camera through the web interface, mobile app, or the NVR to magnify video of interest during live view or playback as shown in our
video here.
You can also watch the following video sample taken from this camera to see the exceptional amount of facial detail this camera provides.
This outdoor dome camera comes standard with a 3.6mm lens that provides a 87 degree angle of view, and has a Super IR LED to provide night vision up to 100ft. With an IP67 weatherproof rated design this camera works for indoor or
outdoor surveillance, and live streaming projects. This camera's 4K video resolution is complemented by video enhancments like True WDR, 3DNR and BLC. If you're on a tight budget and want a 4K security camera for surveillance
applications or for streaming over the web, we suggest you get one of these.
For the best compatibility and feature set we recommend you build a complete 4K IP camera system using one of our
PoE NVRs. A full system will enable you to take advantage of the advanced video analytics for more robust detection based recording. For best compatibility and ease of
use we recommend using one of our 4K NVRs which also support H.265 for bandwidth savings.
If you're using just one camera as standalone, you can use either a PoE injector,
PoE Switches, or a 12V DC power adaptor. The camera has a slot inside of
the dome which can support a microSD card up to 256GB. Since this is an IP camera, it can be streamed directly to your computer using our free PC/Mac viewing software or a web browser as shown in this
guide, mobile phone, or tablet device. We include our free Windows/Mac
software suite to view video, or you can use any third-party video recording suite that accepts ONVIF compatible IP cameras. The video streams are adjustable for saving storage space, remote viewing bandwidth, or
live streaming.
That's right, live streaming! This 4K dome camera comes with a built-in RTMP service to send it's video data directly to Twitch. Since this camera does not have a microphone, it will not work with YouTube Live. If you are looking for a live streaming capable camera that allows the user to send video stream directly to YouTube Live, Vimeo, or other livestream platform, be sure to consider our live streaming outdoor 4K camera that is perfect for both indoor and outdoor applications.
Be sure to also consider the bullet version of this camera which comes with 100ft of night vision, you can find it here: 4K IP Camera Bullet.
Features
8MP Image Sensor delivers UltraHD 4K video that is 4 times the detail of 1080P
4K Video at 15fps
Selectable resolution from 4K down to 480p
Up to 40ft of facial detail at 87 degree angle of video1
Up to 100ft of IR night vision provided by 3 IR LEDs2
See in color at night with ambient light3
Day & Night Switching (color vs black & white) in complete darkness
H.265 and H.264 Video encoding
H.265 provides up to 70% in bandwidth savings over H.264
2 Video Streams: Main Stream, Sub Stream 1
Video Analytics features when used with our 4K NVRs
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Ceiling and wall mountable
Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
Internal MicroSD support up to 256GB (optional factory installed)
Records to NVR, Computer, NAS, FTP, or internal MicroSD
Streams directly to Twitch on demand
View from NVR, Web Browser, Smartphone or Tablet
IP67 Weather Proof4 - Safe to use outdoors or indoors in cold or hot weather
IK10 Vandal Resistance
Metal construction
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection /
absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.009 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Not intended for submersion in water. Installation in a sheltered location recommended.
Yes. Our professional Avalonix IP cameras support audio detection, and this setting can be managed through the camera’s built-in web interface.
To access these options, the user would open a web browser such as Chrome or Firefox on a Mac or PC that is connected to the same local network as the camera. After logging into the camera through the browser, they can go into the settings menu and turn audio detection on or off as needed.
In simple terms, audio detection lets the camera listen for sound changes in the area and respond when noise reaches a level you set. Through the web interface, the user can enable the feature, adjust how sensitive it is, set the threshold for what should count as an audio event, and choose what the camera should do when sound is detected. For example, the camera can be set to trigger recording or capture a snapshot when an audio event occurs.
Answer by: CCTV Camera World on Mar 13, 2026, 11:12 AM
