AvaEye 8 Channel 4K Hybrid DVR, 12 Camera Support, 32TB, NDAA
Product overview
8-Channel 4K Hybrid DVR - 8 BNC analog camera inputs plus 4 native IP channels for up to 12 total security cameras.
CVI, TVI and AHD Compatible - Connect supported 4K 8MP, 5MP, 4MP, 1080P, 720P and 960H analog cameras. Mix resolutions on adjacent BNC channels.
Built-In Analog Camera AI - Recorder-side person and vehicle detection, perimeter intrusion, line crossing. One rule per channel.
Add IP Cameras Without Losing Analog AI - Add up to 4 native IP cameras while retaining recorder-based analog AI. Convert unused BNC channels to support up to 12 IP cameras in IP-only mode.
4K Video Recording - 8MP analog recording at 10fps, 5MP at 14fps, 4MP at 18fps, and 1080P/720P/960H at up to 30fps NTSC per channel.
Up to 32TB Local Storage - Two SATA bays support up to 20TB per drive. Store recordings locally without monthly cloud-storage fees.
SCI View Remote Viewing - Access live and recorded security video using the SCI View mobile app and desktop program.
4K HDMI and NDAA Compliance - 4K HDMI monitor output, H.265/H.264 compression, NDAA compliance

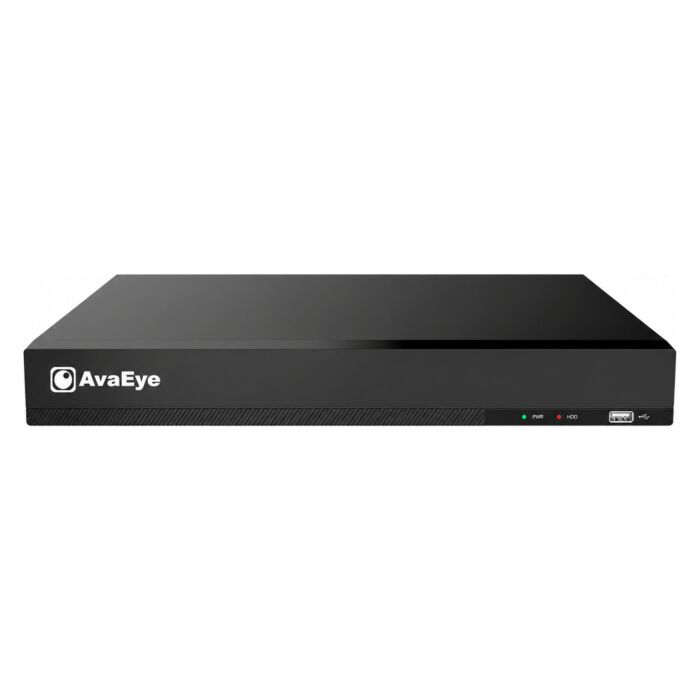

AvaEye Core Series 8-Channel 4K Hybrid Security DVR
Upgrade your security camera system without replacing every camera. The AvaEye SC4KDVR8 records video from up to 8 compatible coax cameras and 4 additional IP cameras, for a total of 12 cameras. It combines 4K recording, built-in AI detection for analog cameras, local hard drive storage and SCI View remote monitoring in one recorder.
Whether you're updating a home camera system, securing a retail store, or adding coverage at an office or warehouse, this hybrid DVR lets you keep your existing wiring and add cameras as your needs change. For a closer look at recorder choices, read our DVR vs. NVR guide.
Keep Your Existing Cameras and Wiring
The SC4KDVR8 supports HD-CVI, HD-TVI and AHD analog security cameras in resolutions from 960H and 720P through 1080P, 4MP, 5MP and 4K 8MP. Connect cameras over their existing coax cables and update selected locations to higher resolution instead of replacing the whole system at once.
Mix camera resolutions on adjacent BNC inputs. For example, connect a 4K camera on one channel and a 5MP or 1080P camera on the next. Use supported camera formats and resolutions when upgrading an older system. Our security camera system upgrade guide explains what to consider.
Built-In AI Detection for Analog Cameras
Get more useful security alerts from your coax camera installation. The DVR provides recorder-side AI for analog cameras, including person detection, vehicle detection, perimeter intrusion, line crossing, face detection and face recognition. One AI rule per analog channel is supported. These intelligent functions let you focus on meaningful activity rather than reviewing every motion event.
Unlike systems that depend entirely on AI-equipped IP cameras, this AvaEye DVR processes supported analog-camera AI through the recorder itself. It's an effective way to modernize a wired security system while keeping compatible analog cameras.
Add IP Cameras Without Losing Analog AI
Connect 4 additional IP cameras through your network while keeping all 8 analog BNC connections available. Adding IP cameras does not disable AI detection on analog camera channels. The DVR also receives intelligent events from compatible AvaEye and SCI IP cameras; AvaEye Core Series supports one AI rule per IP camera.
When you no longer need some BNC channels, convert them to IP use. The recorder supports up to 12 IP cameras in IP-only mode, with 12 as its maximum total camera count in any configuration. IP cameras connect over the network; use an external PoE switch or injector to power PoE cameras. See how to add IP cameras to a DVR.
Sharp 4K Video and Easy Local Viewing
Record compatible analog cameras at resolutions up to 4K 8MP, with H.265 and H.264 video compression. Connect the DVR to a 4K television or monitor using HDMI to view your cameras directly and manage the system through its on-screen menu and USB mouse.
VGA and BNC monitor outputs offer additional viewing options. Recording frame rates vary by camera resolution and are listed in the specifications below, separate from the HDMI display resolution.
Check Your Cameras from Your Phone with SCI View
The SCI View mobile app and desktop program let you check live security video and review saved recordings remotely after network access is configured. Supported events also provide mobile push notifications and email alerts.
Need help getting started? Follow our SCI remote viewing guide or desktop viewing instructions.
Local Recording with Up to 40TB Storage
Store footage on installed surveillance hard drives instead of paying a monthly cloud recording fee. Two SATA bays support up to 20TB per drive, 40TB total. Choose drive capacity based on how many cameras you use and how much recording history you want to retain.
The amount of footage stored depends on resolution, frame rate, bitrate and recording schedule. For help planning storage, see our DVR hard-drive storage calculator.
Included Hard Drive: This DVR includes a 1TB hard drive for local video recording. Additional storage is available by upgrading or adding compatible drives.
Audio, Alerts and Security System Connections
The SC4KDVR8 includes 8 RCA audio inputs and 8 alarm inputs for supported microphones and alarm devices. It also offers motion detection, video-loss alerts and alarm output for compatible connected equipment.
As an NDAA-compliant AvaEye Core Series recorder with a one-year limited warranty, the SC4KDVR8 fits everyday home and business security as well as installations with specific purchasing requirements. See our NDAA compliant security camera page for compatible cameras.
Technical Specifications
| Model and channel capacity | |
|---|---|
| Brand / series | AvaEye Core Series |
| Model | SC4KDVR8 |
| Recorder type | 4K hybrid DVR / XVR |
| Analog inputs | 8 BNC |
| Supported analog signal formats | HD-CVI, HD-TVI, AHD, CVBS |
| Supported analog camera resolutions | 8MP, 5MP, 4MP, 1080P, 720P, 960H |
| Mixed analog resolutions | Yes; different supported resolutions on adjacent BNC inputs |
| Native IP inputs | 4 |
| Maximum combined channels | 12 |
| Maximum IP-only channels | 12 |
| IP input bandwidth | 32–96 Mbps |
| Added IP input bandwidth per BNC conversion | 8 Mbps |
| Outgoing bandwidth | 96 Mbps |
| Analog recording and display | |
| 8MP analog main-stream recording | 10fps per channel |
| 5MP analog main-stream recording | 14fps per channel |
| 4MP analog main-stream recording | 18fps per channel |
| 1080P analog main-stream recording | 30fps NTSC / 25fps PAL per channel |
| 720P analog main-stream recording | 30fps NTSC per channel |
| 960H analog main-stream recording | 30fps NTSC per channel |
| Analog live display — 8MP | 15fps |
| Analog live display — 5MP | 20fps |
| Analog live display — 4MP / 1080P / 720P / 960H | 30fps |
| Analog sub-stream — PAL | 704 × 576 at 10fps per channel |
| Analog sub-stream — NTSC | 704 × 480 at 10fps per channel |
| IP main-stream frame rate | 30fps NTSC / 25fps PAL per channel |
| IP single-camera preview | Up to 4K at 30fps |
| Video compression | H.265 / H.264 |
| Audio compression | G.711a |
| Playback and video outputs | |
| Simultaneous playback | Up to 8 channels |
| 8MP aggregate playback | 72fps |
| 5MP aggregate playback | 112fps |
| 4MP aggregate playback | 144fps |
| 1080P aggregate playback | 240fps |
| Fast playback | 2×, 4×, 8×, 16× |
| Slow playback | 1/2×, 1/4×, 1/8×, 1/16× |
| HDMI output | Up to 3840 × 2160 (4K) |
| VGA output | Up to 1920 × 1080 |
| BNC monitor output | 704 × 576 |
| Intelligent video and events | |
| Recorder-side AI on analog channels | Perimeter intrusion, line crossing, person detection, vehicle detection, face detection, face recognition |
| Analog AI rule limit | One AI rule per analog channel |
| AI from compatible IP cameras | Yes, supported camera-side intelligent events |
| AvaEye Core Series IP camera AI rule limit | One AI rule per IP camera |
| Standard motion detection | Sensitivity levels 1–8 |
| Video loss detection | Yes |
| Event responses | Audible beep, email, mobile push notification |
| Storage and interfaces | |
| Internal drive bays | 2 SATA |
| Maximum capacity per drive | 20TB |
| Maximum supported total capacity | 40TB |
| Network port | 1 RJ45 10/100 Base-T |
| USB | Front USB 2.0; rear USB 2.0 |
| Audio | 8 RCA inputs; 1 audio output |
| Alarm | 8 inputs / 1 output |
| RS-485 | 1 |
| eSATA | 1 |
| Mobile / desktop program | SCI View |
| Physical and compliance | |
| Dimensions (W × D × H) | 14.9 x 12.5 x 2.0 in (378 x 317 x 50 mm) |
| Power input | 12V DC, 5A |
| Power consumption | 11W excluding hard drives |
| Operating temperature | 14°F to 122°F (-10°C to 50°C) |
| Operating humidity | Below 90% RH |
| NDAA compliant | Yes |
| Warranty | 1-year limited warranty |
Frequently Asked Questions
It connects 8 analog cameras through BNC inputs plus 4 additional IP cameras, for up to 12 total. It also supports up to 12 IP cameras when all analog channels are converted.
It supports compatible HD-CVI, HD-TVI and AHD analog cameras. Check your existing camera signal format and resolution before replacing your DVR.
Yes. Supported analog resolutions can be mixed on adjacent BNC camera inputs.
Yes. Its built-in recorder-side AI provides person and vehicle detection, perimeter intrusion, line crossing, face detection and face recognition for supported analog video. One AI rule is supported per analog channel.
No. Adding IP cameras does not disable the DVR’s recorder-side AI detection for analog cameras.
Yes. It receives intelligent events from compatible AvaEye and SCI IP cameras. AvaEye Core Series supports one AI rule per IP camera.
No. Connect IP cameras through your network, using a separate PoE switch or injector for cameras that require PoE.
Use the SCI View app after connecting the DVR to your network and configuring remote access.
No. The recorder saves video to installed local hard drives without monthly recording fees.
It supports up to 40TB total across two SATA bays, with up to 20TB per drive.
Yes. Local recording and monitor viewing work without internet access. Remote off-site viewing requires an internet connection.
Yes. It records compatible 8MP 4K analog cameras at 10fps per channel. See the specifications for other recording resolutions and frame rates.
Yes. The DVR is NDAA compliant and carries a one-year limited warranty.
