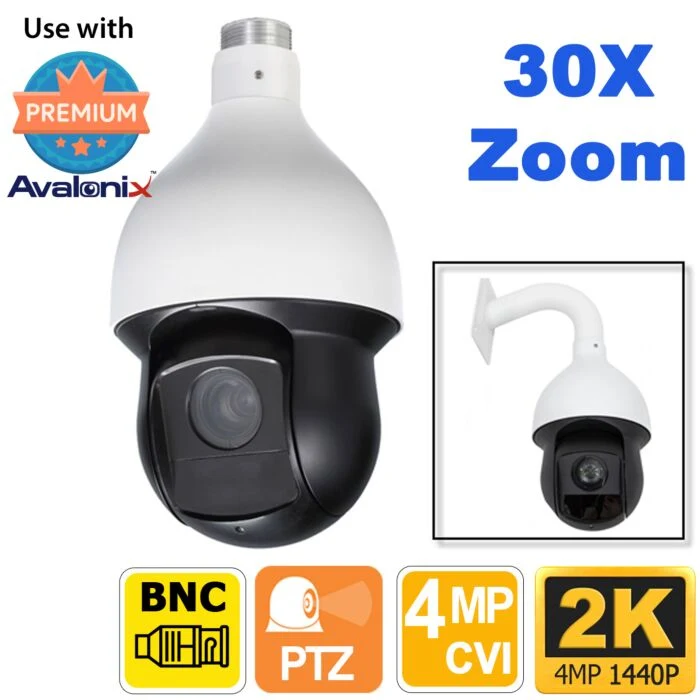

4MP Analog PTZ Camera - Avalonix outdoor HD analog PTZ camera for coax-based systems that need 2K or 4MP video with pan, tilt, and zoom control.
30X Optical Zoom - The 4.5-135mm lens provides a wide view or tight long-distance view, with fast PTZ movement, presets, tours, auto scans, and patterns.
328ft Night Vision - Four IR LEDs provide long range black-and-white night coverage for lots, entrances, perimeters, and large outdoor areas.
HD Analog DVR Control - Pair with a compatible Avalonix DVR to decode the HD over coax signal, control PTZ movement, record video, and view remotely through the app.
Outdoor PTZ Install - IP66 weatherproof housing, included wall mount, 24VAC power supply, RS485 support, and optional audio input make it a professional analog PTZ option.
PTZ Junction Box - Weather resistant junction box for compatible outdoor PTZ camera installations.
Cable Protection - Helps conceal PTZ camera cable ends inside the box for protection from exposed conditions.
Wall Or Pole Use - Can be mounted directly to a wall or used with a compatible PTZ pole mount bracket.
Pre-Drilled Holes - Comes pre-drilled for wall mount brackets included with select outdoor PTZ cameras.
Compatible Camera Types - Intended for select IP, HDCVI, and analog PTZ cameras listed on the product page.
Compatibility Note - If bracket holes do not line up, new mounting holes may need to be drilled.
Pole Mount Bracket - Bracket for attaching compatible PTZ cameras and select bullet cameras to a round utility pole.
PTZ Camera Use - Made for full size pan tilt zoom camera installs where pole mounting is preferred over a flat wall.
Pole Size Support - Listed for poles up to 8 inches in diameter when installed with the proper hardware.
Multi-Signal Camera Fit - Compatible with listed IP, HDCVI, and analog PTZ camera models.
Outdoor Installation - Useful for parking lots, building perimeters, gates, and other exterior camera positions.
Compatibility Note - Check the camera product page before ordering. This is not a universal mount for every PTZ or bullet camera.
PTZ Corner Mount - Outdoor corner mount bracket for select full size PTZ cameras.
Compatible Camera Types - Works with select analog, HDCVI, and IP based PTZ models with or without IR.
Not For Mini PTZ Cameras - This mount is not compatible with mini-size pan tilt zoom cameras.
Aluminum Construction - Aluminum bracket supports outdoor installations when mounted properly.
Load Rating - Supports up to 22 lbs, with 3.8 lb bracket weight.
Size Details - Dimensions are 9.6 x 6.7 x 5.5 inches.
Compatibility Note - Confirm your PTZ camera model and mounting pattern before purchase.
Ceiling PTZ Bracket - Pendant-style ceiling bracket for compatible analog, HDCVI, and IP PTZ cameras.
9 Inch Drop - Included pole is about 9 inches long to lower the camera from the mounting surface.
White Aluminum Build - Aluminum construction with white finish for indoor or outdoor camera installations where compatible.
G1 1/2 Inch Thread - Uses G1 1/2 inch pipe thread for matching PTZ mount hardware.
Load Rating - Rated for up to 15.43 lbs when installed on a suitable surface.
Dimensions - Measures about 5.26 x 9.28 inches, diameter by length.
This PTZ features double the pixel density of most HD PTZ cameras you will find for an analog security camera system. This analog PTZ security camera has a 4MP video sensor that provides clear 2K or 4MP resolution video at Real Time 30fps. For stunning nighttime capture, the Super IR LEDs hidden behind the black fascia of the camera provide IR night vision up to 328 feet from the camera. During the day, the 30X optical zoom lens combined with the 4MP HD sensor allows for facial recognition up to 880ft away at the maximum zoom. With capabilities like endless 360-degree panning, auto flip tilt, and a high-speed motor, this camera can quickly watch your property whether it is manually controlled or running a preset tour. This 2K PTZ analog camera is ideal for large properties or businesses to monitor parking lots, entry ways, and property perimeters.
Using one of the Avalonix Premium Series DVR recorders for HD analog security cameras, you can decode the HD over Coax signal from the PTZ, and control the camera from the DVR. The DVR allows for PTZ control by using a mouse connected to the DVR or you can view and control the camera by using our Free Smartphone app, PC/Mac Software, or Web Browser.
When using the camera with our DVR, the 3D targeting system offered by our DVRs lets you draw a region in the video for the camera to move and zoom in to. Simply use the mouse to click the zoom icon and draw a rectangle or square for the area you would like the PTZ to focus upon. Our free smartphone and tablet remote viewing apps also let you control this outdoor PTZ from anywhere in the world when connected to our DVR.
If you'd like to use any of our PTZs for active surveillance then you will want to pick up one of our PTZ joystick controllers that can be placed on a local network to talk to the DVR and control the camera.
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in a specified period
Protocol
PelcoD or PelcoP (Auto sensing)
Other Connections
RS485
Yes
Power
2 Lead wire for 24VAC
Alarm
2/1 channel In/Out
General
Power Consumption
13W, 23W (Heater on)
Operating Temperature
-40°F to +140°F, Less than 95% Relative Humidity
Weather Proof
Yes IP66
Vandal Resistance
No
Dimensions
7.3" Diameter x 12.2" Height
Construction
Metal Casing, Plastic Fascia
Weight
9 lbs
*Distance is calculated based on sensor specifications and lab test results set at full optical zoom according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification.
