CCTV Camera Enclosure with IR Night Vision
Special Price
$399.99
Regular Price
$549.99
27% off
Overview
Outdoor Box Camera Housing - Weatherproof enclosure for compatible box cameras that need outdoor protection.
Built-In Ir Night Lighting - Integrated IR LEDs support up to 328ft night viewing when used with an IR-sensitive box camera.
Important Camera Note - Most box cameras are not IR sensitive, so compatibility must be confirmed before purchase.
Heater Blower And Wiper - Built-in heater, internal fan, and wiper are powered from 24V AC input.
IP66 Weather Rating - Metal outdoor housing is built for exposed installations when properly installed.
Power Requirement - Requires 24V AC power for the IR, heater blower, and wiper functions.
Compatible Use - Recommended for select Premium Series box cameras that support the needed functions.

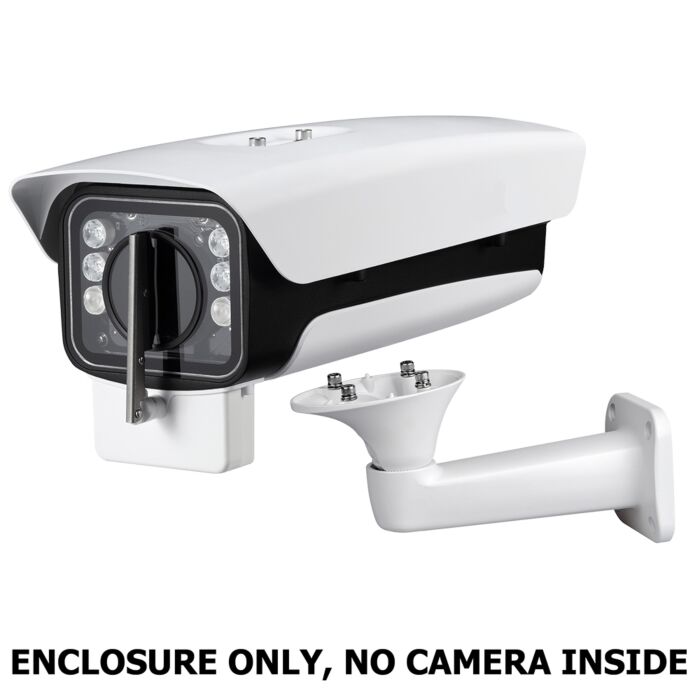

The CCTV Housing with Infrared is an outdoor security camera housing for use with Box Cameras. As long as your Box camera is sensitive to detecting IR LED light, you can expect up to 328ft of night vision in complete darkness.
The enclosure uses 24V AC power input which is needed to power the IR, built-in heater blower, and wiper.
There is a built-in heating element to keep the camera warm, and internal fan helps circulate and vent out air in hot weather to ensure camera operation at housing temperatures up to 140°F.
We recommend using any the Avalonix Premium Series 2K IP based Box cameras that accept PoE or 24V AC power.
Please note that most box cameras are not infrared sensitive, which means they will not be able to see in darkness even when used with this enclosure that has IR LEDs. It is commonly assumed that cameras with the Day & Night feature will pick up infrared light, however it is incorrect to assume so.
At CCTV Camera World we carry specific Infrared Sensitive Box Cameras that can be used with this enclosure. However, using the IP based Box Camera sku IP4MPBX allows for control of the wiper and IR LEDs using the camera's built-in web interface when connexions inside the enclosure are tied to the RS485 port on the camera.
Features
- Outdoor Security Camera Enclosure with Night Vision
- Built-in heater blower and fan
- Night Vision up to 328ft
- Fan activation controlled by internal thermostat
- Heater Turns On at 41°F and Turns Off at 50°F
- Fan Turns On at 98°F and Turns Off at 77°F
- IP66 Weather Proof
- Metal alloy construction
- Outdoor or Indoor Use
- External Dimensions 15.91" x 6.46" x 6.89" (LxWxH)
- Internal Dimensions 10.04" x 3.54" x 2.78" (LxWxH)
- 24V AC Power Input (supplied for use up to 50ft from camera, cable not included)
What's included?
- (1) Camera Enclosure with Night Vision
- (1) Mounting bracket included
- (1) 24VAC 72W Power supply included
Specifications
| General | |
|---|---|
| Inside Dimension (LxWxH) | 255mmx90mmx70.5mm (10.04"x3.54"x2.78") |
| Window Dimension | φ59.4mm (φ2.34") |
| Operating Temperature |
Set: -40°C to +60°C Heater ON: 5±5°C / OFF: 15±5°C Cooler ON: 37±5°C / OFF: 20±5°C |
| IR Distance | Up to 328ft Max |
| RS485 Control | Yes, use RS485 to control IR light & wiper |
| Wiper | Yes |
| Power Supply | AC24V/3A |
| Power Consumption (without camera) | Max. 70W |
| Environmental | |
| Operating Temperature | -40°F to +140°F |
| Humidity | <90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | N/A |
| Construction | |
| Material | Aluminum (case) & PC (others) |
| Dimension (LxWxH) | 15.91" x 6.46" x 6.89" |
| Weight | 7.72lb |
| Bracket | |
| Dimensions | 10.39" x 3.94" x 5.75" |
| Load Bearing | 8.82lb |
| Brand | Avalonix |
|---|---|
| Warranty | None for accessories |
| Return Policy | Accessories are non-returnable, non-refundable. |
