This Wireless Dome Security Camera is the latest in HD security camera technology offering convenience in installation by sending video wirelessly over a WiFi network. The WD3MP is a wireless IP camera with a built-in 802.11 b/g/n client radio that is compatible with 2.4GHz WiFi routers which makes it easy to setup the camera, and cost-effective as well by doing away with requirement of having a paired wireless receiver for each camera. Wireless IP camera technology allows for wireless video transmission from multiple cameras over an existing WiFi network (e.g. your router or access points) to a NVR, to a computer, or mobile device. If you don't need video recording, you can simply use our best security camera remote viewing app on an iPhone, iPad, or Android device to view the camera from anywhere in the world over the internet. Viewing over the internet, simply requires broadband internet where the camera is installed.
This wireless camera has a 3 Megapixel CMOS sensor that provides high resolution video than 1080P HD, making this camera a professional wireless security camera. Using video encoding settings in the camera's configuration menu allows the user to choose video resolution, frames per second, and video bitrate to optimize bandwidth used by the camera. In addition, it offers dual H.264 video streams, i.e. main stream for high resolution video to record to a NVR and sub stream for remote viewing on a mobile device. As with all of our IP cameras, you can also stream using MJPEG for applications other than security video.
This dome camera is vandal resistant to IK10 standards, and IP67 weather proof, making it suitable for use indoors or outdoors. The 3.6mm lens provides a wide angle 77 degree view, which is great for general surveillance. Thanks to the 3MP resolution of this camera, you can zoom in to finer detail to see a face up to 30ft away. The camera also has 100ft of infrared night vision. There are also great image enhancements features like backlight compensation (BLC) and Digital Wide Dynamic Range (DWDR) which provide exposure compensation for scenarios such as sun glare.

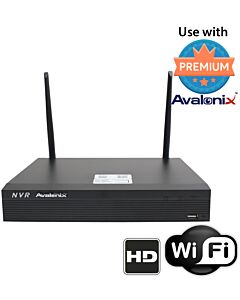

You can power this camera easily with a 12V 1amp power adapter. To record video we suggest using one of our IP camera NVR, or our newest wireless NVR.
Features
- Wireless Vandal Proof Dome Camera
- 3 Megapixel Resolution
- H.264 & MJPEG dual-stream encoding
- Dual Video Streaming - main stream / sub stream
- Selectable recording resolution:
- 20 fps at 3MP (2304 x 1536)
- 30fps at 1080P (1920x1080)
- Digital Wide Dynamic Range (DWDR)
- Day/Night IR cut filter
- Digital Noise Reduction
- IR Sensitivity Control
- Smart IR
- 3.6mm lens, 77° Angle of View
- Up to 100ft night vision
- Outdoor or Indoor Use
- IP67 Weather Proof
- Vandal and Impact Resistant
- 12V DC power only
What's included?
- (1) 3MP Wireless Dome Camera
Specifications
| Image Sensor | 1/3" 3MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
| Effective Pixels | 2304 (H) x 1536 (V) | ||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual, 1/3- 1/100000s | ||||||||||||||||||||||||||||||||||
| Minimum Illumination | 0.1 Lux F2.0 (Color), 0 Lux (IR On) | ||||||||||||||||||||||||||||||||||
| S/N Ratio | More than 50dB | ||||||||||||||||||||||||||||||||||
| IR Distance | Up to 100ft | ||||||||||||||||||||||||||||||||||
| IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
| IR LEDs | 24 | ||||||||||||||||||||||||||||||||||
| Lens Type | Fixed | ||||||||||||||||||||||||||||||||||
| Focal Length | 3.6mm | ||||||||||||||||||||||||||||||||||
| Max Aperture | F2.0 | ||||||||||||||||||||||||||||||||||
| Angle of View | Horizontal: 77° | ||||||||||||||||||||||||||||||||||
| Focus Control | Fixed | ||||||||||||||||||||||||||||||||||
| Close Focus Distance | N/A | ||||||||||||||||||||||||||||||||||
| Bracket Range | Pan: 0° - 355°, Tilt: 0° - 55°, Rotation: 0° - 355° | ||||||||||||||||||||||||||||||||||
| Compression | H.264, MJPEG | ||||||||||||||||||||||||||||||||||
| Smart Analytics | Motion Detection Only | ||||||||||||||||||||||||||||||||||
| Advanced Analytics | No | ||||||||||||||||||||||||||||||||||
| Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||
| Resolution | 3MP (2304x1536), 1080P (1920×1080), 720P (1280x720), D1 (704x480), CIF (342x240) | ||||||||||||||||||||||||||||||||||
| Frame Rate | Main Stream: 3MP (1-20fps), 2MP (1-30fps); Sub Stream: D1/CIF (1-30fps) | ||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
| Bit Rate | H264: 32K - 10Mbps | ||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
| BLC Mode | BLC, HLC, DWDR | ||||||||||||||||||||||||||||||||||
| White Balance | Auto, Natural, Street Lamp, Outdoor/Manual | ||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
| Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
| Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||
| Smart IR | Yes | ||||||||||||||||||||||||||||||||||
| Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||
| Flip | 0°, 90°, 180°, 270° | ||||||||||||||||||||||||||||||||||
| Mirror | Off / On | ||||||||||||||||||||||||||||||||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
| Audio Input | No | ||||||||||||||||||||||||||||||||||
| Audio Compression | No | ||||||||||||||||||||||||||||||||||
| Alarm Input | No | ||||||||||||||||||||||||||||||||||
| Ethernet | RJ-45 100Mbps, Wi-Fi(IEEE802.11b/g/n) | ||||||||||||||||||||||||||||||||||
| Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP | ||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF, PSIA, CGI | ||||||||||||||||||||||||||||||||||
| Streaming Method | Unicast / Multicast | ||||||||||||||||||||||||||||||||||
| Max. User Access | 10 Users | ||||||||||||||||||||||||||||||||||
| Recording Method | NVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD | ||||||||||||||||||||||||||||||||||
| MicroSD | Up to 128GB | ||||||||||||||||||||||||||||||||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||||||||||||||||||||||||||||||||
| Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC | ||||||||||||||||||||||||||||||||||
| Power Consumption | 6W | ||||||||||||||||||||||||||||||||||
| Operating Conditions | -14°F – +122°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
| Weather Protection | IP67 | ||||||||||||||||||||||||||||||||||
| Vandal Resistance | IK10 | ||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||
| Dimensions | 4.33" x 3.20" (diameter x height) | ||||||||||||||||||||||||||||||||||
| Net Weight | 0.80 lbs | ||||||||||||||||||||||||||||||||||
| Certifications | CE, UL, FCC Part 15 Subpart B | ||||||||||||||||||||||||||||||||||
More
More
| Return Policy | 30 Days Return Policy |
|---|---|
| Signal Type | IP |
| Camera Resolution | 3MP |
| Image Sensor | 1/3” 3MP Progressive Scan CMOS |
| Night Vision | 100ft |
| Lens | 3.6mm |
| Optical Zoom | No |
| Angle of View | 77° |
| Wide Dynamic Range (WDR) | DWDR |
| Microphone | No |
| Pan Tilt Zoom | No |
| Video Analytics | No |
| Important Features | WiFi |
| SD Card Slot | Yes |
| Power Input | 12V DC |
| Operating Temperature | -14°F to +122°F |
| Dimensions | 4.33" x 3.2" (diameter x height) |
| Weight | 1 lb |
| Weather Proof | Yes, IP67 |
| Camera Color | White |
| Video Encoding | H.264 |
| Warranty | 1 Year |
Reviews
Customer Reviews
- These products are top notch Review by Robert E
As a brand new shopper in this arena, not only were the cameras the best I could find; but the outstanding service and customer support far exceeded my expectations, (Posted on 9/21/17)Price Value Quality - Camera for historic landmark Review by josh walinski
I own a beautiful building that has been declared a historical landmark. I cannot run cabling through these walls. So wireless security cameras was a MUST. A local installer came out and quoted me $25k for the equipment and install. NOT GOING TO HAPPEN. I purchased these cameras for only $2k and installed them myself. I used a Ubiquiti access point as recommended by this company to amplify the signal. It was easy enough to set up myself and saved a butt load of money. (Posted on 3/22/16)Price Value Quality - Wireless barn cam Review by Dylan
I mounted this wireless dome cam on my barn 65ft away from my house. It gets pretty cold here in Montana and this camera has lasted through the snow and -10 degree temps. I can see vehicles very clearly as they pass the barn and approach the house. The infrared also reaches to my driveway gate which is about 80ft away. I need to get a couple more of these to put up on the other side of my house. (Posted on 2/4/16)Price Value Quality - Decent camera Review by Keith James
A Montessori hired my IT company to install some cameras. I compared this HD cameras with foscam and found this one to have better video quality. The video is served up to our NVR which the parents can log into to view. We are using these along with the wired cameras without any issue. The child's face can be clearly seen 30ft away. The infrared illuminated in low light conditions during nap time and you can still see the kid's faces clearly. (Posted on 7/15/15)Price Value Quality
Product Questions
Total 1 question(s)
Can motion alerts be sent out by text or email, or must they go to NVR?
Can the activity go to a hard drive connected to the wifi apple extreme router?
Thanks
Question by: susan on: 2017-10-15
To record video you will need one of our NVR. You cannot record to a USB on an Apple router. Motion alerts can be sent via email (not text) by a IP camera itself or the NVR as explain in this article about how to set up email alerts on your security cameras.
Answer by: Tech Support on: 2017-10-16
