Wireless NVR, 4 Channel

SKU: NVR042WIFI

Write a Review

Availability: In stock

$315.00

Please select the size of the hard drive you would like installed inside your DVR Recorder.

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

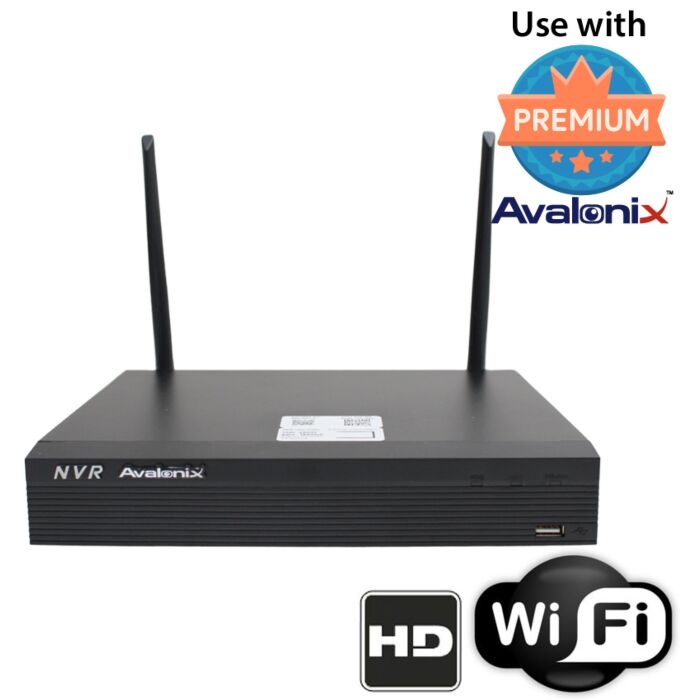

The 4 Channel Wireless NVR with built-in Access Point (AP) is for use with compatible WiFi cameras we sell that pair easily with this NVR, or with any of our wired IP cameras using an AP that is synced to this recorder's built-in wireless AP. It supports up to a total of four cameras, whether they be wireless or wired; you can mix and match both types of cameras up to 5MP in resolution. We recommend this NVR for users looking to setup a wireless security camera system for short range wireless transmission. By using select plug-&-play wireless IP cameras we carry, the cameras pair easily to the NVR without any need of configuration from the user, and allow communication between the camera and NVR for easy configuration changes. Here's how easy it is to connect cameras to this NVR:

Easy Setup Of Wireless Security Camera Systems

This network video recorder uses WiFi signals to reduce interference and allow signal transmission through obstructions while maintaining clear video quality. It is important to note that WiFi signals introduce a slight delay in the video feed of up to 1 second between the action happening in real life, and it being seen on the recorder. WiFi allows a digital data signal to be sent from the camera to this NVR, where the digital signal can be composed of video, audio, and PTZ controls. Not only can you used fixed lens bullet or dome wireless IP cameras, but you can also use our wireless PTZ cameras. In fact, by using methods detailed in our wireless security camera guide, you can make our wired IP cameras wireless by using a wireless access point and pair them with this recorder.

You can even use this NVR with wired cameras on the network by connecting the NVR and wired IP camera to the same PoE switch. As long as the NVR and the camera are on the same network with properly configured IP addresses, they will be able to communicate with each other.

This is a standalone surveillance video recorder because you do not have to connect it to a computer. It is a computer itself, and comes with its own embedded processor and Linux Operating System which stays virus free. It will never need any maintenance from a computer IT person, saving you a lot of undue costs. It has a friendly easy to use graphical user menu that can be controlled using the included mouse with point & click.

Using our tested and compatible wireless network cameras you can easily setup a wireless system and stream video at resolutions up to 3MP in real time. Here is a list of compatible wireless cameras:

There is 1 SATA port for one hard drive up to 6TB in capacity. If you need more room, you can set some or all of your cameras to record on motion detect only. It also has a USB port for easy video backup of short segments to a external USB hard drive. You can also set live video backups to FTP or NAS.

This NVR comes with Free Technical Support from our team based in the USA. All the cameras we sell at CCTV Camera World are compatible with our NVR recorders, and Tribrid DVRs. If you are looking for compatibility with cameras purchased elsewhere, please be sure to review our IP camera compatibility list.

Features

  • 4 Camera NVR recorder
  • Use with wired IP network or Wireless IP Cameras
  • Built-in Wireless AP - 300ft range clear line of sight
  • H.264 Dual Stream Video Encoding
  • Records resolutions up to 5MP
  • 80Mbps encoding bandwidth
  • Live Monitoring and video playback on Smartphones including iPhone, iPad, and Android based phones and tablets
  • Auto network camera detection for easy camera setup
  • HDMI & VGA 1080P video outputs
  • Smart PSS for remote viewing via Windows or Mac computers
  • Motion activated recording or schedule based recording
  • Motion detection and video loss alerts to your mobile device
  • Remote backups to a NAS, FTP, windows computer, or mirroring to another NVR unit
  • Easy video offload to a USB flash drive
  • Supports 1 SATA hard drive up to 6 TB
  • Allows up to 10 simultaneous users for remote viewing
  • Built-in wireless AP
  • ONVIF 2.4 compliant

What's Included?

  • (1) 4 Channel NVR
  • (3) Antennas
  • (1) Power Supply
  • (1) Mouse

Specifications

System
Main ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX
Video & Audio
IP Camera Input4 channel (via built-in WiFi AP or over single LAN)
Audio Input4 channel over IP, camera dependent
Two-way TalkNo
Display
Interface1 HDMI, 1 VGA
Resolution1920x1080, 1280x1024, 1280x720, 1024x768
Display Split1, 4
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye DisplayNo Dewarp
Recording
CompressionH.264
Resolution5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Record Rate80 Mbps
Bit Rate16kbps - 20Mbps Per Camera
Record ModeManual, Schedule (Regular, Continuous), Alarm, Motion Detection, Stop
Record Interval1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm InputN/A
Relay OutputN/A
Playback & Backup
Sync Playback1, 4
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Drive, Network
Network
Ethernet1 RJ-45 port (100Mbps)
PoENone
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
Storage
Internal HDD1SATA III port, 6 TB Max
eSATAN/A
Auxiliary Interface
USB2 USB2.0
RS232N/A
RS485N/A
General
Power SupplyDC12V 2A
Power Consumption10W without Hard Drive
Working Environment+14°F - +131°F, 10% - 90% RH
Dimension (W×D×H)10.24" x 9.7" 1.87"
Weight1.3 lbs (without HDD)
InstallationFlat table top / shelf

More

More

Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Dual Core
Total Cameras Supported4
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported4
Number of PoE InputsNone, uses internal WiFi Radio or wired network to connect to IP cameras
Number of Audio Inputs4 IP Streams
Encoding SupportedH.264
Encoding Support DetailH.264
Recording Resolutions5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
BNC Recording Frame RateNo
Total Incoming IP Bandwidth80 Mbps
Total IP Recording Bandwidth80 Mbps
Max Hard Drive Capacity1HDD, 6TB
RAID RedundancyNo
Hot Swap HDDNo
eSATA PortNone
USB Ports(2) USB 2.0
Video Outputs(1) HDMI, (1) VGA
Total PoE PowerNo Built-in PoE Ports
Power Input12V DC
RackmountableNo
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 1 question(s)

Hello

I am looking for 6 really nice wifi camera to a customer (the best)
He will like:
1. automatic recording if there is movement
2. Records online or on the hard drive with all 6 camera (maybe 7 or 8 cam)
3. recordings can be viewed online on PC, mobile or tablet
4. Easy to use

Can give me a solution?
Best regards
Kasper Vedsø
Denmark

Question by: Kasper on: 2016-09-07

You cannot use the 4 channel nvr to make a 6 camera setup.

You will need the following:
8 channel NVR
https://www.cctvcameraworld.com/8-channel-4k-nvr-w-poe-slim.html

Pick your wifi Camera
https://www.cctvcameraworld.com/wireless-ip-camera-1080p-dome.html

https://www.cctvcameraworld.com/wireless-ip-camera-1080p-bullet.html

And put in your favorite router in the mix to connect the cameras to. All of our systems offer the features you spoke about. Please see the following page:
https://www.cctvcameraworld.com/security-cameras-smartphone-remote-viewing.html

Answer by: Tech Support on: 2016-09-09
