16 Camera 4K NVR with 16 PoE


Write a Review

Availability: In stock

Regular Price: $699.99

On Sale: $629.99

Please select the size of the hard drive you would like installed inside your recorder.

Looking for a system?
Try our
Custom Security
Camera System
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

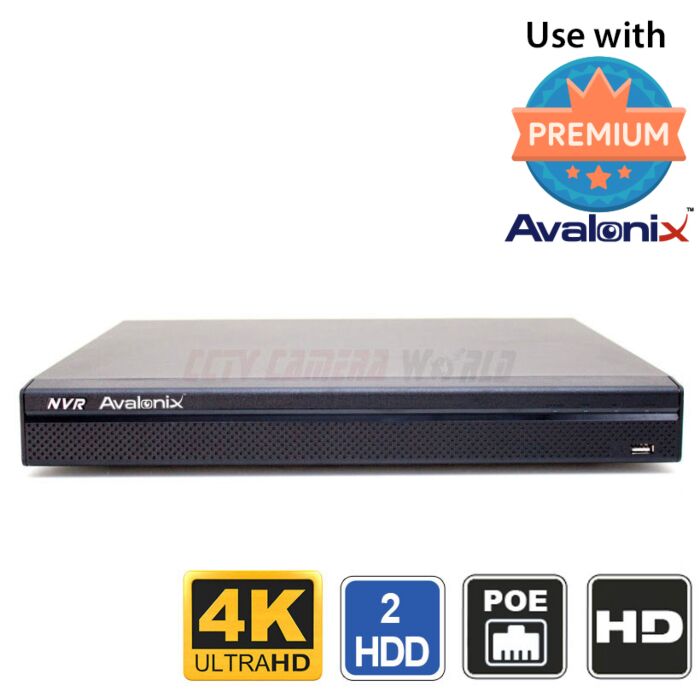

This is a professional 16 Channel NVR with 16 PoE ports (Power over Ethernet) that make it as simple as possible to setup IP network cameras. Using a single network CAT5e/CAT6 cable you can not only power our IP cameras, but also receive video, audio, and data. You can choose from a variety of PoE network cameras we offer, ranging from 1080P IP security cameras to 4K security cameras.

Inside this professional NVR there are 2 SATA ports that accept up to two hard drives. Each drive can be up to 6TB in capacity. This NVR is small in size and easy to stow away in a storage or IT closet.

It is powered by a powerful dual-core processor and a embedded Linux operating system that stays virus free. The user interface is easy to use using the included mouse, making it simple to connect your cameras, set recording schedules, and motion detection schedules. The 16 camera professional NVR also offers 2 video outputs (HDMI, and VGA) so you can connect up to 2 monitors displaying the same screen. Let's not forget, this NVR also has 4 alarm inputs should you choose to tie in PIR motion sensors for precise on motion detection.

Video backups are easy to do. They can be done locally at the NVR using a USB drive, or external USB DVD burner. You can even download video from the unit over the network or internet using the included FREE CMS software for Windows and Mac computers.

This NVR with built-in PoE switch comes with FREE Lifetime Technical Support by our expert staff. All the cameras we sell at CCTV Camera World are compatible with our NVR recorders, and DVR. If you are looking for compatibility with cameras purchased elsewhere, please be sure to review our IP camera compatibility list.


  • 16 Camera NVR recorder for use with IP cameras
  • H.265 / H.264 Video Encoding
  • Supports up to 8MP or 4K Resolution Recording
  • Total 200Mbps Encoding
  • Easy to configure and add PoE IP cameras using the NVR on the same network
  • 16 Built-in PoE+ ports for plug-and-play connection to CCTV Camera World IP cameras
  • Multiple Monitor Outputs
    • HDMI audio/video output for High Resolution Output to a HDTV or Monitor
    • VGA Video Output
  • FREE Remote Viewing App for iOS and Android
    • iPhone
    • iPad
    • Android Phones & Tablets
  • Notification of motion alerts, alarm alerts, or video loss to mobile App
  • FREE Central Monitoring System (CMS) software for remote viewing via Windows or Mac computers
  • Multiple recording methods: continuous, manual, motion activated or schedule based
  • 3D PTZ Control for easy control/targeting of our PTZ cameras, and easy preset/tour setup from NVR
  • Allows for remote backups to a ftp, NAS, windows computer, or mirror to a second NVR
  • Easy video footage backups using a USB drive, external DVD burner, or download to your computer
  • Supports up to 2 SATA hard drives, Max 6TB each
  • Allows up to 20 remote users to simultaneously view video
  • Onvif 2.4 Compliant

What's Included?

  • (1) 16 Channel PoE NVR
  • (1) Power cord
  • (1) USB Mouse
  • (1) Terminal Block for Alarm/RS485 Ports
  • (1) Hard drive screws


Operating SystemEmbedded Linux
System ResourcesPentaplex function: live, recording, playback, backup & remote access
Control ModeUSB mouse, Network
IP Camera Inputs16x RJ45 PoE+ ports (IEEE802.3af/at)
IP Cameras SupportedAvalonix, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, Samsung, Sanyo, Sony, ONVIF
Video Output1 HDMI (video and audio), 1 VGA
Display Split1 / 4 / 8 / 9 / 16
Display Resolution HDMI: 3840x2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Tour DisplaySupported
Privacy Masking4 self-defined four-sided zones for privacy masking for each camera
OSDCamera title, time, video loss, camera lock, motion detection, recording
Video / Audio CompressionH.265 / H.264
Recording Resolutions8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P
Recording Rate200Mbps
Recording Bit Rate16Kbps-20Mbps Per Camera
Recording ModeManual, Schedule (Regular, Continuous), MD (Motion detection, Camera blank, Video loss), Alarm, Stop
Recording PriorityManual, Schedule, Motion Detection, Alarm, Stop
Recording Interval1-120 min (default: 60 min), Pre Record 1-30s, Post Record 10-300s
Playback Capability2 channels 4K or 8 channels 1080P
Trigger Events Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Motion DetectionZones: 396 (22×18), Sensitivity: 1-6 (level 6 is highest)
Video Loss & Camera BlankSupported
Alarm Input4
Relay Output2
Playback Grid1 / 4 / 9 / 16 channels
Video Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device / External DVD burner/ Network, Internet
Ethernet1x RJ-45 LAN port (10/100/1000Mbps)
Network FunctionsHTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Supports ONVIF compatible IP camera, DVR, NVR etc)
Hard Disk2 SATA ports, 6TB ea HDD (Total Up to 12TB)
USB Interface2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS2321 Channel
Power SupplyAC 100-240 V, 50/60 Hz (Power Consumption approx 30 Watts without HDD), PoE Max 25.5W each Port, Total PoE 130W Max
Working Environment+14°F to +131°F / 10-90% RH
Dimensions14.8" x 12.9" x 2.1" (W*D*H)
Weight6 lbs
Dimensional Weight12 lbs



Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Quad Core
Total Cameras Supported16
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported16
Number of PoE Inputs16
Number of Audio Inputs16 IP Streams
Encoding SupportedH.264, H.265
Encoding Support DetailH.265, H.264, H.264H, H.264B, MJPEG
Recording Resolutions8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
BNC Recording Frame RateNo
Total Incoming IP Bandwidth200 Mbps
Total IP Recording Bandwidth200 Mbps
Max Hard Drive Capacity2HDD, 12TB
RAID RedundancyNo
Hot Swap HDDNo
eSATA PortNone
USB Ports(1) USB 2.0, (1) USB 3.0
Video Outputs(1) HDMI, (1) VGA
Total PoE Power130 W
Power Input110-220V AC
Warranty1 Year


Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 9 question(s)

will this nvr work with q see ip cameras

Question by: rob on: 2016-12-15

It depends as Q-See uses a couple of different factories to source their products. What is the model of the Q-See IP camera that you have?

Answer by: Tech Support on: 2016-12-15

Does this work with the Funlux wireless cameras?

Question by: Coal on: 2017-04-19

Sorry it does not.

Answer by: Tech Support on: 2017-04-24

I have a qsee 8 camera system. The DVR harddrive has quit. I want to replace the DVR with one of yours but I want to also use the cameras I have, plus have the ability to add 4 to 8 of the IP cameras in the future. My model # is QC908 8 Channel HD.

Question by: James Davidson on: 2017-10-05

You submitted this questions on an NVR page. An NVR is for recording IP cameras. The system model you stated is for security cameras that are HD over coax. Please see our Tribrid DVR category to pick a suitable DVR for use with your old cameras.

Answer by: Tech Support on: 2017-10-05

Hello, I have a LaView 16 Channel NVR (LV-N9916C6E) and was thinking about replacing the NVR with this. My cameras are LaView/Hikvision (LV-PB932F4). Are these compatible?


Question by: Vince on: 2018-03-20

Hikvision cameras are compatible with our NVRs, however depending on firmware and year of production, the ability to record on motion will vary.

Answer by: Tech Support on: 2018-03-20

Is it possible to be connected to a monitor with vga output and also use hdmi to connect another tv location with this nvr?

Question by: Stephen Frazier on: 2018-03-26

Yes you can.

Answer by: Tech Support on: 2018-03-28

Can this be rack mounted?

Question by: James on: 2018-10-22

This is not a rack mount unit. Only the 4 SATA and 8 SATA units are rack mountable. However, you can always use a rack mount shelf to place it inside a rack.

Answer by: Tech Support on: 2018-10-22

WIll this NVR work with a Axis 221 POE camera?

Question by: Gordon on: 2019-01-11

The Axis 221 is a very old camera since it only supports mjpeg and mpeg4. NVRs these days only support h.264 or h.265 video. The only way to know would be if you DMZ one camera, and provide us an external IP address, username, and password to test the camera with the NVR.

Answer by: Tech Support on: 2019-01-11

Can this do 60fps at 1080p? Can it do 60fps at anything higher than 1080p?

Question by: Steven on: 2019-01-25

The recording capability of our NVRs is based on total encoding bit rate up to the stated resolution in the specs of the NVR. Recording capability is not to be judged based on a certain FPS as that is for DVRs. This NVR can support up to 60fps even at 3MP as long as:

  • The camera produces a 60fps 3mp stream

  • The camera is compatible to our NVR, i.e. it is purchased from our website

This 3MP High frame rate camera produces a 60fps stream.

Answer by: Tech Support on: 2019-01-25

I have Zmodo wireless cameras and I need more channels than the 8 I have on my NVR. Will this NVR work with the cameras I already have?

Question by: Joe Smo on: 2019-03-25

Unfortunately Zmodo cameras only reliably work with Zmodo NVRs.

Answer by: Tech Support on: 2019-03-26
