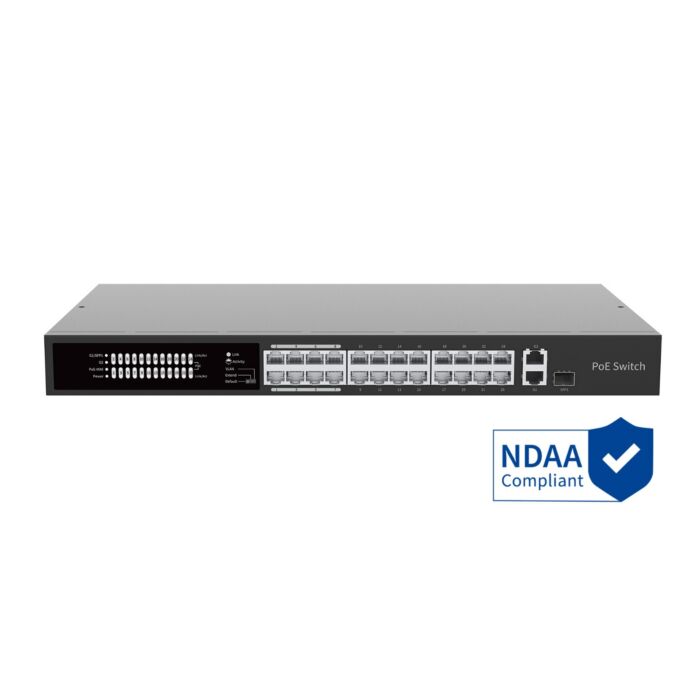

High Power 24 Port PoE+ Plus Switch

This High Power 24 Port PoE+ Switch can supply data and power to up to 24 PoE cameras. It is a high power PoE switch as it provides up to 370W of power to meet the demands of the most power hungry cameras. For uplink there are two Gigabit (1000mbps) uplink ports to connect the switch to a router, computer, NVR, or to another switch. There is also one 1000 Base-X SFP uplink port that shares bandwidth with the second uplink port.

As an unmanaged switch, you can connect the switch to your router or NVR, and connect IP PoE cameras to it. Each of the 24 PoE+ ports are 802.3af and 802.3at compliant and provide up to 30W of power. The first eight PoE ports also have the ability to output power up to 820ft (250m) for use with fixed lens PoE cameras requiring less than 10W of power.

Features

• 24 Port PoE+ Switch
• Unmanaged High Power PoE Switch
• 370W Total PoE Power Output
• 24 10/100 Mbps PoE+ Ports
  • Power transmission up to 328ft
  • Max 30 Watts per port
• Ports 1 thru 8 support extended PoE up to 250m
  Compatible with cameras requiring less than 10W of power
  • Best performance when used with solid copper CAT6 cable
  • No need for PoE Extender
  • Compatible with all brands of IP cameras from CCTV Camera World
• 2 Gigabit 10/100/1000 Mbps Uplink Ports
• 1 Gigabit SFP Ports
• Rack Mountable 1U case

What's Included?

• (1) 24 Port PoE+ Switch
• (1) Power Cord
• (1) Pair of Rack Mount Ears

Specifications
