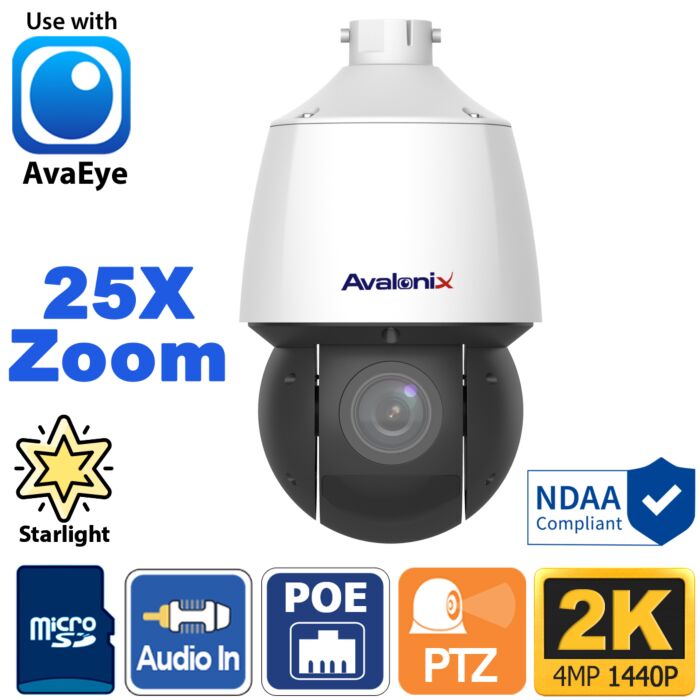

2K 4MP 25X Starlight Network Pan Tilt Zoom Dome Camera, Auto Tracking
- 25X Optical Zoom
- 330ft Infrared Night Vision
- 4MP 30fps
- Starlight Video
- Tripwire, Intrusion Detection
- People Counting
- Crowd Density Monitoring
- Auto Tracking
- Up to 256GB microSD
- Audio Line-in/out
- IP67 Weather Proof
- Wall or pole mount
- 12VDC or PoE+
The 25x 4.8–120mm optical zoom lens in this 2K 4MP 25x Starlight PTZ dome camera allows you to zoom in on distant areas with breathtaking clarity seeing faces up to 812 feet away at full zoom. The pan-tilt capability provides a wide range of movement, enabling you to cover a huge area with little effort. This camera is ideal for surveillance applications such as observation of vast outside areas, parking lots, and buildings. The high resolution ensures that even when zoomed in, you'll be able to capture sharp, detailed security footage. This camera's superior imaging technology and fine control will ensure that you have the surveillance coverage you need to keep your property safe and secure. The camera can be used and controlled with a compatible NVR, the AvaEye PC software, or using our free AvaEye remote viewing smartphone app.
With an IP67 rating that protects against dust, water, and high temperatures, this PTZ camera is made for outdoor use. The front glass has an IK10 vandal resistance rating, as well. The camera has a number of mounting options available, including a wall mount, and pole mount, allowing for simple installation and flexible positioning. This camera also includes Power over Ethernet (PoE) technology, which enables power and data transfer over a single Ethernet cable, simplifying installation and reducing the need for a power outlet. This capability allows the camera to be installed in areas where power is not readily available, making it an excellent choice for almost any surveillance system.
Starlight technology allows for enhanced low-light performance in PTZ cameras, allowing for clear image capture in conditions with little lighting. This technology utilizes advanced image processing techniques and specialized sensors to significantly increase the camera's sensitivity to light, making it possible to capture high-quality images in environments with minimal ambient light. Starlight PTZ cameras are ideal for outdoor surveillance applications where lighting is limited, such as in parking lots or on poorly lit streets. In complete darkness the camera turns on it's 330ft of IR night vision and switches the video to black and white mode.

Features
- 2K 25X Zoom Professional Pan Tilt Zoom Camera
- 4MP Progressive Scan CMOS Image Sensor
- Network Based PTZ Camera with built-in webserver
- 2688x1520 Resolution Video at 30fps
- Up to 50ft of facial detail at the widest angle, Up to 812ft at maximum zoom1
- Up to 330ft of IR night vision2
- See in color at night with ambient light3 using Light Hunter Starlight technology
- 25X Motorized Optical Zoom
- Day & Night Switching (color vs black & white) in complete darkness
- H.265 and H.264 Video encoding
- H.265+ provides up to 70% in bandwidth savings over H.264
- 3 Video Streams
- Main Stream: 4MP 30fps
- Sub Stream 1: 1080P 30fps
- Sub Stream 2: D1 30fps
- Advanced Image Features
- True WDR
- BLC
- HLC
- 3DNR
- Video Analytics (Human Body and Vehicle):4
- Motion Detection
- Audio Detection (optional mic required)
- Cross Line
- Enter Area
- Leave Area
- Intrusion Box
- Face Detection up to 5ft from focal distance
- People Flow Counting
- Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
- Optional Factory Installed internal MicroSD up to 256GB available
- Multiple recording methods possible:
- Record to NVR
- Internal MicroSD for backups or for use as a standalone security camera
- Computer Software
- FTP
- View from NVR, Web Browser,5 Smartphone or Tablet
- Free Smartphone and AvaEye PC/Mac viewing Software included
- Audio Input/Output Connections for use with two-way audio kit for security cameras
- IP67 Weather Proof 6 - Safe to use outdoors or indoors in cold or hot weather
- Metal + Plastic construction
- Wall mount included
- Optional ceiling and pole mounts available
- NDAA compliant
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.003 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Requires AvaEye compatible NVR or AvaEye Software
5. Edge with IE Mode, or Internet Explorer on Windows PC required for viewing and full control of all features
6. Not intended for submersion in water.
What's included?
- (1) 2K 4MP 25X Starlight Network Pan Tilt Zoom Dome Camera, Auto Tracking
Specifications
Camera | |||||||||||
Image Sensor | 1/2.8" 4MP Progressive Scan CMOS | ||||||||||
Effective Pixels | 2688 (H) x 1520 (V) | ||||||||||
Scanning System | Progressive | ||||||||||
Electronic Shutter Speed | Auto/Manual, 1/1- 1/100000s | ||||||||||
Min. Illumination | 0.003 Lux F1.5 (Color) Light-hunter / Starlight Technology, 0 Lux IR On | ||||||||||
S/N Ratio | More than 56dB | ||||||||||
IR Distance | Up to 330ft | ||||||||||
IR On/Off Control | Auto, Manual | ||||||||||
Smart IR | Yes | ||||||||||
Wiper | None | ||||||||||
Lens | |||||||||||
Lens Type | Motorized Zoom with Auto Focus | ||||||||||
Focal Length | 4.8 – 120mm (25X Optical Zoom) | ||||||||||
Max Aperture | F1.5 – F3.8 | ||||||||||
Angle of View | Horizontal: 52.2° – 2.7° Vertical: 30.8° – 1.5° | ||||||||||
Digital Zoom | Supported | ||||||||||
Max Distances* at 25X Zoom | |||||||||||
|
|||||||||||
Video | |||||||||||
Video Interface | IP (Network Based Camera) | ||||||||||
Compression | H.265+, H.265, H.264+, H.264 | ||||||||||
Streams | Main Stream, Sub Stream 1, Sub Stream 2 | ||||||||||
Resolution | 4MP (2688×1520), 1080P (1920×1080), 720P (1280x720), D1 (720x576) | ||||||||||
Frame Rate | Main Stream: 4MP (1-30fps) |
||||||||||
Bit Rate | 128 Kbps - 16 Mbps | ||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||
Backlight Compensation | BLC, HLC, WDR | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
Noise Reduction | DNR (2D/3D) | ||||||||||
Motion Detection | Yes, stream compatible w/ specific NVR or Software | ||||||||||
Region of Interest | Yes | ||||||||||
Electronic Image Stabilization | Yes | ||||||||||
Defog | Yes | ||||||||||
Image Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||||
Privacy Masking | 24 areas, up to 4 per scene | ||||||||||
Video Analytics | |||||||||||
Auto Tracking | Yes | ||||||||||
Video Analytics | Motion Detection, Audio Detection, Line Crossing, Intrusion Box, Enter Area/Leave Area Detection for Vehicle and Human Body, People Flow Counting, Crowd Density Monitoring | ||||||||||
Audio | |||||||||||
Compression | G.711U, G.711A | ||||||||||
Audio Interface | 1 Channel-In/Out | ||||||||||
Audio Bitrate | 64 Kbps | ||||||||||
Two-way Audio | Supported | ||||||||||
Sampling | 8 kHz | ||||||||||
PTZ | |||||||||||
Pan/Tilt Range | Pan: 0° – 360° endless; Tilt: -15° – 90°, auto flip 180° | ||||||||||
Manual Control Speed | Pan: 0.1° – 200° /s; Tilt: 0.1° – 120° /s | ||||||||||
Preset Speed | Pan: 240° /s; Tilt: 200° /s; | ||||||||||
Number of Presets | 1024 | ||||||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||||||||
Patrol Stay Time | 15s – 1800s | ||||||||||
Power up Action | Auto restore to previous zoom and position after power failure | ||||||||||
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command for a while | ||||||||||
Protocol | PelcoD, Avalonix, or ONVIF | ||||||||||
Network | |||||||||||
Ethernet | RJ-45 (100Mbps) | ||||||||||
Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS | ||||||||||
Compatibility | ONVIF (Profile S, Profile G, Profile T) | ||||||||||
Max. User Access | 3 Online Users. Up to 32 Accounts. 2 User Levels: Admin, User | ||||||||||
Recording Methods | NVR, NAS via NFS or FTP, Local PC, MicroSD | ||||||||||
Smart Phone | iOS, Android | ||||||||||
Web Viewing | IE**, Chrome, Safari, Firefox | ||||||||||
Security | Password protection, Strong password, HTTPS encryption available | ||||||||||
Other Connections | |||||||||||
Memory Slot | MicroSD, Max 256GB (factory installed option) | ||||||||||
BNC | Yes, CVBS output | ||||||||||
RS485 | Yes | ||||||||||
Power | 5.5mm 12VDC Power Plug, Center Positive | ||||||||||
Alarm | 2/1 channel In/Out | ||||||||||
General | |||||||||||
Power | 12V DC, PoE+ (802.3at) | ||||||||||
Power Consumption | 21W Max (IR LEDs on and PTZ moving) | ||||||||||
Operating Temperature | -22°F to +140°F, Less than 95% Relative Humidity | ||||||||||
Weather Proof | Yes IP67 | ||||||||||
Vandal Resistance | Yes IK10 | ||||||||||
Dimensions | 11.6" x 6.5" (length x diameter) | ||||||||||
Construction | Metal, Plastic | ||||||||||
Weight | 6.72 lbs | ||||||||||
Certifications | CE, FCC |
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identify means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.
Lens | 4.8-120mm |
---|---|
Wide Dynamic Range (WDR) | WDR |
Pan Tilt Zoom | Yes |
Dimensions | 6.5" Diameter x 11.6" Height |
Operating Temperature | -40°F to +140°F |
Weight | 7 lbs |
Video Encoding | H.265/H.264 |
Important Features | Auto Tracking |
Image Sensor | 1/2.8" CMOS Sensor |
Weather Proof | Yes, IP67 |
Warranty | 1 Year |
Camera Resolution | 4MP |
Signal Type | IP |
Camera Color | White |
Night Vision | 328ft |
Power Input | 12V DC / PoE+ |
Angle of View | 52.20° - 2.74° |
Optical Zoom | Motorized Zoom |
SD Card Slot | Yes |
Microphone | Mic Input |
Video Analytics | Line Crossing, Intrusion Box, Enter Area/Leave Area Detection for Vehicle and Human Body, People Flow Counting, Crowd Density Monitoring |
Return Policy | 30 Days Return Policy |
Brand | AvaEye |
