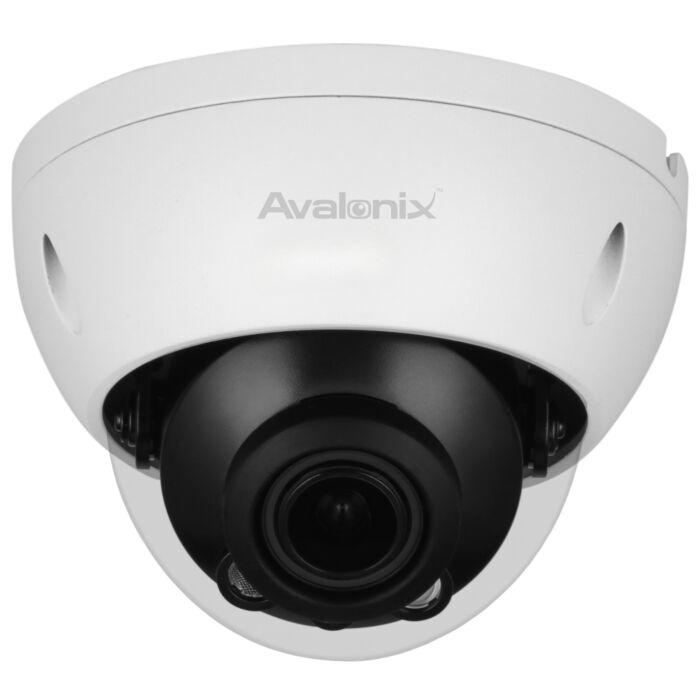

2K Vandal Resistant Motorized Dome Camera, Audio In/Out
- 2K Motorized Zoom Dome PoE Camera
- 2.7-13.5mm Motorized Lens
- 104° - 27° Angle of View
- Up to 131ft Night Vision
- True WDR
- Up to 256GB microSD
- 12VDC or PoE
- IP67 Weather Proof Rating
- Vandal Resistant
- Wall/Ceiling/Pole/Recessed Mount
This 4 Megapixel Impact Resistant IP Dome Camera is a feature rich camera at a very affordable price. In addition to it very high 2K resolution, it has a motorized varifocal lens of 2.7-13.5mm that allows the user to control the lens from anywhere. Once you mount the camera and set it in the direction you'd like it to look at, you can zoom in or out from a compatible Premium Avalonix NVR, from a computer, or from your smartphone or tablet. At the widest setting of 2.7mm, you can expect to have a 104 degree view. When you are zoomed in all the way at the 13.5mm zoom length, you will have a 27 degree view and be able to discern fine detail up to 100ft away. Below is a video sample from this motorized zoom PoE camera.
The 2K resolution video provided by this security camera will blow away anything you've seen before. The on-board color 4MP CMOS sensor will provide a 2688 x 1520 pixels picture that allows for digital zoom even after video has been recorded. This increases the likelihood that you will be able to capture faces and relevant detail in the event of a break-in that will lead to swift prosecution of the criminals.
Let's not forget this dome security camera is vandal and impact resistant and has infrared night vision. You can expect the camera to see in complete darkness up to 130ft away.
This camera also provides streaming capabilities directly to YouTube Live as long as it connected to a reliable high speed internet connection with static IP address. To learn more, feel free to read our guide on how to stream to YouTube Live.
For powering the camera, be sure to use one of our PoE switches, PoE enabled NVRs, or a 12VDC CCTV power supply. To record video we recommend using one of the Premium Avalonix PoE NVR which provide plug & play compatibility with this camera.
Features
- 2K IP Dome Camera with Varifocal Lens
- 4 Megapixel Image Sensor produces 2K Color Video
- H.265, H.264 Video Encoding
- H.265+ saves up to 75% bandwidth by using scene adaptive encoding strategy
- Dual Stream Video Encoding (Main/Sub Stream)
- Selectable recording resolution:
- 20fps at 4MP (2688x1520)
- 30fps at 2K (2560x1440)
- Motorized Varifocal Lens 2.7-13.5mm with Auto Focus
- Lens can be controlled at will from NVR, computer, or mobile App
- 2 Super IR provide up to 130ft Night Vision
- Smart IR technology to reduce IR glare
- True WDR for glare compensation
- 3D Noise Reduction for improved night time picture quality
- Automatic Day/Night Switching
- Audio Line-in and Line-out supports use of add-on microphone or two-way audio kit
- MicroSD card slot inside camera supports up to 256GB
- IK10 Impact and Vandal Resistant
- IP67 Full Weather Proof Rating
- Outdoor or Indoor Use
- Wall, ceiling, or pole mountable
- Recessed ceiling mountable with optional in-ceiling mount (sku JB200C)
- ONVIF Compatible
- PoE or 12V DC power input
What's included?
- (1) 2K Vandal Resistant Dome Camera with Motorized Zoom Lens, Audio In/Out
Specifications
Image Sensor | 1/3" 4MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
Effective Pixels | 2688 (H) x 1520 (V) | ||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/3 – 1/100000s | ||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.01 Lux F1.4 (Color), 0 Lux (IR On) | ||||||||||||||||||||||||||||||||||
S/N Ratio | More than 50dB | ||||||||||||||||||||||||||||||||||
IR Distance | Up to 131ft | ||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
IR LEDs | 2 Super IR LEDs | ||||||||||||||||||||||||||||||||||
Lens Type | Motorized | ||||||||||||||||||||||||||||||||||
Focal Length | 2.7–13.5mm | ||||||||||||||||||||||||||||||||||
Max Aperture | F1.6 | ||||||||||||||||||||||||||||||||||
Angle of View | Horizontal: 104°–27°, Vertical: 55°–15° | ||||||||||||||||||||||||||||||||||
Focus Control | Motorized | ||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.62 ft | ||||||||||||||||||||||||||||||||||
DORI Distance* | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||
Wide | 210ft | 84ft | 42ft | 21ft | |||||||||||||||||||||||||||||||
Tele | 721ft | 288ft | 144ft | 72ft | |||||||||||||||||||||||||||||||
Bracket Range | Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360° (Not a PTZ Camera) | ||||||||||||||||||||||||||||||||||
Compression | H.265+, H.265, H.264+, H.264 | ||||||||||||||||||||||||||||||||||
Video Analytics | Motion Detection, Tripwire, Intrusion Detection, Audio Detection | ||||||||||||||||||||||||||||||||||
Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||
Resolution | 4MP (2688x1520), 3MP (2304x1296), 1080P (1920×1080), 720P (1280x720), D1 (704x480), CIF (342x240) | ||||||||||||||||||||||||||||||||||
Frame Rate | Main Stream: 4MP (1-20fps), 2K (1-30fps), 3MP/1080P (1-30fps), Sub Stream: D1/CIF (1-30fps) | ||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
BLC Mode | BLC, HLC, True WDR (120db) | ||||||||||||||||||||||||||||||||||
White Balance | Auto, Natural, Street Lamp, Outdoor/Manual | ||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||
Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) | ||||||||||||||||||||||||||||||||||
Mirror | Off / On | ||||||||||||||||||||||||||||||||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
Audio Input/Output | Yes 1 in and 1 out RCA | ||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; G.726; AAC | ||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel In: 5mA 5VDC; 1 channel Out: 300mA 12VDC | ||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||
Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, RTMP | ||||||||||||||||||||||||||||||||||
Interoperability | ONVIF Profile S/G, PSIA, CGI | ||||||||||||||||||||||||||||||||||
Streaming Method | Unicast | ||||||||||||||||||||||||||||||||||
Max. User Access | 5 Users | ||||||||||||||||||||||||||||||||||
Recording Method | NVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD | ||||||||||||||||||||||||||||||||||
MicroSD | microSD up to 256GB | ||||||||||||||||||||||||||||||||||
Web Viewer** | Edge, Chrome, Firefox, Safari | ||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||
Power Supply | 12V DC or PoE (802.3af) | ||||||||||||||||||||||||||||||||||
Power Consumption | 6.5W | ||||||||||||||||||||||||||||||||||
Operating Conditions | -22°F – +140°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
Weather Protection | IP67 | ||||||||||||||||||||||||||||||||||
Vandal Resistance | Yes IK10 | ||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||
Dimensions | 4.80" x 3.50" (diameter x height) | ||||||||||||||||||||||||||||||||||
Net Weight | 1.1 lbs |
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
**Certain functions like two-way audio, digital zoom, and etc are unavailable in Chrome, Firefox, and Edge browsers due to limitations related to HTML5. Windows plugin installation allows access to full feature set in Windows browsers.
Lens | 2.7-13.5mm |
---|---|
Wide Dynamic Range (WDR) | WDR 120db |
Pan Tilt Zoom | No |
Dimensions | 4.80" x 3.50" (diameter x height) |
Operating Temperature | -22°F to +140°F |
Video Encoding | H.265+, H.265, H.264+, H.264 |
Important Features | Impact Resistant IK10 |
Image Sensor | 1/3" CMOS Sensor |
Weather Proof | Yes, IP67 |
Warranty | 1 Year |
Camera Resolution | 4MP |
Signal Type | IP |
Camera Color | White |
Night Vision | 130ft |
Power Input | 12V DC / PoE |
Angle of View | 104° - 28° |
Optical Zoom | Motorized Zoom |
SD Card Slot | Yes |
Microphone | Audio Line-in |
Video Analytics | Tripwire, Intrusion |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
