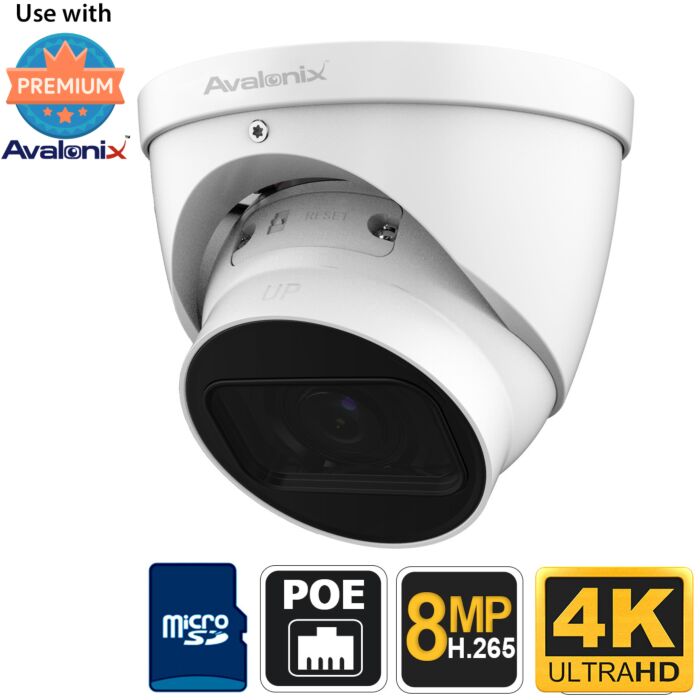

8MP 4K IP Turret Dome Camera, 4X Zoom

SKU: IPC4K15MZED

Write a Review

Availability: In stock

Regular Price: $599.99

On Sale: $399.99

If you would like on-board storage, you can choose to have a factory installed SD card.

You can choose from the following optional brackets to aid in installation.

  • Junction Box for Dome Cameras
  • Wall Mount Arm Bracket for Security Cameras
  • Pole Mount Bracket Mini
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 4K security camera dome is a sibling of our Vandal and Impact Resistant 4K Security Camera. It has a similar image sensor and features, making it ideal for use in applications around a home or business where the power off zoom combined with 4K video is needed. Since it is IP67 weather proofing rated, you can use it both indoors and outdoors. This UltraHD 4K dome camera is a customer favorite for monitoring employee performance where you need to have a close up view of paperwork or a computer screen.

Like our other 4K security cameras, at its wide angle of view this camera can identify facial detail up to 50ft away in live or recorded video at 4K resolution. When in live-view mode, this 4K camera's optical zoom lens is motorized and can be easily adjusted from the NVR, smartphone, or computer to set the field of view on a particular subject. At full optical zoom you can recognize a face up to 130ft away. The crisp clear video provided by this camera is truly one of the best in the security camera industry and is excellent in cases where facial capture is key for identification and prosecution of a perpetrator.

This 4K dome camera is an IP camera, so you can watch it over the internet from your smartphone, computer, or an NVR. It is also available with internal microSD storage to function as a standalone camera.

Its also one of our AI security cameras that have powerful video analytics for smart motion detection. By using either a virtual tripwire or intrusion box, you can minimize motion events and reduce false motion alerts to your phone.

Since it is ONVIF support, you can also record its video stream from many software platforms on the market. But if you want to control and reap the benefits of the features this camera has to offer, then you will need a compatible NVR that we carry. By using one of our NVR recorders you will be able to easily control the optical zoom lens, set camera parameters, and take advantage of the Video Analytics and motion detection features of the camera.

Let's not forget, if video storage space is a concern, you can utilize the camera's H.265 video encoding ability along with scene adaptive optimization provided by Smart Codec+ technology. With H.265+ you can expect up to 70% in storage and bandwidth savings.

Features

  • 4K Dome Camera
  • 8MP Video Sensor for Ultra HD 4K Video
  • H.265 and H.264 Video encoding
  • H.265+ provides up to 70% in bandwidth savings over standard H.264
  • Facial Detail up to 130ft with lens set at 13.5mm, 31 degree angle of view1
  • Facial Detail up to 50ft with lens set at 2.7mm, 113 degree angle of view1
  • 2.7-13.5mm Motorized Zoom Lens Lens controllable from NVR, Smartphone or Computer
  • 130ft of Infrared Night Vision2
  • Low Lux Sensitivity allows camera to see in color with little ambient light3
  • Auto Day & Night Technology switches video to black & white in total darkness
  • Dual Video Streams: Main Stream, Sub Stream 1
  • Video Analytics features compatible with our 4K NVR recorders:
    • Tripwire
    • Intrusion Detection
  • Eyeball turret dome design makes it easy to mount and point in any direction
  • Mounts easily to wall or ceiling
  • Optional junction box, pole mount and arm mount available
  • PoE connectivity sends video/power/data over one network cable
  • Factory installed internal MicroSD support up to 256GB (optional)
  • Records to NVR, Computer, NAS, FTP, or internal MicroSD
  • View from NVR, Web Browser, Smartphone or Tablet
  • IP67 Weather Proof4 - Safe to use outdoors or indoors in cold or hot weather
  • Metal construction
  • PoE or 12V DC Input

1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.008 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Not intended for submersion in water. Installation in a sheltered location recommended.

What's included?

  • (1) 4K IP Dome Camera, 4X Zoom

Specifications

Image Sensor1/2.7" 8MP Progressive Scan Starvis CMOS
Effective Pixels3840 (H) x 2160 (V)
Electronic Shutter SpeedAuto/Manual, 1/3- 1/100000s
Minimum Illumination0.008 Lux F1.5 (Color), (0 Lux IR On)
S/N RatioMore than 56dB
IR DistanceUp to 130ft
IR On/Off ControlAuto, Manual
IR LEDs2 Super IR LEDs
Lens TypeMotorized DC Auto Iris
Focal Length2.7-13.5mm
Max ApertureF1.5
Angle of ViewHorizontal:113°-31°, Vertical:58°-17°
Focus ControlMotorized
Close Focus Distance2.6ft
DORI Distance*LensDetectObserveRecognizeIdentify
Wide280ft112ft56ft30ft
Tele918ft368ft184ft92ft
Bracket RangePan: 0° - 360°, Tilt: 0° - 78°, Rotation: 0° - 360°
CompressionH.265+, H.265, H.264+, H.264
Video AnalyticsTripwire, Intrusion
Streaming Capability2 Streams (Main Stream, Sub Stream 1)
Resolution4K (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 3MP (2048x1536), 1080P (1920×1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x480), VGA (640x480), CIF (342x240)
Frame RateMain Stream: 4K (1-15fps), 3MP (1-30fps), Sub Stream 1: D1 (1-30fps)
Bit Rate ControlCBR, VBR
Bit RateH.265: 12K - 8192Kbps, H264:32K - 8192Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, WDR 120dB
White BalanceAuto, Natural, Street Lamp, Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRYes
Digital Zoom16X
Flip0°, 90°, 180°, 270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio InputN/A
Alarm Input

N/A

EthernetRJ-45 100Mbps
ProtocolsHTTP, HTTPs, TCP, ARP, RTSP, RTP, RTMP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users
Recording MethodNVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD up to 256GB
MicroSDmicroSD up to 256GB, factory installed microSD card
Web ViewerIE, Edge, Chrome, Firefox**
Smart PhoneiPhone, iPad, Android Phone
Power Supply12V DC or PoE (802.3af)
Power Consumption< 7.6W
Operating Conditions-22° F - +140° F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceN/A
CasingMetal
Dimensions4.8" x 4.3" (diameter x height)
Net Weight1.6 lbs

*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE provides access to full feature set of the web interface. Chrome, Firefox, and Edge provide limited functionality of web interface.

More

More

Return Policy30 Days Return Policy
Signal TypeIP
Camera Resolution4K 8MP
Image Sensor1/2.7" 8MP CMOS Sensor
Night Vision130ft
Lens2.7-13.5mm
Optical ZoomMotorized Zoom
Angle of View113° - 31°
Wide Dynamic Range (WDR)WDR 120db
MicrophoneNo
Pan Tilt ZoomNo
Video AnalyticsTripwire, Intrusion
Important FeaturesNo
SD Card SlotYes
Power Input12V DC / PoE
Operating Temperature-22°F to +140°F
Dimensions4.8" x 4.3" (diameter x height)
Weight1.6 lb
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.265+, H.265, H.264+, H.264
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 2 question(s)

Is the IPC4KMZED ONVIF compliant?

Question by: Ivan Moore on: 2018-11-27

Yes it is ONVIF compliant.

Answer by: Tech Support on: 2018-11-27

Are these cameras available in the black casings? Is Avalonix coming out with a newer version of this camera and if so when?

Question by: Jerry on: 2020-03-11

We keep a white casing on our cameras to allow greater durability in hot temperatures. Black colored casings cause internal temperatures to be higher.

Answer by: Tech Support on: 2020-04-09
