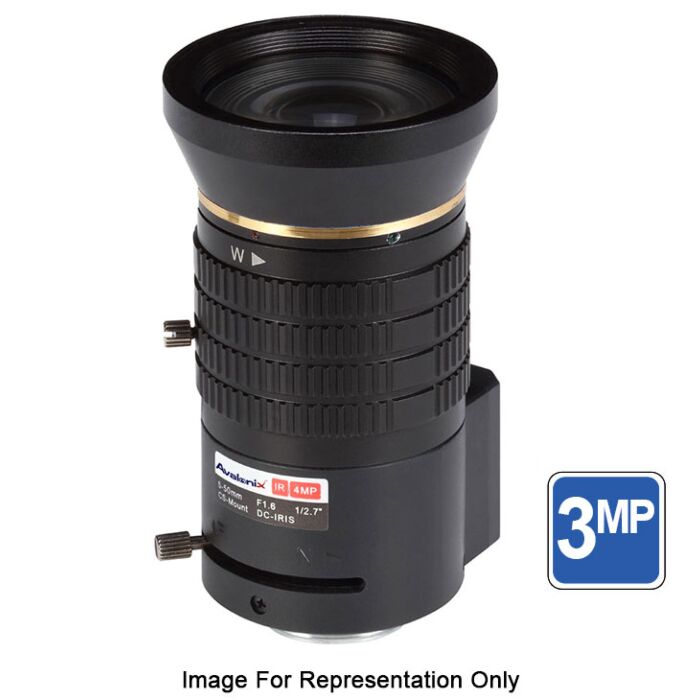

3MP 5-50mm Lens CS Mount
$65.00
Overview
3MP Varifocal Lens - 5-50mm manual varifocal lens for compatible high definition box cameras up to 3MP.
Long Zoom Range - Adjustable 5-50mm lens lets the installer set zoom and focus by hand for the desired field of view.
Auto Iris Design - 1/2.7 inch auto iris lens with F1.6 aperture and DC drive iris control.
Angle Of View - Listed angle of view is 50 degrees to 5.6 degrees with a 1/2.7 inch image sensor.
Cs Mount Compatible - Designed for box cameras that accept CS mount lenses.
This 5-50mm varifocal lens is made of high quality optics making it suitable for use with high definition box cameras up to 3MP in resolution. The lens can be adjusted by hand to set the desired zoom length and focus.
Features
- High Quality 3MP Varifocal Lens
- For use with Box Cameras
- Compatible with cameras up to 3MP resolution
- 1/2.7" Auto Iris Lens F1.6
- 5-50mm Manual Varifocal Lens
- 50° to 5.6° Angle of View with a 1/2.7" image sensor
- DC Drive Iris Control
- CS mount compatible
- Lens zoom can be easily adjusted by hand
What's Included?
- (1) 3MP 5-50mm Varifocal camera lens
Specifications
| Image format | 1/2.7" | |
| Focal length | 5-50mm | |
| Lens pixel | 3MP | |
| Aperture | F1.4 | |
| Field Angle(D*H*V) | Wide: 70°(D)x50°(H)x37.5°(V) to Tele: 7°(D)x5.6°(H)x4.2°(V) | |
| Minimum Object Distance | 1m (3.3ft) | |
| IR Correction | Yes | |
| Lens Control | Focus | Manual |
| Zoom | Manual | |
| Iris | DC-Iris | |
| Mount | CS | |
| Dimension | 47mm diameter x 88mm length | |
| Weight | 7 oz | |
| Operating temperature | -22°F to 140°F | |
| Humidity | Less than 90% RH | |
| Brand | AvaEye |
|---|---|
| Warranty | None for accessories |
| Return Policy | 30 Days Return Policy |
