4 Channel Passive Balun Transceiver HD

SKU: BPR04

Write a Review

Availability: In stock

$34.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

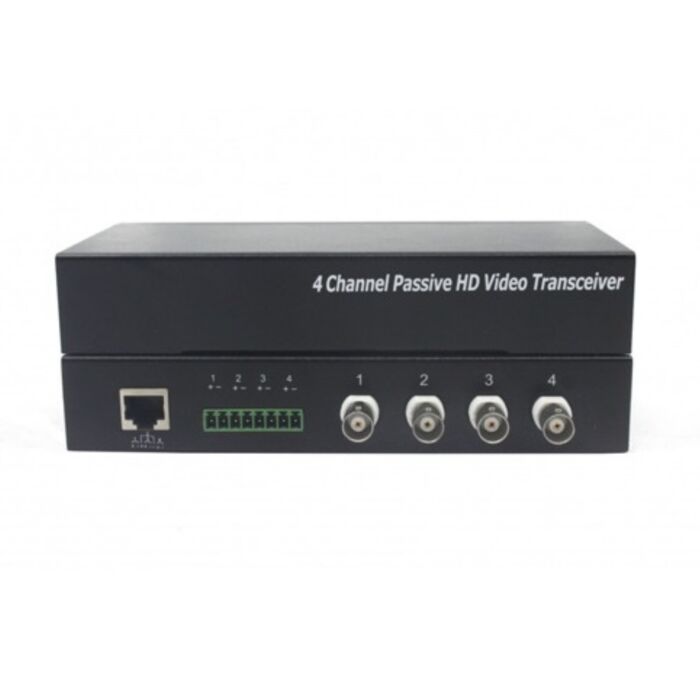

This 4 Port Passive Balun Transceiver that can be used as both a receiver or transmitter.  It is a very simple unit that has 4 BNC video connectors on one side and 4 pair of screw terminals connectors for bare leads from CAT5/6 wire. Since you can use this as both a transmitter or receiver, you can do the following:

  • Transmit 4 video signals between two 4 channel units - connect BNC video signals from up to 4 cameras to one transceiver, and run 4 pairs of 2-wire leads to another 4 Port Passive Balun Transceiver which will act as the receiver and connect that unit's BNC connectors to a DVR to output video.
  • Act as the receiver for 4 video signals from 4 individual balun adapters
  • Act as the transmitter for 4 video signals to 4 individual balun adapters

Features

  • Passive Balun Transceiver
  • Can transmit or receive 4x balun video signals
  • 4x Video Inputs / Outputs - 4 Screw terminal connections for wire leads coming from passive baluns or active balun transmitters connected to video source
  • 4 BNC video inputs/outputs to connect to cameras or DVR
  • Works with Analog Security Cameras
  • Works with HD Security Cameras over Coax up to 1080P
    • HDCVI - 800ft
    • TVI - 800ft
    • AHD - 600ft
  • Real time transmission without delay
  • Video Transmission distance depending on camera signal resolution and signal type
  • No power required - Passive Transceiver
Transceiver Type4CH Video Transceiver (Passive)
VideoFrequency Response Range: DC-6MHz;  Common-Mode / Differential-Mode rejection: 15KHz-6MHz 60dB type
Wire Type24AWG UTP CAT5 or higher; DC loop resistance ≦18Ω/ 100m; Differential capacitance: 62pF/m (max)
Passive Transmission Distance

Color HDCVI or HDTVI 1080P 800ft
Color AHD 1080P 600ft

ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
PowerNone
Transient ProtectionNone
Weight1 lb

More

More

Return Policy30 Days Return Policy
Warranty1 Year
