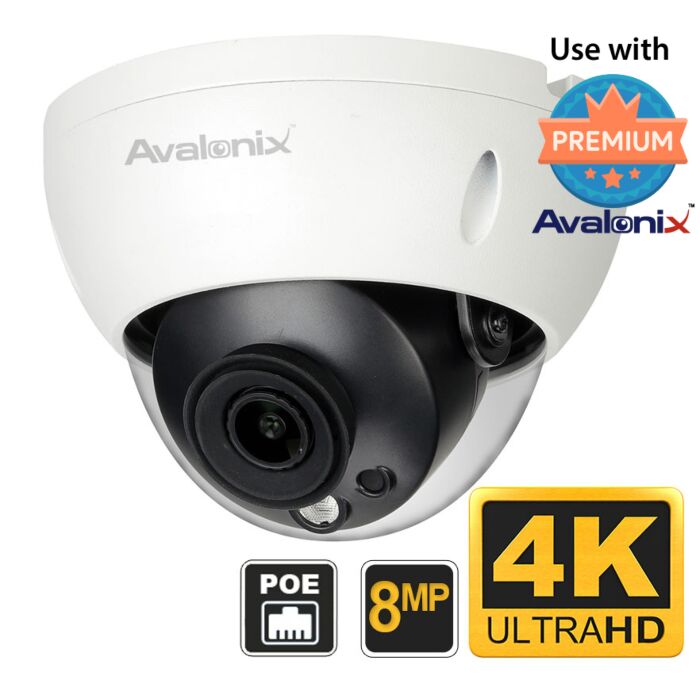

4K IP Camera Dome 30fps, Ultimate Series
- Buy 2 for $289.99 each and save 3%
- Buy 4 for $279.99 each and save 7%
- Buy 8 for $259.99 each and save 13%
- 4K IP Dome Camera
- H.265, H.264 compatible
- 4mm Lens, 87° View
- 100ft IR Range
- 12VDC, PoE
- IP67 Weather Proof
- IK10 Impact/Vandal Resistant
- Wall/Pole/Ceiling Mount
This 8 Megapixel (8MP) IP camera produces 4K Ultra HD resolution video that surpasses any HD quality camera on the market in terms of clarity and resolution. You can record video from this camera to one of our 4K NVR or to a PC based NVR software. 4K Security cameras offer unparalleled video resolution that allows for video recordings that can be zoomed in to while maintaining clarity. You can use digital zoom on the camera or the NVR to magnify video of interest during live view or playback as shown in our video here.
This camera has a 8MP CMOS image sensor that allows the camera to record at 4K resolution (3840 x 2160 pixels). It comes standard with a 4mm lens that provides a 87 degree angle of view. Being 4K resolution, the actual image size is huge, meaning you can digitally zoom in up to 70ft away in daytime to recognize a face on video playback.
The camera also has up to 100ft of night vision provided with by its infrared LEDS, and offers advanced image exposure compensation features such as BLC/ HLC/ True WDR.
It also features intelligent video analytics features such as Tripwire and Intrusion Detection to help reduce false motion alerts.
All these professional features are packed in to a compact dome camera case that is vandal/impact resistant and weather proof IP67. You can use the camera indoor or outdoors and rest assured it is tamper resistant if mounted correctly. This 4K IP Dome Camera can be mounted on a wall or ceiling. If you want the absolute best resolution available for security cameras, we suggest you get one of these.
By watching the video sample below filmed with this actual camera, you can see for yourself the phenomenal amount of facial detail it provides during the day and the amount of night vision available in complete darkness.
You can find more information about what comes included in the box and how to install and aim the camera in the video below:
Be sure to also consider the bullet version of this camera which comes with equal infrared night vision, you can find it here: 4K IP Camera Bullet
Powering the camera is easy. You can integrate it with any of our PoE NVRs that offer plug and play compatibility with our cameras to simplify setup of an NVR camera system. You can watch how easy it is to setup our security camera systems here. You can also power the camera using a PoE switch or a 12V DC 1amp power adaptor.
Since this is an IP camera, it can be streamed directly to your computer using our PC/Mac viewing client or Internet Explorer, or to a NVR, mobile phone, or tablet device. We include our free Windows/Mac software suite to view video, or you can use any third-party video recording suite that accepts ONVIF compatible IP cameras.
For best compatibility and ease of use we recommend using one of our 4K NVRs which also support H.265 for bandwidth savings. H.265 encoding offers a more efficient way to compress video than H.264. It offers nearly double the data compression ratio delivering the same video quality saving bandwidth and storage space. It is also compatible with PC based video recording suites that support IP cameras such as Luxriot, Milestone, and NUUO.
Features
- 8MP CMOS Image Sensor
- 4K Video Resolution 3840x2160 pixels
- 30fps Viewing and Recording Capability at 4K
- H.265+, H.265, H.264+, H.264
- Dual Video Streams (Main Stream, Sub Stream)
- True WDR, Noise Reduction, Back Light Compensation
- Day & Night IR Cut Filter
- 4mm Fixed Lens
- 87° Angle of View
- 100ft Night Vision
- Weather proof IP67 for outdoor use
- IK10 Impact and Vandal Resistant
- Suitable for indoor or outdoor Use
- Usable with NVR recorder, PC Windows Software, or Mobile Applications
- Accepts PoE or 12V DC Power
What's included?
- (1) 4K IP Camera Dome
Specifications
Image Sensor | 1/2.5" 8MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
Effective Pixels | 3840 (H) x 2160 (V) | ||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/3- 1/100000s | ||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.003 Lux F1.6 (Color), (0 Lux IR On) | ||||||||||||||||||||||||||||||||||
S/N Ratio | More than 50dB | ||||||||||||||||||||||||||||||||||
IR Distance | Up to 100ft | ||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
IR LEDs | 1 Super IR LED | ||||||||||||||||||||||||||||||||||
Lens Type | Fixed | ||||||||||||||||||||||||||||||||||
Focal Length | 4mm | ||||||||||||||||||||||||||||||||||
Max Aperture | F1.6 | ||||||||||||||||||||||||||||||||||
Angle of View | Horizontal:87° Vertical:48° | ||||||||||||||||||||||||||||||||||
Focus Control | Fixed | ||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||
4mm | 290ft | 118ft | 59ft | 30ft | |||||||||||||||||||||||||||||||
Compression | H.265+, H.265, H.264+, H.264 | ||||||||||||||||||||||||||||||||||
Bracket Range | Pan: 0° - 355°, Tilt: 0° - 64°, Rotation: 0° - 355° | ||||||||||||||||||||||||||||||||||
Smart Analytics | Tripwire, Intrusion | ||||||||||||||||||||||||||||||||||
Video Analytics | None | ||||||||||||||||||||||||||||||||||
Streaming Capability | 2 Streams (Main Stream, Sub Stream) | ||||||||||||||||||||||||||||||||||
Resolution | 4K (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 3MP (2048x1536), 1080P (1920×1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x480), VGA (640x480), CIF (342x240) | ||||||||||||||||||||||||||||||||||
Frame Rate | Main Stream: 4K (1-30fps), Sub Stream: D1 (1-30fps) | ||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
Bit Rate | H.265: 32 - 8192Kbps, H264:24K - 8192Kbps | ||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
BLC Mode | BLC, HLC, WDR 120db | ||||||||||||||||||||||||||||||||||
White Balance | Auto, Natural, Street Lamp, Outdoor/Manual | ||||||||||||||||||||||||||||||||||
Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (4 Zone) | ||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||
Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||
Defog | Yes | ||||||||||||||||||||||||||||||||||
Flip | 0°, 90°, 180°, 270° | ||||||||||||||||||||||||||||||||||
Mirror | Off / On | ||||||||||||||||||||||||||||||||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
Audio Input | None | ||||||||||||||||||||||||||||||||||
Audio Compression | None | ||||||||||||||||||||||||||||||||||
Alarm | None | ||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||
Protocols | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, ICMP, IGMP, SNMP | ||||||||||||||||||||||||||||||||||
Interoperability | ONVIF, PSIA, CGI | ||||||||||||||||||||||||||||||||||
Max. User Access | 10 Users | ||||||||||||||||||||||||||||||||||
Record Method | NVR, NAS (Network Attached Storage), Local PC for instant recording | ||||||||||||||||||||||||||||||||||
Web Viewer | IE | ||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android Phone | ||||||||||||||||||||||||||||||||||
Power Supply | 12V DC, PoE (802.3af), extended PoE | ||||||||||||||||||||||||||||||||||
Power Consumption | 10W | ||||||||||||||||||||||||||||||||||
Operating Conditions | -22°F – +140°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
Weather Protection | IP67 | ||||||||||||||||||||||||||||||||||
Vandal Resistance | Yes IK10 impact and vandal resistant | ||||||||||||||||||||||||||||||||||
Casing | Metal, Plastic | ||||||||||||||||||||||||||||||||||
Dimensions | 4.8" diameter x 3.5" height | ||||||||||||||||||||||||||||||||||
Net Weight | 1 lbs | ||||||||||||||||||||||||||||||||||
Certifications | CE, UL, FCC Part 15 Subpart B |
Lens | 4mm |
---|---|
Wide Dynamic Range (WDR) | WDR |
Pan Tilt Zoom | No |
Dimensions | 4.33" x 3.2" (diameter x height) |
Operating Temperature | -22°F to +140°F |
Weight | 1 lb |
Video Encoding | H.265+, H.265, H.264+, H.264 |
Image Sensor | 1/2.5" 8MP CMOS Sensor |
Weather Proof | Yes, IP67 |
Warranty | 1 Year |
Camera Resolution | 4K 8MP |
Signal Type | IP |
Camera Color | White |
Night Vision | 100ft |
Power Input | 12V DC / PoE |
Angle of View | 87° |
Optical Zoom | No |
SD Card Slot | Yes |
Microphone | No |
Video Analytics | Tripwire, Intrusion |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
