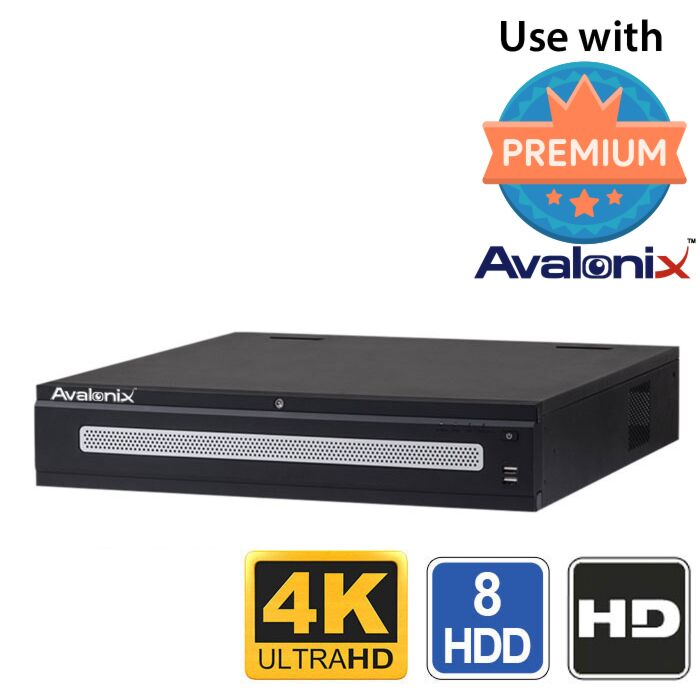

Hot Swap 64 Channel 4K NVR

SKU: NVR4K64A

Write a Review

Availability: In stock

Regular Price: $1,499.99

On Sale: $1,249.99

Please select if you would like a DVD burner.

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2 days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 4K Resolution NVR supports up to 64 IP security cameras at resolutions up to 12 megapixels. It offers a total of 384 Mbps of recording bandwidth, which means you can all 64 at 4K with ease. You can mix and match camera resolutions and frame rate (fps) and record video as long as the total recording bit rate is under 384 Mbps. The NVR also has 1 HDMI output that supports 4K monitor output so that cameras can be viewed in detail.

This is a standalone NVR for recording of IP cameras. It is based on a Linux operating system that adds a high level of security compared to a PC based system, and is not prone to computer viruses. You will never have to worry about the operating system being corrupt or needing a IT person to reformat the unit. Despite having a Linux OS, the user interface is very easy to use and learn all the functions. We also have plenty of instructional videos to help you in the process. Configuration and setup of IP cameras on the network is made easy using the IP Search function in the menu. Our NVRs can automatically search the network they are connected on for compatible network cameras. All of our IP security cameras are guaranteed to be compatible with our NVRs.

It is a 2U size rackmountable DVR that has all the bells and whistles that even a PC based NVR cannot provide. There are 8 SATA drive bays with hot-swap functionality, meaning hard drives can be added and removed without ever having to power off the unit. It supports up to 8 DVR hard drives up to 8TB each, for a total of 64TB. RAID or disk mirroring functionality is standard to safeguard against data loss from drive failure. This professional NVR also supports iSCSI storage so that recording space can be expanded to a SAN or NAS server, which makes it ideal for Enterprise environments. You can even add 8 hard drives externally by using our certified eSATA external hard drive enclosure. Simply connect the external enclosure to the eSATA port on the NVR and it will detected automatically, and the NVR will begin writing to the drives contained in the enclosure.

Video back-up is easy using the on-board USB3.0 ports. This NVR can even do live video backups video using the FTP upload function to backup to a NAS, or to another NVR. This way, if your main NVR is ever damaged or destroyed, your video footage will still be protected by being saved in another location on another device.

You can connect this 4K NVR to sensors using its alarm input connections, and attach devices like PA speakers, sirens and strobe lights to its alarm outputs. It comes equipped with 16 alarm input connections and 8 relay outputs. You most likely will not need all of them, but its good to know they are available.

This NVR also offers remote access through its built-in web server that you can log on to using a web browser, mobile device, or the included Free Computer Client Software. After little configuration you can receive up-to-date alerts based off of video based motion detection, optional alarm triggers, or video loss. We also include FREE iPhone iPad and Android Apps so your security camera system is accessible from anywhere in the world.

Features

  • 64 Channel 4K NVR
  • H.265+, H.265, H.264 Video Encoding
  • Total 384Mbps recording bandwidth
  • H.265+ encoding provides up to 70% savings in bandwidth when used with a H.265 IP camera
  • Supports Real Time 30fps 4K resolution for 4K security cameras
  • Supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P resolution cameras
  • Allows for mix & match IP camera resolutions
  • Remotely view your cameras using our Free Remote View Apps from the internet using any of the following devices:
    • iPhone
    • iPad
    • Android Phone or Tablet
    • PC or Mac Computer
  • IP Search Function allows easy detection of compatible IP cameras on the same network
  • Compatible with CCTVCameraWorld IP cameras or 3rd party ONVIF compatible IP cameras
  • Multiple Monitor Outputs
    • One HDMI audio/video output for 4K Output up to 36 Channels per page
    • One HDMI spot out for up to 16 Camera Display
    • VGA Video Output
  • Up to 64 Channel Live View / Playback on Client Software
  • Remotely playback and download recorded video
  • Multiple recording methods: calendar based, motion detection, alarm triggered, manual
  • Get motion Push alerts without any monthly charges
  • Intelligent video analytics when used with cameras with Smart Detection features:
    • Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map
  • Remotely backup video to FTP, NAS, windows computer, or mirror to another NVR unit
  • Allows easy video backups to USB drive, or eSATA hard drive
  • 8 Hot Swap SATA Hard Drives Bays, support up to 8TB each
  • 64TB Total HDD Capacity
  • Multiple RAID modes supported 0/1/5/6/10
  • Internal storage expandable to 128TB with eSATA expander
  • Expandable recording space to a iSCSI target
  • 3D PTZ Targeting allows easy control of CCTVCameraWorld's PTZ network cameras, and easy setup of preset/tour
  • (2) Gigabit RJ45 Network Ports
  • Allows up to 20 simultaneous users to view or playback video remotely
  • ONVIF 2.4 Compliant

What's Included?

  • (1) 64 Channel 4K Hot Swap NVR
  • (1) Power Cord
  • (1) Software CD
  • (1) Mouse
  • (1) Remote control
  • (1) Rackmount Ears
  • Hard drive(s) installed if ordered
  • (1) Internal DVD Burner if ordered

Specifications

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 64 channel
Audio Input64 channel over IP, camera dependent
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface1 HDMI 4K, 1 VGA, 1 HDMI Spot 1080P
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display SplitScreen 1: 1/4/8/9/16/25/36; Screen 2: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Display Fisheye Dewarp Support
Recording
CompressionH.265+, H.265, H.264+, H.264, MJPEG
Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Record Rate384 Mbps
Bit Rate 16kbps - 20Mbps Per Camera
Record Mode Manual, Schedule (Regular, Continuous), Alarm, Motion Detection, Tampering, Video Loss, Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 8 channel
Playback & Backup
Sync Playback

Bit rate dependent: 128 Mbps in RAID 5 Mode, or 64 Mbps in JBOD Mode

Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Drive, Network
Network
Ethernet 2 RJ-45 port (Gigabit Port), function as independent or team
PoE None
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 8 SATA III ports, 8 TB each, Total 64TB
eSATA1 Port
Auxiliary Interface
USB4 ports (2 Rear USB3.0, 2 Front USB2.0)
RS2321 Port for POS System and Keyboard Controller
RS4851 Port for PTZ Control
General
Power Supply AC 100-240V, 50/60 Hz
Power Consumption NVR: 20W (without HDD)
Working Environment 14°F - +131°F, 10% - 90% RH
Dimension (W×D×H)17.5" x 18" x 3.7"
Weight 20 lbs (without HDD)
InstallationFlat table top / shelf, 2U Rack-mountable
UL Listed Yes

More

More

Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Quad Core
Total Cameras Supported64
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported64
Number of PoE InputsNone, uses network for connection
Number of Audio Inputs64 IP Streams
Encoding SupportedH.264, H.265
Encoding Support DetailH.265+, H.265, H.264+, H.264, MJPEG
Recording Resolutions12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
BNC Recording Frame RateNo
Total Incoming IP Bandwidth384 Mbps
Total IP Recording Bandwidth384 Mbps
Max Hard Drive Capacity8HDD, 64TB
RAID RedundancyYes, RAID 0/1/5/6/10
Hot Swap HDDYes
eSATA PortOne
USB Ports(2) USB 2.0, (2) USB 3.0
Video Outputs(1) HDMI, (1) VGA, (1) HDMI Spot
Total PoE PowerNo Built-in PoE Ports
Power Input110-220V AC
RackmountableYes, 2U
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

Ask a question... Type Here

Total 4 question(s)

64 Channel 4K Resolution NVR Hot Swap

can you direct me to a table that provides the amount of storage required for various time frames?
Like a 8mp camera at 30 fps will need x TB for 24 hours...

Question by: Donald on: 2016-12-28

8MP cameras do not record at 30fps. They max out at 15fps, and at that setting have a 12.4mbps recording bit rate at average quality. To record 24hrs, you would need 133.5GB per camera.

Feel free to reply to this email if you have any other questions.

Answer by: Tech Support on: 2017-01-05

Are there charges for per camera install ?

Question by: leon lenc on: 2017-11-16

No there are no licensing fees associated with each channel or any other subscription fees. Please note we can only guarantee compatibility with IP cameras we sell and select third party cameras which can be found in our ip camera compatibility list here.

Answer by: Tech Support on: 2017-11-16

Does this model have a built-in DHCP server?

Question by: Danny on: 2018-05-11

This 64 channel NVR does not have a built-in PoE switch, and does not have a DHCP server. You really don't need a DHCP server when using IP cameras. You can set static IP addresses on the cameras using a computer by following this guide, and connect the NVR and cameras to one or several PoE switches.

Answer by: Tech Support on: 2018-05-15

The spec sheet says that FTP is supported. Does that mean I can back up videos to an FTP server?
Some other NVRs only back up screen shots from the Cameras to an FTP server.

Question by: Basil Pitt on: 2018-06-12

Yes all of our NVRs and DVRs support FTP live video recording. If you have an adequate LAN or WAN connection speed, you can backup video to a NAS with a FTP service running on it as explained in the following guides:




Answer by: Tech Support on: 2018-06-12
