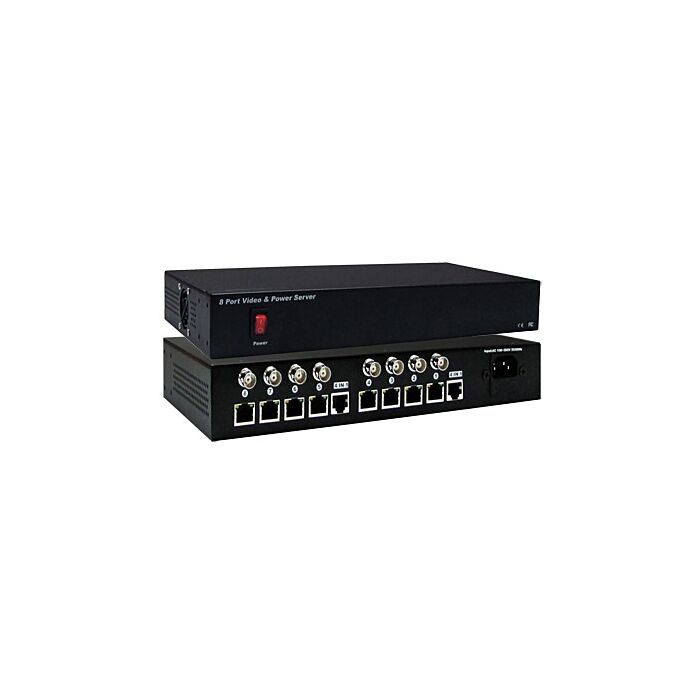

8 Channel Video & Power Balun Hub Receiver

SKU: BPH08

Write a Review

Availability: In stock

$175.00
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

This 8 channel passive video balun receiver can only be used with video power baluns.  This Balun receiver + power hub allows you to consolidate your power supply and balun receivers in to one unit as opposed to 8 individual power adapters, or a separate power box and balun individual video baluns.

It is a passive balun receiver, so the max video transmission distance is 1300ft. Practically, when taking in to account voltage drop and its effect on use with night vision CCTV cameras, we suggest use no more than 300ft away when using this Balun receiver for both power and video.

Possible system setups


What's Included?

Specifications

Transceiver Type8 CH Passive Video Balun Receiver & Power Supply Hub (VPS)
Video/Power Inputs8x RJ45
Video Output8x BNC for connection to DVR, 1x RJ45 for relay to multi-channel balun receiver
VideoFrequency Response Range: DC-5MHz;  Common-Mode / Differential-Mode rejection: 5KHz-5MHz 60dB type
Compatible Wire Type24-16AWG UTP CAT5 or higher; DC loop resistance <= 18Ω/ 100m; Differential capacitance: 62pF/m (max)
ImpedanceUTP or Connection or RJ-45: 100Ω;  BNC Coax:75Ω
Power Input110V AC
Power Output12VDC 1.06 Amp (Total 8.5 Amp)
Power Transmission12V DC up to 750 ft Via UTP CAT5e or CAT6

More

More

Return Policy30 Days Return Policy
Warranty1 Year

Reviews

Write Your Own Review

You're reviewing: 8 Channel Video & Power Balun Hub Receiver

How do you rate this product? *

 1 star2 stars3 stars4 stars5 stars
Quality
Price
Value

Product Questions

Ask a question... Type Here

Total 2 question(s)

can I use this with hd-tvi cameras ?

Question by: Geovanni on: 2017-06-12

Yes you can up to 300ft.

Answer by: Tech Support on: 2017-06-12

Who manufactures this unit?

Question by: WM on: 2017-08-29

Our parent company Avalonix is the manufacturer.

Answer by: Tech Support on: 2017-09-01
