Medium Weather Proof Enclosure, Cooling Fan, 120V AC Power, 12x10x5 Inch

In stock Special Order Item, 3-4 Wks Lead Time
  • Outdoor Enclosure
  • Inside Dimensions 12x10x4.69 in
  • Built-in Power Outlets
  • Ventilated with Cooling Fan

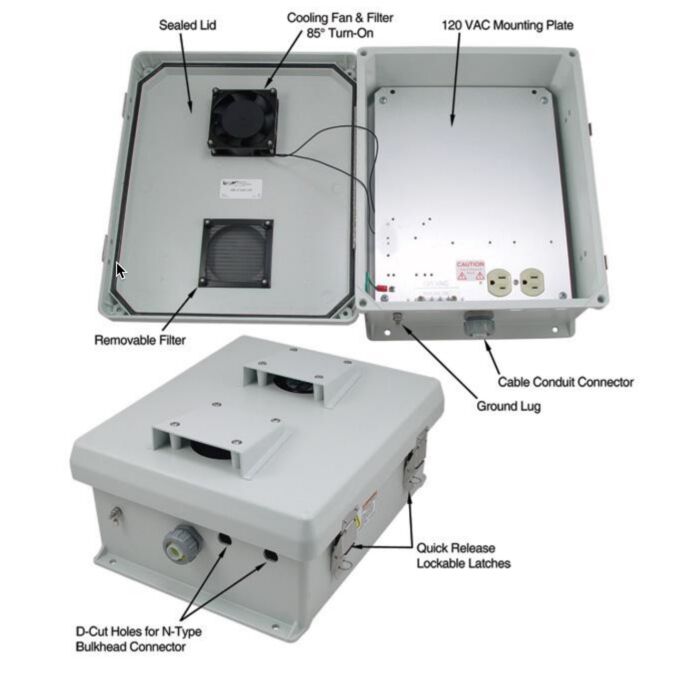

Outdoor Weather Resistant Enclosure with plenty of storage space to store a mini 4 channel NVR, and 4 channel PoE switch along with some power supplies. The inside dimensions are 12" x 10" x 4.69" inches. In addition to plenty of space, this enclosure features a fan to keep the contents ventilated, and internal AC sockets to connect power supplies. To use the internal AC sockets you will be required to connect 110V AC power to the unit from a NMB wire.


  • 12x10x5 Inch Outdoor Ventilated Weather Resistant Enclosure
  • Molded fiberglass reinforced polyester enclosure with integral mounting flange
  • Fully gasketed raised lid with stainless steel quick release latches with padlock hasps
  • Features aluminum mounting plate with 120 VAC outlets
  • Automatic Thermostat-controlled fan at 85 degrees
  • NEMA Type 3R / IP24 rated

What's included?

  • (1) 12x10x5 Inch Outdoor Ventilated Weather Resistant Enclosure


Material Halogen free, self-extinguishing fiberglass reinforced polyester (FRP)
Input Voltage 120 VAC
Fan Power 7.5 Watts
Weight 9.1 lbs
Mounting Plate Material 0.10" (2.5mm) Thick Anodized Aluminum
Mounting Plate Dimensions 12 x 9.13 inches
Outside Dimensions (max) 13.3 x 11.3 x 5.6 inches
Inside Dimensions 12.0 x 10.0 x 4.69 inches
Flame Rating UL 94-5V
RoHS Compliant Yes
Cable Feed 1/2 inch Cable Conduit Connector
Ratings NEMA 3R, 3RX / IP24
Cooling Fans Turn-on Temperature +85°F ± 5°
Cooling Fans Turn-off Temperature +67°F ± 10°
More Information
WarrantyNone for accessories
BrandCCTV Camera World
Return PolicyAccessories are non-returnable, non-refundable.
