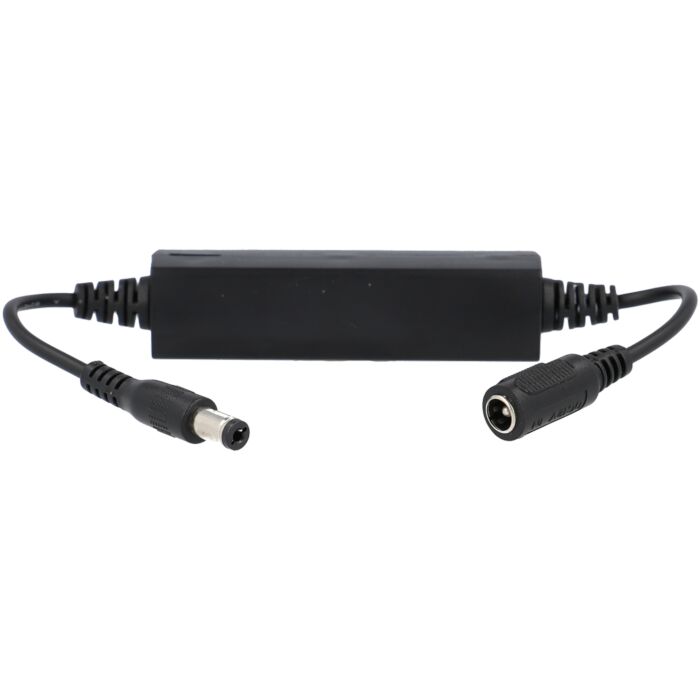

Ground Loop Power Isolator for HDCVI Cameras
$20.00
In stock
SKU
PWISO
If your HDCVI security camera's video feed shows lines, you likely have a ground loop issue from the power side or from the coaxial video side. This HDCVI Power Ground Loop Isolator is designed to eliminate those unwanted lines and restore clear video quality that occuring due to noise from the power side of your siamese security camera cable.
This isolator is specifically designed to be installed on the power side of the connection, between the camera's power source and the video cable.
If multiple cameras are experiencing power related ground loop issues, you will need one isolator for each affected camera. Ground loop problems commonly arise from unbalanced power line loads or faulty wiring where the power supply is plugged in.
Please note if the lines are not resolved by using this power isolator, you may need to use a coax video ground loop isolator to resolve issues occuring from the video or BNC side of the CCTV siamese wire.
How to Install a Ground Loop Isolator
- Disconnect the camera’s power connection from the siamese cable
- Connect the isolator between the power source and the siamese cable.
- Secure the connections and ensure proper grounding
- Repeat the process for each camera experiencing ground loop issues
| Properties | |
|---|---|
| Input | DC12V ± 20% |
| Output | DC12V ± 5% |
| Output Current | 400mA Max |
| Physical Properties | |
| Dimensions (L × W × H) | 4.25" × 0.87" × 0.79" |
| Color | Black |
| Net Weight (N.W.) | 1.11 oz |
| Patch Cord Length | 1.97" |
| Environmental | |
| Working Temperature | -22°F ~ 140°F |
| Humidity | 0 ~ 95% (non-condensing) |
| Warranty | None for accessories |
|---|---|
| Brand | Avalonix |
| Return Policy | Accessories are non-returnable, non-refundable. |
