Enterprise Camera System with 32 QuadHD 4MP Turret Dome Cameras and 32 Channel NVR, AvaEye

Ready to safeguard your business, AvaEye introduces an advanced 32-channel security camera system featuring high-definition 2K 4MP turret dome cameras. This comprehensive kit is designed for surveillance across businesses, commercial spaces, or extensive residential properties. The simplicity of Power over Ethernet (PoE) technology means a straightforward setup—just connect the network cables for the first 16 cameras for instant power and data transmission, with these units quickly coming online. For expanding coverage, the remaining 16 cameras effortlessly connect to a local computer network using the included 16-port PoE switch, whether within your existing network or by establishing a separate dedicated camera network.

32 Cameras

32 × 4MP Turret IP Cameras

NVR + PoE Switch

16 PoE ports on the NVR plus an included 16-port PoE switch

No Monthly Fees

Save money and protect privacy

100ft Night Vision

Maximum night vision range

2TB Hard Drive

Expandable up to 72TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

Storage should not be a concern with the system’s NVR, equipped with a pre-installed 2TB drive and larger hard drive configurations up to four 18TB surveillance grade hard drives, selectable when adding the system to your cart. This potentially massive 72TB setup comes without the headache of additional recurring costs or subscription fees. We advise getting the system with a multiple drive configuration to minimize frame skipping.

Ideal for securing retail environments, keeping a vigilant eye on office activities, or reinforcing surveillance in warehouse settings, this AvaEye turret dome system provides access to next-generation monitoring. With CCTV Camera World, you gain not only a superior product but a partnership, underscored by our commitment to providing lifetime free email support for your system. Plus, rest easy knowing your investment is also NDAA compliant for a secure, trustworthy surveillance solution.

Plug-and-Play PoE Technology for Quick Setup

PoE technology makes setting up and installing our security camera systems as simple as possible. By sending power and transferring data over the same convenient Ethernet cable, this AvaEye system is plug-and-play for the first 16 cameras directly connected to the NVR. Within a few minutes of connecting the cameras, they’ll boot up and start recording. The included 16-port PoE switch also supplies power over Ethernet for the additional 16 cameras, which will only need to have their IP addresses set in order to connect over the local computer network with an existing router or through a standalone network using the switch by itself.

Superior 2K 4MP AvaEye Turret Dome Cameras with Mics

With advanced 1/3” CMOS Starlight sensors, the turret dome cameras within this PoE system record 2K 4MP resolution video capture. Equipped with a 4mm lens, these cameras have an 84-degree field of vision, giving them the ability to see faces from up to 30 feet away. The addition of Starlight technology allows these cameras to excel in low-light conditions, producing detailed images with minimal ambient light and switching to black-and-white video mode in total darkness. With no ambient lighting, the cameras' IR LEDs activate, providing up to 100 feet of night vision to maintain general surveillance detail.

Moreover, each turret dome camera comes with a built-in microphone for audio surveillance, capturing sounds within a 30-foot radius in quiet environments. This added layer of security captures not just visual but also auditory elements of your monitored spaces. Durably constructed with an IP67 weather-resistant rating, these cameras are prepared to withstand diverse outdoor conditions. This robust design ensures consistent, reliable operation throughout the seasons, keeping a watchful eye over your premises.

Smart Security Camera Event Detection Features

State-of-the-art security technology is available in AvaEye's PoE systems, which include AI-driven features made to improve the efficacy and precision of monitoring. The system's Line Crossing and Intrusion Box capabilities stand out by offering refined human body detection, which helps by minimizing unnecessary alerts and conserving valuable storage space.

The Line Crossing function adds the ability to create custom virtual lines within the camera's view. When people cross these lines, the system starts to record and can send notifications. This feature is particularly useful for overseeing entry and exit points or safeguarding restricted areas in various environments, including retail store doors, office cubicles, or the perimeters of warehouses.

Meanwhile, the Intrusion Box feature allows for the creation of specific digital zones where movement triggers an alert. Upon any entry from humans into these zones, you can receive notifications, and the incident will be recorded. This precise monitoring is invaluable for securing high-value items or protected areas, ensuring you and your security team are promptly alerted to any critical security incidents.

Ultra Motion Detection Reduces False Alerts and Recordings

Say goodbye to the false alerts and useless recordings caused by older pixel-based motion detection with AvaEye Ultra Motion Detection technology. This advanced capability actively analyzes video for humans and motor vehicles, enabling you to customize your PoE security camera system to meet the specific demands of various locations around your property, reducing false alerts and optimizing recordings.

This AI technology is versatile and can be used to monitor a range of activities, from customers in retail spaces and vehicle entry and exits in warehouse areas to the well-being of individuals in nursing homes. By prioritizing crucial alerts over a flood of unnecessary notifications, you stay informed about key incidents without the clutter of classic pixel-based motion detection. This precise and streamlined method of surveillance boosts your location's security and makes managing surveillance tasks more straightforward for both business operators and property managers.

Finely Tuned Image Control

The 2K PoE turret cameras in this system excel not only due to their Starlight technology but also through a broad array of adjustable image settings, allowing for precise customization of your surveillance footage to suit virtually any scenario. You have the option to select from multiple preset configurations or tailor the settings to meet your specific needs, ensuring the system’s versatility. Equipped with features like True Wide Dynamic Range (WDR), Backlight Compensation, and Highlight Compensation, these cameras and settings are designed to enhance video quality in various lighting conditions. By tweaking these settings, you can ensure that your security footage remains clear, offering superior viewing quality.

Large-scale Storage without Ongoing Fees

This system is equipped with a 2TB hard drive right out of the box, with larger configurations available when adding the system to your cart. For those requiring more space, it has the capacity to support up to four 18-TB drives, culminating in a staggering potential total storage of 72TB. If more than a week of recording is needed, be sure to choose a larger configuration when adding the system to your cart. There are no extra costs or subscription fees involved for storing and accessing your footage. With a choice between H.264 and H.265 compression technologies, the system efficiently manages file sizes, ensuring you can maximize your recording time to meet the demands of nearly any business surveillance requirement. You can calculate how much storage the cameras will use with our Security NVR and DVR Hard Drive Calculator.

NDAA Compliant Security Camera System

AvaEye is proud to offer security camera systems that conform to the National Defense Authorization Act's (NDAA) strict standards. This means all components, including PoE cameras and NVRs, are free from materials or parts sourced from restricted manufacturers. By choosing NDAA-compliant security camera systems from CCTV Camera World, you are selecting a solution that not only secures your premises with confidence but also respects the security, legal, and ethical standards enforced by the US federal government for surveillance technologies used by the government, military, or contractors.

Quick Smartphone Alerts by the AvaEye App

Stay on top of all events and recordings by enabling push notifications directly to your smartphone using the AvaEye app. You can subscribe to and schedule alerts based on your preferences, so you or your security team can remain alert to any concerns and address them as soon as possible.

Anywhere Access with the AvaEye Mobile App

For comprehensive access to your security cameras at any time, use AvaEye's phone app ready for monitoring while on the road, at the office, or from home. The free AvaEye smartphone app brings the convenience of viewing live and recorded video directly to your iPhone or Android device, complete with push alert notifications.

AvaEye Computer Software for PC and Mac

If you prefer a larger display of cameras, the AvaEye software for PC and Mac provides expanded surveillance capabilities, including the ability to connect to multiple locations or cameras from a single dashboard.

Local Web Browser Access

View your camera feed in crisp 1080P HD directly through any up-to-date web browser without needing any additional plugins, provided you are connected to the same local computer network. For an enhanced web browser interface viewing experience, including multiple cameras in full 2K resolution and audio playback, simply install the plugin on a Windows PC.

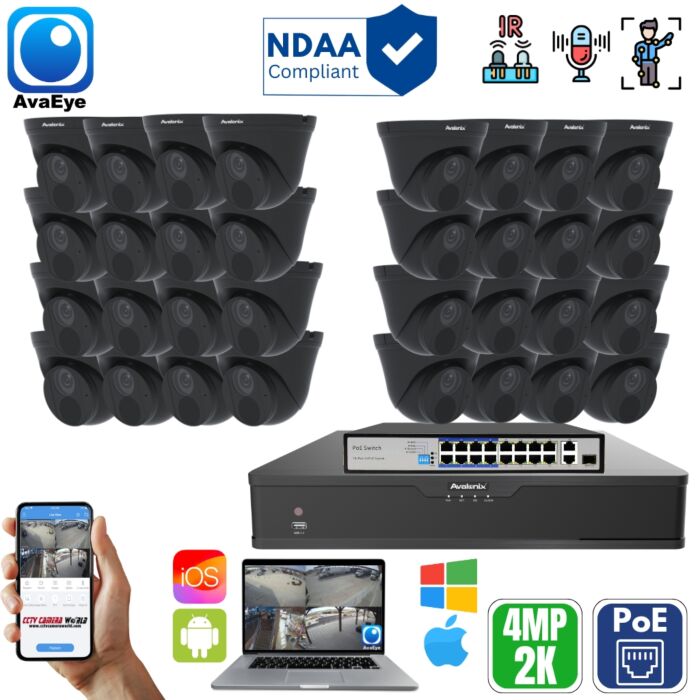

Everything that comes in the box:

• (1) 32 Channel NVR (NVR432P) pre-installed with 2TB drive or higher based on your selection
• (32) Starlight 2K 4MP PoE Turret Dome Camera with Built-in Mic, AvaEye (IP2KTA)
• (1) 16 Port PoE Switch (16POE)
• (1) USB mouse
• (1) NVR power cord
• Installation pamphlets

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Camera System Details

32 Channel PoE NVR by AvaEye

Supported Channels: 32
Cameras: 32
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 5 channels 3MP, 8 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Four (4) Drives up to 18TB each (select when adding to cart)
Recording Bandwidth: 160Mbps
Recording Bandwidth Out: 64Mbps
Display output: VGA up to 1080P, HDMI up to 4K
USB Ports: 1 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC
Power Consumption: 15W Excluding hard disk and PoE
NVR Operating Temperature: 14°F to 131°F
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-cam up to 4K with plugin
Dimensions: 15.7" x 14.2" x 2.9" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Turret Camera 4MP 2K

Camera Type: Dome
Camera Model: IP2KTA
Camera Connectivity: Direct or via Network
Camera Resolution: 4MP 2K (2688 x 1520 pixels)
Frame Rate: 25 frames per second
Lens: 4mm
Field of View: 84°
Backlight Compensation: WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes: Intrusion Box Detection, Line Crossing Detection, Smart Motion Detection
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
