32 Camera UltraHD 4K Turret Dome Video Security System for Businesses, AvaEye

CCTV Camera World is proud to offer enterprise-level security without breaking the bank with this 32-camera 4K 8MP turret camera system from AvaEye. It's stacked with features that make it a great fit for safeguarding businesses of all sizes. Set up is straightforward—simply connect the first 16 cameras directly to the NVR using Power Over Ethernet, and they’ll boot up and record within minutes. The remaining 16 cameras can either be integrated into your existing computer network or a new standalone one can be set up using the included 16-port PoE switch and NVR LAN ports.

32 Cameras

32 × 8MP Turret IP Cameras

NVR + PoE Switch

16 PoE ports on the NVR plus an included 16-port PoE switch

No Monthly Fees

Save money and protect privacy

100ft Night Vision

Maximum night vision range

2TB Hard Drive

Expandable up to 72TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

Right out of the gate, the NVR has a 2TB hard drive installed for storing footage on an event-based recording schedule. Looking for more storage? Larger hard drive configurations are available when purchasing, with options up to a massive 72TB configuration by adding up to four 18TB drives. We advise adding at least one additional drive to reduce the potential for frame skipping. Having expandable storage makes this system ideal for various applications, from cozy cafes to sprawling manufacturing buildings.

This system doesn't just offer cutting-edge surveillance; by purchasing from our website, we support you with responsive, lifetime email support, ensuring you always have expert help on hand. It's also trustworthy for NDAA compliance, meaning it is suitable for federal, military, and contracting use, providing further peace of mind.

Plug-and-Play PoE Technology for Quick Setup

Connecting the first 16 cameras is as simple as you could get; simply connect one end of an Ethernet cable to one of the NVR PoE ports and then connect the other end to the camera. Within seconds, the NVR sends juice to the cameras in a flash using Power over Ethernet technology, which starts booting up. After a couple minutes, the NVR will detect the camera, configure it, and start recording. The 16-port switch supplies power to the remaining 16 cameras, which can then join a local area network using a router, or the switch can be added to the NVR's LAN ports to create a standalone camera network.

8MP 4K UltraHD AvaEye Turret Cameras

Under the hood, each camera has a 1/2.7" CMOS 8MP video sensor paired with a 4mm lens capturing a 91.2° angle of view. These internals and specifications combine to produce ultra-HD 4K video, giving the ability to see faces up to 50 feet away in lit conditions. What really sets these cameras apart is the Starlight technology. Even in dim conditions, as low as 0.005 Lux, these cameras can see in color. In scenes that are too dark, they kick into a different mode, lighting up the darkness with infrared LEDs that reach up to 100 feet, automatically switching to black-and-white mode, so nothing goes unnoticed. There’s more than just video; the cameras have a microphone that picks up sound within a 25-foot radius. And don’t worry about the elements; with an IP67 waterproof rating, these cameras are built to last, ready to monitor inside or out, in rain or shine, all year round.

Intelligent Security Camera Event Detection Capability

AvaEye security cameras take security to the next level with AI-driven video analytic capabilities. Called Line Crossing and Intrusion Detection, these algorithms allow you to overlay rules in camera views. These rules, when broken, can automatically trigger recordings and alerts. They are designed to specifically target humans and filter out movement from irrelevant objects.

Line Crossing works like you might expect based on the name. It lets you draw lines to establish rules in your camera's video feed. Whenever someone crosses any of the lines you have set up, the camera sends a signal to tell the NVR to start recording. Line Crossing analytics are especially useful for businesses that want to monitor who comes and goes through entrances and exits where merchandise is stored. More innocently, a line crossing rule could also be used as a front door alert for when a customer enters.

Intrusion Detection, on the other hand, lets you draw squares or rectangles to specify boundaries within the view. Similar to Line Crossing, whenever a human crosses any of the boundaries of a given intrusion rule, the system kicks in to record and send alerts. Intrusion Detection is better for businesses that need to keep an eye on a target area in their store, shop, or manufacturing plant rather than a specific entry point.

Ultra Motion Detection Reduces False Alerts and Irrelevant Recordings

The days of inconsistent alerts and excessive recording from old-school pixel-based motion detection are over. AvaEye Ultra Motion Detection is a revolutionary improvement for PoE camera systems that leverages cutting-edge AI technology. This technology allows you to customize your system to meet your needs in various areas of your property. Its smart algorithm actively analyzes video footage to identify humans and vehicles, significantly cutting down on false alarms and irrelevant recordings.

This adaptable AI technology is ideal for a multitude of uses—from observing customer interactions in retail environments to managing vehicle movements in and out of warehouse spaces, and even ensuring the safety of residents in nursing homes. By ignoring objects that are not important, it keeps you informed without the downsides of traditional motion. This accurate and effective method not only boosts security but also streamlines surveillance operations, making it a valuable tool for business owners and property managers.

Video Enhancement Settings

Control your cameras’ image settings to optimize video for various scenarios around your property. Take advantage of the multiple preset options available in the cameras or finely tune the settings yourself. There are also several enhancement features you can choose from that actively adjust the image based on lighting in the view, such as True Wide Dynamic Range (WDR), Backlight Compensation, and Highlight Compensation. Taking the time to explore and configure image settings will help you keep your security footage clear, giving you a better overall surveillance experience.

Cost-Effective Longterm Storage

Coming with a 2TB hard drive, this 32 camera system is ready to record event-based footage before it starts overwriting the oldest recordings, depending on recording schedules and detection settings. If you need more retention time than that, don’t worry; larger hard drive configurations are available when purchasing, as it supports up to four 18TB drives for a massive total of 72TB! For help calculating how much storage you will need, check out our Security NVR and DVR Hard Drive Calculator. H.265 encoding reduces the amount of storage that cameras use by up to 50% in comparison to the earlier H.264 codec, although both are available. The best part is that there are no additional monthly fees for storage or playback.

NDAA Compliant Security Camera System

AvaEye is proud to offer security camera systems that conform to the National Defense Authorization Act's (NDAA) strict standards. This means all components, including PoE cameras and NVRs, are free from materials or parts sourced from restricted manufacturers. By choosing NDAA-compliant security camera systems from CCTV Camera World, you are selecting a solution that not only secures your premises with confidence but also respects the security, legal, and ethical standards enforced by the US federal government for surveillance technologies used by the government, military, or contractors.

Fast and Effective Alerts to the AvaEye App

To assist you with monitoring the security of your property, use the AvaEye app to set up alerts directly on your phone. Configure notifications from cameras to match your strategy, ensuring that you and your security personnel are promptly notified of irregular activity. Active notifications right in the palm of your hand enable preventive measures and rapid responses.

Remote Access Made Easy with the AvaEye Mobile App and Software

Watching your cameras with a few taps or clicks is quick and easy from your phone or computer. Using the free AvaEye smartphone app is as simple as downloading the app, scanning a code, and entering the username and password. After the initial setup, you have unlimited access to your cameras whenever you want, as long as the NVR and your phone have a good internet connection. And the AvaEye software for PC and Mac is no different; using the remote viewing code and credentials, you can view your cameras from the comfort of your laptop in no time. Both the app and software provide the ability to add and monitor cameras from multiple systems, further solidifying AvaEye as a top option for business security.

Access from Web Browsers

Without downloading anything, you can watch one camera at up to 1080p resolution from the web browser interface of Chrome, Firefox, or Edge browsers. For watching a camera in full 4K video and to unlock additional live viewing features such as a multi-camera grid view, we recommend installing the browser plugin available for Windows PCs. However, the web interface is far more useful than just viewing cameras; it’s also a hub for managing the system, as though you were in front of the NVR with a mouse and monitor. Web access is restricted to your local network unless you are familiar with setting up port forwarding for remote access.

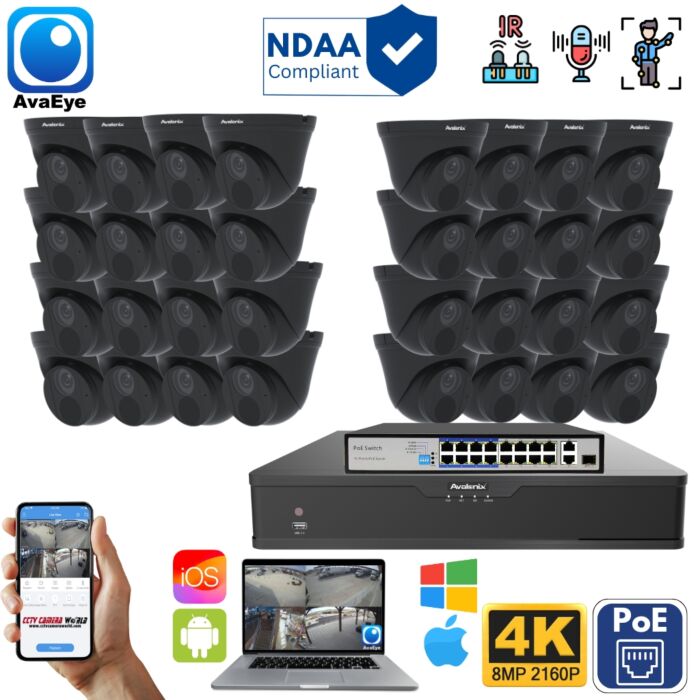

Everything that comes in the box:

• (1) 32 Channel NVR (NVR432P) pre-installed with a 2TB drive, with larger hard drive configurations available based on your selection
• (32) Outdoor 4K PoE Turret Dome Camera with Mic, Starlight, 100ft Night Vision, AvaEye (IP4K1TG)
• (1) 16 Port PoE Switch (16POE)
• (1) USB mouse
• (1) NVR power cord
• Installation pamphlets

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Camera System Details

32 Channel PoE NVR by AvaEye

Supported Channels: 32
Cameras: 32
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 5 channels 3MP, 8 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Four (4) Drives up to 18TB each (select when adding to cart)
Recording Bandwidth: 160Mbps
Recording Bandwidth Out: 64Mbps
Display output: VGA up to 1080P, HDMI up to 4K
USB Ports: 1 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC
Power Consumption: 15W Excluding hard disk and PoE
NVR Operating Temperature: 14°F to 131°F
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-cam up to 4K with plugin
Dimensions: 15.7" x 14.2" x 2.9" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Turret Camera 8MP 4K

Camera Type: Turret
Camera Model: IP4K1TG
Camera Connectivity: Direct or via Network
Camera Resolution: 8MP 4K (3840 x 2160 pixels)
Frame Rate: 20 frames per second
Lens: 4mm
Field of View: 91.2°
Backlight Compensation: True WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes, Ultra Motion Detection (Human/Vehicle), Intrusion Box Detection (Human), Line Crossing Detection (Human)
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
