64 Mixed Camera QuadHD 2K Bullets and Turret Large Business and Manufacturing Surveillance System, AvaEye

Searching for a reliable, top-tier surveillance solution for your property? Our AvaEye 64-channel mixed system, featuring a mix of 2K 4MP turret dome and bullet cameras, is an excellent choice. This kit was put together to provide thorough coverage for businesses such as commercial spaces, manufacturing plants, and large residential properties. With Power over Ethernet (PoE) technology providing power and data over computer network cables, installation is straightforward. The 64 cameras can effortlessly connect to your existing local network or to a new standalone, dedicated camera network using the included PoE switches. An internet connection is only required for remote viewing or management..

64 Cameras

32 Bullet + 32 Turret 4MP IP Cameras

PoE Switches Included

Includes two 24-port PoE switches and one 16-port PoE switch

No Monthly Fees

Save money and protect privacy

164ft / 100ft Night Vision

Up to 164ft bullet, up to 100ft turret

2TB Hard Drive

Expandable up to 144TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

Storage won't be a concern with the network video recorder (NVR) having a 2TB drive pre-installed, with larger hard drive configurations available when placing your order. You have the option to expand the storage capacity up to a whopping 144TB with the ability to purchase eight 18TB hard drives, all without any monthly or yearly fees or subscriptions. To minimize frame skipping, especially when recording from all 64 cameras simultaneously, purchasing multiple drives is recommended.

By choosing to go with an AvaEye camera system, you are getting comprehensive and vigilant surveillance of your property. With free email support and full compliance with NDAA standards for government and contractor use, peace of mind is a given.

Power over Ethernet Simplifies Installation

Installation of PoE systems is simple thanks to the PoE switches and PoE cameras in this package. PoE technology carries both power and data across a single Ethernet network cable, eliminating the mess associated with traditional analog camera systems involving coaxial cable.

This 64 camera surveillance system includes two 24-port PoE switches and one 16-port PoE switch, adequately accommodating all 64 cameras. Each switch has 2 uplink gigabit ports, allowing interconnectivity with additional switches. You can also use these uplink ports to connect to your existing network infrastructure.

If you have a wide area cover that may involve long cable runs, you can take advantage of the extended PoE option available on the first 8 ports of each switch. The extended PoE option supports the use of fixed lens cameras that come in this package up to 600 feet if used with solid copper CAT6 cable.

The system is flexible and allows expansion of the camera infrastructure using any combination of compatible switches, offering the versatility you need to extend IP cameras anywhere inside or outside of your facility.. You can also interconnect PoE switches to each other as long as you have power available for the switches, and the network cable length between each switch is not longer than 328 feet.

Mix of AvaEye’s Top 4MP 2K Bullet and Turret Dome Cameras

This system offers flexibility by coming with both camera designs, a mix of high-end bullet and dome cameras that have 1/3" CMOS Starlight image sensors capturing clear 2K 4MP video at 25 frames per second. 4mm lenses in the cameras see an 84-degree angle of view, allowing the system to record facial details from 30 feet away.

A Starlight Technology image sensor means the cameras perform well in areas with little ambient lighting. Areas with no light at all will still be captured in black-and-white video with help from the bullet cameras 164 feet of night vision and the dome cameras 100 feet for general details.

The cameras also come with built-in microphones, ready to capture sound in quiet environments from up to 30 feet away. Last but not least, they are engineered with indoor or outdoor surveillance in mind, ready to brave the elements in most climates, boasting an IP67 weather resistant rating.

Cameras with Intelligent Detection for Optimal Security

An AvaEye PoE camera system isn't just about high-quality construction and top-notch cameras; it smartly utilizes those cameras with advanced detection features for reliable and precise monitoring. With the system's two key features, Line Crossing and Intrusion Box, you can say goodbye to unnecessary false alarms and recordings. These features mark a significant advancement from old-school, pixel-based motion detection by offering alerts you can trust and helping you save on storage space.

With Line Crossing, you can draw virtual lines within the camera’s view. Any time a pedestrian crosses these lines, the system springs into action. It begins recording and can even send an alert straight to your phone via the AvaEye Mobile App app. This feature is especially useful for monitoring entry and exit points like storefronts, office entrances, or around critical infrastructure.

The Intrusion Box feature allows you to designate certain areas within your camera's field of view as off-limits. If a pedestrian enters the zones you set, the camera alerts you and starts capturing the event. It’s like setting a digital guard around the most sensitive or restricted areas of your property. Whether it’s about safeguarding precious items or watching over restricted spots, you’ll be alerted to any relevant activity, and rest assured that the system will record it.

Ultra Motion Detection Filters Out Irrelevant Alerts and Recordings

The hassles of false alerts and pointless recordings that come with outdated pixel-based motion detection are a thing of the past. AvaEye's Ultra Motion Detection (UMD) technology takes a big leap forward, smartly analyzing video to detect humans and vehicles. This means you can tailor this PoE security camera system to precisely fit the unique needs of different areas around your property, significantly cutting down on false alarms and making your recordings more relevant.

UMD is a smart AI technology that has a broad range of applications. Whether it's keeping track of customer movements in retail environments, monitoring vehicle traffic in and out of parking lots, or improving the safety of residents in nursing homes, it ensures that you're only alerted to the activities that matter to you. By focusing on important events instead of overwhelming you with unnecessary notifications, you're kept in the loop about significant incidents without the noise of outdated detection methods. This focused and efficient approach to surveillance not only improves your property's security but also simplifies the management of surveillance duties for business owners and property managers alike.

Precise Image Management

The 2K Cameras in this 64 camera bullet and turret dome system stand out because of their advanced Starlight technology, which allows the cameras to see in color in low light before switching to black and white in complete darkness. There are also options to tweak a wide range of customizable image settings from the NVR menu or cameras' web interface. These options let you fine-tune video if you're looking for something more than what the automatic image settings provide. Whether you choose from several ready-made configurations or customize the settings to fit your unique needs, these cameras offer the flexibility you need. They also come with special features like True Wide Dynamic Range (WDR), Backlight Compensation, and Highlight Compensation, which allow you to improve the quality of your videos for different lighting conditions. By adjusting these settings, you can make sure your security footage is always clear and easy to see, giving you a better view of what’s happening.

Large-scale Storage without Ongoing Fees

Right from the start, this system comes with a 2TB hard drive. If you find yourself needing more storage, larger hard drive configurations can be selected when purchasing, and the system can handle up to eight 18TB hard drives, reaching an impressive total capacity of 144TB. Best of all, you won't face any additional costs or subscription fees for storing and reviewing your footage.

To get the most out of storage, the system offers two compression technologies: H.264 and H.265. These help manage the size of your video files efficiently, allowing for longer recording times without sacrificing video quality. This feature is particularly useful for any business surveillance setup, making sure you don’t miss a thing. Wondering how much storage you might need? Use our Security NVR and DVR Hard Drive Calculator to get an estimate.

Camera System with NDAA Compliance

AvaEye is committed to delivering security camera systems that meet the National Defense Authorization Act's (NDAA) requirements. This means that every component of our AvaEye systems, from the PoE cameras to the NVRs, is manufactured without using parts from restricted sources. Purchasing NDAA-compliant systems from CCTV Camera World means you're choosing a secure solution that adheres to the high standards of security, legality, and ethics demanded by the US federal government. This compliance is crucial for technologies utilized in government, military, and contractor settings, ensuring that your surveillance setup follows national guidelines.

Smartphone Notifications and Alerts thru the AvaEye App

Stay alert and informed about what's happening at your property with the AvaEye app designed for use with the AvaEye cameras and NVRs. Customize notification settings to fit your surveillance needs, ensuring you or your security team are instantly notified of any important or suspicious activities. You can receive push alerts to your mobile phone or tablet from regular motion detection or from AI events such as tripwire, line crossing, or Ultra Motion Detection that you have set.

Access Anywhere with AvaEye Smartphone App

With AvaEye's flexible viewing options, you're always connected to our IP camera systems, whether you're on the move, at work, or relaxing at home. The free AvaEye mobile app offers the convenience of checking live or recorded footage right on your iPhone or Android phone/tablet, along with receiving push notifications for event detection updates.

AvaEye Computer Software for PC and Mac

For desktop or laptop users, the AvaEye software for PCs and Macs enables you to monitor and playback video from one or several AvaEye systems connected to the LAN or the Internet through one comprehensive interface. The AvaEye monitoring software for PC/MAC allows the user to open up to four windows to display up to 64 cameras each.

Local Web Browser Access

The AvaEye NVR recorder in this system features plug-in free live viewing using modern browsers such as Chrome, Edge, or Firefox. Plug-in free viewing supports single channel viewing up to 1080P. To tap into advanced viewing options, including multiple camera grids, full 2K resolution, and video audio playback, simply install the dedicated browser plugin on your Windows PC. The NVR intelligently reminds you to install the plugin if you do not have it installed.

The feature-rich web interface allows system configuration and management at the convenience of your PC. If you are on the same network as the system, you can easily type in the IP address of the NVR to access its web interface. If you're experienced with managing your own router, you can even create rules on your router to access the web interface of the system.

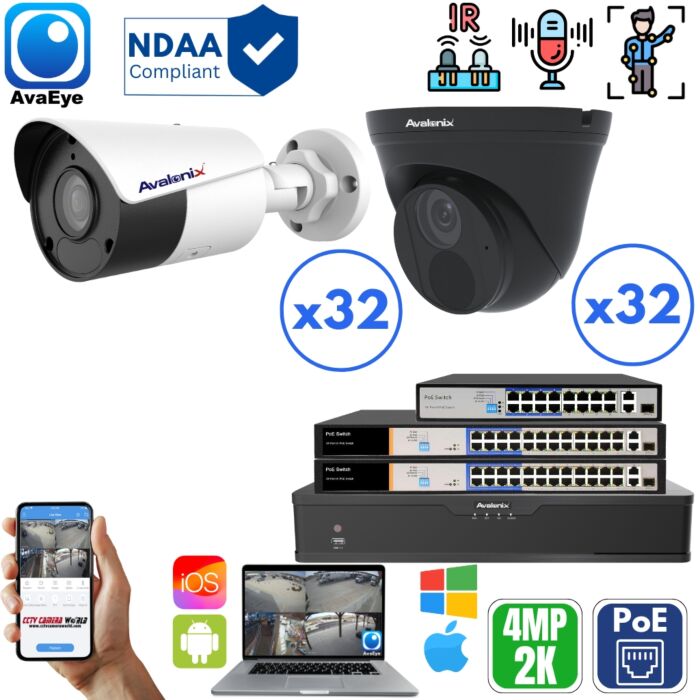

Everything that comes in the box:

• (1) 64 Channel NVR (NVR864) pre-installed with a 2TB drive or higher based on your selection
• (32) Starlight 2K 4MP PoE Turret Dome Camera with Built-in Mic, AvaEye (IP2KTA)
• (32) 4MP 2K PoE Bullet Camera with Mic, 164ft Night Vision, AvaEye (IP2KBLA)
• (2) 24 Port PoE Switch (24POE)
• (1) 16 Port PoE Switch (16POE)
• (1) USB mouse
• (1) NVR power cord
• Installation pamphlets

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Camera System Details

64 Channel PoE NVR by AvaEye

Supported Channels: 64
Cameras: 64
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 12MP, 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 12MP, 4 channels 8MP, 8 channels 4MP, 16 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Eight (8) Drives up to 18TB each (select when adding to cart)
Recording Bandwidth: 384Mbps
Recording Bandwidth Out: 384Mbps
Display output: 2 HDMI up to 4K, 1 VGA up to 1080P
USB Ports: 2 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC
Power Consumption: 25W Excluding hard disk
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-camera grid up to 4K with plugin on Windows PC
Dimensions: 17.4" x 16.8" x 3.5" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Turret Camera 4MP 2K

Camera Type: Dome
Camera Model: IP2KTA
Camera Connectivity: Direct or via Network
Camera Resolution: 4MP 2K (2688 x 1520 pixels)
Frame Rate: 25 frames per second
Lens: 4mm
Field of View: 84°
Backlight Compensation: WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes: Intrusion Box Detection, Line Crossing Detection, Smart Motion Detection
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Bullet Camera 4MP 2K

Camera Type: Bullet
Camera Model: IP2KBLA
Camera Connectivity: Direct or via Network
Camera Resolution: 4MP 2K (2688 x 1520 pixels)
Frame Rate: 25 frames per second
Lens: 4mm
Field of View: 84°
Backlight Compensation: WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 164 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes: Intrusion Box Detection, Line Crossing Detection, Smart Motion Detection
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
