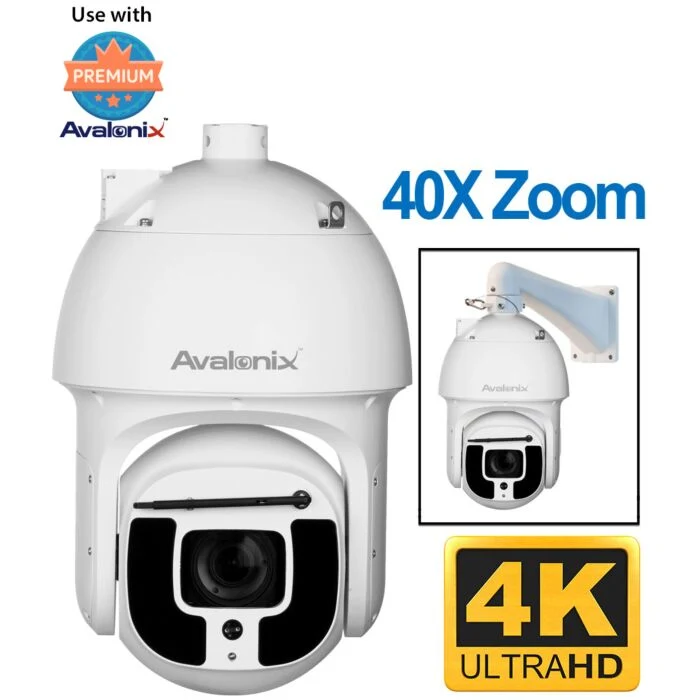

4K PTZ Camera, 40X Zoom, Auto Tracking

This 4K PTZ camera with 40X zoom is a professional solution security needs requiring long range viewing in both day and night. It is a favorite among our US military customers. At quadruple the pixel density of our 1080P PTZ Cameras, this 4K PTZ Camera delivers unheard of image quality in Real Time 30fps with its 8 Megapixel SONY STARVIS image sensor. It is a network based camera like our outdoor PTZ cameras and has a powerful CPU that can encode video in H264+ or H.265+ to minimize the amount of network bandwidth and storage required. It has a powerful 5.6–223mm optical zoom lens, that's 40X zoom power. You can expect an additional 16X digital zoom on top of that. Using the powerful zoom capabilities of this IP based PTZ camera you can recognize a face up to 1440ft away in daylight when viewing in full zoom mode. Plus, with 1475ft of night vision you'll be able to see and identify objects in total darkness a long distance away.

Complete with IP67 weatherproof rated chassis this 4K PTZ camera can be mounted outdoors without concern for rain, or snow. It is a high-speed High Power PoE PTZ camera that requires either our higher power 60W PoE+ injector or the included 36VDC power adaptor.

All of these specs are great to sift through, but as the saying goes, a picture is worth a thousand words, so we made this overview video. We give insight into what the camera comes with, including it’s gooseneck wall mount and a preview of some optional mounts. After a quick walkthrough showing how to connect the camera to a PoE injector, it boots up and starts its power on self test. Last but not least, we show a demo of the camera mounted outside with mentions of several things to watch out for when installing the camera on your own.

40X Night Zoom and Infrared Test to read text at night

What can the IPTZ4K40 see when it is zoomed toward printed and reflective markings at night? In this hands-on test, Ray from CCTV Camera World aims the camera at several small objects positioned approximately 70 feet away. The demonstration compares an illuminated sign, printed shipping labels, reflective material, ordinary paper, cardboard writing, and a license plate under normal lighting and infrared night vision.

The test also shows why highly reflective objects can change the camera's infrared exposure. When a license plate reflects a large amount of infrared light toward the camera, nearby objects may appear darker. After the plate is removed, the camera adjusts its exposure and provides a more balanced view of the remaining labels and materials.

To record IP PTZ cameras, or any IP camera, you will need an NVR to record the UltraHD 4K video while having control of the security camera's pan, tilt and zoom capabilities. You can also save short video clips or time-lapsed snapshots to the internal microSD card. The microSD card option is a factory installed SD card, and must be selected at the time of purchase. You can also use this camera as a PTZ webcam for remote viewing over the internet or saving snapshots of a construction project, or livestock. For professional surveillance video recording and to harness of all its features, we recommend using this PTZ camera with one of our 4K NVRs that will let you utilize the advanced Smart Detection features such as Tripwire, Intrusion, missing object detection, and abandoned object detection. Click here to learn more about the video analytics functions available in our security cameras.

Easy Web Access for Video and Control - NO Plugins!

This camera also has an extremely useful interface that is accessible while on the same local network from any of the world’s favorite browsers, including Chrome, Edge, and Firefox. Access through the powerful web browser interface is quick, convenient, and gives complete access to all of the camera’s settings. Within moments of typing the camera’s IP address in a browser and logging into the admin user, video from the camera plays, and an array of menu options are available to move the camera around, save PTZ presets, and adjust other settings. By the way, this is all without an additional browser plugin or extension, which is only required for two-way audio and playback of microSD card recorded footage.

Even from Mac and iOS devices!

Mac fans rejoice! This camera and others that have our modern web interface are also compatible with most Mac computers and their browsers, such as Chrome and Safari. It is just about the same as the Windows web interface, providing quick and effortless access to watch, control, and configure cameras. And that’s not all! We also show in this video that Mac computers work seamlessly with our Network Video Recorder web interface, as the video then goes on to compare what this formidable 40X PTZ and our smaller 4X mini-PTZ camera can see.

Features

• Outdoor UltraHD 4K PTZ Camera
• IP PTZ Camera works over the network
• 8MP Sony Starvis Sensor for 4K Resolution Video
• Starlight Technology for exceptional performance in low light
• Real Time 30fps 4K Video
• 40X Optical Zoom / 16X Digital Zoom
• Night Vision distance up to 1475ft
• H.265, H.264 Video Encoding
• H.265+ encoding provides up to 70% savings in bandwidth compared to H.264
• Recording in H.265+ requires use of Avalonix NVRs
• Triple Stream Video Encoding (Main Stream, and two Sub Streams)
• True WDR for glare compensation
• Auto Tracking technology to recognize and track objects at a distance
• Video Analytics supported with Avalonix NVRs
  • Tripwire
  • Intrusion
  • Abandoned Object Detection
  • Missing Object Detection
  • Face Recognition
  • People Gathering
  • Parking Detection
  • Smart Motion Detection for human/vehicle specific motion detection
• Audio line-in
• Compatible with Live Stream to Twitch or YouTube Live
• Up to 300 Presets, 8 Tours, 5 Auto Scans, 5 Patterns
• IP67 Outdoor Weather Proof Rated
• Available with factory installed MicroSD up to 256GB
• 36VDC (included) or High Power PoE+ (optional)
• Wall mount included

What's included?

• (1) 4K 8MP Network PTZ Camera with Night Vision
• (1) Wall mount bracket
• (1) 36V DC Power Supply

Specifications
