64 Mixed Enterprise Video Security Package UltraHD 4K Surveillance Bullet and Turret Cameras, AvaEye

CCTV Camera World is excited to provide this enterprise-level 64-camera security camera system that comes with a mix of some of the best 4K dome and bullet security cameras we have to offer. Our systems provide tried-and-true solutions to vigilantly protect businesses in all industries, whether commercial, manufacturing, medical, or something out of the ordinary like legal cannabis cultivation. The system comes with Power over Ethernet switches to power and connect cameras, as well as the option to integrate the camera system into an existing local computer network or deploy them as a standalone dedicated setup for the cameras. An internet connection is only required if remote viewing is something you want to do.

64 Cameras

32 Bullet + 32 Turret 8MP IP Cameras

PoE Switches Included

Includes two 24-port PoE switches and one 16-port PoE switch

No Monthly Fees

Save money and protect privacy

164ft / 100ft Night Vision

Bullet up to 164ft, turret up to 100ft

2TB Hard Drive

Expandable up to 144TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

Storage is no concern; a massive maximum 144TB configuration is possible, with support for up to eight 18TB hard drives. Without any upgrades, the NVR comes with a single 2TB drive for recorded video storage, and larger hard drive configurations are available when purchasing the system. Starting with at least one additional drive is a good idea to take advantage of hard drive grouping, which will reduce the risk of frame skipping as the system stores video from 64 cameras. Check out our Security NVR and DVR Hard Drive Calculator to get an idea of how much storage you should purchase.

With the purchase of the system, you will benefit from our free, responsive, and professional email support for the lifetime of the cameras and NVR. The cherry on top is that this system is fully NDAA compliant, adhering to regulations set forth by the US government, adding additional peace of mind. Experience the unrivaled benefits of AvaEye to safeguard your retail location, office, manufacturing plant, or warehouse.

Power over Ethernet for Clean and Simple Installation

Deploying 64 cameras might sound intimidating, but with Power over Ethernet technology providing power and data over a single Ethernet cable per camera, it’s practically problem-free and eliminates a lot of the mess older coax cable systems had. The system comes with three switches to host and interconnect cameras within a local network. Or the switches can be used to create a standalone network dedicated to the cameras.

Two 24-port PoE switches and one 16-port switch are included with the system and have two uplink ports to daisy chain to one another or integrate with existing network infrastructure. They also have an upgrade to PoE called extended PoE, which, when used with solid copper CAT6 cable, can be used to extend cable runs as far as 820 feet away from the switches.

As long as the switches have power and are within 328 feet of one another, they can be easily daisy-chained together, providing the ability to place cameras anywhere inside or outside your building as needed.  By using PoE switches for camera infrastructure, you get near unlimited flexibility and have options to expand in areas for strategic IP camera placement.

A Mix of AvaEye 8MP 4K Bullet and Turret Dome Camera

This system provides versatility by including both camera types, featuring a combination of our high-end bullet and dome AvaEye cameras with 1/2.7" CMOS Starlight image sensors that produce crystal-clear 4K 8MP video at a respectable 20 frames per second. Each camera has a 4mm lens, resulting in a 91.2-degree field of view with the sensor. In the real world, these specifications combine to capture video that can be used to recognize someone’s face from up to 50 feet away.

Starlight Technology in the image sensor aids the camera in low-light environments, allowing it to remain in color mode with little ambient lighting. Areas with no light will still be caught in black-and-white footage thanks to the bullet cameras' 164 feet of night vision and the dome cameras' 100 feet for general detail at night.

The cameras also have built-in microphones that can hear sound from up to 30 feet away in calm environments. Finally, they are great for indoor or outdoor use, withstanding the elements in most regions due to their IP67 weather resistant design.

Cameras with Customizable Smart Event Detection

Surveillance doesn’t have to be a chore, and the smart detection features offered by AvaEye make reviewing footage a walk in the park. Our AvaEye cameras and NVRs have two rule-based analytic features, one called Line Crossing, and the other Intrusion Box. These analytics allow you to draw rules that can automatically trigger recording and optionally send alerts to protect specific areas within your cameras’ views. Both rule types are designed to detect activity from humans and rule out irrelevant objects.

Line Crossing can be thought of as a digital tripwire, as it lets you draw lines in your cameras’ views. Whenever someone crosses the virtual lines, the camera and NVR begin recording, and you can also have the system send alerts to your phone. We recommend enabling and drawing the line crossing feature in views where intruders have to pass through specific walkways or enter through doors.

Alternatively, the Intrusion Box feature can be used to protect general areas in a camera's view to draw shapes rather than individual or sets of lines. Intrusion detection is best used in areas where there are several ways to get in or out of the camera's view, like near a window. Just like the line feature, whenever a human enters or exits the intrusion zones you set, the system will start recording and fire off alerts, depending on your preferred trigger settings.

Ultra Motion Detection for Improved Security and Useful Analytics

AvaEye systems have some of the latest advancements in the security camera industry, and Ultra Motion Detection is one of the most useful ones. It is a massive improvement over traditional pixel-based motion detection by using smart algorithms. These algorithms actively analyze video for movement from vehicles and humans rather than relying on simple pixel changes within the view. By filtering out events from things that don’t matter, like leaves, shadows, or small animals, UMD serves as a robust feature for achieving accurate and useful recordings and alerts. You can even enable a filter for human or vehicle detection only, or leave the default setting to detect both.

The usefulness of Ultra Motion Detection (UMD) technology extends beyond surveillance. In retail stores, it could be used to monitor customer behavior and help businesses optimize store layouts. In manufacturing, UMD can assist with quality control measures and watch for potential safety issues. In healthcare, it can assist with monitoring patients who may need assistance. The possibilities for utilizing UMD are nearly limitless, providing businesses of all sizes with it’s advantages to improve operations.

Image Optimizations

Adding to the comprehensive nature of this system are the finely adjustable image settings on top of the aforementioned Starlight technology. Adjustable settings range from brightness and contrast to sharpness and noise reduction. The cameras and NVR also have preset image options that may already be optimal for your scene or can be used as a baseline for further tweaks. On top of the customization are several image enhancement options, including WDR, Backlight Compensation, and Highlight Compsensation. These features automatically adjust settings to ensure good capture in scenes that are subject to overexposure or uneven lighting.

Substantial Storage - No Subscriptions

The 64-channel NVR in this system has support for up to eight 18TB drives, adding up to a massive potential storage of 144 TBs. Without any upgrades, the system comes with a 2TB drive for recorded video storage. Larger hard drive configurations can be chosen when purchasing, and we recommend starting with at least one additional drive, as this will allow you to group cameras on each hard drive, reducing the risk of potential frame skipping. Need help figuring out how much storage you need to purchase? Use our Security NVR and DVR Hard Drive Calculator. Lastly, there are no monthly fees or subscriptions for storing or accessing recorded video.

Camera System with NDAA Compliance

AvaEye is committed to delivering security camera systems that meet the National Defense Authorization Act's (NDAA) requirements. This means that every component of our AvaEye systems, from the PoE cameras to the NVRs, is manufactured without using parts from restricted sources. Purchasing NDAA-compliant systems from CCTV Camera World means you're choosing a secure solution that adheres to the high standards of security, legality, and ethics demanded by the US federal government. This compliance is crucial for technologies utilized in government, military, and contractor settings, ensuring that your surveillance setup follows national guidelines.

Stay Alert with Notifications Sent Directly to your Phone

AvaEye is ready to help you stay alert and responsive to any activity on your property with phone notifications. These notifications can be scheduled and customized to fit your specific needs, whether you’re using basic motion or one of the smart event detection features. Keeping you and your staff informed of events as they occur is an invaluable tool for preventing losses and reducing liability risks.

Watch Remotely - AvaEye Phone App and Computer Software

Accessing your camera’s live views or recorded playback is available anytime, anywhere, as long as your system, phone, and computer have a good internet connection. With the purchase of the system, you have access to our professional AvaEye smartphone app and AvaEye computer software for free. These tools provide unlimited access to your cameras and system for viewing and management without any subscriptions. Don’t worry about setup; connecting with the app and software is extremely easy using the unique code for your system. The software is especially useful if you need to monitor and manage multiple locations all on one convenient platform, as it can access multiple systems and display up to 64 channels per window simultaneously, provided you have a powerful enough computer and network connection.

On-site Access Using Web Browsers

Watch a single camera up to 1080p resolution in your favorite web browser without any plugins required! To watch several cameras at the same time and in their full resolution, the web interface intelligently prompts you to install plugin software. It also unlocks several live viewing and playback features that the standard web interface does not offer. The web interface isn’t just for viewing cameras, though; it’s also a great way to manage the system from the comfort of your computer. If you’re well versed in IT, you could even set up port forwarding to use it remotely.

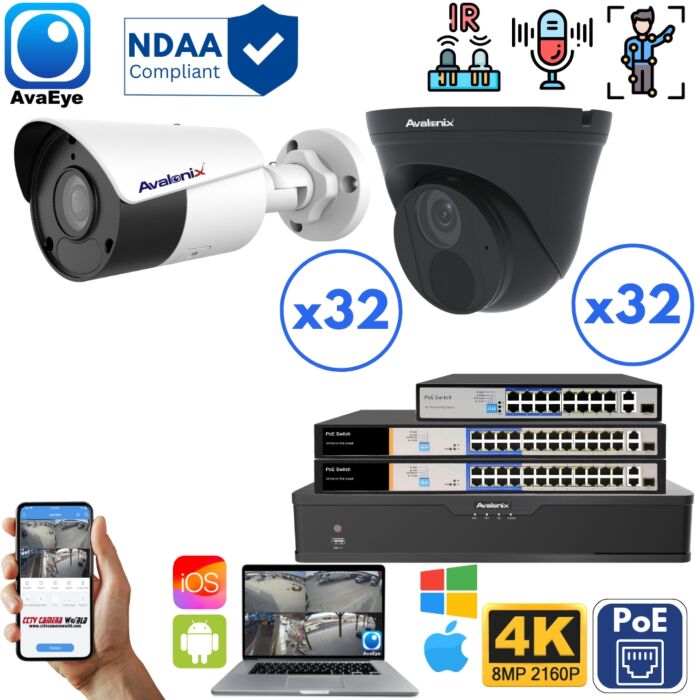

Everything that comes in the box:

• (1) 64 Channel NVR (NVR864) pre-installed with a 2TB drive, with larger hard drive configurations available based on your selection
• (32) Outdoor 4K PoE Turret Dome Camera with Mic, Starlight, 100ft Night Vision, AvaEye (IP4K1TG)
• (32) Outdoor 4K PoE Bullet Camera, AvaEye (IP4K1BLG)
• (2) 24 Port PoE Switch (24POE)
• (1) 16 Port PoE Switch (16POE)
• (1) USB mouse
• (1) NVR power cord
• Installation pamphlets

IMPORTANT: This system does not include cabling for the cameras. The cameras requir CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Camera System Details

64 Channel PoE NVR by AvaEye

Supported Channels: 64
Cameras: 64
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 12MP, 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 12MP, 4 channels 8MP, 8 channels 4MP, 16 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Eight (8) Drives up to 18TB each (select when adding to cart)
Recording Bandwidth: 384Mbps
Recording Bandwidth Out: 384Mbps
Display output: 2 HDMI up to 4K, 1 VGA up to 1080P
USB Ports: 2 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC
Power Consumption: 25W Excluding hard disk
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-camera grid up to 4K with plugin on Windows PC
Dimensions: 17.4" x 16.8" x 3.5" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Turret Camera 8MP 4K

Camera Type: Turret
Camera Model: IP4K1TG
Camera Connectivity: Direct or via Network
Camera Resolution: 8MP 4K (3840 x 2160 pixels)
Frame Rate: 20 frames per second
Lens: 4mm
Field of View: 91.2°
Backlight Compensation: True WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes, Ultra Motion Detection (Human/Vehicle), Intrusion Box Detection (Human), Line Crossing Detection (Human)
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Bullet Camera 8MP 4K

Camera Type: Bullet
Camera Model: IP4K1BLG
Camera Connectivity: Direct or via Network
Camera Resolution: 8MP 4K (3840 x 2160 pixels)
Frame Rate: 20 frames per second
Lens: 4mm
Field of View: 86.5°
Backlight Compensation: True WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 164 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes, Ultra Motion Detection (Human/Vehicle), Intrusion Box Detection (Human), Line Crossing Detection (Human)
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
