Complete 4K UltraHD 8MP Video Security System with 64 Bullet Cameras and NVR for Large Businesses, AvaEye

Are you in search of a comprehensive security camera system for a large retail space, warehouse, legal marijuana grow, or healthcare facility? Our AvaEye 64 camera PoE IP 4K bullet system is a premier choice for protection in any industry. The Power over Ethernet switches that come with this system—two 24 ports and a 16-port—power the cameras, which are simple to connect because they only need a single network cable. A localized PoE camera system setup using switches means that it can operate completely standalone off the internet, and a connection is only necessary for remote viewing.

64 Cameras

64 × 8MP Bullet IP Cameras

PoE Switches Included

Includes two 24-port PoE switches and one 16-port PoE switch

No Monthly Fees

Save money and protect privacy

164ft Night Vision

Maximum night vision range

2TB Hard Drive

Expandable up to 144TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

Video storage is scalable to handle recording from 64 cameras. This system includes a single 2TB hard drive, with larger hard drive configurations available when purchasing, up to an astounding 144TB across eight 18TB drives. Be sure to use the Security NVR and DVR Hard Drive Calculator to determine how much storage you should purchase. We recommend purchasing at least two drives to reduce the potential for frame skipping if you expect to record over 16 cameras continuously at a single time. Lastly, once you buy the system, you will not have to pay any monthly or yearly fees to access or store video.

There’s no better time than now to experience the AvaEye advantage to protect your retail locations, offices, manufacturing plants, or warehouses. CCTV Camera World is proud to back our products by providing free email support for the lifetime of the system. It doesn’t stop there; the cameras and NVR in this system are also all NDAA compliant, which means they are trusted for use by the military, government, and their contractors.

Simple Installation with Power Over Ethernet

This 64-camera security system is streamlined and straightforward to install due to the included PoE switches. PoE technology transmits both power and data over a single Ethernet network line, eliminating the clutter of traditional analog camera systems that use thicker coaxial cables and separate power supplies.

The system includes two 24-port PoE switches and one 16-port PoE switch for connecting all 64 cameras. Each switch has two uplink ports that have gigabit speeds for interconnecting to other switches or integration into your current network infrastructure. For areas requiring long cable runs, there is an extended PoE option that enables the first eight ports of each switch to extend the ability to install the fixed lens cameras up to 820 feet away when used with solid copper CAT6 cable.

Expanding the infrastructure for cameras by adding additional compatible switches adds flexibility and facilitates strategic IP camera placement. Any switches can be daisy chained to one another as long as they have power and are within 328 feet of one another, offering the adaptability to place cameras anywhere you need to, inside or outside of your building.

AvaEye Bullet Cameras featuring 8MP 4K UltraHD resolution

Capturing stunning 4K 8MP video at 20 frames per second, the bullet cameras in this system are professional-grade. A 4mm lens, along with the 1/2.7" CMOS image sensor, allow the camera to see a 91.2-degree angle of view. These specifications combine to make a great camera, but to put it in real world terms, this means you’ll be able to recognize faces up to 50 feet away during the day. The cutting-edge Starlight image sensor equips these cameras with the remarkable ability to see in color, even in views where ambient lighting is as low as 0.005 Lux. In complete darkness at night, the cameras intelligently switch over to black-and-white video mode, beaming IR up to 164 feet away for general detail. The feature set of this camera also includes a microphone, which you can enable to record audio up to 25 feet away. Plus, they are built to last and designed with an IP67 water-resistant rating, so you can use them inside or outside all year round.

Event Detection by Smart Security Cameras

Take advantage of modern surveillance features like smart event detection that will help you stay alert about security around your business. The cameras come with two powerful analytical tools, Line Crossing and Intrusion Box, that can automatically trigger recording and alerts. Both are expertly designed to focus on human movement and filter out irrelevant objects. These features allow you to effectively monitor critical or restricted areas.

Line Crossing, for the most part, does exactly what it says on the tin. It lets you or your security team set up digital lines within a camera’s view. You can think of them like digital tripwires. When someone walks through these customizable lines, they act as rules that tell the NVR to start recording and, depending on the settings for push notification subscriptions, send alerts to your phone. Line Crossing is best used for monitoring areas where customers, employees, or thieves have to pass specific entry or exit points.

Intrusion Box, on the other hand, allows you to draw virtual boxes in the image. Just like Line Crossing, if someone passes into, out of, or through the drawn box, the system will start recording, and alerts can be triggered. We recommend using intrusion detection in places where there are several ways to enter and exit a camera’s view.

Reduce Useless Recordings with Ultra Motion Detection

Harness the power of AvaEye’s Ultra Motion Detection (UMD) feature, a massive improvement over older pixel-based video detection methods. UMD uses an intelligent algorithm that is able to actively analyze areas you specify in a camera’s view. The algorithm also enables you to set filters to detect motion solely from humans or vehicles, or to capture both. This high level of customization and smart technology results in recordings that are far more relevant and reduce the chances of false notifications.

Ultra Motion Detection (UMD) technology is adaptable for many purposes, even outside of surveillance. In retail stores, it could be used to track customer behavior as they browse products. For manufacturing, UMD can be used for quality control or to detect potential safety violations. In healthcare settings, you could track patient activity to identify patients who may need assistance. The possibilities for using this fantastic analytic technology are countless, and businesses of all sizes can benefit from its many advantages.

Expert Image Configuration

Assorted image settings are within the system that allow you to optimize a camera’s view for the varying situations around your property. Utilize one of the preset options or manually adjust settings, such as brightness, sharpness, and contrast, to fine-tune the image quality. Additionally, you can choose to enable enhancement features that actively adjust the image based on lighting conditions in the view, including True Wide Dynamic Range (WDR), Backlight Compensation, and Highlight Compensation. With the right image settings, you can ensure that your cameras are providing you with clear and detailed images of your property, no matter the conditions.

Mass Storage: No Monthly Fees

With options for configurations of up to an enormous 144TB, consisting of 8 18TB drives, support for storage is large-scale enough for most surveillance projects. Although the system comes with a 2TB hard drive, larger hard drive configurations are available when purchasing, and we recommend adding at least one additional drive. With one more drive, you can enable grouping to assign cameras to drives, which will reduce the potential for frame skipping. If you need help determining what storage capacity you need for your project, consider using our Security NVR and DVR Hard Drive Calculator to get an idea. Last but not least, there are no subscriptions or monthly fees required to store or access recorded video.

Compliant NDAA Camera Systems

AvaEye is committed to delivering security camera systems that meet the National Defense Authorization Act's (NDAA) requirements. This means that every component of our AvaEye systems, from the PoE cameras to the NVRs, is manufactured without using parts from restricted sources. By purchasing NDAA-compliant systems from CCTV Camera World, you're choosing a secure solution that adheres to the high standards of security, legality, and ethics demanded by the US federal government. This compliance is crucial for technologies utilized in government, military, and contractor settings, ensuring that your surveillance setup follows national guidelines.

Alerts Right to Your Phone

Getting alerts directly on your phone from this smart system in the AvaEye app helps you become a vigilant protector. Set up subscriptions to any of the cameras and event detection rules that you set up in the NVR to get notified when the rules are broken. Rapid notifications are an invaluable feature that turns this system into a proactive defender, making sure you or your staff are on top of any activity right when it happens.

Effortless Remote Viewing: AvaEye Mobile App and Software

Your cameras’ live views and recordings are always a few taps or clicks away with an AvaEye system. The AvaEye app is free and available for both iPhone and Android users, as well as tablets that have access to the App Store or Google Play. Connecting with the app after installing it is only a few easy steps using the add device function, scanning the system’s unique code, and typing in the login credentials.

The connection code method also works to allow remote access using the AvaEye computer software that is compatible with Windows PCs and Macs. It is a handy camera monitoring software that provides a variety of tools to watch live video or review and export recorded footage, as well as manage your surveillance strategy. Depending on the power of your computer, you can open multiple windows with up to 64 camera views each to monitor multiple locations.

Local Web Browser Access

The AvaEye NVR recorder in this system features plug-in free live viewing using modern browsers such as Chrome, Edge, or Firefox. Plug-in free viewing supports single channel viewing up to 1080P. To tap into advanced viewing options, including multiple camera grids, full 2K resolution, and video audio playback, simply install the dedicated browser plugin on your Windows PC. The NVR intelligently reminds you to install the plugin if you do not have it installed.

The feature-rich web interface allows system configuration and management at the convenience of your PC. If you are on the same network as the system, you can easily type in the IP address of the NVR to access its web interface. If you're experienced with managing your own router, you can even create rules on your router to access the web interface of the system.

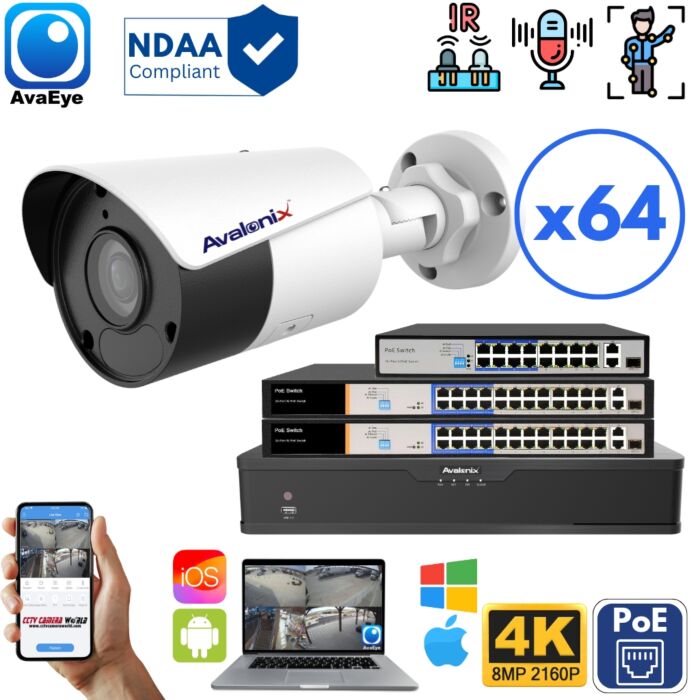

Everything that comes in the box:

• (1) 64 Channel NVR (NVR864) pre-installed with a 2TB drive, with larger hard drive configurations available based on your selection
• (64) Outdoor 4K PoE Bullet Camera, AvaEye (IP4K1BLG)
• (2) 24 Port PoE Switch (24POE)
• (1) 16 Port PoE Switch (16POE)
• (1) USB mouse
• (1) NVR power cord
• Installation pamphlets

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Networ Cable page before checking out.

Camera System Details

64 Channel PoE NVR by AvaEye

Supported Channels: 64
Cameras: 64
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 12MP, 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 12MP, 4 channels 8MP, 8 channels 4MP, 16 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Eight (8) Drives up to 18TB each (select when adding to cart)
Recording Bandwidth: 384Mbps
Recording Bandwidth Out: 384Mbps
Display output: 2 HDMI up to 4K, 1 VGA up to 1080P
USB Ports: 2 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC
Power Consumption: 25W Excluding hard disk
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-camera grid up to 4K with plugin on Windows PC
Dimensions: 17.4" x 16.8" x 3.5" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Bullet Camera 8MP 4K

Camera Type: Bullet
Camera Model: IP4K1BLG
Camera Connectivity: Direct or via Network
Camera Resolution: 8MP 4K (3840 x 2160 pixels)
Frame Rate: 20 frames per second
Lens: 4mm
Field of View: 86.5°
Backlight Compensation: True WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 164 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes, Ultra Motion Detection (Human/Vehicle), Intrusion Box Detection (Human), Line Crossing Detection (Human)
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
