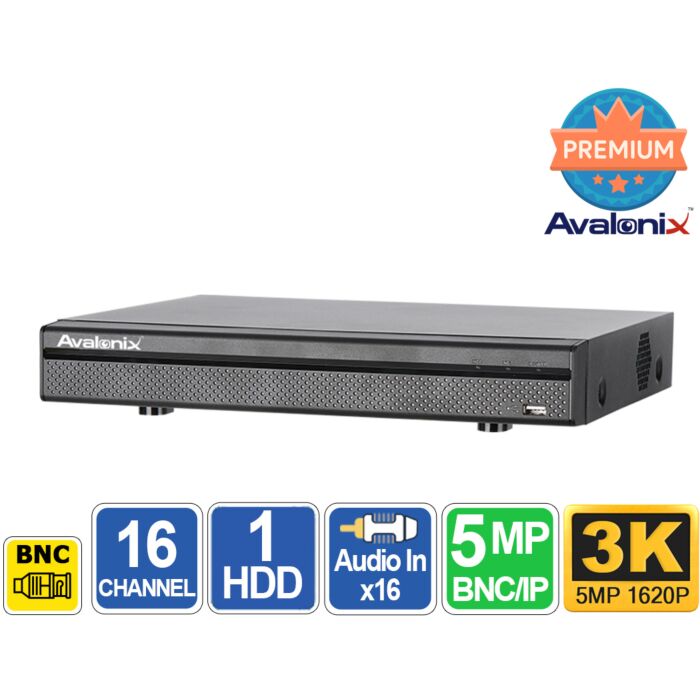

16 Channel XVR DVR
- 16 Channel XVR
- New 1080P Pentabrid Model
- Supports 16 BNC + 8 IP Cameras
- 1080P 15fps, 1080N/720P 30fps
- Records Analog, HDCVI, TVI, AHD Cameras
- Supports up to 4MP IP cameras
- 1 RCA Audio Input
- Up to 8TB
- HDMI/VGA Video Out

Whether you are looking to upgrade your existing analog digital video recorder or shopping for a new 16 security camera system, you should definitely consider this 16 camera Mini Pentabrid DVR. It allows for simultaneous recording of up to 16 coax cameras that are analog or that use any of the latest HD over coax signal technology to send a 1080P video signal over traditional RG59 coax cable. Its Pentabrid DVR functionality (aka XVR) means that is compatible with all of the latest HD over coax signal types, i.e. HDCVI, TVI, AHD, and traditional standard definition CCTV cameras. You can even add 8 IP cameras over the network to this recorder as channels 17-24, which effectively makes this a 24 channel DVR. Here is a list of the different types of security cameras you can use with this XVR:
- You can use a total of 16 BNC cameras of these types:
- Analog Security Cameras
- HDCVI cameras up to 1080P
- TVI Cameras up to 1080P
- AHD Cameras up to 1080P
- You can add 8 additional IP cameras up to 5MP
Connecting HD over coax makes it easy to setup a HD surveillance system without the hassles of networking involved in IP camera setup. Simply connect a HD camera to this DVR using a coax cable, and you can start viewing and recording.
This 16 channel security recorder is a standalone recorder and does not require a PC for use. It comes with an embedded Linux operating system that stays free of any viruses or Trojans. It comes with the same great user interface as all of our other DVRs, and uses H.264 encoding to record video at great quality while conserving hard drive space. It is easy to set up as well. Simply turn the DVR on and it will boot up to a grid of 16 cameras. Connect your cameras to the back of the DVR using the BNC video inputs, and as each camera is connected it will populate a square denoting video from that camera.
Although this is a mini DVR, it does not sacrifice on options. It's compatible with HDCVI Pan Tilt Zoom Cameras and analog PTZ cameras that use RS485. It is Mini only because it supports one hard drive and does not have alarm sensor inputs/outputs.
As all of our DVRs do, there are a plethora of features that are standard. Some of the most popular ones include:
- Video based motion detection
- Motion masking
- Email alerts / Push alerts
- Remote viewing
- USB video backup
Be sure to choose HDCVI cameras for use with this DVR. They can be found labeled on our site with the following logo. You can also click this logo to shop for compatible HD security cameras.
If you plan to use IP cameras with any of our standalone recorders, we recommend using IP cameras from CCTV Camera World only. Learn more about limitations of the ONVIF standard when using IP cameras purchased elsewhere with a standalone video recorder. All of our DVRs and NVRs have ONVIF support for select cameras 3rd party cameras mentioned on our IP camera compatibility list. If you have a camera purchased elsewhere that is not on the list, feel free to click the product question button on this page to inquire about its compatibility.
If you need help, with every purchase you get free technical support for the product purchased. CCTV Camera World also offers free mobile apps and viewing software so you can view your cameras connected to your DVR over the internet through your smartphone (iPhone, Android), tablet (Android or iPad), or PC/Mac computer.
Features
- 24 Channel XVR
- Pentabrid DVR - supports analog, HDCVI, TVI, AHD, and IP cameras
- Supports 16 BNC cameras + 8 IP Cameras
- Latest H.264 and H.264+ Video Encoding
- Supports 1080P 15fps or 720P 30fps recording for BNC cameras
- 96Mbps recording bandwidth for IP cameras
- Supports up to 5MP IP Cameras from CCTV Camera World
- Free smart phone and table remote viewing app to view DVR and cameras from the internet
- Supported remote viewing devices:
- iPhone
- iPad
- Android phones and tablets
- PC Computer
- Mac Computer
- Multiple recording methods selectable for each individual camera
- 24/7 Continuous recording
- Calendar Day & Time based recording
- Motion Activated Recording triggers one or multiple cameras to record when DVR senses the video change
- Intelligent Video Detection: Tripwire, Intrusion, Abandoned/Missing Object, Face Detection
- Selectable motion detection zones and privacy masking
- Selectable motion sensitivity to minimize false motion events
- Push alerts to your phone or tablet when motion is detected
- Easy video backup to USB, PC, FTP, NAS
- Auto Hard Drive Overwrite to rewrite over hard drive when it is full by writing over oldest video first
- Supports 1 Hard Drive (max 8TB)
- HDMI audio/video output for TV/monitor
- VGA Video Out
Rear panel connections on the back of this DVR are:
- (16) BNC video inputs - for HDCVI cameras
- (1) RCA audio inputs - for optional add-on security camera microphone
- (1) RCA audio output - for optional speaker to enable two-way talk through mobile apps or PC software
- (1) VGA video output - to connect to computer VGA monitor
- (1) HDMI video/audio output - to connect to HDTV or monitor
- (2) USB ports - front port for mouse, back port for back up to USB flash drive
- (1) RS485 port - for connecting third-party PTZ cameras
- (1) RJ45 Network Port - for connecting network cable to router
What's included?
- (1) 16 Channel HD-CVI DVR Mini
- (1) Power Supply
- (1) USB mouse
- (1) SATA Cable for Hard Drive
- (1) CD with manual and software
Specifications
Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Outputs | 1 HDMI ,1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grid Displays | 1/4/8/9/16/25 Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm inputs | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Relay Outputs | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Playback | 1/4/9/16 Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Mode | USB Flash Drive, Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal HDD | 1 SATA Port, up to 8TB capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | (1) USB 2.0, (1) USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232 | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 Port, for 3rd Party PTZ Control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3rd Party IP Camera Support | Avalonix, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Input | 16 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Signals | HDCVI, TVI, AHD, Analog | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input | 8 Channel, each channel up to 5MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio In/Out | 1 in, 1 out RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk | Reuse audio in/out RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Rate | Main stream: 1080P(1-15fps), 720P/960H/D1/HD1/BCIF/CIF/QCIF (1-30fps) Sub stream: D1/CIF/QCIF(1-15fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | 1Kbps - 6144Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Interval | Pre-record: 1-30 sec, Post-record: 10- 300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record File Lengths | 1-60 min (default: 60 min) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Ports | 1 RJ-45 Port (1000Mbps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Avalonix IP camera, DVR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max User Accounts | 128 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Onvif | ONVIF 2.42, CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC12V 2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | <10W (Without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | +14°F - +131°F), 0-90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 12.8" x 10" x 2.2" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 3.5lbs (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Flat table top / shelf |
Recording Resolutions | 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 |
---|---|
Total Incoming IP Bandwidth | 96 Mbps |
Total IP Recording Bandwidth | 96 Mbps |
eSATA Port | None |
USB Ports | (1) USB 2.0, (1) USB 3.0 |
Video Outputs | (1) HDMI, (1) VGA |
Power Input | 12V DC |
Rackmountable | No |
BNC Recording Frame Rate | 1080P 15fps, 1080N / 720P / 960H / D1 / CIF 30fps |
Number of Audio Inputs | 1 RCA |
Encoding Supported | H.264/H.264+ |
Number of PoE Inputs | None, uses network for connection |
Max Hard Drive Capacity | 1HDD, 8TB |
Hot Swap HDD | No |
RAID Redundancy | No |
Warranty | 1 Year |
Recorder Type | DVR Pentabrid Type XVR |
CPU | Embedded Dual Core |
Total Cameras Supported | 24 |
Supported Camera Signals | Analog, HDCVI, TVI, AHD, IP |
Number of BNC Inputs | 16 |
Number of IP Cameras Supported | 8 |
Total PoE Power | No Built-in PoE Ports |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
