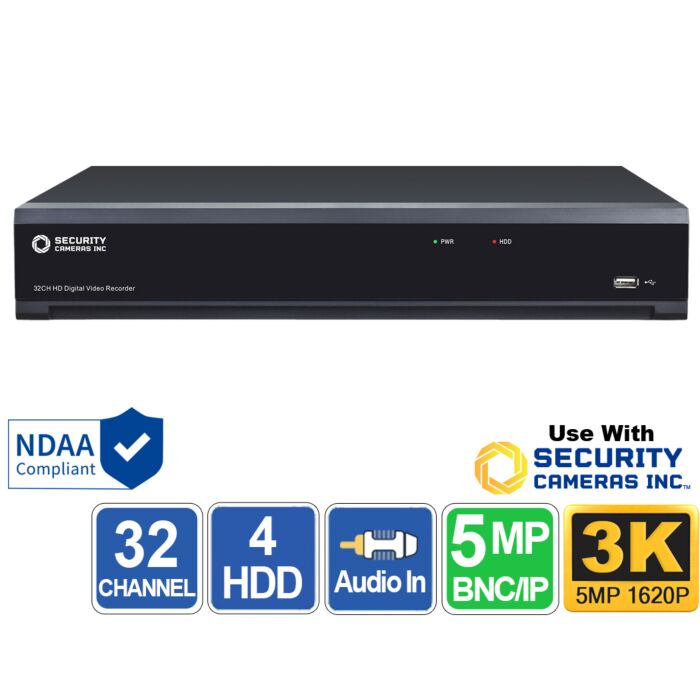

32 Channel DVR, NDAA Compliant

Special Price $579.99 Regular Price $689.99
In stock
SKU
SCDVR32
  • Supports up 5MP Analog/IP
  • 4 HDD up to 10TB ea
  • NDAA Compliant

CCTV Camera World is proud to present this 32-channel Pentabrid XVR, a standout offering from Security Camera Inc's cost-effective line of surveillance products. This XVR is engineered to support a broad spectrum of coaxial security camera types, including HDCVI, HDTVI, AHD, and CVBS. Beyond coax cable, it also integrates with IP cameras over a local network, ensuring comprehensive recording capabilities. With NDAA compliance, this device doesn’t just meet industry standards; it represents the pinnacle of reliability and trustworthiness. When you choose our NDAA equipment, you’re not just purchasing any old DVR; you're investing in a legacy of excellence and an unwavering dedication to superior security solutions.



Remote View Security Camera System

Pentabrid DVR

Our Pentabrid DVRs are versatile surveillance solutions tailored for diverse security needs. Engineered to accept and record signals from various coaxial security camera types—including HDCVI, HDTVI, AHD, and CVBS—it offers unmatched flexibility. Not limited to just coaxial sources, the fifth "signal" of this DVR is its ability to connect to and record IP PoE cameras through a local computer network equipped with PoE switches, making it a comprehensive choice for upgrading existing or installing new surveillance systems.
Remote View Security Camera System

Remote Access Anytime, Anywhere

Whether you're on team iPhone or team Android, the SCI View App has got you covered. With it, you can remotely monitor your system from any corner of the globe. Just make sure the system is connected to a stable broadband internet connection, and you're good to go.
PC and Mac Software

Computer Monitoring Options

Prefer viewing your security feeds on a bigger screen? We've got you. Our dedicated and free SCI Video Management Software is available for both Windows and Mac users, enabling seamless monitoring over the Internet. You can also access the system directly on a computer running Windows, Mac, or Linux by simply entering the IP address that your router assigned to the recorder into your favorite web browser.

Internet Optional

No Internet? No Problem

Wondering about the term "standalone DVR"? It's straightforward. Unlike many cloud-reliant recorders, our standalone DVRs operate perfectly fine without an internet connection. However, if you want to watch your cameras remotely, an internet connection is required to use the app or desktop software.
NDAA Compliant

NDAA Compliant

Security camera equipment by Security Cameras Inc is proudly NDAA (National Defense Authorization Act) compliant. This compliance ensures that the equipment, software, and components of the recorder are not sourced from restricted companies, providing an added layer of security and trust for users. Users can trust this recorder for both its advanced surveillance capabilities and its commitment to national security considerations.
Security Cameras Inc

Security Cameras Inc

The Security Cameras Inc DVR recorder is designed for direct compatibility with PoE Cameras by Security Cameras Inc, offering a seamless plug-and-play experience using an optional PoE switch. With this pairing, users benefit from an intuitive setup and robust video analytics, streamlining surveillance while maximizing insights such as Smart Detection. Trust in a solution that simplifies yet enhances your home or business security system.

Features:

  • 36 Channel XVR
  • Total 16Mbps Encoding Input, 216Mbps Output
  • Supports Analog Coax up to 5MP
  • Supports Security Cameras Inc IP cameras up to 5MP1
  • Supports 32 Analog Security Cameras up to 5MP
  • Supports Four IP cameras up to 5MP1
  • H.265+ or H.264+ Video Encoding
  • H.265+ encoding provides up to 70% storage and bandwidth savings
  • Frame rate is dependent on camera
  • Supports 5MP, 4MP, 3MP, 1080P, 720P, D1, and CIF resolution cameras
    • 5MP-Lite up to 15fps (each camera)
    • 4MP-Lite up to 20fps (each camera)
    • 1080P up to 15fps (each camera)
    • 720P up to 30fps (each camera)
  • 1/4/8/16 Camera Live View
  • Up to 16-Channel Grid Playback via HDMI
    • 5MP Cameras up to total of 240 fps
    • 4MP Cameras up to total of 320 fps
    • 1080P Cameras up to total of 480 fps
  • Playback Speed Control (1/16x, 1/8x, 1/4x 1/2x, 1x, 2x, 4x, 8x, 16x)
  • 16 BNC ports for HDCVI, HDTVI, AHD, and CVBS cameras
  • 16 Alarm inputs, 1 Alarm Output
  • RS485 for 2-lead wire Analog PTZ control
  • Push Alerts to the SCI View App for motion, event detection, and alarm events
  • Multiple recording methods
    • Motion Detection
    • Continuous
    • Schedule based
    • Alarm
    • Manual
  • Free Remote Viewing App (SCI View) for iOS and Android Smartphones and Tablets
  • Free SCI Video Management Software for viewing and management via Windows or Mac
  • Allows for live, real-time remote backups to a FTP, NAS, or mirror to an NVR in network
  • Easy video backup of short video segments using a USB drive or download to your computer
  • Supports up to 4 SATA hard drive, max. 10TB each
  • Simultaneous Monitor Outputs
    • 4K HDMI audio/video output
    • VGA Video Output
    • BNC CVBS Video Output  (usable when CVBS resolution cameras used)
  • Allows up to 5 remote users for simultaneous viewing

1. Use Security Cameras Inc IP camera for guaranteed compatibility. Using 3rd party cameras does not guarantee compatibility.



Specifications:

Model SCDVR32
Recording Bandwidth Input 16Mbps
Output 216Mbps
Video inputs Analog Video Input 32 channels BNC
IP Video Input 4 channels
Total Video Input Up to 36 channels (32 Analog video + 4 IP video)
Performance
Recording and Playback Compression No audio - Audio: G.711a
Video: H.264/H.265
Display Resolution Analog: 5MP-Lite at 20fps, 4MP-Lite at 30fps, 1080P/720P/960H at 30fps
IP: 5MP/4MP/1080P/720P
Frame Rate

Main Stream
Analog
5MP-Lite: 15fps per channel
4MP-Lite: 20fps per channel
1080P: 15fps per channel
720P: 30fps per channel

IP: 30fps per channel (max 4Mbps per channel)

Sub-stream
D1: 10fps per channel

Event Motion Detection (Sensitivity Level 1~8)
Video loss
Beep, Email, Push notification to SCI VIEW Mobile App
Playback function Fast forward / backward (2x, 4x, 8x,16x) (Recording Resolution Dependent)
Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback 5MP-Lite: 240fps Max 16 Channel playback )
4MP-Lite: 320fps Max 16 Channel playback)
1080P: 480fps Max 16 Channel playback)
720P: 960fps (Max 16 Channel playback)
Viewing Local DVR Menu Interface over HDMI or VGA out
Web Browser Plugin free viewing on PC or Mac
Safari V12.1 above
Firefox V.52 above
Google Chrome V.57 above
Edge V.79 above
PC/Mac Software SCI View
Mobile App SCI View
Push Notification Yes
Analytics AI from compatible camera supported PID - Perimeter Intrusion Detection
LCD - Line Crossing Detection
PD & VD - Pedestrian (Human) Detection & Vehicle Detection
FD - Face Detection
FR - Face Recognition
Interface
Video Output BNC 1 Usable when CVBS resolution cameras used
VGA 1 Output supports 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
HDMI 1 Output supports 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440 (2K), 3840x2160 (4K)
Connections Ethernet 2 RJ45 1 Gbps
Audio None
USB 1x USB2.0 (front), 1x USB3.0 (rear)
RS485 1
HDD 4 SATA, up to 10TB each
Alarm In/Out 15 In / 1 Out
General
On-Screen Menu Languages SupportedEnglish, French, Spanish, Portuguese, German, Italian, Greek
Mechanical Design Dimension (WxDxH) 4.96 x 13.4 x 2.6 inches approx
Operating Noise At 20 inches away 45dB
Electrical Input Voltage 12V DC 5A (Power Supply Included)
Power consumption 21W (excluding hard drive)
Environmental Operating Temperature/Humidity Temperature: 14°F ~ 122°F
Humidity: Less than 90% RH
