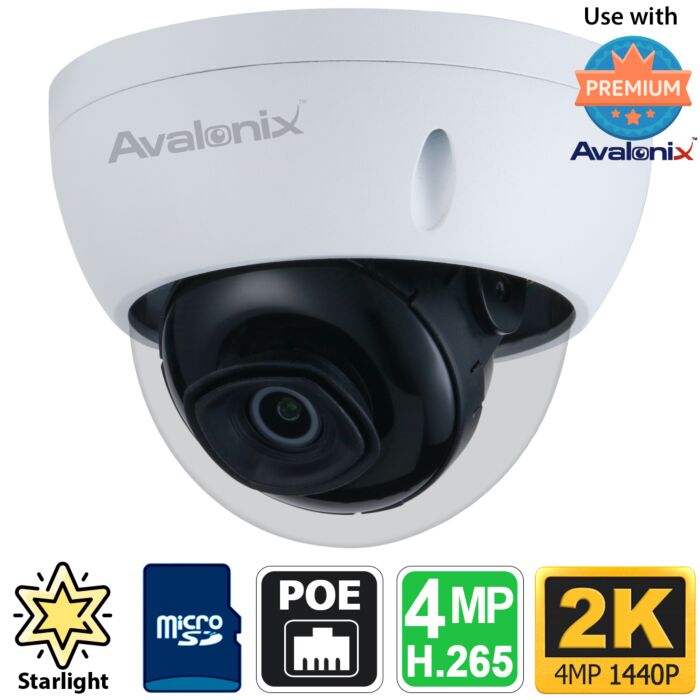

2K H.265 IP Dome Camera 4MP, Starlight, PoE

SKU: IPDE403

Write a Review

Availability: In stock

Regular Price: $199.99

On Sale: $169.99

Please select the microSD card memory you need to record on this device.

Select a PoE injector to power this PoE camera.

You can choose from the following optional brackets to aid in installation.

  • Junction Box for Mini Dome Cameras
  • Wall Mount Arm Bracket for Security Cameras
  • Pole Mount Bracket Mini

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

The 4MP IP Dome Camera provides clear crisp 2K video with a wide angle of view. It features a 4 Megapixel image sensor that outputs video at 2688 x 1520 pixels in resolution to be exact. This is 4MP resolution video that is higher in clarity and definition than 1080P, and allows for facial clarity up to 37ft in lit conditions. It has a 2.8mm lens that provides a 102 degree angle of view.

Starlight technology allows this camera to see in color in very low light

This 2K dome camera also has 3 infrared LEDs that provide 100ft of night vision for the camera to see in complete darkness. If you're interested in seeing in color in low light, the camera's Starlight technology allows it to intelligently adjust the shutter rate in low-light environments to continue seeing in color.

If you're looking for cameras better than 1080P HD, then you should definitely consider this PoE dome camera. It would be a cost-effective addition to any security camera system you have purchased from CCTV Camera World, or even be used as a standalone security camera to record to microSD. This IP security camera also has the ability to be used as a live stream camera to send video to Twitch when the camera is used in standalone mode on the network.

Since this camera does not have a microphone, it will not work with YouTube Live. If you are looking for a live streaming capable camera that allows the user to send video stream directly to YouTube Live or Vimeo, be sure to consider our live streaming 4K camera that is perfect for both indoor and outdoor applications.

You can expect to recognize a face up to 37ft away in daylight when using this camera; just check out the video sample for this camera. If you ever needed to provide the police with surveillance video, the video captured by this camera will make it easy for them to see what happened and quickly identify the perpetrator.

If you are tired of false motion alerts from your existing security cameras, then you will love the video analytics that this 2K dome security camera has to offer. It comes with professional video analytics for smart detection of events for intelligent event alerts. It offers smart detection functions such as tripwire, and intrusion. By configuring intelligent analytics rules for when a person or object crosses a line, the camera will send motion push alerts only then.

As shown in the video below, our security cameras with video analytics help reduce the number of false motion alerts compared to cameras with only video based motion detection.

Security Cameras with Smart Detection by CCTV Camera World

This 2K IP dome camera is weather proof IP67 rated, meaning it can be used indoors or outdoors in any weather, and does not require a overhang or cover for weather protection. This dome camera is also IK10 rated and tested, which means it is impact and vandal resistant. You can power this camera easily with a PoE switch, PoE NVR, or with a 12VDC security camera power supply. To record video we suggest using one of our IP camera NVR.

To learn more about different resolutions available for security cameras be sure to give our guide on how to choose a security camera a read.

Features:

  • 4MP Starlight Image Sensor
  • Starlight technology lets the camera see in low light in color
  • Real-time 2K recording at 30fps
  • Selectable recording resolution:
    • 20 fps at 4MP (2688x1520)
    • 30 fps at 2K (2560 x 1440)
    • 30 fps at 3MP (2304 x 1296)
    • 30 fps at 1080P (1920 x 1080)
  • H.265 / H.264 Video Encoding
  • H.265+ provides up to 70% bandwidth savings over H.264
  • Dual Stream Video Encoding (main stream and sub stream)
  • 2.8mm Fixed Lens - 102° Angle View
  • Up to 100ft of infrared night vision
  • True WDR - Wide Dynamic Range
  • Video Analytics for Smart Detection
  • 3D Noise Reduction
  • Video based motion detection with Region of Interest settings
  • Built-in Web Server for viewing by web browser or smart phone
  • Supports edge-based recording using up to 256GB microSD (not included)
  • Multiple recording options:
    • CCTV Camera World NVR or DVR
    • MicroSD
    • FTP or SFTP
    • NAS
    • Live Stream Support to Twitch
  • IK10 Vandal and Impact Resistant
  • IP67 Weather Proof for outdoor use
  • 12VDC or PoE Power input
  • ONVIF Compatible

What's included?

  • (1) 4MP 2K Vandal Resistant IP Dome Camera, H.265

Specifications

Image Sensor1/3" 4MP Progressive Scan CMOS
Effective Pixels2688 (H) x 1520 (V)
Electronic Shutter SpeedAuto/Manual, 1/3- 1/100000s
StarlightYes
Minimum Illumination0.008 Lux F1.6 (Color), (0 Lux IR On)
S/N RatioMore than 50dB
IR DistanceUp to 100ft
IR On/Off ControlAuto, Manual
IR LEDs3
Lens TypeFixed
Focal Length2.8mm
Max ApertureF1.6
Angle of ViewHorizontal:102° Vertical:55°
Focus ControlFixed
Close Focus Distance3ft
DORI Distance*LensDetectObserveRecognizeIdentify
2.8mm184ft74ft37ft20ft
CompressionH.265+, H.265, H.264+, H.264
Bracket RangePan: 0° - 355°, Tilt: 0° - 65°, Rotation: 0° - 355°
Video AnalyticsTripwire, Intrusion
Streaming Capability2 Streams (Main Stream, Sub Stream)
Resolution4MP (2688x1520), 2K (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1 (704x480), CIF (352×240)
Frame Rate4MP (1-20fps), 2K / 3MP / 2MP / 720P / D1 / CIF (1-30fps)
Bit Rate ControlCBR, VBR
Bit RateH.265: 12 - 6144Kbps, H264: 32K - 6144Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, True WDR
White BalanceAuto, Natural, Street Lamp, Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRYes
Digital Zoom16X
DefogN/A
Flip0°, 90°, 180°, 270° (90°, 270° for resolutions 2MP or below)
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio InputNone
Audio CompressionNone
Alarm Input

No

EthernetRJ-45 100Mbps
ProtocolsHTTP, HTTPs, TCP, ARP, RTSP, RTMP, RTCP, RTP, UDP, SMTP, FTP, SFTP, NFS, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF (Profile S, Profile G, Profile T)
Streaming MethodUnicast / Multicast
Max. User Access20 Users accounts, 5 simultaneous
Record MethodNVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD up to 256GB
MicroSDBuilt-in slot supports up to 256GB
Web ViewerIE, Chrome, Firefox, Edge**
Smart PhoneiPhone, iPad, Android Phone
Power Supply12V DC or PoE (802.3af)
Power Consumption5.2W
Operating Conditions-40°F – +140°F, Less than 95% RH
Weather ProtectionIP67
Vandal ResistanceYes
CasingMetal
Dimensions4.33" x 3.19" (diameter x height)
Net Weight0.77 lbs
CertificationsCE, UL

*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
**Certain functions like audio, digital zoom, and etc are unavailable in Chrome, Firefox, and Edge browsers due to limitations related to HTML5.

More

More

Return Policy30 Days Return Policy
Signal TypeIP
Camera Resolution4MP
Image Sensor1/3" 4MP CMOS
Night Vision100ft
Lens2.8mm
Optical ZoomNo
Angle of View102°
Wide Dynamic Range (WDR)WDR
MicrophoneNo
Pan Tilt ZoomNo
Video AnalyticsTripwire, Intrusion
Important FeaturesNo
SD Card SlotYes
Power Input12V DC / PoE
Operating Temperature-40°F to +140°F
Dimensions4.4" x 3.2" (diameter x height)
Weight1 lb
Weather ProofYes, IP67
Camera ColorWhite
Video EncodingH.265+, H.265, H.264+, H.264
Warranty1 Year

Reviews

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 4 question(s)

Is the IPDE401 Camera RTSP compliant?

Question by: Marc on: 2017-12-01

Yes this 4mp camera is RTSP compliant, as all of our IP cameras are RTSP compliant.

Answer by: Tech Support on: 2017-12-01

Will this camera be ideal for use in a bedroom to monitor my disabled child at night? Is there an ability to control the brightness of the IR LEDs?

Question by: C A on: 2018-06-19

Yes it would work fine, and you can control the IR intensity as explained in the following article:
https://www.cctvcameraworld.com/turn-off-infrared-on-security-camera/

Answer by: Tech Support on: 2018-06-25

Will video and snapshots record to a network share/PC?

Question by: Tom Hallaren on: 2018-07-12

All of our security cameras that are network based can record to a FTP server. A Windows share would not work. You need to have an FTP server running. You can use Filezilla as a free server on your PC. Please watch our video tutorial on Recording Security Cameras to a FTP Server to learn more.

Answer by: Tech Support on: 2018-07-12

How can I aim security camera Avalonix 2K 4MP IP Dome Camera ?

Question by: Radovan on: 2019-01-31

Thank you for the email and for calling. You can watch the following video on how to learn to mount and aim the IPDE401 type cameras. Please note the camera lens needs to be aimed in the direction you want the camera to see.





How to Aim your Dome Camera









Answer by: Tech Support on: 2019-03-19
