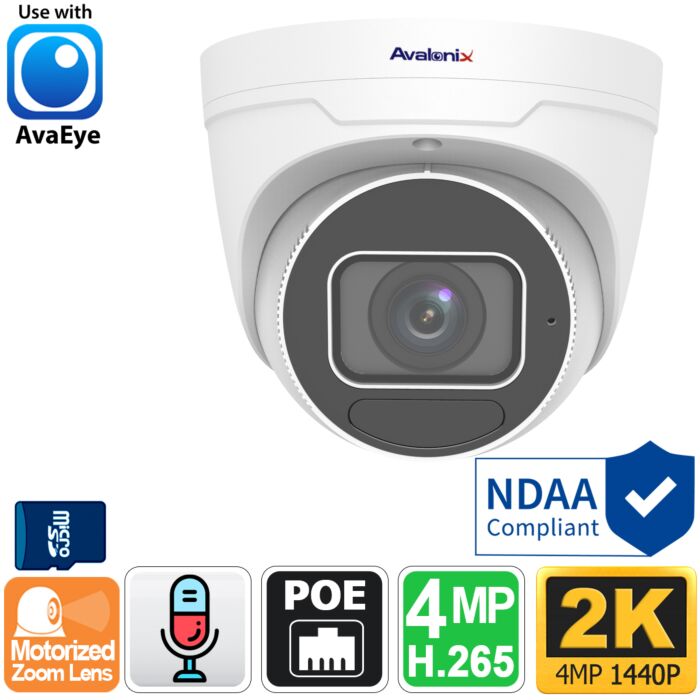

4MP 2K PoE Turret Camera with Motorized Zoom, Microphone, AvaEye
- 2K 4MP Turret Dome
- 2.8-12mm 4X Motorized Zoom Lens
- Up to 131ft IR Night Vision
- Built-in Mic
- Analytics: Line Crossing, Intrusion (Human Body)
- Indoor, Outdoor
- PoE, 12V DC
Elevate your security with the AvaEye Motorized Zoom 2K PoE Turret Camera, designed for those who demand nothing but the best in surveillance. Powered by a robust 4MP Video Sensor, this state-of-the-art turret camera delivers video clarity slightly beyond 2K at an unwavering 25 frames per second. Whether capturing facial details from 27 feet or zooming up to 95 feet, its capabilities remain unmatched. Featuring an integrated optical zoom with a versatile 2.8–12mm lens, users can effortlessly magnify their view by 4X, toggling between wide scenes and focused details. The lens can be controlled from a web browser, NVR, or AvaEye Phone App or PC/Mac Software. As darkness sets in, its night vision illuminates up to 131 feet, ensuring no blind spots. Audio surveillance takes a front seat with its built-in microphone, guaranteeing clear audio within 30 feet. The smart camera capabilities, including Line Crossing and Intrusion Box, coupled with audio detection, ensure accuracy and fewer false alarms when receiving a notification to your phone.
Simplifying installations, its PoE connectivity seamlessly transmits power and video, stretching to astounding lengths with extended PoE. Whether viewed from an AvaEye NVR, PC/Mac software, or the AvaEye App, accessibility remains paramount. Durably constructed and weather-resistant with an IP67 rating, it promises longevity. And with NDAA-compliant status, rest easy knowing you're purchasing with compliance in mind. When integrated with other AvaEye devices, anticipate a harmonized, top-tier surveillance experience for any setting.
4MP 2K VideoA 4MP Progressive Scan CMOS Image Sensor powers this Turret camera, which produces clear video slightly larger than 2K at a steady 25 frames per second. To give you an idea of its power, the camera can capture facial details up to 27 feet at the wide 2.8mm setting and up to 95 feet at full zoom. Advanced image features, including True WDR, BLC, HLC, and 3DNR, offer enhanced video quality in varied lighting conditions. With H.265+ video encoding, you can enjoy up to 70% bandwidth savings compared to H.264, ensuring efficient data transfer and storage.
This PoE Turret Camera comes equipped with an optical zoom lens that provides the ability to effortlessly zoom in and out. With its 2.8–12mm lens, the camera offers 4X zoom. At the widest setting of 2.8mm, the view spans 102.8°, narrowing down to 30.9° at maximum zoom. On top of optical zoom, our cameras also provide a digital zoom feature, blowing up specific areas of video for more detailed inspection.It's essential to recognize the difference between optical and digital zoom. Optical zoom does actual magnification by physically adjusting the lens and can only alter the viewing angle in real-time. Digital zoom expands the image in real-time or during playback of recorded footage, which will result in pixelation. You can learn more about the difference between optical zoom and digital zoom in the AvaEye security camera system guide.
Night VisionWhether day or night, the camera automatically switches between color and black and white modes based on ambient lighting. In the darkness at night, the camera shines up to 131 feet of IR night vision for black-and-white video, making sure your premises are monitored even in complete darkness.
Built-in MicrophoneFor those interested in audio surveillance, the camera's built-in microphone ensures clear audio pickup, covering up to 30 feet in a quiet environment.
Smart CameraYour security concerns vary, and this smart camera offers two distinct smart video analytics specifically focused on reliable human body detection with fewer false alerts: Line Crossing and Intrusion Box. Additionally, audio detection makes sure that recording starts and alerts you if the camera hears an unexpected noise based on the parameters you set.
Power over EthernetThanks to PoE connectivity, video and power transmission are simplified over a single network cable, reaching distances up to 300 feet. For those requiring extended transmission, the camera also supports extended PoE technology, allowing for up to 820 feet of distance for power and video when used with solid copper CAT6 cable.
Many Ways to Watch and RecordAccessibility is made simple, allowing users to view footage via a AvaEye NVR, web browser, AvaEye PC/Mac software, or AvaEye App for smartphones and tablets. For storage flexibility, the camera can record to multiple destinations: a dedicated AvaEye NVR, the AvaEye computer software for PC/Mac, or an internal MicroSD of up to 256GB.
Weather ResistantIts IP67 weatherproof rating ensures it's resilient in both indoor and outdoor scenarios, regardless of weather. Constructed with a robust combination of metal and plastic, this camera is built to last.
NDAA CompliantNeed NDAA-compliant cameras? NDAA refers to the National Defense Authorization Act, which in recent years has limited the use of various surveillance equipment brands within federal and military facilities. This restriction extends to non-profits and businesses that receive federal funding or have contracts with the US Federal Government. With NDAA-compliant status, this camera offers peace of mind, ensuring you are in compliance when making a purchase.
AvaEyeAvaEye cameras and NVRs are made to connect effortlessly with each other, ensuring a streamlined plug-and-play process. Using a compatible NVR not only offers users an easy setup but also allows you to take advantage of advanced video analytics and optimized surveillance from a PC/Mac or mobile device. Opt for a solution that elevates and simplifies your residential or commercial security setup.
- 2K PoE Turret Camera with Motorized Zoom, with built-in microphone
- 4MP Progressive Scan CMOS Image Sensor
- 2688x1520 Resolution Video at 25fps
- Facial Detail up to 95ft with lens set at 12mm, 30.9 degree angle of view1
- Facial Detail up to 27ft with lens set at 2.8mm, 102.8 degree angle of view1
- Varifocal Motorized 2.8mm-12mm Lens controllable from NVR, Smartphone or Computer
- Up to 131ft of IR night vision2
- See in color at night with ambient light3
- Day & Night Switching (color vs black & white) in complete darkness
- H.265 and H.264 Video encoding
- H.265+ provides up to 70% in bandwidth savings over H.264
- 2 Video Streams: Main Stream, Sub Stream
- Video Analytics: Line Crossing, Intrusion Box (Human Body Only)
- Advanced Image Features: True WDR / BLC / HLC / 3DNR
- Ceiling and eave mountable, optional wall and pole mounts available
- Built-in microphone for audio pickup up to 30ft4
- Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
- PoE Extended Transmission function supports up to 820ft PoE distance6
- Internal MicroSD support up to 256GB (optional)
- Records to NVR, Computer, NAS, FTP, or internal MicroSD
- View from NVR, Web Browser, Smartphone or Tablet
- IP67 Weather Proof5 - Safe to use outdoors or indoors in cold or hot weather
- Metal & Plastic construction
- NDAA Compliant
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.003 Lux rating in color mode. Camera switches to black and white mode in complete darkness
4. Measured in a quiet office. Mono audio is captured by a integrated microphone.
5. Not intended for submersion in water.
6. AvaEye NVR required, and CAT6 solid copper cable required for Extended PoE
- (1) 4MP PoE Turret Camera with Motorized Zoom, Microphone
|Image Sensor||1/3" 4MP Progressive Scan CMOS|
|Effective Pixels||2688 (H) x 1520 (V)|
|Electronic Shutter Speed||Auto/Manual, 1/1- 1/100000s|
|Minimum Illumination||0.003 Lux F1.6 (Color), 0 Lux IR On|
|S/N Ratio||More than 56dB|
|IR Distance||Up to 131ft|
|IR On/Off Control||Auto, Manual|
|Lens Type||Automatic Focusing and Motorized Zoom Lens|
|Focal Length||2.8mm - 12mm|
|Angle of View||Horizontal: 102.8°-30.9° Vertical: 54.5°-17.5°|
|Compression||H.265+, H.265, H.264 Base/Main/High|
|Bracket Range||Pan: 3° – 360°, Tilt: 0° – 70°, Rotation: 3° – 360°|
|Video Analytics||Line Crossing, Intrusion Box (Human Body Only)|
|Streaming Capability||2 Streams (Main Stream, Sub Stream)|
|Resolution||4MP (2688 x 1520), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (720x576), VGA (640x480), 2CIF(704x288), CIF (342x240)|
|Frame Rate||Main Stream: 4MP/2K (1-25fps), 3MP /1080P (1-30fps); Sub Stream: 720P/D1/CIF (1-30fps)|
|Bit Rate Control||CBR, VBR|
|Bit Rate||128K - 16384Kbps|
|Day/Night||Auto (ICR), Color, B/W|
|BLC Mode||BLC, HLC|
|White Balance||Auto, Auto2, Locked, Street Lamp, Outdoor, Manual|
|Noise Reduction||3D DNR|
|Motion Detection||Off / On (4 Zone, Rectangle)|
|Region of Interest||Off / On (8 Zone)|
|Flip||0°, 90°, 180°, 270°|
|Mirror||Off / On|
|Privacy Masking||Off / On (4 Area, Rectangle)|
|Audio Input||Yes, built-in microphone. G.711 codec, 8KHz Sampling Rate|
|Protocols||IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NFS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP|
|Compatibility||Avalonix, ONVIF Profile S, G, T|
|Max. User Access||3 Users|
|Record Method||NVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD up to 256GB|
|MicroSD||Up to 256GB, factory installed (optional)|
|Web Viewer||IE**, Edge, Chrome, Firefox|
|Mobile Device||iOS, Android|
|Power Supply||12V DC or PoE (802.3af)|
|Operating Conditions||-22°F – +140°F, Less than 95% RH|
|Casing||Metal & Plastic|
|Dimensions||5" x 3.9" (diameter x height)|
|Net Weight||1.4 lbs|
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.
