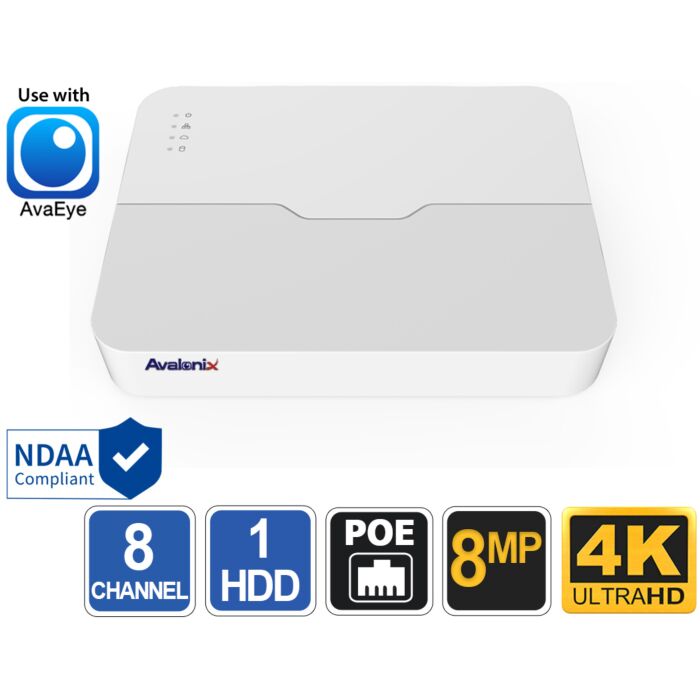

8 Channel 4K Mini NVR with 8 PoE Ports, AvaEye
Special Price $399.99 Regular Price $459.99
In stock
SKU
NVR108P
- 80Mbps Encoding
- 8 PoE Ports
- Up to 8TB, 1 HDD
- HDMI, VGA Output
- For AvaEye Cameras
Features:
- 8 Channel NVR recorder
- Software embedded on a chip
- Stay up-to-date with firmware updates at the click of a button
- H.265 / H.264 Video Encoding
- Supports up to 8MP or 4K Resolution Recording
- Mix and Match camera resolutions on one recorder
- Total 80Mbps Encoding
- 8 PoE+ ports built-in for easy plug-and-play setup with AvaEye Security cameras
- Easily configure cameras on the same LAN using on-screen menu
- Multiple Monitor Outputs
- HDMI audio/video output supports up to 4K TV
- VGA Video Output supports up to 1080P
- Easy remote viewing by scanning QR code
- IP address and DDNS based remote viewing support
- Plugin free web interface for live viewing over LAN on PC or Mac1
- Free AvaEye Remote Viewing App for iOS and Android
- iPhone, iPad Compatible
- Android Phones & Tablets Compatible
- Free AvaEye Monitoring Software for Windows and Mac
- Customizable recording methods:
- Continuous
- Manual
- Motion activated
- Schedule based
- Smart Event Detection2
- Audio detection3
- Smart Event Detection depending on camera model2
- Line Crossing
- Intrusion
- Enter Area
- Leave Area
- Scene Change Detection
- People Counting
- Missing Object Detection
- Abandoned Object Detection
- Auto Tracking
- Ultra Motion Detection
- Supports up to 1 hard drive, Max 8TB
- Download video evidence multiple ways:
- Using a small capacity USB drive
- Using your computer over the LAN or the Internet
- NDAA Compliant
What's Included?
- (1) 8 Camera PoE NVR
- (1) Power cord
- (1) USB Mouse
- SATA HDD screws
- SATA HDD cable
Specifications
| Operating System | Embedded Linux |
| System Resources | Pentaplex function: live, recording, playback, backup & remote access |
| Control Mode | USB mouse, Network, App, PC/Mac Software |
| Web Browser Support | Edge, Chrome, Firefox1 |
| IP Camera Inputs | 8x RJ45 PoE+ ports (IEEE802.3af/at) |
| Supported IP Cameras | AvaEye, ONVIF Profile S, Profile G, Profile T |
| Video Output | 1 HDMI (video and audio), 1 VGA |
| Display Split | 1 / 4 / 9 |
| Display Resolution | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Tour Display | Supported |
| Privacy Masking | Up to 4 self-defined four-sided zones for privacy masking on each channel |
| Video Compression | H.265+, H.264+, H.265, H.264 |
| Audio Compression | G.711A, G.711U |
| Recording Resolutions | 4K, 5MP, 4MP, 3MP, 1080P, 720P/D1/2CIF/CIF |
| Recording Rate | 80 Mbps |
| Outgoing Bandwidth | 64Mbps |
| Smart Detection by Camera2 | Intrusion Detection, Line Crossing Detection, Enter Area, Leave Area, Scene Change Detection, Abandoned Object Detection, Missing Object Detection, Auto Tracking, Ultra Motion Detection (UMD), People Flow Counting, Crowd Density Monitoring |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Motion detection), Smart Event Detection2 |
| Recording Interval | 60 min, Pre-Record 0-60s, Post-Record 5-600s |
| Playback Capability | 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 8 channels 1080P |
| Trigger Events | Recording, PTZ movement, Preview, Alarm, Email, Buzzer & Screen Popup |
| Motion Detection | Zones: 396 (22x18), Sensitivity: 1-100 (level 100 is highest) |
| Video Loss & Camera Blank | Supported |
| Alarm Input / Output | N/A |
| Playback Grid | 1 / 4 / 9 channels |
| Corridor Mode Screen | 3/4/5/7/9 |
| Video Search Mode | Time/Date, Alarm, MD, Video Loss, Exact search (accurate to second), Smart Search |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom, Video retrieval |
| Backup Mode | USB Device / LAN / Internet |
| Ethernet | 1x RJ-45 LAN port (10/100Mbps) |
| Network Functions | HTTPS, HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Segment Search (Supports ONVIF IP camera, DVR, NVR, etc) |
| Hard Disk | 1 SATA port |
| Total HDD Capacity | Up to 8 TB |
| USB Interface | Rear: 1x USB 2.0, 1x USB 3.0 |
| Power Supply | 100-240 VAC to 52VDC Adapter included |
| Power Consumption | Approx Max 9 Watts without HDD |
| PoE Power | Max 30W for single port Total PoE 75W Max |
| Working Environment | +14°F to +131°F / 10-90% RH |
| Dimensions | 10.6" x 8.1" x 1.9" (WxDxH) |
| Weight | 1.8 lbs |
| Certification | FCC |
1. Chrome, Firefox, Edge and other Web Browsers provide limited functionality of web interface such as max 1080P video sampling and single camera viewing in live view mode. Windows Plugin installation provides access to full feature set of the web interface, including support for up to 4K resolution viewing, recorded view playback, and up to 16 channel grid view in live view mode.
2. Smart Event Detection based on camera capabilities. AvaEye PoE camera with Smart Event Detection capability required. Please check the product description of the camera to review its event detection capabilities.
3. AvaEye PoE camera with Audio Detection required.
| Number of PoE Inputs | 8 |
|---|---|
| Max Hard Drive Capacity | 1HDD, 10TB |
| RAID Redundancy | No |
| Warranty | 1 Year |
| Recorder Type | NVR |
| CPU | Embedded Dual Core |
| Total Cameras Supported | 8 |
| Supported Camera Signals | IP |
| Number of BNC Inputs | Does Not Support BNC Cameras |
| Number of IP Cameras Supported | 8 |
| Hot Swap HDD | No |
| Encoding Supported | H.265+, H.265, H.264+, H.264 |
| Rackmountable | No |
| Recording Resolutions | 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P |
| Number of Audio Inputs | 8 IP Streams |
| Total PoE Power | 75 W |
| Power Input | 110-220V AC |
| Video Outputs | (1) HDMI, (1) VGA |
| USB Ports | (1) USB 2.0, (1) USB 3.0 |
| eSATA Port | None |
| Total IP Recording Bandwidth | 80 Mbps |
| Total Incoming IP Bandwidth | 80 Mbps |
| Encoding Support Detail | H.265+, H.265, H.264+, H.264 |
| Return Policy | 30 Days Return Policy |
| Brand | AvaEye |
