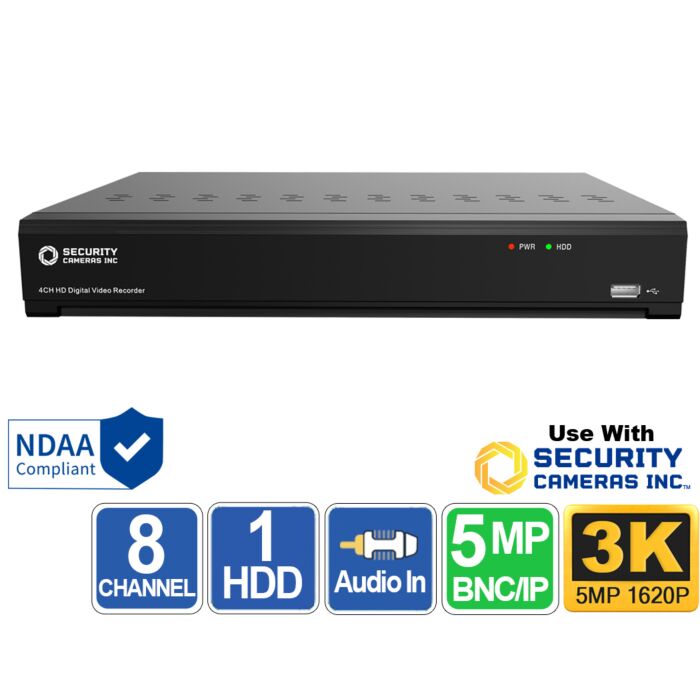

8 Channel DVR, NDAA Compliant

Special Price $189.99 Regular Price $299.99
In stock
  • Supports up 5MP Analog/IP
  • 1 HDD up to 10TB
  • 8 Audio Inputs
  • NDAA Compliant

Security Cameras, Inc. is thrilled to present our 8-channel Pentabrid XVR, a cornerstone of our budget-friendly security camera system equipment. Syncing with a diverse range of coaxial security camera types—including HDCVI, HDTVI, AHD, and CVBS—this XVR's innovative design stands out. It doesn’t stop there; it also has the ability to connect with IP cameras over a local network. Notably, one of the channels on this powerhouse of a DVR can use the power of AI-enabled detection, offering advanced surveillance capabilities. NDAA compliance is not just a badge but a testament to the device's superior quality and reliability. With our NDAA-certified equipment, you're not just investing in a piece of technology but in unparalleled security and peace of mind.


Remote View Security Camera System

Pentabrid DVR

Our Pentabrid DVRs are versatile surveillance solutions tailored for diverse security needs. Engineered to accept and record signals from various coaxial security camera types—including HDCVI, HDTVI, AHD, and CVBS—it offers unmatched flexibility. Not limited to just coaxial sources, the fifth "signal" of this DVR is its ability to connect to and record IP PoE cameras through a local computer network equipped with PoE switches, making it a comprehensive choice for upgrading existing or installing new surveillance systems.
Remote View Security Camera System

Remote Access Anytime, Anywhere

Whether you're on team iPhone or team Android, the SCI View App has got you covered. With it, you can remotely monitor your system from any corner of the globe. Just make sure the system is connected to a stable broadband internet connection, and you're good to go.
PC and Mac Software

Computer Monitoring Options

Prefer viewing your security feeds on a bigger screen? We've got you. Our dedicated and free SCI Video Management Software is available for both Windows and Mac users, enabling seamless monitoring over the Internet. You can also access the system directly on a computer running Windows, Mac, or Linux by simply entering the IP address that your router assigned to the recorder into your favorite web browser.

Internet Optional

No Internet? No Problem

Wondering about the term "standalone DVR"? It's straightforward. Unlike many cloud-reliant recorders, our standalone DVRs operate perfectly fine without an internet connection. However, if you want to watch your cameras remotely, an internet connection is required to use the app or desktop software.
NDAA Compliant

NDAA Compliant

Security camera equipment by Security Cameras Inc is proudly NDAA (National Defense Authorization Act) compliant. This compliance ensures that the equipment, software, and components of the recorder are not sourced from restricted companies, providing an added layer of security and trust for users. Users can trust this recorder for both its advanced surveillance capabilities and its commitment to national security considerations.
Security Cameras Inc

Security Cameras Inc

The Security Cameras Inc DVR recorder is designed for direct compatibility with PoE Cameras by Security Cameras Inc, offering a seamless plug-and-play experience using an optional PoE switch. With this pairing, users benefit from an intuitive setup and robust video analytics, streamlining surveillance while maximizing insights such as Smart Detection. Trust in a solution that simplifies yet enhances your home or business security system.


  • 12 Channel XVR
  • Total 48Mbps Encoding Input, 64Mbps Output
  • Supports Eight Analog Security Cameras up to 5MP
  • Supports Four IP cameras up to 5MP1
  • H.265+ or H.264+ Video Encoding
  • H.265+ encoding provides up to 70% storage and bandwidth savings
  • Frame rate is dependent on camera
  • Supports 5MP, 4MP, 3MP, 1080P, 720P, D1, and CIF resolution cameras
    • 5MP-Lite up to 15fps (each camera)
    • 4MP-Lite up to 18fps (each camera)
    • 1080P/720P up to 20fps (each camera)
  • 1, 4, 8 Camera Live View
  • Up to 8-Channel Grid Recorded Video Playback via HDMI
    • 5MP Cameras up to total of 90 fps (Max 6 Channels)
    • 4MP Cameras up to total of 144 fps (Max 8 Channels)
    • 1080P Cameras up to total of 160 fps (Max 8 Channels)
  • Playback Speed Control (1/16x, 1/8x, 1/4x 1/2x, 1x, 2x, 4x, 8x, 16x)
  • 8 BNC ports for HDCVI, HDTVI, AHD, and CVBS cameras
  • 8 Audio Inputs
  • 8 Alarm inputs, 1 Alarm Output
  • RS485 for 2-lead wire Analog PTZ control
  • Push Alerts to the SCI View App for motion, event detection, and alarm events
  • AI-enabled Detection for up to 1 channel
  • Multiple recording methods
    • Motion Detection
    • Continuous
    • Schedule based
    • Alarm
    • Manual
    • AI Detection by DVR on one channel
  • Free Remote Viewing App (SCI View) for iOS and Android Smartphones and Tablets
  • Free SCI Video Management Software for viewing and management via Windows or Mac
  • Allows for live, real-time remote backups to a FTP, NAS, or mirror to an NVR in network
  • Easy video backup of short video segments using a USB drive or download to your computer
  • Supports up to 1 SATA hard drive, max. 10TB
  • Simultaneous Monitor Outputs
    • 4K HDMI audio/video output
    • VGA Video Output
    • BNC CVBS Video Output  (usable when CVBS resolution cameras used)
  • Allows up to 5 remote users for simultaneous viewing

1. Use Security Cameras Inc IP camera for guaranteed compatibility. Using 3rd party cameras does not guarantee compatibility.



Model SCDVR8
Recording Bandwidth Input 16Mbps - 48Mbps
(Analog BNC channel can be converted to digital IP channel using DVR Menu. Converting one Analog channel to IP can increase recording input bandwidth by 4Mbps. )
Output 64Mbps
Video inputs Analog Video Input 8 channels BNC
IP Video Input 4 channels (only IP up to 12 channels)
Total Video Input Up to 12 channels (8 Analog video + 4 IP video) or (12 IP video)
Recording and Playback Compression Audio: G.711a
Video: H.264/H.265
Display Resolution Analog: 5MP-Lite at 20fps, 4MP-Lite at 30fps, 1080P/720P/960H at 30fps
IP: 5MP/4MP/1080P/720P
Frame Rate

Main Stream
5MP-Lite: 15fps per channel
4MP-Lite: 18fps per channel
1080P: 20fps per channel
720P: 30fps per channel

IP: 30fps per channel (max 4Mbps per channel)

D1: 10fps per channel

Event Motion Detection (Sensitivity Level 1~8)
Video loss
Beep, Email, Push notification to SCI VIEW Mobile App
Playback function Fast forward / backward (2x, 4x, 8x,16x) (Recording Resolution Dependent)
Slow forward (1/2x, 1/4x, 1/8x,1/16x)
Playback 5MP-Lite: 90fps Max 6 Channel playback )
4MP-Lite: 144fps Max 8 Channel playback)
1080P: 160fps Max 8 Channel playback)
720P: 240fps (Max 8 Channel playback)
Viewing Local DVR Menu Interface over HDMI or VGA out
Web Browser Plugin free viewing on PC or Mac
Safari V12.1 above
Firefox V.52 above
Google Chrome V.57 above
Edge V.79 above
PC/Mac Software SCI View
Mobile App SCI View
Push Notification Yes
Analytics AI from compatible camera supported PID - Perimeter Intrusion Detection
LCD - Line Crossing Detection
PD & VD - Pedestrian (Human) Detection & Vehicle Detection
Video Output BNC 1 Usable when CVBS resolution cameras used
VGA 1 Output supports 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080
HDMI 1 Output supports 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440 (2K), 3840x2160 (4K)
Connections Ethernet 1 RJ45 100Mbps
Audio 8 RCA In, 1 RCA Out
USB 1x USB2.0 (front), 1x USB2.0 (rear)
RS485 1
HDD 1 SATA, up to 10TB
Alarm In/Out 8 In / 1 Out
On-Screen Menu Languages SupportedEnglish, French, Spanish, Portuguese, German, Italian, Greek
Mechanical Design Dimension (WxDxH) 11.8 x 8.7 x 2.1 inches
Operating Noise At 20 inches away 45dB
Electrical Input Voltage 12V DC 2A (Power Supply Included)
Power consumption 6.4W (excluding hard drive)
Environmental Operating Temperature/Humidity Temperature: 14°F ~ 122°F
Humidity: Less than 90% RH
