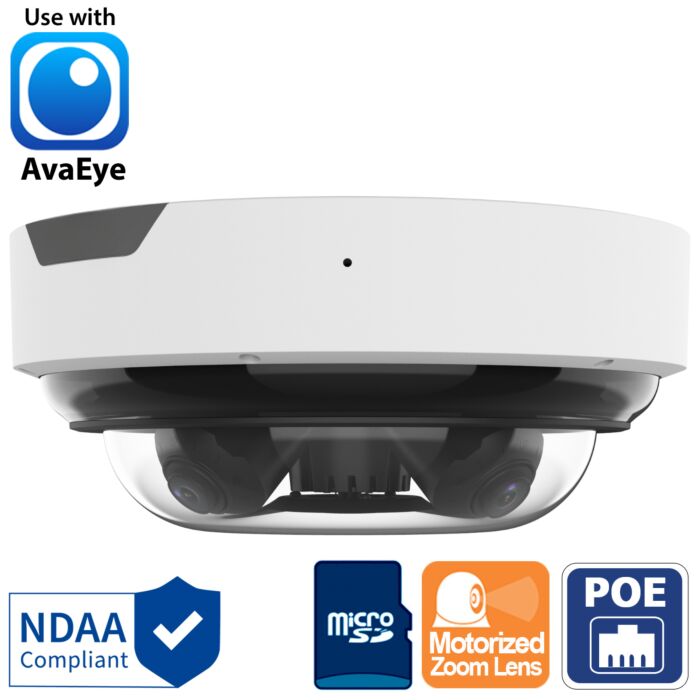

Multi Sensor 360 Degree Security Camera, 20MP
Special Price
$2,999.99
Regular Price
$3,199.99
6% off
Overview
20MP Multi-Sensor 360 Degree Camera - AvaEye panoramic camera with four independently adjustable 5MP lenses for wide-area indoor or outdoor video coverage.
Four 5MP Motorized Lenses - Each lens uses a 2.7-13.5mm motorized varifocal lens, letting you customize zoom and viewing direction instead of relying on one fixed 360 degree view.
Large Property Coverage - Useful for warehouses, car dealerships, schools, malls, industrial sites, building perimeters, and large retail or event spaces.
164ft IR Per Lens - Each lens provides up to 164ft IR night vision, with LightHunter low-light imaging and 130dB optical WDR for challenging lighting.
Independent Smart Analytics - Supports intrusion, cross-line, enter/leave area, people counting, crowd density, object left/removed alerts, and Smart Motion Detection per channel.
Four-Channel NVR Use - The camera uses one network connection but occupies four NVR channels, so the recorder must have four available channels per camera.
NVR, MicroSD, and ONVIF Use - Supports AvaEye NVR recording, ANR with compatible AvaEye NVRs, microSD up to 512GB, and ONVIF S/G/T/M for compatible third-party NVRs or video software.
No Monthly Subscription - No monthly subscription is required to use the camera with an NVR, use supported onboard recording, or receive motion alerts through the smartphone app.
Outdoor Camera Features - Includes Ultra 265/H.265/H.264 video, PoE 802.3bt or 24V power, IP67 weatherproofing, IK10 vandal resistance, and NDAA compliant use.
The AvaEye 20MP Multiview Panoramic Camera is the smart way to monitor large and complex spaces without missing important details. Featuring four independently adjustable lenses, this advanced multi-sensor camera provides seamless 360-degree coverage while reducing the need for multiple cameras and complicated wiring.
Each lens captures crisp 5MP video with motorized varifocal lenses (2.7–13.5mm), giving you control over zoom and field of view to customize coverage in all directions. Unlike simple fisheye cameras, the AvaEye 20MP maintains excellent image quality across every angle with minimal distortion. Whether securing expansive outdoor areas or large indoor spaces, or entry points with multiple corridors, every camera channel streams in full 5MP resolution at up to 30fps.
Built-in IR LEDs per lens deliver true night vision up to 50 meters (164 feet), while LightHunter technology ensures clear and detailed video even in low-light conditions.
Intelligent Monitoring with Smart Detection
This isn’t just about wide coverage, it’s smart coverage. Every lens supports independent smart detection using built-in video analytics, enabling you to run analytics per channel, including:
- Intrusion Detection
- Cross-Line Detection
- People Counting and Crowd Density Monitoring
- Object Left/Removed Alerts
- Smart Motion Detection (SMD) to apply a filter for human and/or vehicular movement
False alarms are reduced thanks to human and vehicle classification, so alerts stay relevant and accurate.
Simple installation , Scalable Coverage
Streamlined setup is part of what makes the AvaEye 20MP so efficient. All four video streams run through a single network cable, minimizing installation time and network complexity. The camera also has edge storage with a MicroSD card (up to 512GB), making it easy to integrate into your existing AvaEye security system. With a compatible NVR, it supports ANR technology (automatic network replenishment) which replenishes any missing video on the NVR caused by a network disruption.
When used with an AvaEye NVR, the camera will popular 4 channels on the NVR. Please make sure your NVR has 4 channels available for each multi-view camera.
Engineered for reliability, the AvaEye 20MP features IP67 weatherproof protection and IK10 vandal resistance. It’s ready for anything, rain, dust, or attempts at tampering.
Recommended Use Cases
- Car dealerships and large retail stores
- Warehouses and distribution centers
- Shopping malls
- Schools
- Stadiums and event venues
- Building perimeters, and interior
- Industrial facilities
Why Choose AvaEye 20MP Multiview Panoramic?
- Seamless 360° panoramic coverage with customizable lens views
- Four powerful 5MP motorized lenses with independent smart analytics
- Up to 164ft of IR night vision per lens
- Single cable, single network connection for easy setup
- Durable IP67 weatherproof and IK10 vandal-resistant housing
- Supports edge recording with MicroSD up to 512GB
What's included?
- (1) Multiview Panoramic Camera with ceiling mount
Specifications
| Image Sensors | 4 × 1/2.7" CMOS | |||
| Resolution | 4 × 5MP (2880×1620) at 30fps | |||
| Lens | Motorized Varifocal 2.7–13.5mm, 5X Optical Zoom | |||
| Field of View | H: 110.3°–31°, V: 57.1°–17.5°, D: 130.2°–67.4° | |||
| DORI Distance* | Detect | Observe | Recognize | Identify |
| 232ft–812ft | 93ft–325ft | 47ft–162ft | 23ft–81ft | |
| IR Night Vision | 50m (164ft) IR Distance per lens | |||
| WDR | 130 dB Optical WDR | |||
| Min. Illumination | Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR On | |||
| IR Control | Auto/Manual per lens | |||
| Adjustment Angle | Pan: 0°–360°, Tilt: 0°–65°, Rotate: 0°–355°, Not a PTZ Camera | |||
| Smart Detection | Intrusion, Cross-line, Enter/Leave Area, People Counting, Object Left/Removed | |||
| Audio | Built-in Microphone, Two-Way Audio Supported (optional external speaker) | |||
| Audio Compression | G.711U, G.711A | |||
| Sampling Rate | 8 kHz | |||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||
| Alarm I/O | 3 inputs / 2 outputs | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| Frame Rate | 4 channel at 5MP/4MP/1080P at 30fps | |||
| Triple Stream Support | Yes (Main, Sub, and Third stream supported) | |||
| Network | RJ45 10/100/1000M Ethernet, ONVIF (Profiles S, G, T, M) | |||
| Edge Storage | MicroSD up to 512GB | |||
| Network Storage | ANR, NAS (NFS) | |||
| Power | DC 24V, AC 24V, PoE (IEEE802.3bt) | |||
| Power Consumption | Max 31W | |||
| Protection | IP67 Weatherproof, IK10 Vandal Resistant | |||
| Operating Temperature | -22°F to 140°F | |||
| Dimensions | 12.52" × 5.38" (diameter × height) | |||
| Weight | 10.5 lbs | |||
| User Access | Up to 32 user accounts, 3 levels (Admin, Operator, User), 3 simultaneous | |||
| Security | HTTPS, Password Protection, Digest Authentication, Export Logs, TLS 1.2 | |||
| Web Browsers Supported | Edge*, Firefox, Chrome | |||
| Mounting Options | Ceiling, Wall, Pendant, Pole, Corner (accessories available) | |||
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software or a Windows PC.
Compare to IPC8645EA-ADZKM-I1, compatible with Uniview NVRs
| Camera Type | IP |
|---|---|
| Image Sensor | Three 1/2.8" 2MP SONY Starvis CMOS |
| Video Encoding | H.265/H.264 |
| Resolution | 5MP |
| Lens | 2.7-13.5mm |
| Angle of View | 360° |
| Optical Zoom | Motorized Zoom |
| Wide Dynamic Range (WDR) | WDR |
| IR Night Vision | 165ft |
| Important Features | 360 Degree Panoramic View using Multi-sensors |
| Audio | Audio Line-in/out |
| SD Card Slot | Yes |
| Video Analytics | Line Crossing (Human/Vehicle), Intrusion Box (Human/Vehicle), Enter Area/Leave Area Detection (Human/Vehicle), People Counting, Crowd Density Monitoring |
| Pan Tilt Zoom | No |
| Power Input | 24V AC / PoE+ |
| Operating Temperature | -22°F to +140°F |
| Dimensions | 12.52" × 5.38" (diameter × height) |
| Weather Proof | Yes, IP67 |
| Camera Color | White |
| Warranty | 1 Year |
| Brand | AvaEye |
| Return Policy | 30 Days Return Policy |
