Mixed Bullet and Turret Dome 2K 4MP 8 Channel Surveillance System, AvaEye

Product questions Write a review

Request volume pricing

Loading secure form…
8 Reviews
SKU: AESYS2K8BT
Series: AvaEye

Product overview

  • 4MP (2K)
  • PoE: one cable per camera
  • 8 bullet and turret cameras
  • 8-channel NVR
  • Up to 8TB storage
  • 164 ft night vision
  • Built-in mic
  • NDAA compliant

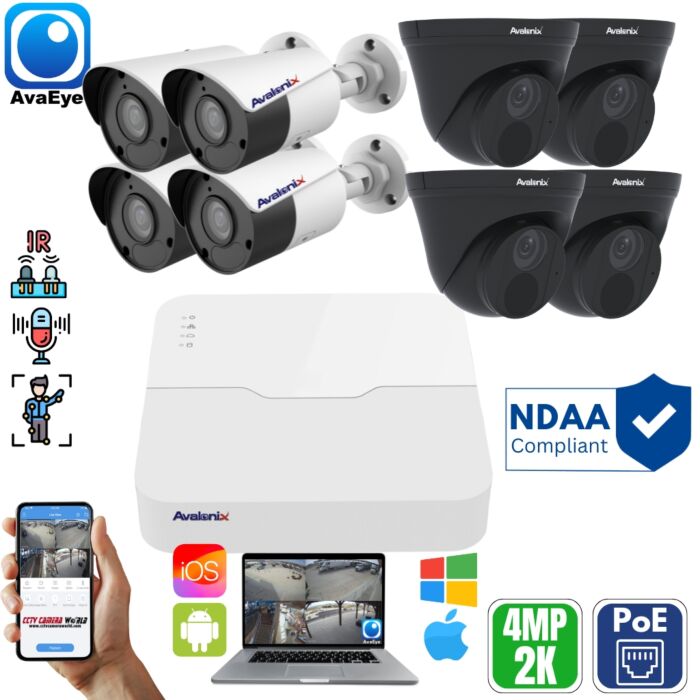

8 Camera 4MP 2K Mixed Camera System - AvaEye wired PoE security camera system with four outdoor 4MP 2K bullet cameras, four outdoor 4MP 2K turret dome cameras, and an 8 channel PoE NVR.

Plug-and-Play PoE Setup - Connect each camera directly to the back of the NVR using CAT5e or better network cable for power, video, and data over one cable.

2TB Included Storage - The NVR includes a pre-installed 2TB hard drive, with larger storage options available when ordering.

Bullet and Turret Cameras - Includes four IP67 bullet cameras and four IP67 turret dome cameras for mixed outdoor camera coverage.

IR Night Vision - Bullet cameras provide up to 164ft IR night vision, while turret dome cameras provide up to 100ft IR night vision in total darkness.

Built-In Microphones - Each camera includes a built-in microphone for recording audio when audio recording is enabled and permitted.

Smart Detection Features - Supports line crossing detection, intrusion box detection, smart motion detection, audio detection, push alerts, and email notifications.

Remote Viewing Apps - View live and recorded video using the AvaEye app for iPhone and Android, or AvaEye software for PC and Mac.

NDAA Compliant System - AvaEye cameras and the included NVR are NDAA compliant for applications that require compliant surveillance equipment.

No Monthly Fees - No recurring fees are required for local NVR recording, remote viewing, or supported alert features.

Cables Not Included - Camera cabling is not included; each camera requires CAT5e or better network cable.

$2,669.99
$1,943.41
27% off

In stock

  • 30 Day Returns
  • No Monthly Fees
  • US Based Support
  • Free Ground Shipping over $300 to Continental USA
AvaEye SeriesUse with AvaEye PoE cameras and NVRsMatched recorders, cameras and mounts from the same series set up together on one app.Browse AvaEye

This kit offers a mix of the two 4MP types of cameras in our selection of AvaEye systems. You’ll receive 4 bullet cameras and 4 turret dome 2K security cameras. With plug-and-play Power over Ethernet technology sending power and data over Ethernet, you’ll get all 8 cameras up and running in no time. Remote viewing and system access are a breeze using the mobile viewing app for iPhones and Androids, as well as the computer software for PCs and Macs. A 2TB hard drive comes with the system, and you can select a larger hard drive configuration when purchasing for up to a few weeks of recording, depending on the drive you choose and the recording schedule you set. Need help if you get stuck? We stand by our products and provide free email-based support from here in the States for the lifetime of the system!

8 Cameras

4 Bullet + 4 Turret 4MP IP Cameras

PoE NVR Included

Power, video, and recording through one system

No Monthly Fees

Save money and protect privacy

164ft / 100ft Night Vision

Up to 164ft bullet, up to 100ft turret

2TB Hard Drive

Expandable up to 8TB

Remote viewing app icon

Free AvaEye Phone App

NDAA compliant product badge

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

8 Camera Bullet and Turret Mixed AvaEye System with 8 Channel PoE NVR

AvaEye 4MP Turret Dome and Bullet Wired PoE Cameras with Mics

In this mixed security camera kit, you’ll receive 4 domes and 4 bullet cameras equipped with advanced 1/3” CMOS Starlight sensors that record 2K 4MP resolution at a respectable 25 frames per second. This sensor, combined with a 4mm lens, offers the ability to recognize a face up to 30 feet away.

Features of the Starlight 2K 4MP PoE Turret Dome Camera by AvaEye

Starlight technology vastly improves performance in poorly lit conditions, providing the ability to capture footage with minimal ambient light. In absolute darkness, the cameras switch to black-and-white mode, with the dome cameras emitting up to 100 feet of IR night vision, while the bullet cameras send IR upwards of 164 feet away for general detail.

Features of the 4MP 2K PoE Bullet Camera with Mic by AvaEye

All the cameras in the system have built-in microphones for capturing audio within a 30-foot range in a quiet environment. They also have an IP67 weather-resistant rating for reliable surveillance in a wide array of outdoor conditions.

Smart Security Cameras Reduce False Alerts

Experience the future of surveillance with the advanced features of the smart security cameras within this system, which are outfitted with video analytics for more precise human detection, effectively reducing unnecessary alerts. The Line Crossing and Intrusion Box functions are particularly useful for targeted monitoring, automatically recording and notifying you when an individual crosses a user-set boundary or enters an area defined by your rules. These alerts can be sent directly to your smartphone via the AvaEye app, keeping you informed about activity at your property or business.

Further expanding this system's intelligent detection capabilities, these cameras also feature Smart Motion Detection. This technology is intelligent enough to discern between movements caused by vehicles and people within the areas you have selected, reducing common issues from older pixel-based motion detection. Additionally, with audio detection capabilities, the system starts recording and sends you alerts when it picks up sounds that are louder than the thresholds you've set. This stricter approach to detection helps to ensure you're only alerted to and the system records actual events.

Line Crossing and Intrusion Detection smart detection features can detect human activity

NDAA Security Cameras

AvaEye systems meet the strict requirements of the National Defense Authorization Act (NDAA), ensuring that every piece of equipment, including the PoE cameras and network video recorders (NVRs), is produced without the use of components from prohibited sources. Opting for an NDAA-compliant surveillance system means you have a secure, reliable surveillance solution that meets both the legal and ethical criteria established by US federal guidelines when installing systems for the government, military, or its contractors.

AvaEye products are NDAA compliant for federal government and military use

Computer Access with AvaEye Software for PC and Mac

Unlock the full potential of your surveillance system with AvaEye computer software for both Windows and Mac. This tool allows you to view, manage, and control your cameras from anywhere in the world, provided you have an internet connection. It's particularly useful for those managing security across various locations, as it enables connections to multiple AvaEye systems from a single, unified platform.

AvaEye software enables you to manage and see multiple cameras and systems from your PC or Mac
The AvaEye App allows you to see AvaEye NVR systems from your iPhone or Android phone

Watch Using your Phone With the AvaEye App

Stay connected to your security system with the AvaEye mobile app, compatible with both iPhone and Android devices. Getting started is easy: simply download the app, scan your system's QR code, and immediately start monitoring. The app also delivers push notifications to your device, so you’re alerted the moment there’s activity, providing quick access to real-time video or recorded events.

Local Web Browser Access at Home

When you're on the same local network, tap into your cameras' feeds using any modern web browser without the need for additional plugins. Enjoy 1080p HD viewing right out of the box. And if you're looking to view the cameras in full 2K resolution or hear sound from the microphones, install the optional browser plugin for the complete browser viewing experience.

View live or recorded footage from your AvaEye camera system using a web browser in the local network

This system contains:

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Disclaimer: This PoE IP camera system is made for cameras to directly connect to the back of the NVR. Use beyond the specified design may not qualify for free support.

Camera System Details

8 Channel PoE NVR by AvaEye

Supported Channels: 8
Cameras: 8
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 5 channels 3MP, 8 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: One (1) Drive up to 8TB (select when adding to cart)
Recording Bandwidth: 80Mbps
Recording Bandwidth Out: 64Mbps
Display output: VGA up to 1080P, HDMI up to 4K
USB Ports: 1 USB 2.0, 1 USB 3.0 Back
Power: 100-240VAC to 52VDC adapter
Power Consumption: 9W Excluding hard disk and PoE
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye
PC and Mac Software: AvaEye
Web Browser Access: Yes, 1 Camera 1080P without plugin, Multi-cam up to 4K with plugin
Dimensions: 10.6" x 8.1" x 1.9" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Turret Camera 4MP 2K

Camera Type: Dome
Camera Model: IP2KTA
Camera Connectivity: Direct or via Network
Camera Resolution: 4MP 2K (2688 x 1520 pixels)
Frame Rate: 25 frames per second
Lens: 4mm
Field of View: 84°
Backlight Compensation: WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes: Intrusion Box Detection, Line Crossing Detection, Smart Motion Detection
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes

Outdoor PoE Bullet Camera 4MP 2K

Camera Type: Bullet
Camera Model: IP2KBLA
Camera Connectivity: Direct or via Network
Camera Resolution: 4MP 2K (2688 x 1520 pixels)
Frame Rate: 25 frames per second
Lens: 4mm
Field of View: 84°
Backlight Compensation: WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 164 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone
Camera Analytics: Yes: Intrusion Box Detection, Line Crossing Detection, Smart Motion Detection
Audio Detection: Yes
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
