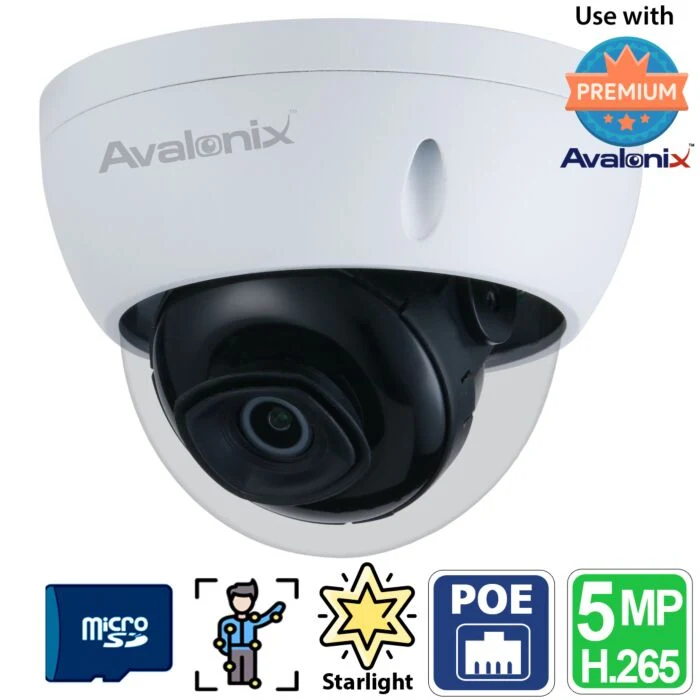

5MP Vandal Resistant Dome - Avalonix Premium Series dome camera for indoor or outdoor areas where a tougher, lower-profile PoE camera is preferred.
98 Degree Wide View - The 2.8mm fixed lens provides a broad 98 degree field of view for entrances, offices, restaurants, retail spaces, and building exteriors.
Starlight and 164ft Night Vision - Starlight imaging helps in low ambient light, while three IR LEDs provide black-and-white night vision up to 164ft.
Smart AI Detection - Supports Smart Motion Detection, tripwire, and intrusion rules for more focused people, vehicle, and boundary-based events.
IK10 and IP67 Housing - Metal vandal resistant housing is built for exposed outdoor and public-facing locations.
Flexible Recording Options - Supports Avalonix NVR recording, microSD storage up to 256GB, NAS, local PC, and ONVIF S/G video integration.
No Monthly Subscription - Use local recording and remote viewing options without a required cloud camera subscription.
128GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
256GB microSD Card - Storage card for compatible IP cameras that support microSD edge recording.
Camera Storage Add-On - Useful for supported cameras with internal card slots and motion activated local recording.
Video Data Support - Listed with fast read and write speed for video data.
Brand May Vary - Supplied as Samsung or SanDisk according to the product page.
Installation May Vary - Some PTZ and dome cameras require factory card installation to preserve weather protection.
30W PoE Injector - Adds PoE power to one compatible IP camera, access point, VoIP phone, or network device.
Single Device Power - Practical when one PoE device needs power but the router or network switch does not provide PoE.
802.3Af/At Support - Compliant with standard PoE and PoE+ devices that accept 802.3af or 802.3at input.
10/100Mbps Data - Supports 10/100Mbps network connections for compatible devices.
Camera Installation Use - Connect the powered device to the PoE side and connect the data side back to a router, switch, or recorder network.
Distance Note - Intended for standard Ethernet cable runs up to 300ft when installed with proper cable and compatible equipment.
6ft Cat5E Patch Cable - Pre-made network cable for short indoor network connections, IP cameras, PoE camera systems, and other RJ45 devices.
RJ45 Ends Installed - Factory-terminated connectors save time compared with cutting and crimping your own cable.
Booted Connectors - Booted RJ45 tips help protect the connector latch from accidental damage or disconnection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for clean indoor wiring paths, racks, cabinets, and short patch runs.
Protected Use - Best used indoors or inside conduit where the cable is protected from water.
25ft Cat5E Patch Cable - Pre-made network cable for IP cameras, IP systems, and general RJ45 network connections.
RJ45 Ends Installed - Ready-to-use cable avoids the need to crimp connectors in the field.
Booted Connectors - Connector boots help protect the latch and support a more secure connection.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable works well for clean indoor cable routing and short network runs.
Protected Use - Intended for indoor use or conduit-protected runs where the cable is not exposed to water.
50ft Cat5E Network Cable - Pre-made cable for IP cameras, camera systems, and general RJ45 network connections.
RJ45 Tips Installed - Comes with RJ45 connectors already attached, reducing field crimping work.
Booted Connectors - Booted ends help prevent accidental disconnection and protect the connector tab.
24Awg Cca Wire - Listed as 24AWG copper-clad aluminum wire.
White Jacket - White cable for indoor installations, equipment rooms, and protected network runs.
Protected Use - Use indoors or in conduit where the cable is protected from water.
100ft Cat5E Patch Cable - Pre-made white network cable for IP camera, NVR, and general network connections.
Booted RJ45 Connectors - Factory-installed RJ45 ends help avoid field crimping and reduce accidental unplugging.
Indoor Or Protected Runs - Good for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy patch cable for standard network and camera system wiring needs.
150ft Cat5E Patch Cable - Pre-made white network cable for IP cameras, NVRs, and general network connections.
Factory RJ45 Ends - RJ45 connectors are already installed, which saves time compared with crimping ends in the field.
Booted Connector Design - Booted RJ45 ends help protect the latch and reduce accidental unplugging.
Indoor Or Protected Runs - Suitable for indoor use or conduit runs where the cable is protected from water.
24Awg Cca Wire - Economy cable option for standard camera system and network wiring.
150ft Solid Copper Cat5E Cable - Pre-made white network cable for longer IP camera, NVR, and network patch runs.
350Mhz Rated Wire - Solid bare copper CAT5e construction supports reliable data and video signal quality.
Booted RJ45 Connectors - Factory-installed RJ45 ends reduce field crimping work and help prevent accidental disconnects.
Gigabit Ready When Supported - Can be used in Gigabit network applications with compatible network cards and switches.
Indoor Or Protected Installs - Best for indoor use or conduit runs where the cable is protected from water.
Includes One Cable - Includes one 150ft CAT5e cable with RJ45 connectors already attached.
Mini Dome Camera Junction Box - White aluminum junction box for select small dome camera models.
Cable Protection - Helps conceal and protect the camera pigtail from weather exposure and tampering when installed correctly.
Conduit Ready - G1/2 conduit thread size for installs that need conduit entry.
Compact Size - Measures 4.39 x 1.34 inches with a 2.2 lb load rating and 0.42 lb product weight.
White Finish - Built for installations where a white junction box is needed. A black version is referenced separately in the row data.
Compatibility Note - Not a universal dome camera box. Check the camera description before ordering.
Wall Mount Arm Bracket - For installing compatible turret and dome cameras on walls where ceiling mounting is not practical.
Clean Camera Installation - Arm style design positions the camera away from the wall and gives room to conceal pigtail connectors.
White Aluminum Construction - Solid aluminum body with a white finish to match many camera housings.
Outdoor Or Indoor Use - Suitable for exterior walls, garage walls, fence posts, columns, and similar mounting surfaces.
Compatibility Note - Intended for select compatible camera models. Check the camera page before ordering.
Mini Pole Mount Bracket - Pole mount adapter for select smaller security cameras when used with a compatible junction box.
Select Junction Box Compatibility - Pre-drilled plate connects with compatible junction boxes for certain fixed camera installations.
Mast Mounting Range - Designed for masts at least 3.15 inches in diameter, with rear straps supporting up to 5.91 inch mast diameter.
White Aluminum Build - Weather resistant aluminum plate for supported professional outdoor or indoor installs.
Alternate Use - Can also mount select cameras carried by CCTV Camera World directly to rafters when COMPATIBILITY is supported.
Key Specs - 4.94 x 4.49 x 0.79 inches, 6.6 lb load rating, 0.6 lb weight, -40F to 140F operating range.
Compatible set · All 2 products below are added together.
Pendant Mount Bracket for Dome Surveillance Cameras
Pendant Mount Bracket for Dome Surveillance Cameras
SKU: JB220
Dome Camera Pendant Bracket - Pendant mount bracket for select dome security cameras from CCTV Camera World.
Ceiling Drop Mounting - Converts a compatible dome camera into a pendant-style ceiling mount setup with a drop-down rod.
Adapter Plate Required - A compatible camera mount adapter plate is needed to attach the camera to this pendant bracket.
Compatibility Note - Confirm compatibility from the camera product description before ordering.
White Aluminum Build - White aluminum bracket for supported indoor or outdoor professional installations.
Key Specs - 5.07 inch diameter x 22.25 inch length, 4.40 lb load rating, 2 lb weight, -40F to 140F operating range.
Mini Dome Adapter - Metal mounting plate for select compatible mini dome cameras.
Wall Or Ceiling Use - Connects compatible cameras to the JB305W arm mount or JB220 ceiling mount.
Clean Cable Path - Camera pigtail can route through the adapter and mount to keep wiring tucked away.
Aluminum Construction - White aluminum adapter plate with a 2.2 lb load rating.
Compatibility Check Required - Confirm compatibility on the camera description page before ordering. Third-party camera use is at the buyer's risk.
Discover the power of advanced surveillance with our 5MP Smart Security Camera, a key addition to our PoE camera lineup. Designed for both home and business environments, this Dome IP Camera simplifies the installation process by utilizing a single Cat5e or Cat6 cable for both power and data transmission through PoE technology. Its high-resolution 5-megapixel sensor ensures crisp, clear imagery, providing accurate facial recognition up to 50 feet away and general visibility up to 260 feet, capturing every detail without the need for an internet connection.
This camera is engineered for intelligent and efficient surveillance. With features like Smart Motion Detection (SMD) and AI-driven event detection, it effectively distinguishes between human and vehicle movements, cutting down on false alarms. Enhance your security system with targeted measures using tripwire and intrusion box detection, focusing on the areas that matter most.
Image quality is paramount, and this camera delivers with True WDR, HLC, BLC, and 3D Noise Reduction, ensuring clear footage across a variety of lighting conditions. The H.265 encoding maximizes storage efficiency and reduces the need for bandwidth, making the most out of your hard drive storage when used in a complete surveillance system.
Starlight technology brings low-light environments to life, capturing color images in near-total darkness. When light levels drop further, three Super IR LEDs provide up to 164 feet of night vision, ensuring reliable, clear black and white footage.
Built for durability, the camera's IP67 weatherproof rating ensures it can withstand harsh outdoor conditions, perfect for any setting. It integrates smoothly into PoE camera systems with an easy connection to an Avalonix PoE NVR. For alternative setups, it can also be powered using a PoE Injector or a 12V DC 1Amp power adapter, with access via a straightforward web interface or over the free mobile app. You can use it on a local computer network without needing an internet connection. The Internet is only required if you wish to remotely view the camera when away.
The dome design of this camera offers discreet surveillance, making it difficult to detect the direction it's pointing, providing an extra layer of security. It supports up to 256GB on a microSD card for ample short-term storage as a backup in case the main recorder is missing. Remote monitoring is facilitated through our free mobile app, PC, or Mac software, allowing for easy property oversight from anywhere. Plus, you'll receive instant push notifications for motion and smart events, keeping you informed of any activity in real-time.
Elevate your security setup with this 5MP Dome IP Camera, offering professional-grade surveillance in a vandal-resistant, discreet package – ideal for indoor or outdoor use.
Features
Vandal-Resistant Dome Camera for Indoor or Outdoor Placement
Enhanced Starlight Vision for Exceptional Clarity in Low Light Conditions
Delivers Crisp 5MP High-Definition Video at 20 Frames per Second
Wide Angle 2.8mm Lens for Broad Coverage
Provides Detailed Facial Recognition up to 37ft at a Wide 98° Field of View1
Advanced IR Night Vision Extends up to 164ft for Comprehensive Coverage2
Smart Transition Between Day and Night Modes, Offering Color and Black & White Visuals in Total Darkness
Utilizes Efficient H.265 and H.264 Encoding to Optimize Storage and Bandwidth
Enhanced H.265+ Codec Reduces Bandwidth by Up to 70% Compared to Standard H.264
Triple Stream Capability for Customizable Viewing Options: Main Stream, Sub Stream 1, Sub Stream 2
Video Analytics for Distinguishing Between Human and Vehicle Movements
Supports Onboard MicroSD Storage Up to 256GB for Standalone Use (Card not included)
Recording and Viewing Options Include NVR, PC, NAS, FTP, or MicroSD
Accessible through NVR, Web Interface, and Mobile Devices for Surveillance on the Go
Offers a Plugin-Free Web Interface Compatible with Chrome, Firefox, or Edge for Hassle-Free Viewing
Designed with an IP67 Weatherproof Rating for Reliability in Harsh Environmental Conditions3
IK10 Impact Resistant and Vandal Resistant Design
ONVIF S, G Support
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water.
4. Avalonix Premium NVR required
What's included?
(1) 5MP Vandal Resistant IP Dome Camera with SMD, Night Vision, Starlight - Avalonix Premium
NVR, NAS (Network Attached Storage), Local PC for instant recording, MicroSD
MicroSD
microSD up to 256GB
Web Viewer
Edge, Chrome, Firefox, Safari**
Smart Phone
iPhone, iPad, Android Phone
Power Supply
12V DC or PoE (802.3af)
Power Consumption
7.3W
Operating Conditions
-40°F – +140°F, Less than 95% RH
Weather Protection
IP67
Vandal Resistance
Yes, IK10
Casing
Metal
Dimensions
3.2" x 4.3" (height x diameter)
Net Weight
1.0 lbs
*Distance is calculated based on sensor specifications and lab test results according to EN 62676-4 guidelines for security cameras which defines the criteria for recognition and identification. **Certain functions like digital zoom are unavailable in Chrome, Firefox, and Edge browsers due to limitations related to HTML5. Edge on Windows with plugin installation is required to access certain features.
Yes. Our professional Avalonix IP cameras support audio detection, and this setting can be managed through the camera’s built-in web interface.
To access these options, the user would open a web browser such as Chrome or Firefox on a Mac or PC that is connected to the same local network as the camera. After logging into the camera through the browser, they can go into the settings menu and turn audio detection on or off as needed.
In simple terms, audio detection lets the camera listen for sound changes in the area and respond when noise reaches a level you set. Through the web interface, the user can enable the feature, adjust how sensitive it is, set the threshold for what should count as an audio event, and choose what the camera should do when sound is detected. For example, the camera can be set to trigger recording or capture a snapshot when an audio event occurs.
Answer by: CCTV Camera World on Mar 13, 2026, 11:12 AM
