Weather Proof Outdoor Equipment Enclosure with 120V Power, NEMA IP55

Weather Proof Outdoor Enclosure with 120V Power Outlet Module

This weather proof outdoor equipment enclosure is made from molded UV stabilized ABS plastic and is designed for housing small networking, PoE, wireless, and security camera system accessories in protected outdoor or semi-outdoor locations. Because the enclosure is plastic instead of metal, it is a better choice for wireless devices where WiFi or point-to-point wireless signals need to pass through the enclosure without being blocked by a metal box.

It is commonly used with wireless video transmitters, wireless receivers, WiFi security camera accessories, WiFi routers, mobile DVR equipment, PoE injectors, PoE extenders, and compact PoE switches. The enclosure includes a removable 120V AC power tray with two internal outlets, so compatible power adapters can be plugged in inside the box without needing a separate electrical junction box just to power the equipment.

The raised gasketed lid helps protect the contents from normal outdoor exposure, while the lockable design helps prevent casual tampering. Three rubber cable glands are included for bringing network, power, or low-voltage cabling into the enclosure while keeping the installation cleaner and better protected.

This enclosure is best suited for wall, pole, shed, garage, gate, barn, detached building, and outdoor network equipment locations where small electronics need protection from rain and dust. It is rated NEMA Type 3R / IP55, so it should not be treated as a submersible waterproof box or installed where standing water, flooding, or direct high-pressure water spray can enter the enclosure.

Common Devices That Can Be Used Inside

The inside space can be used for small security camera system accessories, provided the device dimensions, heat output, cable bend room, and power requirements are suitable for the installation. Some examples from CCTV Camera World include:

• Avalonix 4 Channel NVR PoE 4K H.265 H.264, SKU NVR044K
• AvaEye 4 Port PoE Switch, SKU 4POEU
• AvaEye 8 Port PoE Plus Switch, SKU 8POEU
• AvaEye PoE Injector 30W, SKU 1POEU
• AvaEye 8 Port Gigabit PoE Switch, SKU 8POEGT
• AvaEye Gigabit 8 Port PoE Switch with 2 SFP Uplink Ports, Managed, SKU POE0802GM
• PoE Extender for IP Cameras, SKU POEEXT01
• PoE Plus Extender, SKU POEEXT02

For best results, compare the inside dimensions of the enclosure with the dimensions of the device being installed. Leave extra room for Ethernet cables, power plugs, ventilation, and service access. Devices that create heat, such as NVRs and PoE switches, should not be packed tightly into the enclosure without considering airflow and operating temperature.

Features

• Outdoor weather proof equipment enclosure for small networking and security camera accessories
• Molded UV stabilized ABS plastic body that allows wireless signals to pass through better than a metal box
• Fully gasketed raised lid for improved weather protection
• Lockable lid to help reduce tampering
• NEMA Type 3R / IP55 rated enclosure
• Removable 120V AC power tray with 2 internal outlets
• Useful for wireless video transmitters, receivers, WiFi routers, PoE injectors, PoE extenders, compact PoE switches, and other small low-voltage devices
• Heavy duty Velcro tape included for mounting equipment in enclosure
• 3 cable inlets with rubber grommets for cleaner cable pass-through

What's Included

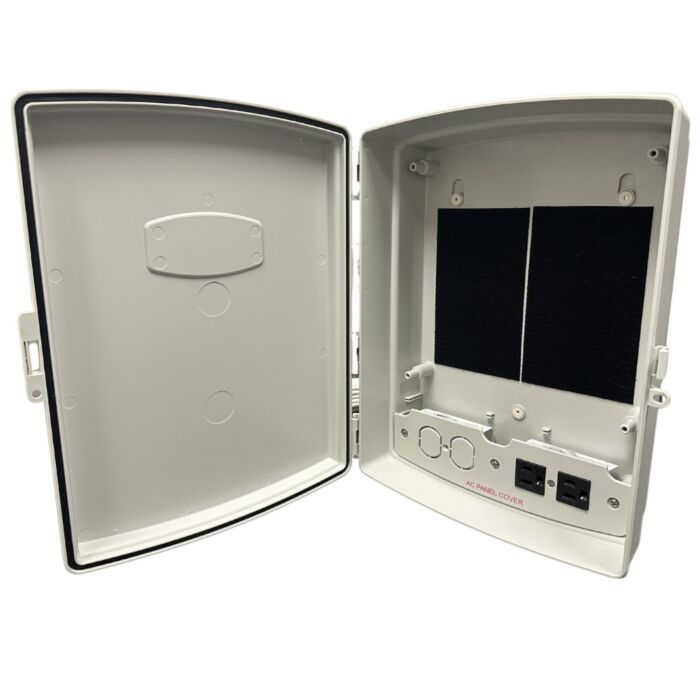

• Weather proof enclosure with internal 120V AC power outlet module, as pictured

Only the enclosure shown is included. Wiring, straps, pole mounting hardware, wall mounting hardware, network cables, PoE switches, PoE injectors, PoE extenders, NVRs, and other accessories are not included unless separately purchased.

Important Installation Notes

• 120V AC wiring should be installed by a qualified person following local electrical codes.
• This enclosure is weather resistant, not submersible.
• Use drip loops on outdoor cables before they enter the enclosure.
• Do not block ventilation around devices that generate heat.
• Always confirm that the device, power supply, plugs, and cable bends fit before final mounting.

Specifications

FAQ

What is this weather proof enclosure used for?

This enclosure is used to protect small security camera system accessories, networking devices, wireless equipment, and low-voltage power accessories from normal outdoor exposure. It is useful when you need to place equipment near a gate, pole, barn, detached garage, shed, parking lot, or remote camera location.

Can I put a PoE switch inside this enclosure?

Yes, compact AvaEye PoE switches such as the 4POEU, 8POEU, 8POEGT, and POE0802GM may be used inside this enclosure if the switch physically fits and has enough room for power plugs, Ethernet cables, and heat dissipation. Always compare the device dimensions to the inside enclosure dimensions before installation.

Can I put a PoE injector inside the enclosure?

Yes. A small AvaEye PoE injector such as the 1POEU can be installed inside the enclosure when you need to power a single PoE camera or PoE device from a protected outdoor location. The built-in 120V outlet module makes this type of setup cleaner because the injector can plug in inside the box.

Can I use this with PoE extenders?

Yes. PoE extenders such as the POEEXT01 and POEEXT02 can be placed inside the enclosure to help protect the extender and cable connections from the elements. This is especially helpful for long PoE camera runs where the extender is installed outdoors or near a pole, gate, or remote building.

Can I put a small NVR inside this enclosure?

A compact Avalonix NVR such as the NVR044K may fit, but you should confirm dimensions, cable space, and heat buildup before using the enclosure for a recorder. NVRs generate heat, especially when a hard drive is installed, so avoid tightly packing the enclosure and avoid placing it in direct sun if heat may become a problem.

Is this enclosure good for WiFi routers or wireless video equipment?

Yes. The ABS plastic body is useful for wireless equipment because it allows WiFi and wireless video signals to pass through better than a metal enclosure. It can be used with compatible WiFi routers, wireless video transmitters, and wireless receivers when outdoor protection is needed.

Is this enclosure waterproof?

It is weather proof and rated NEMA Type 3R / IP55, but it is not meant to be submerged or installed where water can pool around it. For best results, mount it upright, use proper cable entry methods, and create drip loops on cables before they enter the enclosure.

Does the enclosure include power outlets?

Yes. It includes a removable 120V AC power tray with 2 outlets. This allows compatible power adapters, PoE injectors, or small networking devices to be powered inside the enclosure. The 120V AC connection should be installed safely and according to local electrical codes.

What is included with this product?

Only the weather proof enclosure with the internal 120V AC power outlet module is included, as pictured. Wiring, straps, mounting hardware, network cables, PoE switches, PoE injectors, PoE extenders, NVRs, and other accessories are not included unless separately purchased.
