PTZ Pendant Mount for PTZ Cameras

PTZ Pendant Mount for PTZ Cameras - AvaEye PTZPNDM9

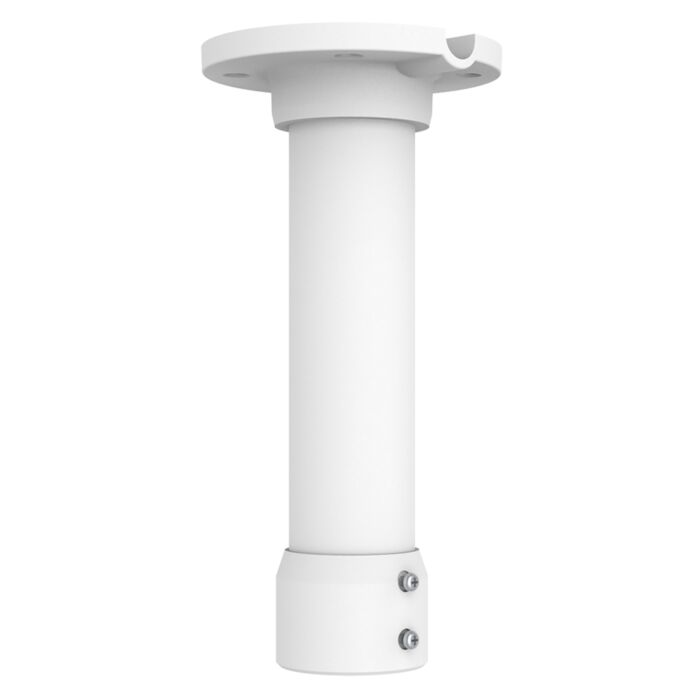

The PTZPNDM9 Pendant Mount for PTZ Cameras is a ceiling-mount bracket designed for compatible PTZ dome cameras. It creates a cleaner, more professional suspended installation by lowering the camera below the mounting surface, which can improve clearance, cable routing, and overall positioning for large PTZ housings.

This mount is a strong fit for compatible AvaEye PTZ cameras, including these models:

It may also work with select PTZ cameras from other brands when the mounting thread, bolt pattern, and camera base dimensions match. That makes it a useful option not only for AvaEye systems, but also for buyers trying to replace or source a compatible pendant bracket for certain third-party PTZ dome cameras.

This style of mount is commonly used for PTZ camera installations under rafters, soffits, overhangs, canopies, and covered ceilings where a flush mount is not ideal. The long drop section helps position the camera lower and cleaner below the structure, which is often better for pan, tilt, and zoom movement on larger speed dome cameras.

Why use a pendant mount for a PTZ camera?

✔ Better clearance: Helps drop the PTZ below soffits, eaves, and ceiling surfaces.
✔ Cleaner installation: Creates a more finished and professional overhead mount.
✔ Improved positioning: Can provide a better viewing angle and more room for PTZ movement.
✔ Useful for replacements: Helpful when replacing a missing or damaged mount for a compatible PTZ camera.
✔ Supports cable management: Helps keep wiring more concealed and protected.

Who is it for?

✔ Installers setting up AvaEye PTZ dome cameras
✔ Customers replacing an existing pendant mount for a compatible PTZ camera
✔ Business owners mounting PTZ cameras under soffits or canopies
✔ Property managers looking for a clean overhead PTZ installation
✔ Buyers with select third-party PTZ cameras that may share the same mounting design

Specifications

Model	PTZPNDM9
Product Type	Pendant mount for PTZ dome cameras
Mounting Type	Ceiling / overhead pendant mount
Material	Aluminum alloy
Color	White
Application	Compatible PTZ dome camera installations
Overall Height	238.8 mm (9.4 in)
Top Diameter	116.5 mm (4.6 in)
Inner Diameter	39.0 mm (1.5 in)
Secondary Diameter	89.5 mm (3.5 in)
Mounting Holes	4 x 9.0 mm (0.4 in)
Thread / Interface	G1 1/2
Compatibility	Works with AvaEye PTZ cameras and may fit select other brand PTZ dome cameras with matching mounting design
Use Location	Overhead ceiling, soffit, canopy, or covered exterior mounting
Package Contents	Pendant mount bracket

Frequently Asked Questions

What camera brands is this compatible with?

It works with AvaEye and may work with select SureVision and Security Camera Warehouse cameras, as well as other compatible PTZ dome cameras that share the same mount style, thread, and dimensions. Check the mount pattern and camera base before ordering.

Will this work with my PTZ camera?

This mount is designed for compatible PTZ dome cameras. The best way to confirm fit is to compare the mount thread, bolt pattern, diameter, and overall dimensions of your camera and existing bracket.

Is this mount for indoor or outdoor use?

It is commonly used for both indoor and protected outdoor PTZ installations, especially under soffits, overhangs, awnings, and covered ceilings.

Does this include the camera?

No. The PTZPNDM9 is the pendant mount bracket only. The PTZ camera is sold separately.

Why would I use a pendant mount instead of mounting the PTZ directly?

A pendant mount helps lower the camera below the mounting surface, which can improve clearance, camera movement, cable routing, and the overall finished look of the installation.

More Information

More Information
Warranty	None for accessories
Brand	AvaEye
Return Policy	Accessories are non-returnable, non-refundable.
