AvaEye 4 Port Gigabit Industrial PoE Switch with 2 SFP Uplinks

AvaEye 4 Port Gigabit Industrial PoE Switch with 2 SFP Uplinks

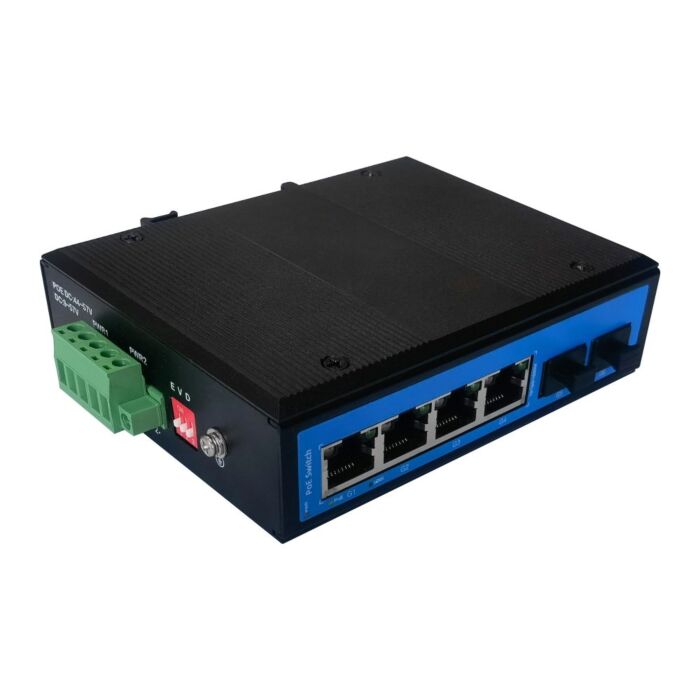

The AvaEye POE4GEIN is a compact 4 port gigabit industrial PoE switch built for IP security cameras, outdoor equipment cabinets, remote network locations, and industrial-style installations where a standard desktop PoE switch is not the right fit. It provides 4 full gigabit PoE ports, 2 independent SFP fiber uplink ports, DIN rail mounting, redundant DC power input, a rugged IP40-rated metal housing, and a 52V 2.3A power supply.

This switch is a practical choice when you need to power a small group of PoE cameras and send the network connection back over fiber. It can be used for gate cameras, parking lot cameras, warehouses, detached buildings, utility rooms, industrial cabinets, and other locations where long uplinks or electrical isolation from fiber may be useful.

Each of the 4 RJ45 PoE ports supports 10/100/1000Mbps network speed and IEEE 802.3af/at PoE. The ports automatically recognize compatible PoE devices and can provide up to 30W per port, depending on the total connected load. The 2 SFP slots support 100/1000Base-X fiber uplinks, giving you a clean way to connect the switch back to a main network switch, router, or NVR over fiber.

Unlike some switches where SFP ports share bandwidth with RJ45 uplink ports, the SFP traffic on this industrial AvaEye switch is independent from the gigabit PoE ports. That gives you a cleaner fiber uplink design for remote camera locations, building-to-building connections, and industrial network cabinets.

Quick Highlights

• Best for: Industrial PoE camera installs, gate cameras, remote buildings, outdoor network cabinets, and fiber uplinks
• PoE ports: 4 x 10/100/1000Mbps RJ45 PoE ports
• Fiber uplinks: 2 independent 100/1000Mbps SFP fiber uplink slots
• PoE support: IEEE 802.3af/at, up to 30W per port
• Working modes: 300 meter Extend mode, VLAN, PoE Watchdog, Auto Speed Change, and priority port support
• Power input: DC48-57V with redundant dual power 5-pin industrial terminal input
• Included power supply: 52V 2.3A power supply
• Mounting: Desktop or 35mm DIN rail installation
• Protection: IP40-rated housing with industrial surge and ESD protection
• Compliance: NDAA compliant
• Warranty: 2 years from CCTV Camera World

Why Choose This Industrial PoE Switch?

A regular desktop PoE switch is fine for many indoor camera systems, but it is not always the best choice for remote or industrial-style installations. The AvaEye POE4GEIN is built for places where the switch may need to sit in a cabinet, connect back over fiber, accept DC power, and handle a wider operating temperature range.

Use this switch when you need a small PoE camera group at the edge of a property, such as a gate, pole-mounted cabinet, detached building, parking lot, warehouse area, or utility room. The 4 gigabit PoE ports can power compatible IP cameras, while the 2 independent SFP fiber uplink slots let you send the network connection back over fiber instead of relying on a long copper uplink.

For larger camera layouts, you can also browse our full selection of PoE switches. For complete systems, see our security camera systems or business security camera systems. If you are planning how the switch, cameras, router, and recorder connect together, our guide on how to set up an IP camera system on a network is a helpful starting point.

4 Gigabit PoE Ports for IP Cameras

The AvaEye POE4GEIN has 4 full gigabit RJ45 PoE ports. That means each copper PoE port supports 10/100/1000Mbps network connections, which gives you more headroom than a basic 100Mbps PoE switch.

For most security cameras, gigabit speed is not required for a single video stream, but it can still be useful in professional installations. It gives the switch more flexibility for higher bitrate cameras, non-camera PoE devices, wireless access points, or mixed network devices that may benefit from a faster copper port.

2 Independent SFP Fiber Uplinks for Longer Network Connections

The two SFP fiber uplink slots are one of the main reasons to use this switch. Fiber uplinks are useful when the switch is installed far from the main network room, or when you want to connect between buildings, cabinets, or network closets using fiber optic cable.

These SFP ports are independent uplink ports, not shared combo ports. That means the SFP uplink traffic does not take over one of the gigabit RJ45 PoE ports. This is useful when you want all 4 PoE ports available for cameras while still using fiber to connect back to the main network.

SFP modules are selected separately based on the fiber type, connector, and distance needed. For compatible multimode LC fiber applications, use our 1Gb SFP module. It supports 1000Base-SX multimode fiber and can be used for long fiber uplinks between a remote switch, building, or network closet and the main network.

Industrial DC Power and DIN Rail Installation

This switch uses DC48-57V input through redundant dual power 5-pin industrial terminals and includes a 52V 2.3A power supply. That makes it better suited for industrial cabinets and low-voltage equipment enclosures than a normal wall-plug desktop switch.

The compact metal housing supports desktop use or 35mm DIN rail mounting. DIN rail installation keeps the switch cleanly mounted inside an electrical cabinet, low-voltage enclosure, or industrial network box.

Extend Mode, VLAN, and PoE Watchdog

The built-in smart DIP switch functions make this model more useful for security camera networks than a basic unmanaged PoE switch. Extend mode can support runs up to 984ft (300 meters) in supported installations by lowering the speed on the extended link. That tradeoff can work well for many IP cameras because a single camera stream normally does not need full gigabit bandwidth.

VLAN mode helps isolate ports and reduce unnecessary traffic between connected devices. PoE Watchdog, also called port self-healing, can help recover a camera or PoE device that stops responding by cycling power to the port. This can save time when the switch is installed in a cabinet, on a pole, or in a hard-to-reach location.

For best results on long PoE runs, use solid copper Cat5e or Cat6 network cable. Avoid CCA cable, especially for long runs or higher-draw PoE devices. For more background on long PoE camera runs, see our field-style guide on running a PoE PTZ camera beyond 300ft without an extender.

NDAA Compliant Industrial PoE Switch

The AvaEye POE4GEIN is NDAA compliant, making it a good fit for professional surveillance projects where equipment sourcing matters. It can be paired with NDAA compliant security cameras and systems, compatible NVRs, and other compatible network equipment for business, school, contractor, warehouse, and government-related security camera installations.

Good Fit for Security Camera Installations

The AvaEye POE4GEIN is a good fit for small remote camera groups. It can power up to 4 compatible IP cameras, then send the network connection back over fiber. This makes it useful for parking lots, entrance gates, warehouse doors, perimeter cameras, utility areas, and remote building cameras.

It can also be used with PTZ cameras as long as the camera's PoE power requirement is within the switch and power supply limits. Always check the camera wattage and the power supply capacity before installation.

For business owners still choosing cameras to pair with this switch, our guide to the best business security cameras covers practical camera options for offices, warehouses, retail stores, parking lots, entrances, and other commercial spaces.

What's Included

• 1x AvaEye POE4GEIN Industrial PoE Switch
• 1x 52V 2.3A Power Supply
• 1x User Guide

Note: SFP modules are sold separately unless selected as an option.

Specifications

Frequently Asked Questions
