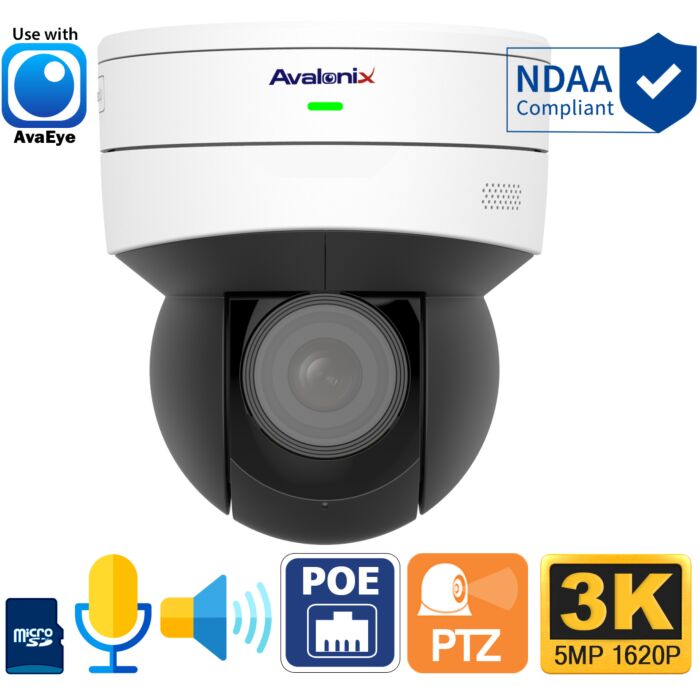

5MP WiFi MiniPTZ Dome Camera with 2-Way Audio, 5X Zoom, Starlight, AvaEye
- 5X Optical Zoom
- Built-in Mic & Speaker
- 100ft Infrared Night Vision
- 5MP 30fps
- Starlight Video
- Tripwire, Intrusion Detection
- Up to 256GB microSD
- Indoor Use
- Ceiling or Wall Mount
- 12VDC or PoE
Interested in getting a professional small WiFi PTZ camera with audio and alarm connections? Check out this mini PTZ camera by Avalonix (model PTZ5MP5XS), a high-performance surveillance solution. The camera features a 5X zoom lens and a 5MP image sensor, which allows for precise zooming and clear 3K Resolution image capture at a distance. The pan-tilt motor provides fine control over the camera, making it easy to point it wherever you want, whenever you want. Mounting options include wall mounts and pole mounts. The camera is made for indoor use.
This camera also has two-way audio capability. It has a built-in microphone and speaker, so you can listen to what's going on around the camera and respond if you need to. This feature can be used to talk to employees or to talk to family at home. With the two-way audio feature and the camera's alarm input and output, you can set off an audible alarm. These features are all compatible, whether you're using the camera with an AvaEye NVR or as a solo camera with the AvaEye app or AvaEye PC software.
With the aid of Starlight Technology, the camera can take high-quality images even with little ambient lighting. The advanced image sensor makes the camera sensitive to light. Starlight PTZ cameras excel at surveillance in low-light areas. At night, with no ambient light, the camera changes to black and white and turns on its infrared night vision, which lets it see things up to 100 feet away.
WiFi ConnectivityThe camera comes with Wi-Fi connectivity, requiring a 12V DC power adapter, meaning the camera can go anywhere within the range of a 2.4GHz WiFi network. This feature allows you to view live footage and control the camera's settings from anywhere using a smartphone or tablet. It also enables you to quickly and easily share footage with others. Additionally, the camera is also equipped with PoE technology, so it can be used as a wired camera instead.
5MP 3K Video3K resolution in security cameras marks a notable advancement in the realm of video surveillance, offering a resolution that is substantially sharper than standard 1080p HD cameras. This enhanced clarity ensures that the footage captured is richer in detail, enabling users to identify subtle nuances in scenes, such as distinct facial characteristics or specific elements on a vehicle. Moreover, the higher pixel density allows for better digital zoom functionality, meaning users can hone in on particular points of interest in their footage without a substantial decrease in image quality. By bridging the gap between HD and ultra-HD resolutions, 5MP cameras provide a superior balance of coverage and detail clarity, making them a favored choice for many security professionals.
This mini PTZ camera has an optical zoom lens, allowing the user to zoom in and out during live viewing. Coupled with its pan and tilt capabilities, this camera stands out as a top pick for individuals keen on thorough surveillance of their home or business. The 2.7–13.5mm motorized zoom lens provides 5X zoom power. At its widest setting, 2.7mm, the camera covers an ultra-wide 106.9° view, and when fully zoomed in, it narrows down to a 30.6° angle.
Beyond optical zoom, our PTZ cameras also have a digital zoom feature, great for blowing up an area for additional detail in the footage.
It's essential to recognize the difference between optical and digital zoom. Optical zoom does actual magnification by physically adjusting the lens and can only alter the viewing angle in real-time. Digital zoom expands the image in real-time or during playback of recorded footage, which will result in pixelation. You can learn more about the difference between optical zoom and digital zoom in the AvaEye security camera system guide.
StarlightStarlight video technology enhances the PTZ camera's performance in low-light conditions, providing color video even in dim lighting. Utilizing advanced image processing techniques and a specialized 0.003 Lux image sensor, the camera delivers superior image quality under minimal lighting. Starlight PTZ cameras are particularly suited for poorly-lit outdoor surveillance areas such as parking lots and alleyways.
Night VisionWhether it's daytime or nighttime, the camera seamlessly toggles between color and black and white modes depending on ambient lighting. Starlight video will allow the camera to stay in color mode at lower levels of light than a regular camera. The camera's infrared LEDs provide night vision up to 330 feet, ensuring clear surveillance in complete darkness with black-and-white footage.
Built-in Speaker and MicFor those interested in audio surveillance, the camera's built-in microphone ensures clear audio pickup, covering up to 30 feet in a quiet environment. On top of having a microphone, this camera also has a built-in speaker that can be used for two-way audio via the mobile app, PC software, or to sound out alarms. Additionally, it has audio detection that makes sure recording starts, and an alert can be sent if the camera hears an unexpected noise based on the parameters you set.
Smart CameraWe understand that your security needs are unique. This smart camera features specialized video analytics for dependable human and vehicle detection with fewer false alarms: Enter/Leave Area, Line Crossing and Intrusion Box. Plus, if you use an add-on microphone connected to the audio input, with audio detection, the camera can initiate recording and alert you when unexpected sounds occur within your set parameters.
Power over Ethernet ConnectivityGone are the days of running multiple cables for pan-tilt-zoom cameras. Thanks to Power over Ethernet (PoE) technology, you can now transfer power, data, and control commands using just one Ethernet cable, reaching up to 300 feet from your NVR or PoE switch.
Many Ways to Control and RecordYou can use our free AvaEye mobile app, the AvaEye PC software, or one of our AvaEye network video recorders (NVRs) to watch and control the camera while away. Avaeye cameras offer versatile storage options. You can choose to save recordings to an AvaEye NVR, utilize the AvaEye software on your PC/Mac, or rely on an internal MicroSD card with a capacity of up to 256GB.
NDAA CompliantLooking for NDAA-compliant cameras? The National Defense Authorization Act (NDAA) has, in recent times, set restrictions on the utilization of certain surveillance equipment brands in federal and military installations. This limitation also affects businesses and non-profits that benefit from federal grants or sign contracts with the military. Choosing this NDAA-compliant camera provides assurance, guaranteeing your purchase is compliant with these regulations.
AvaEyeAvaEye cameras and NVRs are designed to work really well together, making system setup easy and quick. When you use a compatible NVR, you can enjoy better video analytics and watch footage from your computer or phone. An AvaEye camera and recorder combo is a no-brainer for your home or business security needs.
- Indoor WiFi MiniPTZ with 2-way Audio
- Built-in Speaker and Mic for two-way communication from smartphone or PC/Mac Software
- 5MP Resolution Video at 30fps
- 5X Motorized Optical Zoom
- Recognize faces up to 47ft of facial detail at the widest angle, and up to 162ft at maximum zoom1
- Up to 100ft of IR night vision2
- See in color at night with ambient light3 using Light Hunter Starlight technology
- Day & Night Switching (color vs black & white) in complete darkness
- H.265 and H.264 Video encoding
- H.265+ provides up to 70% in bandwidth savings over H.264
- 3 Video Streams: Main Stream, Sub Stream 1, Sub Stream 2
- Advanced Image Features: True WDR / BLC / HLC / 3DNR
- Video Analytics (Human Body and Vehicle)6:
- Line Crossing
- Intrusion Box
- Enter Area / Leave Area Detection
- Built-in microphone for audio pickup up to 30ft4
- Built-in WiFi radio to connect to 2.4GHz WiFi router
- Internal MicroSD support up to 256GB (optional)
- Records to NVR, Computer, NAS, FTP, or internal MicroSD
- View from NVR, Web Browser, Smartphone or Tablet
- Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
- PoE Extended Transmission function supports up to 820ft PoE distance5
- Dual Power Input Capable: 12V DC (wireless mode) or PoE+ (wired mode)
- Alarm 1 in and 1 out
- Ceiling mountable design
- Optional wall and pole mounts available
- NDAA Compliant
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Camera has a 0.003 Lux rating in color mode. Camera switches to black and white mode in complete darkness.
4. Measured in a quiet office. Mono audio is captured by a integrated microphone.
5. AvaEye NVR required, and CAT6 solid copper cable required for Extended PoE
6. Requires AvaEye compatible NVR or AvaEye Software
- (1) 5MP WiFi Mini PTZ Dome Camera with 2-Way Audio, 5X Zoom
|Image Sensor||1/2.7" 5MP Progressive Scan CMOS|
|Effective Pixels||2880 (H) x 1620 (V)|
|Electronic Shutter Speed||Auto/Manual, 1/1- 1/100000s|
|Min. Illumination||0.003 Lux F1.2 (Color), 0 Lux IR On|
|S/N Ratio||More than 56dB|
|IR Distance||Up to 100ft|
|IR On/Off Control||Auto, Manual|
|Lens Type||Motorized Zoom with Auto Focus|
|Focal Length||2.7 – 13.5mm (5X Optical Zoom)|
|Angle of View||Horizontal: 106.9° – 30.6° Vertical: 56.0° – 17.7°|
|Video Interface||IP - Network Based Camera|
|Streams||Main Stream, Sub Stream 1, Sub Stream 2|
|Resolution||5MP (2880×1620), 4MP (2688×1520), 1080P (1920×1080), 720P (1280x720), D1 (720x576)|
Main Stream: 5MP (1-30fps)
|Bit Rate||128 Kbps - 16 Mbps|
|Day/Night||Auto (ICR), Color, B/W|
|Backlight Compensation||BLC, HLC|
|White Balance||Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2|
|Noise Reduction||DNR (2D/3D)|
|Motion Detection||Yes, stream compatible w/ specific NVR or Software|
|Region of Interest||Yes|
|Electronic Image Stabilization||Yes|
|Image Flip||Normal/Flip Vertical/Flip Horizontal/180°|
|Privacy Masking||24 areas, up to 4 per scene|
|Video Analytics||Audio Detection, Motion Detection, Line Crossing, Intrusion Box, Enter Area/Leave Area Detection|
|Audio Interface||Built-in microphone, Built-in speaker|
|Audio Bitrate||64 Kbps|
|Pan/Tilt Range||Pan: 0° – 350° (not endless); Tilt: 0° – 90° (not auto-flip)|
|Manual Control Speed||Pan: 0.1° – 60° /s; Tilt: 0.1° – 50° /s|
|Preset Speed||Pan: 60° /s; Tilt: 50° /s|
|Number of Presets||1024|
|Preset Patrol||16 patrols, up to 64 presets for each patrol|
|Patrol Stay Time||120s - 1800s|
|Power up Action||Auto restore to previous zoom and position after power failure|
|Idle Motion||Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command for a while|
|Protocol||PelcoD, Avalonix, or ONVIF|
|Protocol||IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS|
|Compatibility||ONVIF (Profile S, Profile G, Profile T)|
|Max. User Access||3 Online Users (Up to 32 Accounts, 2 Admin Level Accounts Allowed)|
|Recording Methods||NVR, NAS, FTP, Local PC, MicroSD|
|Smart Phone||iOS, Android|
|Web Viewing||IE,** Edge, Chrome, Safari, Firefox|
|Memory Slot||MicroSD, Max 256GB (factory installed option)|
|Power||5.5mm 12VDC Power Plug, Center Positive|
|Alarm||1/1 channel In/Out|
|WiFi||2.4GHz 802.11 b/g/n|
|Power||12V DC, PoE+ (802.3at)|
|Power Consumption||15W Max (IR LEDs on and PTZ moving)|
|Operating Temperature||+14°F – +122°F, Less than 95% Relative Humidity|
|Dimensions||5.7" x 5.1" (height x diameter)|
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identify means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.
|Wide Dynamic Range (WDR)||WDR|
|Pan Tilt Zoom||Yes|
|Dimensions||5.1" Diameter x 5.7" Height|
|Operating Temperature||14deg;F to +122°F|
|Important Features||Two-Way Audio|
|Image Sensor||1/2.7" 5MP CMOS Sensor|
|Weather Proof||Indoor Use|
|Power Input||12V DC / PoE+|
|Angle of View||106.9° - 30.6°|
|Optical Zoom||Motorized Zoom|
|SD Card Slot||Yes|
|Video Analytics||Line Crossing, Intrusion Box, Enter Area/Leave Area Detection for Vehicle and Human Body|
