PoE Over Coax Converter

SKU: LRPOC1002

Write a Review

Availability: In stock

$84.99
Looking for a system?
Try our
Custom Security
Camera System
configurator!
Start
Questions?
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!

Description

Details

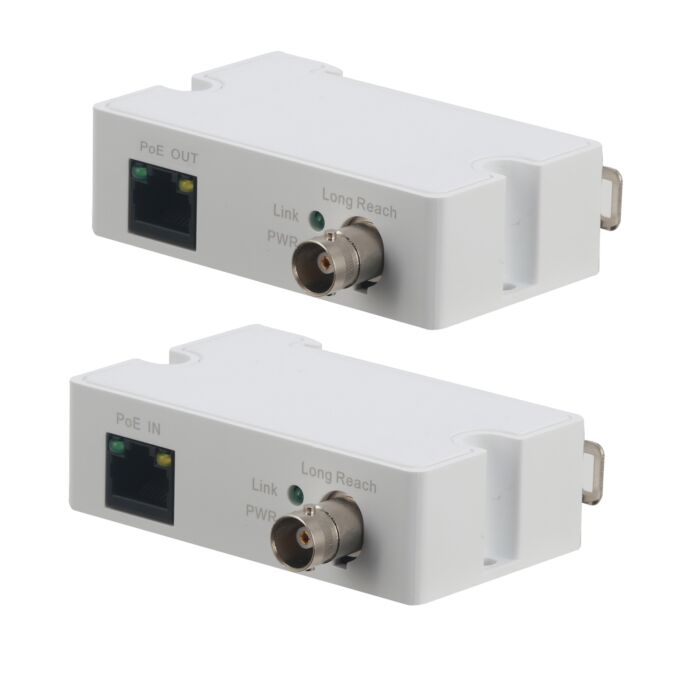

The ability to wire PoE cameras over coax is finally here, and it is stable. You're reading it right, you can now send IP camera data and PoE power using existing RG59 or RG6 coax cable and this PoE over Coax converter set. While you'll still need a PoE switch or PoE injector to send power and data using this kit, you no longer need to worry about the expense and effort of replacing your existing coax wiring. You can keep your existing wiring and upgrade to an IP camera system with the help of this kit.

If you already have an IP camera system and you have a lengthy run, this kit can also be used to exceed the 328 ft limit of Ethernet. You can simplify extended PoE (ePoE) runs by using coax wire that is inexpensive and weather resistant.

With the transceiver and receiver kit you can easily run one 1080P, 2K, or 4K PoE camera up to 2000 ft depending on the wattage consumption of the camera. For some low power Pan Tilt Zoom camera you can even go up to 2000 ft, that's nearly half a mile! However, it's important to note that pre-made coaxial cable will not work because of it's thin gauge.

Transmission DistancePower CapacityBandwidth
330ft (100m)21W100Mbps
1000ft (300m)11W100Mbps
2000ft (600m)7W10Mbps



Features

  • PoE IP Camera connections over Coax cable
  • Passively powered by PoE Switch or PoE Injector
  • 1 RJ45 10/100Mbps Port, 1 BNC Port
  • Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af/at
  • 100 Mbps up to 1000ft
  • 10 Mbps up to 2000ft
  • Works with IP PoE Cameras, PoE WiFI Access Points, VOIP Phones

Includes:

  • Transmitter
  • Receiver
  • Screws

Specifications

Ports

One 10/100Mbps Base-TX

One BNC

Max. Transmission Bandwidth

Using RG59 Coax

1000 ft: 100Mbps

2000 ft: 10Mbps

LED IndicatorsPWR, LINK LEDs
Input voltage100V~240V AC, 50/60Hz
Power consumption< 2W
Operating temperature-22°F - 149°F
Relative humidity5% - 95% (non-condensing)
PoE RequirementIEEE 802.3af/at 25W minimum
Dimensions (per unit)3.1" x 2.0" x 0.9"
Weight (each)0.2 lbs

More

More

Return Policy30 Days Return Policy
Warranty1 Year
