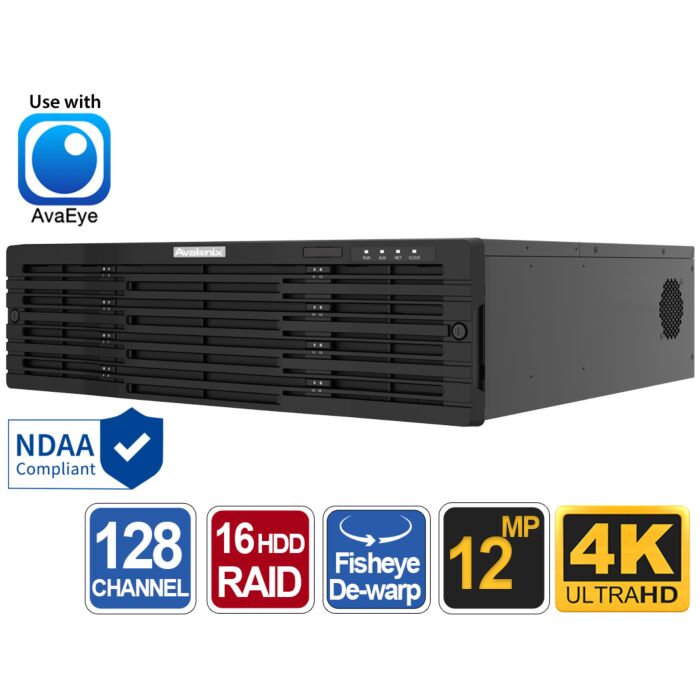

128 Channel 4K Network Video Recorder, Hot-Swap RAID, 16 SATA HDD, AvaEye
Special Order, 8-10 week delivery time estimated
- Add 128 IP cameras over LAN
- Up to 12MP / 4K Recording
- 512Mbps Encoding
- De-Warps Fisheye Cameras by AvaEye
- 16 HDD Capacity, 288TB Total
- RAID 0/1/5/6/10/50/60
- 2HDMI, VGA Output
- For AvaEye Cameras
Introducing the 128 Channel 4K Network Video Recorder, with Hot-Swap RAID and 16 SATA HDD bays, a cutting-edge solution for comprehensive and intelligent surveillance. Whether you're on the move or sitting at your desk, AvaEye ensures you're always connected. Our dedicated free AvaEye App, available for both iPhone and Android, provides effortless remote viewing, allowing you to keep an eye on your property wherever you might be. And for those who favor a more traditional approach, our free AvaEye PC/Mac software is tailored just for you. Compatible with both Windows and Mac, this software lets you watch multiple systems with ease. You can also access and view your recorder from any web browser within Windows, Mac, or Linux.
AvaEye NVR's prowess doesn't stop at accessibility. When paired with our AvaEye cameras and depending on the features the camera supports, this NVR emerges as a powerhouse, leveraging AI video analytics and advanced event detection features. With cameras that support line crossing, face detection, and people flow counting, these analytics offer critical insights, ensuring effective surveillance.
And we understand that true surveillance isn't restricted to visuals. With sound recording capabilities, our NVR captures both sights and sounds.
If you're setting up in places without a steady internet connection, fret not. AvaEye's standalone NVRs don't require an internet connection for setup and use.
Furthermore, our commitment to security is reflected in our strict adherence to NDAA compliance, cementing our position as a trusted name in surveillance. Trust AvaEye for a surveillance experience that's simple, reliable, and a cut above the competition.
Quad Gigabit NicThe presence of Four Gigabit Network Ports and 2 Gigabit SFP ports on the back of this 128 Camera NVR recorder amplifies its utility and versatility in modern IP camera setups. These high-speed ports not only guarantee optimal data transfer rates but also introduce flexibility in system configurations. Users can directly connect the NVR to an external PoE switch, streamlining the integration of multiple AvaEye IP cameras without necessitating individual power sources for each. Furthermore, if the surveillance needs grow or if the cameras are spread across different locations, the NVR can be hooked up to multiple PoE switches simultaneously, as explained in our guide on how to set up a security camera system over the network. This design foresight ensures that the surveillance system is not just efficient but also scalable, catering to both current and potential future requirements. |
|
Remote ViewingWith the AvaEye app, available for both iPhone and Android devices, you can effortlessly monitor your system remotely. Wherever you are, maintain a watchful eye on your property, provided your system is connected to a stable broadband internet connection and your phone has a good cellular or WiFi connection. |
|
PC Software and Web Browser AccessDo you prefer to monitor your cameras from your computer instead? The AvaEye software for the computer has got you covered. Designed for both Windows and Mac systems, this software makes it easy to watch multiple cameras or camera systems over the internet using a convenient QR code. Or you can simply use the IP address your router assigns to the recorder on your local network for straightforward web browser access. Whether you're on a Windows, Mac, or Linux computer, accessing your recorder through a browser is a breeze. |
|
Advanced Detection and AnalyticsWhen combined with compatible AvaEye cameras with video analytics, this NVR truly shines. The camera's potential for AI video analytics and smart event detection features like human and vehicle smart motion filters, face detection, line crossing, intrusion detection, and people flow counting enhance its performance. These advanced analytics deliver crucial insights that are essential to proactive and effective security for any property. It's important to keep in mind that the NVR's AI detection depends on the AI event detection features the camera has. |
|
Sound RecordingElevate your surveillance capabilities with our AvaEye NVRs. In addition to capturing video, this NVR is equipped with sound recording, which records sounds from AvaEye cameras with built-in microphones or audio inputs with an external security camera mic. When paired with AI video detection, the NVR provides a comprehensive recording experience, ensuring you never miss a moment in both sight and sound. |
|
RAID HDD RedundancyRAID, or Redundant Array of Independent Disks, is a technology designed to enhance data storage efficiency and reliability. In the realm of surveillance, where continuous and uninterrupted data recording is crucial, RAID plays an indispensable role. It allows multiple surveillance grade hard drives to work together, either boosting performance or creating mirrored backups of all recorded footage. Should one drive fail, the system can continue functioning using data from the other drives, ensuring that your surveillance data remains intact and accessible. RAID 0, 1, 5, 6, 10, 50, 60, and N+1 Hot Spare are supported in this NVR. |
|
Hot Swap Drive BaysSurveillance demands consistent and uninterrupted recording to ensure that every crucial moment is captured. The hot swap feature caters precisely to this need by allowing hard drives to be replaced without shutting down the system or interrupting its operation. In the context of surveillance, if a drive fails, hot swapping enables immediate drive replacement, ensuring that the recording process remains continuous. This feature is especially vital for environments that require round-the-clock monitoring, as it reduces downtime and ensures that no footage is lost during hard drive transitions. |
|
Internet Access Not RequiredCurious about what a standalone NVR means? Let AvaEye clarify. Unlike many cloud-based systems that demand an internet connection right from setup, our standalone NVRs work perfectly without one. They utilize Ethernet or network cabling to power and link cameras using PoE Technology,but you'd only need internet if you decided to check your camera feeds from a remote location via our app or PC software. So, you can effortlessly set up your PoE camera system, even in the absence of an internet connection. |
|
NDAA CompliantSecurity camera equipment by AvaEye is proudly NDAA (National Defense Authorization Act) compliant. This compliance ensures that the equipment, software, and components of the recorder are not sourced from restricted companies, providing an added layer of security and trust for users. Users can trust this recorder for its advanced surveillance capabilities and its commitment to national security considerations. |
|
AvaEyeThe AvaEye NVR recorder is expertly crafted to work directly with AvaEye PoE cameras, ensuring a smooth plug-and-play process. Users can benefit from a simple setup along with cutting-edge video analytics, improved surveillance, and amplifying features like Smart Event Detection with this combination. Invest in a system that not only simplifies but also amplifies the security of your home or business. |
Features:
- Super High Capacity 128 Channel NVR recorder for use with AvaEye IP cameras
- Rackmount Hot-Swap Design6
- Software embedded on a chip
- Stay up-to-date with firmware updates at the click of a button
- H.265 / H.264 Video Encoding
- Supports up to 12MP or 4K Resolution Recording
- Mix and Match camera resolutions on one recorder
- Total 512Mbps Encoding
- Easily configure IP cameras on the same LAN using on-screen menu
- De-Warps Fisheye Security Cameras1
- Multiple Monitor Outputs
- HDMI audio/video output supports up to 4K TV
- HDMI Spot-out for video-output up to 4K
- VGA Video Output supports up to 1080P
- Up to 32 Channel Live Grid View Supported over HDMI
- Easy remote viewing by scanning QR code
- IP address and DDNS based remote viewing support
- Plugin free web interface for live viewing over LAN on PC or Mac1
- Free AvaEye Remote Viewing App for iOS and Android
- iPhone, iPad Compatible
- Android Phones & Tablets Compatible
- Free AvaEye Monitoring Software for Windows and Mac
- Customizable recording methods:
- Continuous
- Manual
- Motion activated
- Schedule based
- Smart Event Detection2
- Audio detection3
- Smart Event Detection depending on camera model2
- Line Crossing
- Intrusion
- Enter Area
- Leave Area
- People Counting
- Missing Object Detection
- Abandoned Object Detection
- Face Detection
- Auto Tracking
- Smart Motion Detection (SMD)
- Export video footage using
- Using a small capacity USB drive
- Download over network to PC
- ANR technology to enhance the storage reliability when the network is disconnected
- Hot Swap up to 16 hard drives, Max 18 TB each
- RAID 0/1/5/6/10/50/60 Support
- 24 channel alarm input, 8 channel alarm output
- Quad Gigabit network adaptors to deploy security camera system over network
- Dual Gigabit SFP ports for using fiber with PoE cameras
- ONVIF Profile S, G, C, Q, A, T
- 3U Rack-mountable Chassis6
- NDAA Compliant
What's Included?
- (1) 128 Channel 4K Network Video Recorder with 16 SATA Bays
- (1) Power cord
- (1) USB Mouse
- (1) SATA HDD screws
- (1) SATA HDD cables
- (1) Alarm Block
- (2) Rackmount Ears
Specifications
Operating System | Embedded Linux |
System Resources | Pentaplex function: live, recording, playback, backup & remote access |
Control Mode | USB mouse, Network, App, PC/Mac Software |
Web Browser Support | Edge, Chrome, Firefox1 |
IP Camera Inputs | Over LAN, no built-in PoE |
Supported IP Cameras | AvaEye, ONVIF Profile S, Profile G, Profile T |
Video Output | HDMI 1 (video and audio), HDMI 2 (video only) , 1 VGA |
Display Split (Live) | VGA: 1 / 4 / 8 / 9 / 12 / 16 / 25 / 36 HDMI: 1 / 4 / 8 / 9 / 12 / 16 / 25 / 36 / 64 |
Display Resolution | HDMI1 and HDMI2: 3840x2160, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
Tour Display | Supported |
Privacy Masking | Up to 4 self-defined four-sided zones for privacy masking on each channel |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Video Compression | H.265+, H.264+, H.265, H.264 |
Audio Compression | G.711A, G.711U |
Recording Resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, 2CIF, CIF |
Recording Rate | 512 Mbps |
Outgoing Bandwidth | 384 Mbps |
Smart Detection by Camera2 | Intrusion Detection, Line Crossing Detection, Enter Area, Leave Area, Scene Change Detection, Abandoned Object Detection, Missing Object Detection, Auto Tracking, Ultra Motion Detection (UMD), People Flow Counting, Crowd Density Monitoring |
Smart Detection Limit2 | Up to 64 Channels |
Recording Mode | Manual, Schedule (Regular, Continuous), MD (Motion detection), Camera blank, Video loss, Alarm, Stop, Smart Event Detection2 |
Recording Interval | 60 min, Pre-Record 0-60s, Post-Record 5-600s |
Playback Capability | 4 channels 12MP, 4 channels 4K, 8 channels 4MP, 16 channels 1080P, 64 channels D1 |
Trigger Events | Recording, PTZ movement, Preview, Alarm, Email, Buzzer & Screen Popup |
Motion Detection | Zones: 396 (22x18), Sensitivity: 1-100 (level 100 is highest) |
Video Loss & Camera Blank | Supported |
Alarm Input / Output | 24 in / 8 out |
Playback Grid | 1 / 4 / 9 / 16 channels |
Video Search Mode | Time/Date, Alarm, MD, Video Loss, Exact search (accurate to second), Smart Search, Face Search,1 Behavior Search1 |
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom, Video retrieval |
Video Export | USB Device / LAN / Internet |
Ethernet | 4x RJ-45 LAN port (1 Gbps) 2x SFP (1 Gbps) |
Network Functions | HTTPS, HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Segment Search (Supports ONVIF IP camera, DVR, NVR, etc), FTP |
Max User Accounts | 128 |
Hard Disk | 16 SATA ports, 16TB each |
Total HDD Capacity | Up to 288 TB |
Disk Group | Supported |
RAID | 0, 1, 5, 6, 10, 50, 60, Supports N+1 Hot spare |
External HDD interface | 1 eSATA, 2x MiniSAS |
User Alert Functions | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Full, Recording/Snapshot Abnormal |
USB Interface | 4 Rear USB 3.0 |
RS232 | 1 Port for POS System and Keyboard Controller |
RS485 | 1 Port for PTZ Control |
Power Output | 12VDC |
Power Supply | 100-240 VAC |
Power Consumption | Approx Max 50 Watts without HDD |
PoE Power | None |
Working Environment | +14°F to +131°F / 10-90% RH |
Dimensions | 18.8" x 19.0" x 5.1" (WxDxH) |
Weight | 22.1 lbs |
Certification | FCC |
1. Chrome, Firefox, Edge and other Web Browsers provide limited functionality of web interface such as max 1080P video sampling and single camera viewing in live view mode. Windows Plugin installation provides access to full feature set of the web interface, including support for up to 4K resolution viewing, recorded view playback, and up to 16 channel grid view in live view mode.
2. Smart Event Detection based on camera capabilities. AvaEye PoE camera with Smart Event Detection capability required. Please check the product description of the camera to review its event detection capabilities.
3. AvaEye PoE camera with Audio Detection required.
4. With proper ventilation and room temperature of 80°F or less, drives larger than 10TB can be used.
5. Compatible AvaEye Panoramic Camera required.
6. 3rd Party Rails Required, not included
Recording Resolutions | 12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P |
---|---|
Total Incoming IP Bandwidth | 512 Mbps |
Total IP Recording Bandwidth | 512 Mbps |
eSATA Port | One |
USB Ports | (4) USB 3.0 |
Video Outputs | (1) HDMI, (1) VGA, (1) HDMI Spot |
Power Input | 110-220V AC Redundant |
Rackmountable | Yes, 3U |
Number of Audio Inputs | 128 IP Streams |
Encoding Supported | H.265+, H.265, H.264+, H.264 |
Number of PoE Inputs | None, uses network for connection |
Max Hard Drive Capacity | 16HDD, 256TB |
Hot Swap HDD | Yes |
RAID Redundancy | Yes, RAID 0/1/5/6/10/50/60 |
Warranty | 1 Year |
Recorder Type | NVR |
CPU | Embedded SOC |
Total Cameras Supported | 128 |
Supported Camera Signals | IP |
Number of BNC Inputs | Does Not Support BNC Cameras |
Number of IP Cameras Supported | 128 |
Total PoE Power | No Built-in PoE Ports |
Return Policy | 30 Days Return Policy |
Brand | AvaEye |
