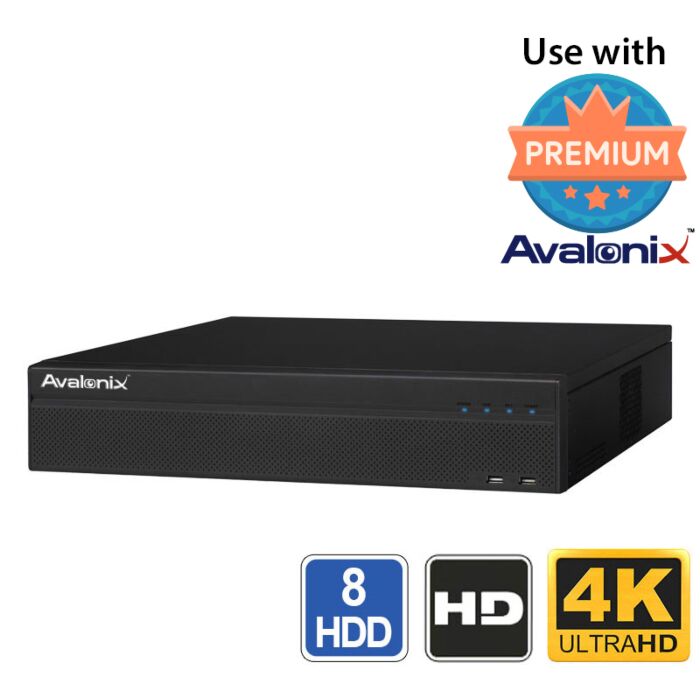

64 Channel 4K NVR


Availability: In stock

Regular Price: $1,699.99

On Sale: $1,399.99

Please select if you would like a DVD burner.

* Required Fields

Looking for a system?
Try our
Custom Security
Camera System
(716) 229-0080
We respond to every email
Up to 3 Year Warranty, and Best in-class Support for 2015

Most orders get shipped within 2-3 business days after order is placed. Special order items require additional time.

Call us now for more info about our CCTV products.

30 Day Return Policy.

Free Lifetime Tech Support on products purchased from us!



This Enterprise Class 64 Camera NVR for recording IP cameras up to 12MP resolution, is an economical yet very powerful 64 channel NVR. It contains a powerful Quad Core CPU, and has the highest encoding bit rate at the time this description was written for a standalone 64 camera NVR. It will support any camera up to 12MP (even in real-time if the camera supports it), and provides all the features one could ask for, including motion activated recording, easy video playback and download, remote viewing from a computer or mobile device, and Enterprise level features such as disk mirroring, Fisheye Camera Dewarp, and Smart Detection for video analytics.

Recording Capability

This 4K network video recorder supports any combination of the following resolution cameras. Basically you can mix and match cameras up to 12MP resolution. By choosing this NVR you future proof your system to support the highest resolution possible at this time for IP cameras.

The powerful Quad-Core processor inside provides a recording bandwidth of 320MBps. It features the latest H.265 and H.265+ video encoding algorithms to provide up to 70% in bandwidth savings over H.264. Combined with its 320Mbps encoding power, that means you can record pretty much any resolution IP camera from CCTV Camera World in real-time 30fps per camera. That's true even for 4K security cameras that stream 4K video at 30fps in H.265. Of course, it still offers H.264 encoding for use with older IP cameras that may still utilize H.264 video streaming.

Storage Capacity

This is a 2U Rackmount case that has all the bells and whistles that even a PC based NVR cannot provide. It allows for up to 8 internal SATA DVR hard drives up to 10TB each, for a total of 80TB storage capacity. It also features enterprise grade hard drive redundancy utilizing RAID 0/1/5/10 the user can set to safeguard against data loss by disk mirroring, striping, or both. If you don't need RAID, you can choose to record video in JBOD mode where each drive is written to once it is filled, or span across drive groups.

Video Backup

Mission critical live backups are a basic ability of all of our NVRs by allowing live backups using the FTP upload function to backup to a NAS where files can later be played back using our video player software for the computer. Live backups can also be done by streaming video from one NVR to another NVR to have an exact copy of video. Backup of short video segments to provide video evidence to law enforcement is easy and can be done by exporting video directly from the NVR to a USB flash drive connected to the unit, or over the internet or LAN to a computer using our client software for Windows and Mac.

Motion Detection

Motion alerts can be passed to the NVR by guaranteed compatible IP cameras from CCTV Camera World or compatible ONVIF cameras so you can record on motion, or record all the time with a motion log. You can also connect this 4K NVR to sensors using its alarm input connections, and attach devices like motion sensors, door sensors, PA speakers, sirens and strobe lights. It comes equipped with 16 alarm input connections and 6 relay outputs. You most likely will not need all of them, but its good to know they are available. Either with the use of video based or sensor based motion detection, it is easy to set up motion-activated recording and receive motion alerts via email. You can even receive Push Alerts to your Smartphone for motion or alarm events without any monthly charges

Smart Detection

Our professional line of NVRs offer capture of video analytics provided by certain camera models. If available on the camera, it provides finer video detection methods such as Tripwire, Intrusion, Abandoned/Missing Object Detection, Scene Change, Face Detection, People Counting, and Heat Map capabilities.

Remote Viewing

This NVR also offers remote access through its built-in web server that you can log on to using a web browser, mobile device, or the included Free Central Monitoring Software for the PC and Mac. After little configuration you can receive up-to-date alerts based off of video based motion detection, optional alarm triggers, or video loss. We also include FREE iPhone iPad and Android Apps so your security camera system is accessible from anywhere in the world.


  • Enterprise Class 64 Channel 4K NVR
  • H.265+, H.265, H.264 Video Encoding
  • Total 320Mbps recording bandwidth
  • H.265+ encoding provides up to 70% savings in bandwidth when used with a H.265 IP camera
  • Support IP cameras up to 12MP in resolution
  • Mix & Match IP camera resolutions
  • 360 Degree or 180 Degree Fisheye Camera Dewarp Feature
  • IP Search Function allows easy detection of compatible IP cameras on the same network
  • Compatible with CCTV Camera World IP cameras or 3rd party ONVIF IP cameras
  • Remotely playback and download recorded video
  • Multiple recording methods: calendar based, motion detection, alarm triggered, manual
  • Get motion alerts without any monthly charges
  • Intelligent video analytics when used with cameras with Smart Detection features:
    • Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map
  • Remotely backup video to FTP, NAS, windows computer, or mirror to another NVR unit
  • Allows easy video backups to USB drive, or over network
  • Multiple Monitor Outputs
    • One HDMI audio/video output for 4K Output up to 36 Channels per page
    • One HDMI spot out for up to 16 Camera Display
    • VGA Video Output
  • Up to 64 Channel Live View / Playback on Client Software
  • 80TB Total HDD Capacity
  • Supports RAID 0/1/5/10
  • Free Client Software for remote viewing via Windows or Mac computers
  • (2) Gigabit RJ45 Network Ports
  • Allows up to 20 simultaneous users to view or playback video remotely
  • ONVIF 2.4 Compliant
  • Rackmount 2U Case

What's Included?


Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 64 channel
Audio Input64 channel over IP, camera dependent
Two-way Talk 1channel Input, 1channel Output, RCA
Interface1 HDMI 4K, 1 VGA, 1 HDMI Spot 1080P
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display SplitScreen 1: 1/4/8/9/16/25/36; Screen 2: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Display Fisheye Dewarp Support
CompressionH.265+, H.265, H.264+, H.264, MJPEG
Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Record Rate320 Mbps
Bit Rate 16kbps - 20Mbps Per Camera
Record Mode Manual, Schedule (Regular, Continuous), Alarm, Motion Detection, Tampering, Video Loss, Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Drive, Network
Ethernet 2 RJ-45 port (Gigabit Port), function as independent or team
PoE None
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Internal HDD 8 SATA III ports, 10 TB each, Total 80TB
RAIDRAID 0/1/5/10
eSATA1 Port
Auxiliary Interface
USB4 ports (2 Rear USB3.0, 2 Front USB2.0)
RS2321 Port for POS System and Keyboard Controller
RS4851 Port for PTZ Control
Power Supply AC 100-240V, 50/60 Hz
Power Consumption NVR: 17W (without HDD)
Working Environment 14°F - +131°F, 10% - 90% RH
Dimension (W×D×H)17.3" x 17.7" x 3.7"
Weight 15 lbs (without HDD)
InstallationFlat table top / shelf, 2U Rack-mountable
UL Listed Yes



Return Policy30 Days Return Policy
Recorder TypeNVR
CPUEmbedded Quad Core
Total Cameras Supported64
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported64
Number of PoE InputsNone, uses network for connection
Number of Audio Inputs64 IP Streams
Encoding SupportedH.264, H.265
Encoding Support DetailH.265+, H.265, H.264+, H.264, MJPEG
Recording Resolutions12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
BNC Recording Frame RateNo
Total Incoming IP Bandwidth320 Mbps
Total IP Recording Bandwidth320 Mbps
Max Hard Drive Capacity8HDD, 80TB
RAID RedundancyNo
Hot Swap HDDNo
eSATA PortOne
USB Ports(2) USB 2.0, (2) USB 3.0
Video Outputs(1) HDMI, (1) VGA, (1) HDMI Spot
Total PoE PowerNo Built-in PoE Ports
Power Input110-220V AC
RackmountableYes, 2U
Warranty1 Year


Customer Reviews

Like it Review by Datsun18
I am an IT admin for a non-profit. After much research I found the functions offered by the NVR584K64 to be a bargain for the price. At first we used some older Axis cameras with this NVR. We ran in to issues with them not working, but the tech team responded by email within thirty minutes of my email with a link to a support video on how to add Axis cameras using ONVIF. We were able to get them working fine. Since Axis cams cost so much we decided to try the 360 panoramic cameras from CCTV Camera World and were very impressed by the 12MP camera. It has very useful video analytics features that came in handy and proved to be more useful than regular video based motion detection. We have it running for 2 years now and have not had any issues with it. It is easy to remote view in to using SmartPSS from a computer. The support videos and articles are what made me decide to purchase from this company. (Posted on 8/25/18)

Write Your Own Review

Only registered users can write reviews. Please, log in or register

Product Questions

You need to log in to ask a question.

Total 2 question(s)

Does this NVR provide encryption of data that is stored?

Question by: Josh on: 2017-07-12

All of our NVR and DVR recorders use a proprietary linux based file system to encrypt data on the internal hard drives.

Answer by: Tech Support on: 2017-07-13

your NVR available work with fisheye len IP camera or not?
And also can apply face recognition to all channels or not?

Question by: socheat on: 2018-04-03

This 4K NVR recorder works with the IP based fisheye security cameras we sell. There is no facial recognition. There is facial detection capability in certain IP cameras we sell that are compatible with this NVR. Facial detection allows for detecting people instead of pixel based motion detection.

Answer by: Tech Support on: 2018-04-07
