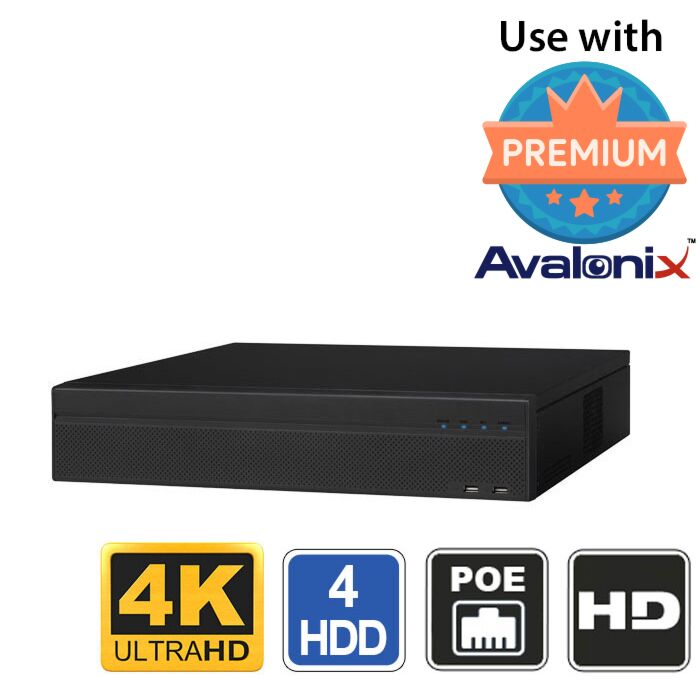

24 Channel PoE 4K NVR with 24 PoE Ports

Special Price $1,499.99 Regular Price $1,799.99
In stock
  • 24 Camera NVR
  • Up to 12MP / 4K Recording
  • H.265+/ H.264+ Video Encoding
  • Total 320Mbps Encoding
  • Supports 4K, 4MP
  • Supports De-Warp for fisheye cameras
  • 24 Built-in PoE+ Ports
  • Up to 40TB Storage
  • HDMI/VGA Output

This network video recorder is our most powerful 24 IP camera NVR as it features a Quad Core CPU. It can record all resolutions of network cameras, all the way up to these latest 4K security cameras which are 8MP and 12MP cameras. It utilizes the latest H.265 video encoding to encode video resolutions higher than 1080P, and is able to record up to 4K in realtime with the new 8MP 4K Cameras. If you are looking for a future proof NVR with the most horsepower, then this is it! It offers plenty of encoding bandwidth, 320Mbps to be specific. You would have to be recording at higher than 20Mbps per camera to reach that limit, and with H.265 and H.265+ encoding you will never reach that limit as it offers up to 70% bandwidth savings over H.264 encoding.

Any of our IP cameras that can be found here will work with this NVR. It is truly a future proof unit as it supports all the resolutions of cameras we offer, up to our max of 12MP at the time this description was written. You can expect real-time 30fps recording from any resolution you record as long as the camera is compatible and offers 30fps recording. It is important to note that to record H.265 video, the camera itself has to be a H.265 IP camera, and be compatible with this NVR. Here is a list of popular IP cameras that are compatible with this NVR.

This 24 Camera 4K NVR is powered by a powerful embedded processor and an embedded Linux operating system that stays virus free. The user interface is easy to use using the included mouse, making it simple to connect your cameras, set recording schedules, and motion detection schedules.

This NVR comes with built-in PoE+ ports for up to 24 cameras, making IP camera installation truly plug and play when using security cameras from CCTV Camera World. All you need is one network cable running from the camera to the PoE ports on the back of this recorder, and the NVR will transmit power and get video from a compatible camera all over one line. You can even use our pan tilt zoom cameras with this recorder and only one cable is needed for video, power, and PTZ data.

Also, there are 3 video outputs (2x HDMI, and VGA) so you can connect up to 2 monitors displaying the same screen (1 HDMI + 1 VGA). The second HDMI port is a spot out for live view only. HDMI one output supports 4K video output so you can enjoy each camera in full screen mode at 4K, which is the best possible resolution. Please note that NVRs do not have strong graphics cards for displaying multiple cameras at resolutions higher than 1080P from the video outputs. Using the HDMI video output on this 24 Camera 4K NVR, you can display up to 25 camera grid views.

Grid displays for playback of recorded video through the HDMI output vary based on the resolution of the cameras being used. For example, you can view a max of 8x 4MP cameras in the grid view, or 4x 8MP 4K Cameras. NVRs are a hybrid between a NAS device and DVR, and are not built with very powerful graphics display processors to minimize heat issues. If you are planning to use 3MP or higher cameras, you will need a PC running our Client software to act as a viewing terminal. You can Live Display and Playback multiple cameras at 4K when using a powerful PC with a powerful graphics card.

Video backups are easy to do as in all of our security DVR. They can be done locally at the NVR using a USB drive, or external USB DVD burner. You can even download video from the NVR over the network or internet using the included FREE client software for Windows and Mac computers. Please take a look at our videos to see why our products are the Best internet security cameras, demonstrating common functions using our free computer and mobile device apps.

This 24 channel PoE NVR comes with FREE Lifetime Technical Support by our expert staff. All the cameras we sell at CCTV Camera World are compatible with our NVR recorders, and Tribrid DVRs.

If you are looking for compatibility with cameras purchased elsewhere, please be sure to review our post about limitation of the ONVIF protocol when using third party cameras. We recommend using our cameras such as the smart security cameras we have to take full advantage of the video analytics the camera and NVR have to offer.


  • 24 Camera NVR recorder with PoE
  • Total 320Mbps Recording Bit Rate
  • H.265 & H.264 Video Encoding
  • H.265+ encoding provides up to 70% savings in bandwidth when used with a H.265 IP camera
  • Real Time Viewing and Recording at any resolution depending on camera
  • Easy to configure and add PoE IP cameras on the same network
  • Supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P resolution cameras
  • 360 Degree or 180 Degree Fisheye Camera Dewarp Feature
  • Selectable Live Camera Grid via HDMI : 1/4/8/16/25 cameras
  • 24 Built-in PoE+ ports
  • Total 210W PoE+ power output
  • Email Notification of motion alerts, alarm alerts, or video loss to mobile App
  • Push Alerts for motion or alarm events
  • Multiple recording methods: continuous, manual, motion activated or schedule based
  • Intelligent video analytics when used with CCTV Camera World cameras with Smart Detection features:
    • Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map
  • 360 Degree or 180 Degree Fisheye Camera Dewarp Feature
  • FREE Remote Viewing Apps for
    • iPhone
    • iPad
    • Android Phones & Tablets
  • FREE PC and Mac Client Software for remote viewing via Windows or Mac computers
  • 3D PTZ Control: easy control/targeting of Avalonix PTZ cameras, and easy preset/tour setup from NVR
  • Allows for remote backup of DVR to FTP , NAS, windows computer, or mirror to a second NVR
  • Easy video footage backups using a USB drive, external DVD burner, or download to your computer
  • Supports up to 4 internal SATA hard drives, Max 10TB each, Total 40TB
  • Allows up to 20 remote users to simultaneously view video
  • ONVIF Support
  • Multiple Monitor Outputs: (1) VGA, (1) 4K HDMI, (1) HDMI Spot Out
  • Rack-mountable 1.5U Case

What's Included?

  • (1) 4K Resolution 24 Camera NVR with PoE
  • (1) Power cord
  • (1) USB Mouse
  • (1) Terminal Block for Alarm/RS485 Ports
  • (1) Pair of Rackmount ears
  • (1) Hard drive screws


Main Processor Quad-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 24 channel
Audio Input 24 channel over IP, camera dependent
Two-way Talk 1channel Input, 1channel Output, RCA
Interface 1 HDMI 4K, 1 VGA, 1 HDMI Spot 1080P
Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Fisheye Display Fisheye Dewarp Support
Compression H.265+, H.265, H.264+, H.264, MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
Record Rate 320 Mbps
Bit Rate 16kbps - 20Mbps Per Camera
Record Mode Manual, Schedule (Regular, Continuous), Alarm, Motion Detection, Tampering, Video Loss, Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, People Counting, Heat Map)
Record Interval 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 16 channel
Relay Output 6 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Drive, Network
Ethernet 1 RJ-45 port (Gigabit Port)
PoE 24 PoE+ ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP camera, DVR, NVR and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Internal HDD 4 SATA III ports, 10 TB each, Total 40TB
eSATA 1 Port
Auxiliary Interface
USB 3 ports (3 Rear USB3.0, 1 Front USB2.0)
RS232 1 Port for POS System and Keyboard Controller
RS485 1 Port for PTZ Control
Power Supply AC 100-240V, 50/60 Hz
Power Consumption NVR: 17.5W (without HDD)
PoE: Max 25.5W per Port, 150W Total
Working Environment 14°F - +131°F, 10% - 90% RH
Dimension (W×D×H) 17.3" x 16.2" x 3.0"
Weight 11 lbs (without HDD)
Installation Flat table top / shelf, 1.5U Rack-mountable
UL Listed Yes
More Information
Recording Resolutions12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P
Total Incoming IP Bandwidth320 Mbps
Total IP Recording Bandwidth320 Mbps
eSATA PortOne
USB Ports(1) USB 2.0, (2) USB 3.0
Video Outputs(1) HDMI, (1) VGA, (1) HDMI Spot
Power Input110-220V AC
RackmountableYes, 1.5U
Number of Audio Inputs24 IP Streams
Encoding SupportedH.264, H.265
Number of PoE Inputs24
Max Hard Drive Capacity4HDD, 40TB
Hot Swap HDDNo
RAID RedundancyNo
Warranty1 Year
Recorder TypeNVR
CPUEmbedded Quad Core
Total Cameras Supported24
Supported Camera SignalsIP
Number of BNC InputsDoes Not Support BNC Cameras
Number of IP Cameras Supported24
Total PoE Power200 W
Return Policy30 Days Return Policy
