16 Camera 4K UltraHD Active Deterrence Surveillance System for Business and Warehouse Security, AvaEye

Taking a truly preventive approach to security means confronting intruders the instant they appear, not after the fact. AvaEye’s AESYS4KAD16T does exactly that by linking sixteen 8-megapixel Active-Deterrence PoE turret cameras to the robust NVR216P PoE recorder. Each camera can flood its view with the built-in LEDs and sound off a siren or live voice whenever its on-board analytics recognize human or vehicle movement. Because power and ultra-HD video share a single Ethernet run, expanding coverage is as simple as snapping each cable into one of the recorder’s PoE ports; within minutes the cameras are visible on a local monitor and inside the free AvaEye app for iOS, Android, and tablets. From the app, you can speak through the cameras, toggle lights, review recordings, or receive push notifications, whether you are on-site or halfway across the world.

16 Cameras

16 × 8MP Active Deterrence Turret IP Cameras

PoE NVR Included

Power, video, and recording through one system

No Monthly Fees

Save money and protect privacy

100ft Night Vision

Maximum night vision range

2TB Hard Drive

Expandable up to 20TB

Free AvaEye Phone App

This product meets the requirements set forth by the National Defense Authorization Act for use in government facilities and other organizations required to maintain NDAA compliance.

The recorder is supplied with a four-terabyte surveillance-grade hard drive that typically stores about one to two weeks of event-triggered 4K footage across all 16 channels before overwriting begins. If your desired recording time needs to be longer, purchase the system with a higher-capacity disk configuration when you place the order; the 16 Camera NVR (sku NVR216P) accepts two drives up to 10 terabytes each. Whatever capacity you select, lifetime email support from CCTV Camera World is included at no charge, so expert help remains available long after the warranty expires.

AvaEye Active Deterrence 8MP 4K PoE Turret Cameras - Two Way Audio

Every turret camera in the kit records crisp, full 4K 3840x2160 video at 20 frames per second through a fixed 2.8mm lens that delivers a sweeping 101-degree horizontal field of view. A 1/2.8-inch Starlight CMOS sensor preserves color in lighting as low as 0.0025 lux, making twilight surveillance almost as vibrant as mid-afternoon. When ambient light finally disappears, the camera allows the choice between two integrated illuminators: nearly invisible infrared for covert black-and-white monitoring or a warm-white LED that restores full-color detail, which is excellent for discerning vehicle paint and clothing tones at night. Both light sources reach roughly 100 feet, ensuring that yards, parking lots, and warehouse bays remain visible until sunrise. A built-in microphone picks up voices within about 25 feet, while the high-output speaker delivers sirens and two-way conversation without extra cabling. Housed in an IP67-rated metal shell and built exclusively with NDAA-approved components, the turrets thrive in punishing weather and satisfy government procurement rules.

Warm-Light and Infrared Flexibility for Any Night-Time Scenario

Traditional cameras force you to choose between infrared or the color clarity of visible light. AvaEye’s dual-illumination design lets you schedule or automate that choice. Keep driveways discreet with IR until human movement is detected, then the warm-light LED shines to record color evidence. In patios or shop fronts where customer comfort matters, schedule the visible light to switch on at dusk for welcoming illumination that doubles as crime deterrence. The light behavior is programmed per camera in the web interface or can be activated on the fly through the mobile app or NVR.

Active-Deterrence Technology Turns Surveillance into Prevention

Darkness and quiet have always favored thieves and vandals, yet the IP4KEYELHT removes both advantages. When a person crosses a virtual boundary or triggers Ultra Motion Detection, the warm-white LED quickly makes it known that the area is being monitored, and the speaker can issue a powerful alarm noise or a custom warning. Immediately aware of the property's protection, would-be intruders will typically retreat before attempting a break-in. In daylight, the same speaker becomes a convenient tool for greeting guests, directing contractors, or discouraging porch pirates without leaving your desk.

4K PoE Recording with or without an Internet Connection

The NVR216P’s 16 built-in PoE ports energize every camera over cable runs up to 328 feet, so the system remains entirely self-contained if you decide to keep it offline. Even in stand-alone mode, it stores ultra-HD footage, can record based on analytics events, and offers live view and playback on an HDMI monitor or any browser on the local network. Putting the recorder online unlocks remote live viewing through the easy QR method or secure port-forwarded access and push notifications that follow you wherever your phone has service.

Smart Surveillance That Reduces False Alarms and Saves Storage

AvaEye’s analytics go far beyond simple pixel-based motion. Line-crossing rules act as digital tripwires across fences and thresholds, while intrusion boxes protect loading docks and side doors by alerting whenever a person or vehicle enters or exits the zone. Ultra Motion Detection is another option for ignoring moving plants and shadows, because it only focuses on real people or vehicles instead of being triggered by everything that moves. For businesses interested in foot-traffic metrics, the cameras offer people-counting and crowd-density data that provide actionable business insights. You can choose to record exclusively on these advanced events or pair them with continuous 24-hour capture for ironclad evidence.

NDAA-Compliant Equipment for Sensitive Deployments

Both the NVR216P recorder and 8MP turret camera are assembled without banned chipsets, satisfying the requirements of the United States National Defense Authorization Act. This certification means the AESYS4KAD16T system is an excellent choice for government projects, city buildings, and private companies that require clear and trustworthy supply chains.

View and Manage the System from Any Platform

At a desktop or laptop, the free AvaEye Camera Monitoring Software (CMS) for Windows and macOS can merge multiple systems, offer drag-and-drop camera layouts, and export clips in seconds.

Before going on the move, quickly scan the recorder’s QR code into the AvaEye mobile app to see live video in seconds, playback footage, or interact with the two-way talk feature. Push notifications are also available to configure and arrive as soon as the analytics detect noteworthy activity.

For browser-based access, a lightweight plug-in enables Microsoft Edge, Chrome, or Firefox to display multi-camera grids in full 4K and stream audio, whether you are on the local LAN or connected remotely through secure port forwarding.

With 16 clear 4K views, built-in lights and sounds to scare off intruders, and smart analytics that quickly respond to events, the AESYS4KAD16T system gives large areas like warehouses, campuses, estates, or big stores the ability to prevent problems before they happen instead of just recording them later.

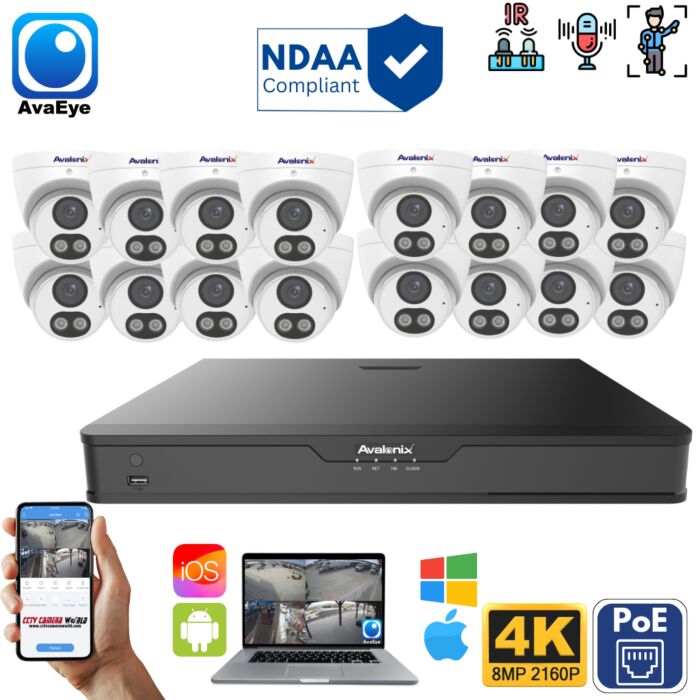

This system contains:

• (1) 16 Channel NVR (NVR216P) pre-installed with a 2TB drive; larger hard drive configurations can be selected when purchasing
• (16) 4K Two-way Audio AI Smart Turret AvaEye Camera with Active Deterrence (IP4KEYELHT)
• (1) USB mouse
• (1) NVR Power Adapter
• (1) Ethernet cable for NVR, 5ft

IMPORTANT: This system does not include cabling for the cameras. The cameras require CAT5e or better. You can add premade cables from the drop down menu located next to the add to cart button on this page. Or browse our selection of cables and add them to your cart from our Network Cable page before checking out.

Disclaimer: This PoE IP camera system is made for cameras to directly connect to the back of the NVR. Use beyond the specified design may not qualify for free support. For assistance outside of the intended use, please consider adding a paid network support session to your cart prior to checkout.

Camera System Details

16 Channel PoE NVR by AvaEye

NVR Model: NVR216P
Supported Channels: 16
Cameras: 16
Cables Included: No
Pre-installed Storage: Yes (select when adding to cart)
NVR Viewing Resolution: 8MP, 4MP, 3MP, 1080P, 720P
NVR Video Output: HDMI up to 4K or VGA up to 1080P
Supported Camera Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
Compression: Audio: G.711a, G.711u; Video: H.264/H.265
Playback Maximum: 2 channels 4K, 3 channels 5MP, 4 channels 4MP, 5 channels 3MP, 8 channels 1080P
AI: Yes, with AvaEye Cameras
Event: MD (Sensitivity Level 1~8); Video loss, Beep, Email, Push notification to Mobile APP on AI Event
Playback Function: Fast forward / backward; Slow forward
Maximum Hard Drive Capacity: Two (2) Drives up to 10TB each (select when adding to cart)
Recording Bandwidth: 160Mbps
Recording Bandwidth Out: 64Mbps
Display output: VGA up to 1080P, HDMI up to 4K
USB Ports: 1 USB 2.0 Front, 1 USB 3.0 Back
Power: 100-240VAC to 52VDC adapter
Power Consumption: 10W Excluding hard disk and PoE
Remote Monitoring: Android, Apple, PC, Mac
Push Alerts to Phone: Yes
Email Notifications: Yes
Smartphone App: AvaEye Mobile App
PC and Mac Software: AvaEye Camera Monitoring Software
Web Browser Access: Yes, Single Channel View at 1080P without plugin, Multi-camera grid and up to 4K resolution per Single Channel supported with Windows plugin
Dimensions: 14.9" x 12.4" x 2.1" (WxDxH)
Operating Temp: 14°F ~ 131°F; Humidity: Less than 90% RH
System Warranty: 1 year
NDAA Compliant: Yes

Outdoor Active Deterrence PoE Turret Camera 8MP 4K

Camera Type: Turret
Camera Model: IP4KEYELHT
Camera Connectivity: Direct or via Network
Camera Resolution: 8MP 4K (3840 x 2160 pixels)
Frame Rate: 20 frames per second
Lens: 2.8mm
Field of View: 101°
Backlight Compensation: True WDR, HLC, BLC
Pan-Tilt-Zoom: No
Night Vision: Yes
Night Vision Range: Up to 100 feet in total darkness
Warm Light LED: Yes
Warm Light Range: Up to 100 feet in total darkness
Camera Connection: Direct PoE to NVR
Camera Audio: Built-in Microphone and Speaker
Camera Analytics: Yes, Ultra Motion Detection (Human/Vehicle), Intrusion Box Detection (Human), Line Crossing Detection (Human), People Flow Counting, Crowd Density Monitoring
Audio Detection: Yes
Active Deterrence: Warm Light LED and Speaker
Indoor or Outdoor Use: Both
Weatherproof Rating: IP67
Power over Ethernet: Yes
Maximum Wire Length: 328 feet (direct connection)
Camera Operating Temperature: -22°F to 140°F
Camera Warranty: 1 year
NDAA Compliant: Yes
