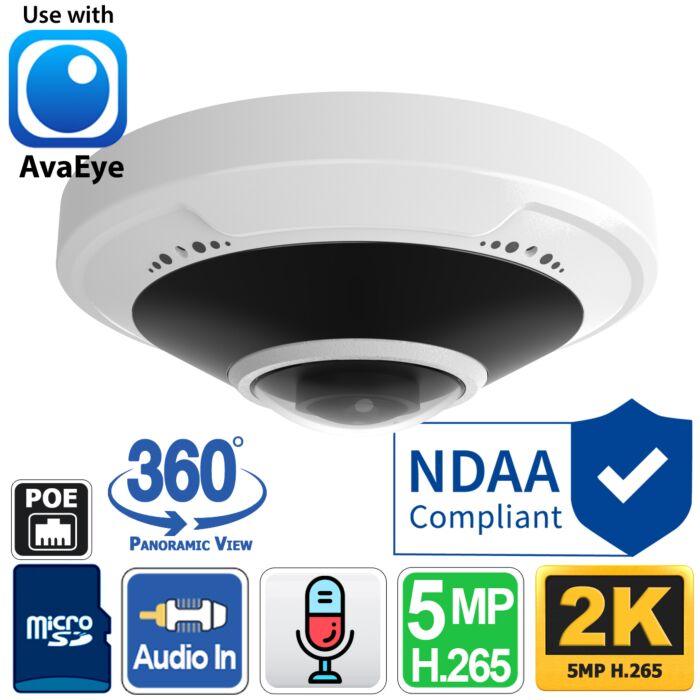

Low Profile Fisheye Dome Camera with Built-in Mic, AvaEye
- 5MP Fish Eye
- 1.4mm, 360° View
- Up to 33ft IR Night Vision
- 2 Built-in Mics
- Indoor, Outdoor
- IK10 Vandal Resistant
- PoE, 12V DC
Introducing the AvaEye Low Profile Fisheye Dome Camera with Built-in Mic: This camera's Progressive Scan CMOS Image Sensor powers a robust 5MP, 3K video output made specifically for thorough surveillance. Its unique 1.4mm Fisheye lens offers an unparalleled 360-degree wide-angle view, ideal for monitoring vast areas, whether in retail settings or industrial spaces. Night vision capabilities extend up to 33 feet, while its built-in microphone captures clear audio within a 30-foot radius. Smart features include the Heat Map video analytic and audio detection functionalities. The camera boasts an IP66 weatherproof rating and IK10 vandalism resistance, ensuring durability. NDAA-compliant, it aligns with US federal standards. As with all AvaEye products, expect effortless connectivity and a variety of storage and viewing options. Choose this camera for a holistic and efficient surveillance experience.
![]() |
5MP 3K VideoA 5MP Progressive Scan CMOS Image Sensor powers this camera, which produces clear 3K video at a steady 30 frames per second. To give you an idea of its power, the camera can capture facial details up to 21 feet at a comprehensive 360-degree wide angle setting. Advanced image features, including True WDR, BLC, HLC, and 3DNR, offer enhanced video quality in varied lighting conditions. With H.265+ video encoding, you can enjoy up to 70% bandwidth savings compared to H.264, ensuring efficient data transfer and storage. |
![]() |
Fisheye ViewThe camera's 1.4mm Fisheye lens is specifically designed to offer expansive 360-degree field-of-view captures. This broad perspective makes it especially useful in areas where full coverage is essential, like convenience or retail stores, allowing for full visibility of customer interactions and product displays. Similarly, in manufacturing spaces or workshops, the camera becomes an invaluable tool, monitoring large areas or multiple workstations simultaneously to ensure smooth operations and safety. |
![]() |
Night VisionWhether day or night, the camera automatically switches between color and black and white modes based on ambient lighting. In the darkness at night, the camera provides up to 33 feet of IR night vision for black-and-white video, making sure your premises are monitored even in complete darkness. |
![]() |
Built-in MicrophoneFor those interested in audio surveillance, the camera's built-in microphone ensures clear audio pickup, covering up to 30 feet in a quiet environment. |
![]() |
Power over EthernetThanks to PoE connectivity, video and power transmission are simplified over a single network cable, reaching distances up to 300 feet. For those requiring extended transmission, the camera also supports extended PoE technology, allowing for up to 820 feet of distance for power and video when used with solid copper CAT6 cable. |
![]() |
Many Ways to Watch and RecordAccessibility is made simple, allowing users to view footage via an AvaEye NVR, web browser, AvaEye PC/Mac software, or AvaEye App for smartphones and tablets. For storage flexibility, the camera can record to multiple destinations: a dedicated AvaEye NVR, the AvaEye computer software for PC/Mac, or an internal MicroSD of up to 256GB. |
![]() |
Weather ResistantIts IP67 weatherproof rating ensures it's resilient in both indoor and outdoor scenarios, regardless of weather. Constructed with a robust combination of metal and plastic, this camera is built to last. |
![]() |
Vandal ResistantThis camera boasts an IK10 rating, ensuring protection against vandalism and tampering. Designed to withstand deliberate force by being impact-resistant, its resilient build will help to provide continued operation even in high-risk areas where the camera may be within reach. |
![]() |
NDAA CompliantNeed NDAA-compliant cameras? NDAA refers to the National Defense Authorization Act, which in recent years has limited the use of various surveillance equipment brands within federal and military facilities. This restriction extends to non-profits and businesses that receive federal funding or have contracts with the US Federal Government. With NDAA-compliant status, this camera offers peace of mind, ensuring you are in compliance when making a purchase. |
![]() |
AvaEyeAvaEye cameras and NVRs are made to connect effortlessly with each other, ensuring a streamlined plug-and-play process. Using a compatible NVR not only offers users an easy setup but also allows you to take advantage of advanced video analytics and optimized surveillance from a PC/Mac or mobile device. Opt for a solution that elevates and simplifies your residential or commercial security setup. |
Features
- Low Profile Fisheye Dome Camera with 2 Built-in Microphones
- 5MP Progressive Scan CMOS Image Sensor
- 2592x1944 Resolution Video at 30fps
- Up to 21ft of facial detail at 360 degree angle of video1
- Up to 33ft of IR night vision2
- Day & Night Switching (color vs black & white) in complete darkness
- H.265 and H.264 video encoding
- H.265+ provides up to 70% in bandwidth savings over H.264
- 3 Video Streams:
- Main Stream up to 5MP
- Sub Stream 1 up to 1080P
- Sub Stream 2 up to D1
- Video Analytics: Heat Map
- Advanced Image Features: True WDR / BLC / 3DNR
- Does not allow De-Warp of image
- Easy PoE connectivity to send video/power over one CAT5e cable up to 300ft
- Records to AvaEye NVR, Computer, NAS, FTP
- View from NVR, Web Browser, Smartphone or Tablet
- IP66 Weather Proof3 - Safe to use outdoors or indoors in cold or hot weather
- Ceiling and eave mountable, optional wall and pole mounts available
- IK10 Vandal Resistant
- Metal & Plastic construction
- NDAA Compliant
1. Under ideal daylight conditions
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water.
What's included?
- (1) 5MP Fisheye Fixed Dome Network Camera, 33ft Night Vision
Specifications
Image Sensor | 1/2.8" 5MP Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||
Effective Pixels | 2592 (H) x 1944 (V) | ||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual, 1/1- 1/100000s | ||||||||||||||||||||||||||||||||||
Minimum Illumination | 0.01 Lux F2.0 (Color), 0 Lux IR On | ||||||||||||||||||||||||||||||||||
S/N Ratio | More than 55dB | ||||||||||||||||||||||||||||||||||
IR Distance | Up to 33ft | ||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto, Manual | ||||||||||||||||||||||||||||||||||
Lens Type | Fixed | ||||||||||||||||||||||||||||||||||
Focal Length | 1.4mm | ||||||||||||||||||||||||||||||||||
Max Aperture | F2.0 | ||||||||||||||||||||||||||||||||||
Angle of View | 360° | ||||||||||||||||||||||||||||||||||
Focus Control | Fixed | ||||||||||||||||||||||||||||||||||
DORI Distance* | Detect | Observe | Recognize | Identify | |||||||||||||||||||||||||||||||
103ft | 41ft | 21ft | 11ft | ||||||||||||||||||||||||||||||||
Compression | H.265+, H.265, H.264 Base/Main/High | ||||||||||||||||||||||||||||||||||
Video Analytics | Motion detection, Heat Map | ||||||||||||||||||||||||||||||||||
Streaming Capability | 3 Streams (Main Stream, Sub Stream 1, Sub Stream 2) | ||||||||||||||||||||||||||||||||||
Resolution | 5MP (2592x1944), 1080P (1920x1080), 720P (1280x720), D1(720x576), 2CIF (704x288), CIF(352x288) | ||||||||||||||||||||||||||||||||||
Frame Rate | Main Stream: 5MP (1-30fps), 2MP (1-30fps); Sub Stream 1: 2MP (1-30fps); 720P (1-30fps) Sub Stream 2: D1 (1-30fps), 2CIF (1-30fps), CIF (1-30fps), | ||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR, VBR | ||||||||||||||||||||||||||||||||||
Bit Rate | 128K - 16384Kbps | ||||||||||||||||||||||||||||||||||
Day/Night | Auto (ICR), Color, B/W | ||||||||||||||||||||||||||||||||||
WDR | Yes | ||||||||||||||||||||||||||||||||||
BLC Mode | BLC | ||||||||||||||||||||||||||||||||||
White Balance | Auto, Auto2, Locked, Street Lamp, Outdoor, Manual | ||||||||||||||||||||||||||||||||||
Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||
HLC | No | ||||||||||||||||||||||||||||||||||
Dewarping | No | ||||||||||||||||||||||||||||||||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||||||||||||||||||||||||||||||||
Region of Interest | Off / On (8 Zone) | ||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||
Digital Zoom | Yes | ||||||||||||||||||||||||||||||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | ||||||||||||||||||||||||||||||||||
Mirror | Off / On | ||||||||||||||||||||||||||||||||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||||||||||||||||||||||||||||||||
Audio Input | Yes, 2 Built-in Microphones | ||||||||||||||||||||||||||||||||||
Alarm Input | Yes, 1 input, 1 output |
||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 100Mbps | ||||||||||||||||||||||||||||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NFS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||||||||||||||||||||||||||||||
Compatibility | Avalonix, ONVIF Profile S, G, T | ||||||||||||||||||||||||||||||||||
Max. User Access | 3 Users | ||||||||||||||||||||||||||||||||||
Record Method | NVR, NAS (Network Attached Storage), Local PC for instant recording | ||||||||||||||||||||||||||||||||||
MicroSD | Up to 256GB, factory installed (optional) | ||||||||||||||||||||||||||||||||||
Web Viewer | IE**, Edge, Chrome, Firefox | ||||||||||||||||||||||||||||||||||
Mobile Device | iOS, Android | ||||||||||||||||||||||||||||||||||
Power Supply | 12V DC or PoE (802.3af) | ||||||||||||||||||||||||||||||||||
Power Consumption | 8.5W | ||||||||||||||||||||||||||||||||||
Operating Conditions | -22°F – +140°F, Less than 95% RH | ||||||||||||||||||||||||||||||||||
Weather Protection | IP66 | ||||||||||||||||||||||||||||||||||
Vandal Resistance | Yes IK10 | ||||||||||||||||||||||||||||||||||
Casing | Metal & Plastic | ||||||||||||||||||||||||||||||||||
Dimensions | 4.9" x 1.7" (diameter x height) | ||||||||||||||||||||||||||||||||||
Net Weight | 0.8 lbs | ||||||||||||||||||||||||||||||||||
Certifications | FCC |
*Distance is calculated based on sensor specifications and lab test results in ideal daylight conditions without glare. Identification means positive ID of a face, recognize means ability to tell the likeness of an individual.
**IE or Microsoft Edge with IE Mode, provides access to full feature set of the web interface with Plugin installation. Chrome, Firefox, and Edge provide limited functionality of web interface. For full functionality consider using the AvaEye CMS software.
Lens | 1.4mm |
---|---|
Wide Dynamic Range (WDR) | WDR |
Pan Tilt Zoom | No |
Dimensions | 4.9" x 1.7" (diameter x height) |
Operating Temperature | -22°F to +140°F |
Video Encoding | H.265/H.264 |
Image Sensor | 1/3" 5MP CMOS Sensor |
Weather Proof | Yes, IP67 |
Warranty | 1 Year |
Camera Resolution | 5MP |
Signal Type | IP |
Camera Color | White |
Night Vision | 33ft |
Power Input | 12V DC / PoE |
Angle of View | 180° |
Optical Zoom | No |
SD Card Slot | Yes |
Microphone | Built-in Mic |
Video Analytics | No |
Return Policy | 30 Days Return Policy |
Brand | AvaEye |
